Used Second Hand Hydraulic Hammer Box Type

Name: Used Second Hand Hydraulic Hammer Box Type
Brand: tool-buy.com
SKU: 691297682
Availability: InStock
Rating: 4.8 (40 reviews)

Price:	US $ 3600/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Handan Zhongye Machinery Manufacture Co., Ltd.

Showroom Product Company Profile

Prod Model:	HB30G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hammer:	Box Type
Condition:	Used
Color:	Green
Model:	Hb30g
Type:	Hydraulic Power Units

Product Description

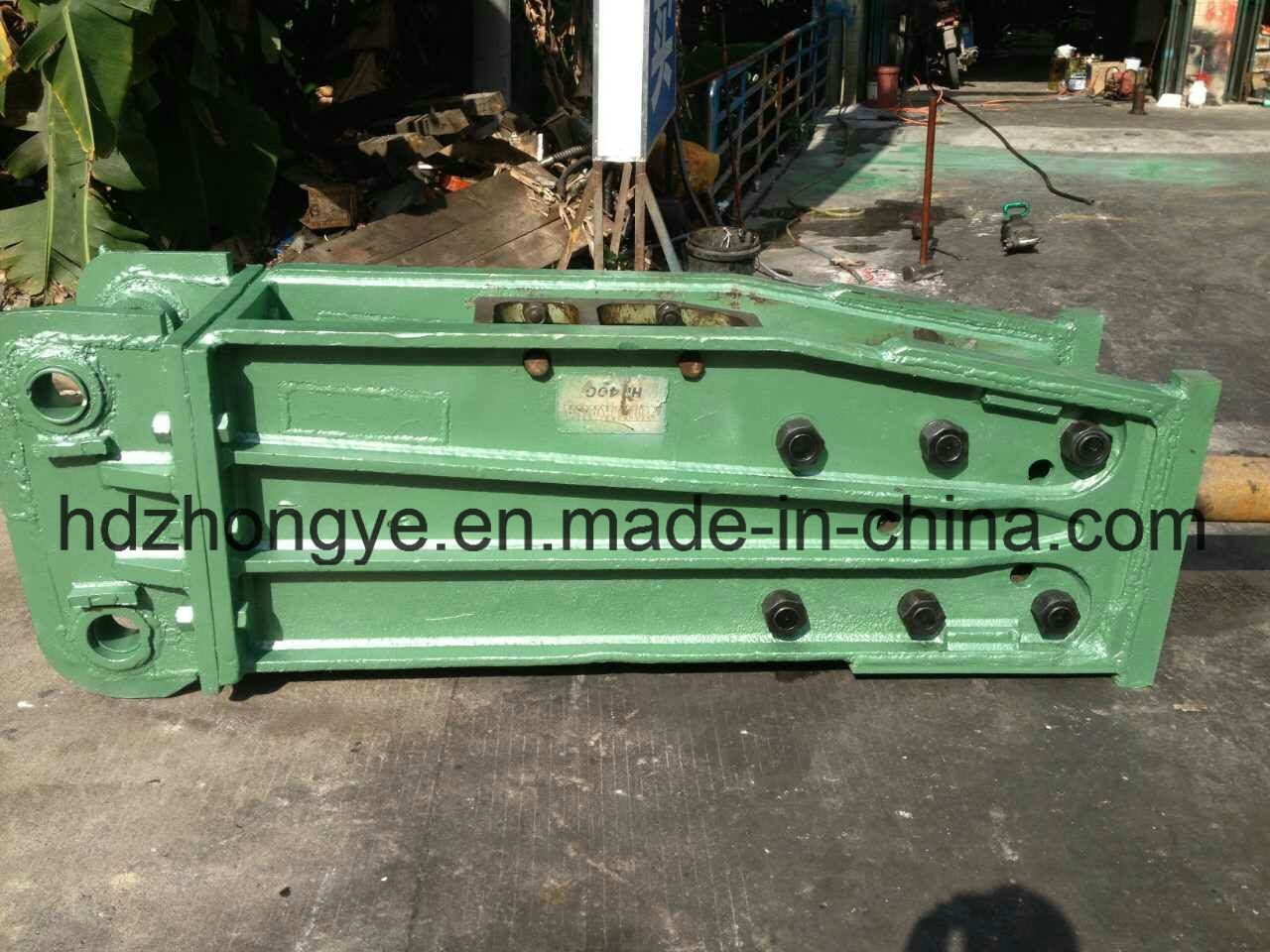

Used second hand hydraulic hammer box type

Advantages
1. Selected raw material - high quality heavy duty wear resistant steel
2. Hydraulic-gas system, increase stability
3. High-quality and durable wear parts
4. Advanced manufacturing facilities, introduced from South Korea
5. High energy and impact frequency (high performance)
6. High-performance optimized hydraulic unit
7. Low maintenance, less breakdown, long using life

Hydraulic hammer breaker
1. Cover all type excavators
2. Accessories completely
3. High Quality & Reasonable Price

1. Applicable field:
a. Mining---Mining, Second-time breaking;
b. Metallurgy---Clearing slag, Demolition of furnace and foundation;
c. Road---Repairing, Breaking ,Foundation work;
d. Railway---Tunneling, Demolition of bridge;
e. Construction---Demolition of building and reinforced concrete;
f. Ship repairing---Clearing clam and rust from the hull;
g. Others---Breaking frozen mud.

2. Advanced Breaking Technology:
a. Selected high quality heavy duty wear resistant steel, leading heat treatment technology.
b. Low oil consumption design, the hydraulic gas system increase stability.
c. High machine durability design. Advanced manufacturing facilities, introduced from South Korea
d. High deck durability design. The naked deck adopts high-intensity steel plate to decrease wear.
e. High oil seal durability design. .
f. Lightweight design. Achieve the best match with excavators and loaders.
g. Low noise design. Low maintenance, less breakdown, long using life

Light Duty Parameters

Model	Unit	ZY68S	ZY53S	ZY70S	ZY75S	ZY85S	ZY100S
Weight	Kg	250	270	330	450	680	1000
Length	Mm	1140	1420	1590	1895	2101	2401
Pressure	Kg/m²	110-140	90-120	110-140	120-150	130-160	150-170
Flow	L/Min	40-70	25-50	40-70	50-90	60-100	80-110
Rate	Bpm	500-900	550-1000	500-900	400-800	400-800	350-700
Hose	Inch	1/2	1/2	1/2	1/2	3/4	3/4
Chisel	Mm	68	53	68/70	75	85	100
Suit	Ton	4.0-7.0	1.0-3.5	4-7	6-9	7-14	11-16

Medium Duty Parameters

Model	Unit	ZY135S	ZY140S	ZY150S
Weight	Kg	2000	2050	2800
Length	Mm	2822	2828	3052
Pressure	Kg/m²	160-180	160-180	160-180
Flow	L/Min	100-150	120-180	150-210
Rate	Bpm	350-600	350-500	300-450
Hose	Inch	1	1	1
Chisel	Mm	135	140	150
Suit	Ton	16-21	18-26	25-30

Heavy Duty Parameters

Model	Unit	ZY155S	ZY165S	ZY175S	ZY180S	ZY210S
Weight	Kg	3100	3950	4200	4900	7100
Length	Mm	3254	3450	3709	3800	4430
Pressure	Kg/m²	160-180	160-180	160-180	160-180	190-210
Flow	L/Min	180-240	200-260	210-290	250-310	290-370
Rate	Bpm	300-450	250-400	200-350	250-320	200-400
Hose	Inch	1.25	1.25	1.25	1.25	1.25
Chisel	Mm	155	165	175	180	210
Suit	Ton	28-45	30-45	40-55	44-70	65-100

Detail of products:
Krupp HM45 42MM*470MM
Krupp HM50/55 45MM*480MM
Krupp HM60/75 55MM*590MM
Krupp HM85/90 62MM*600MM
Krupp HM100/110 65MM*700MM
Krupp HM130/131/135/140 65MM*780MM
Krupp HM170/185/190 75MM*800MM
Krupp HM200 80MM*785MM
Krupp HM300/301/305 80MM*900MM
Krupp HM400/401 80MM*800MM
Krupp HM550/560 100MM*1000MM
Krupp HM600/601 100MM*1000MM
Krupp HM700/701/702/705 115MM*1150MM
Krupp HM710/720 115MM*1080MM
Krupp HM780 120MM*1150MM
Krupp HM800 135MM*1150MM
Krupp HM900/901/902 135MM*1200MM
Krupp HM950/960 135MM*1080MM
Krupp HM1200 120MM*1250MM
Krupp HM1300/1500 150MM*1200MM
Krupp HM1300/2000 160MM*1400MM
For more information please feel free to contact us, and your specific enquiry will forward without delay

Brand Name	If the following models are not your type,tell us your hydraulic breaker model name, we have more
Atlas Copco	MB500,MB700,MB800,MB1000,MB1200,MB1500,MB1600,MB1700,HB2000,HB2200,HB3000,HB3100,HB4100,HB4200,HB5800,HB7000,PB110,PB160, PB210,PB310,PB420,SB50,SB52,SB100,SB100MK2,SB102,SB110,SB150,SB150MK2,SB152,SB200,SB202,SB300,SB302,SB450,SB552,SBC60, SBC115,SBC255,SBC410,SBC610,SB650,SBC800,SBC850,TEX30H,TEX75H,TEX80H,TEX100H,TEX110H,TEX180H,TEX250H,TEX400,TEX600-900H,TEX1400H,TEX1800,TEX2000,TEX1800H,TEX2000H,HBC1100-1700,HBC2500,HBC4000,HBC6000
Rammer Sandik	S18,S21,S22,S23,S25,S26,S27,S29,S52,S54,S55,S56,S82,S83,S86,E63,E64,E,65,E66,E66N,E68,G80,G90,G100,G110,G120,G130,M14,M18,BR927, BR1229,BR4510,BR4511,BR7013,BR321,BR422,BR623,BR825,BR2063,BR2064,BR2265,BR2568,BR3890,BR3288,BR3088,BR4099
NPK	E12-X,E15-X,E18X,E24X,E106,E200,E201,E202,E203,E204,E205,E206,E207,E208,E210A,E212,E213,E213A,E215,E216,E218,E224,E220,E225,GH06, GH07,GH1,GH2,GH3,GH4,GH6,GH10,GH15,GH18,H06-X,H08-X,H1-XA,H2-XA/XE,H2-X,H3-XA/XE,H4-X/XE,H5-X,H6-X,H7-X,H8-X,H8-XA,H10-X, H10-XB,H10-XE,H12-X,H12-XE,H16-X,16-XE
Furukawa	F1,F2,F3,F4,F5,F6,F9,F12,F19,F20,F22,F27,F30,F35,F45,F70,HB05R,HB1G,HB2G,HB2,5G,HB3R,HB100,HB3G,HB200,HB5G,HB8G,HB10G,HB700, HB15G,HB20G,HB30G,HB40G,HB50G
Kent	KF1,KF2,KF3,KF4,KF5,KF6,KF9,KF12,KF19,KF22,KF27,KF35,K45,KF70,KHB1G,KHB20,KHB2GII,KHB30,KHB3GII,KHB50,KHB5GII,KHB80,KHB8GII, KHB100,KHB10GII,KHB10GII-HD,KHB150,KHB15GII,KHB200,KHB20GII,KHB300,KHB30GII,KHB400,KHB40GII,KHB500,KHB50GII
Soosan	SB10,SB20,SB30,SB35,SB40,SB50,SB60,SB81,SB100,SB121,SB130,SB140,SB151
Krupp	HM45,HM55(50),HM51,HM60V,HM75(60),HM61,HM85,HM90V,HM100,HM110,HM130,HM131,HM135,HM140V,HM170,HM185,HM190V,HM200, HM220,HM230,HM301,HM305(300),HM400,HM401,HM405,HM350V,HM551,HM555,HM560,HM560CS(550),HM560V,HM580,HM600,HM601,HM680, HM720CS,HM(710),HM711,HM715,HM720,HM720V,HM712,HM700,HM701,HM702,HM705,HM706,HM780V,HM800,HM900,HM901,HM902,HM960CS (950),HM960V,HM1000V,HM1200,HM1201,HM1205,HM1500,HM1500CS,HM1500V,HM2100,HM2300V,HM2500(2200),HM2500V,HM2600
Montabert	BRP30,BRP45,BRP50,BRP60,BRP70,BRP85,BRP95,BRP100,BRP130,BRP140,BRP150,BRH40,BRH75,BRH76,BRH90,BRH91,BRH125,BRH250, BRH270,BRH501,BRH570,BRH620,BRH625,BR750,BRV32,M30,M50,M60,M70,M85,M95,M125SX,M130,M140,M150,M300,M600,M700,M900,SC6, SC8,SC12,SC16,SC22,SC28,SC36,V32,V1200,V45,V55
Indeco	HB5,HB8,HB12,HB19,HB27,HP200,HP350,HP500,HP600,HP700,HP900,HP1200,MES121,MES150,MES180,MES181,MES200,MES250,MES300, MES301,MES350,MES351,MES450,MES451,MES521,MES550,MES553,MES601,ME621,MES,650,MES1050,MES1200,MES1500,MES1800,MES1750, MES2000,MES2500,MES3000,MES3500,MES5000,MES7000,ME8500,UP181,UP200,U301,UP350,UP351,UP462,UP521,UP550,UP553,UP601,UP621, UP650,UP1200
Stanley	MB105,MB125,MB156,MB250,MB350,MB506,MB550,MB656,MB800,MB15EX,MB20 EX,MB30EX,MB40 EX,MB50 EX,MB70EX,MB80EX,MB100EX
Toku	TNB08M,TNB1E,TNB1M,TNB2E,TNB3E,TNB3M,TNB4E,TNB5E,TNB5M,TNB6E,TNB6,TNB5E,TNB7E,TNB8E,TNB10E,TNB14E,TNB16E,TNB22E, TNB100,TNB150,TNB190,TNB230,TNB310,TNB400
Toyo	THBB50,THBB51,THBB71,THBB101,THBB301,THBB401,THBB801,THBB1101,THBB1400,THBB 1600,THBB2000,THBB31,THBB201,THBB3000
Teledyne	TB100,TB120,TB125,TB180,TB225,TB220,TB325,TB275,TB400,TB425,TB625,TB700,TB725,TB750,TB825,TB830,TB900,TB925,TB1000,TB1025,T B980,TB1300,TB1425,TB680,TB1825,TB2075,TB2580,TB2080
JCB	HM65,HM100,HM165,HM160,HM260,HM550,HM850,HM1050,HM1150,HM1350,HM1450,HM1750,HM2350,HM265Q,HM360,HM385Q,HM495Q,HM550, HM1260Q,HM1560Q,HM1760Q,HM2460Q,HM3060Q,HM4160Q,HM2950,HM3850,HM3950
Okada	UB4,UB8,UB11,OUB305,OUB307,OUB308,OUB210,OKB302A,OKB303,OKB305,OKB312 B,OKB316,TOP35,TOP60,TOP200
Bobcat	B290,B300,B400,B500,B600,B700,B850,B950,B1200,B1400,B1750,B1250,B1560,B2500,B3500,B5060,B5500,B6560,HB280,HB380,HB580,HB680, HB880,HB980,HB1180,HB2380
Caterpillar	H45s,H50s,H55Ds,H63s,H65Ds,H70s,H90,H90Cs,H100s,H115s,H120Cs,H130,H130C,H130s,H140,H140Cs,H160,H160Cs,H170,H195s,CP75H, CP80H,CP100,CP100H, CP110H,CP150,CP180H,CP200,CP250H,CP290H,CP300,CP400
Dehaco	DHB100,DHB150S,DHB200S,DHB250S,DHB300S,DHB350S,DHB400S,DHB1000S,DHB501,DHB601,DHB35,DHB55,DHB75,DHB105,DHB165, DHB305,DHB405,DHB805,DHB1105,DHB1605,DHB2305,DHB3250,DHB4105
Takeuchi	TKB31,TKB50,TKB51,TKB71,TKB101,THB201,TKB301,TKB401,TKB801,TKB1101,TKB1400,TKB1600,TKB2000,TKB1401,TKB3000
Volvo	HB80,HB130,HB200,HB300,HB440,HB600,HB800,HB1100,HB1400,HB1700,HB2400,HB3200,HB3800
Hanwoo	RHB301-V,RHB302,RHB303-V,RHB303,RHB305-V,RHB308-2,RHB309,RH313-V,RHB322-2,RHB325,RHB328-2,RHB330,RHB340
Italdem	Gk85,GK86,GK160,GK161,GK211,GK290,GK291,GK360,GK361,GK600,GK610,GK950,GK960,GK1350,GK1351S,GK1600,GK2400,GK3400,GK3500 ,GK3800,K80,K270K550K1000,K1030,K1300
MTB	MT25,MT35,MT36,MT45,MT65,MT85,MT95,MT120,MT150,MT170,MT210,MT255,MT275,MT270,MT360,MT500,MT700
JKHB	JKHB31,JKHB51,JKHB71,JKHB101,JKHB301,JKHB401,JKHB801,JKHB1101,JKHB1401,JKHB1600,JKHB2000,JKHB3000
TABE	AGB12,AGB16,AGB270,AGB275,AGB350,AGB370,AGB371,AGB375,AGB400,AGB475,AGB700,AGB701,AGB750,AGB1000,AGB1300,AGB1301, AGB1600,AGB1601,AGB1620,AGB1800,AGB2000,AGB2001,AGB2020,AGB2800
DNB	D30,D60,D70,D90,D110,D130,D160,K20,K25,K30,K40,K50
O&K	H32,H45,H65,H85,H120,H150,H200,H260,H310,H380,H530,H700
Socomec	DMS50,DMS95,DMS160,DMS220,DMS270,DMS330,DMS680,MDO550,MDO750,MDO900,MDO1450,MDO1950,MDO2050

Handan Zhongye Machinery Manufacture Co., Ltd. is located in the ancient capital of Yan and Zhao, We specialized in manufacturing all kinds of the Hydraulic Breaker Spare parts, Such as Hydraulic breaker chisels, Back &front head, Thrust & Outer bushings, shell and so on.

We have perfect production equipments and test devices, using advanced international standards and adopt international advanced technology for products.

Our company is committed to development, production, sales and related technical services for products, we have cooperated with many famous corporations in domestic and abroad for long time, our products are exported to the Middle East, Europe, America and other countries and regions.

We insist on "do stronger, do bigger, do better, do longer" as the goal, will always to provide good products and satisfactory service to our new and old customers with the spirit of "unite hearts, first-class, customer first " and policy of "good quality, efficiency management, customer first, keep compliancey".

Our company attended 2014 exhibition of China international construction machinery, building material machinery, engineering vehicle and equipment. From this exhibition, we will seize this opportunity to make communication and cooperation with domestic and foreign enterprises, to help exhibitors make further understanding of our business scope, technical strength and engineering achievements, to promote our regional popularity, to build good cooperative atmospheres, to create advantage of great leap forward development by virtue of resource integration and complementary advantages with companies in the same industry.
