| Prod Model: |

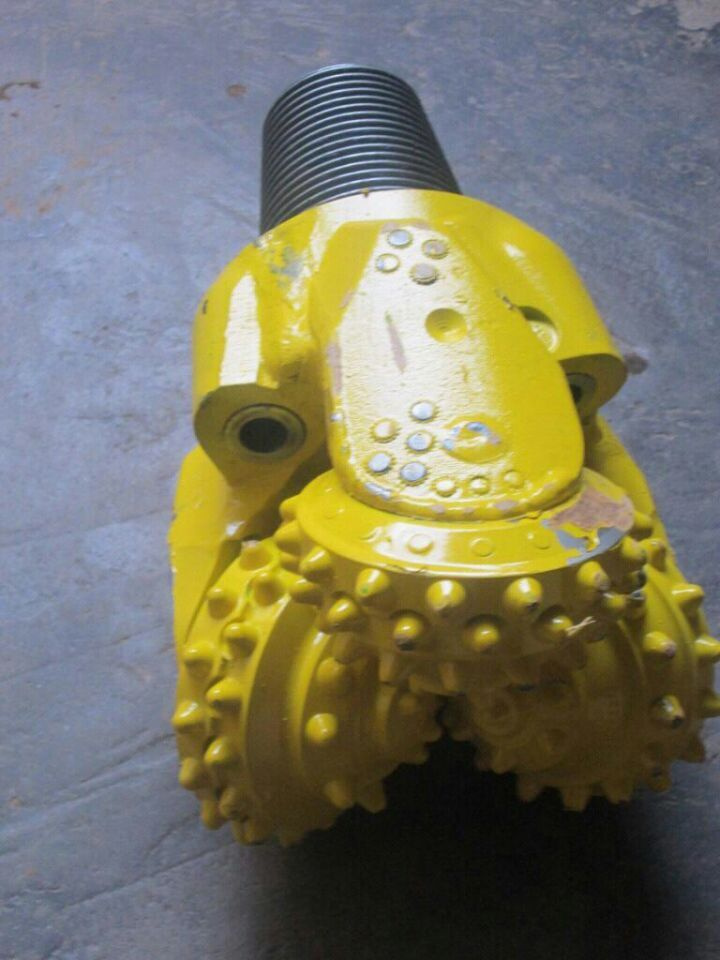

Used Tricone Bits |
| Color: |
Red Green Blue China Oil Drilling Tools |
| Teeth: |
Button Button |
| IADC Code: |
IADC517 |
| Connection: |
API Reg Pin |
| Types Of Bearing: |
Journal Bearing |
| Seal Bearing: |
Metal or Rubber Sealed |
| Guarantee Period: |
Perpetual |
Product Description
Specifications about our tricone bit
TCI bits
1, Soft formations(417, 437, 517, 537)
Features large chisel-shaped inserts to provide the highest penetration rate in the softest formations such as shales, clays, limestone and sands.
2, Soft to medium formations(617, 637)
Designed to drill effectively in formations such as hard limestone, dolomite, hard sands, and other formations with hard cherty.
3, Medium to hard formations(737)
For extremely hard formations such as chert, granite, flint, and taconite. Features short, closely-spaced inserts to ensure maximum penetration rate and wear resistance
Milled tooth bits
1, Soft formations(114-117)
These bits are designed to drill the softest formations such as soft shales, red beds, and clays, with high durability and maximum penetration rates.
2, Soft to medium formations(121, 124, 126, 134, 136, 137)
These bits are designed to drill formations such as shales, medium soft limestone, Medium sandstone and other formations with intermittent hard streaks.
3, Medium to hard formations(213, 214, 215, 217)
These bits are designed to drill formations such as hard sandstone, dolomite, and broken formations with hard cherty streaks
Main features:
1. Cutting Structure of this type sealed and non-sealed TCI tricone bits:
The wear-resistance of teeth is enhanced with premium tungsten carbide hard facing on the tooth
Surfaces for steel tooth bit.
2. Gauge Structure of this type TCI tricone rock bits:
Multiple gauge protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hard facing on the shirttail increases gauge holding capability and bearing life.
3. Bearing Structure of this type TCI tricone rock bits:
High precision roller bearing with two thrust faces. Ball locks the cone. Thrust faces hard face with wear resistant alloy. Abrasion resistance and seizure resistance of the bearing are improved.
Air Cooling Roller Bearing Tricone Bit
----Cutting Structure
Tungsten Carbide Inserts: Various type high quality tungsten carbide inserts can be equipped on the bits, professional and scientific selection of the inserts as per the different application and drilling process to achieve high efficient drilling production.
----Gauge Structure
Multiple gauge protection with gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability.
----Bearing Structure
Air cooling roller bearing package. Balls lock the cone, which reduces the probability of cone-dropping to minimum.
---- IADC
Vary from 512--732 applicable for mining.
Established in 1998, Cangzhou Lockheed Petroleum Machinery Co., Ltd. is a professional technology-oriented enterprise specialized in the production drilling equipments
And tools, which is one of the leading corporations of drilling tools and workover
Fishing tool manufacturing industry. Including three series with full model types, as
Follows:
Drilling Bit series: Rock roller bit, tricone bit, PDC drill bit, single bit, cone bit and hole opener;
Drilling Equipment Parts series: Downhole motor, manual tong, elevator, slips,
Stabilizer;
Workover Fishing Tool series: Releasing spear, junk basket, overshot, reversing
Sub, die collar, fishing tap etc.
Cangzhou Lockheed Petroleum Machinery Co., Ltd. is located at the center of Beijing-Tianjin-Hebei-Shandong-Henan-Region which is adjacent to National Expressway
No. 106, 166km away from Beijing, 110km away from Tianjin and 35km away from
Baiyangdian, the Pearl of Huabei Area. More convenient transport, faster delivery,
And more trustful enterprise is your best choice. Come on, join us.
Our goal: Strive for Perfection and Win by Quality.
