Prod Model: |
UT209 |
Model: |
Ut209 |
Power: |
9vbattery(6f22) |
LCD Size: |
49mm×18mm |
Product Colour: |
Red and Grey |
Product Net Weight: |
About 200g (Battery Included) |
Product Size: |
72mm×137mm×35mm |
Standard Packing: |
Giftbox, English Manual |
Standard Quantity Per Carton: |
66 PCS |
Standard Carton Measurement: |
595mm×310mm×350mm |
Item: |
Ut136 Digital Multimeter |
Product Description

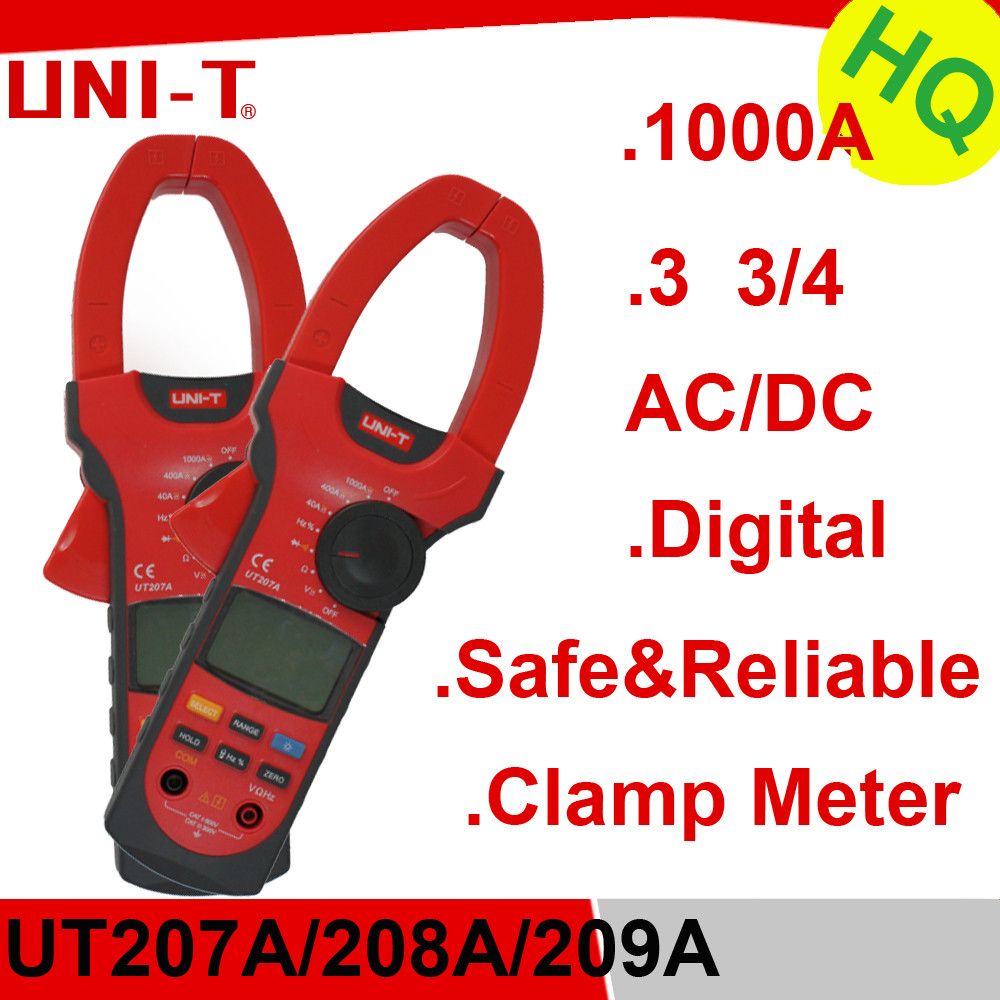

UT209 Power Clamp Meter Handheld digital Clamp MultimeterI. Product Description of UT209 Power Clamp Meter Handheld digital Clamp Multimeter Digital clamp meter UNI-T UT207A is a reliable and low consumption clamp multimeter. Digital clamp meter UNI-T UT207A measures AC/DC voltage and current, resistance, frequency, duty cycle, temperature, also performing diode check and continuity test. This digital clamp meter has overload protection.
Applicable fields are homes, schools, metallurgy, communications, manufacturing, national defense, electric power, chemical industry, ect, and the series is a best choice for electric circuit/equipment maintenance and repairing.
II. Parameter of UT209 Power Clamp Meter Handheld digital Clamp Multimeter Specifications | Range | Best Accuracy |
Model | | UT209 |
AC Current (A) | 66A/1000A | ±(2%+8) |
DC Current (A) | 66A/1000A | ±(1.5%+8) |
AC Voltage (V) | 6.6V/66V/600V | ±(1.2%+5) |
DC Voltage (V) | 6.6V/66V/600V | ±(0.8%+1) |
Resistance (Ω) | 600Ω/6.6KΩ/66KΩ/660KΩ/6.6MΩ/66MΩ | ±(1%+2) |
Frequency (Hz) | 660Hz/6.6KHz/66KHz/660KHz/6.6MHz/66MHz | ±(1%+3) |
Features |
Display Count | | 6600 |
Auto Range | | √ |
Jaw Capacity | | 55mm |
True RMS | AC Voltage | √ |
Duty Cycle | 0.1%~99.9% | √ |
Diode | | √ |
Auto Power Off | | √ |
Continuity Buzzer | | √ |
Low Battery Indication | | √ |
Data Hold | | √ |
MAX/MIN | | √ |
LCD Backlight | | √ |
Full Icon Display | | √ |
Inrush Current | AC Current | √ |
Input Impedance for DCV | Around 10MΩ | √ |
General Characteristic |
Power | 9V Alkaline Battery(6LF22) |
LCD Size | 47mm X 30 mm |
Product Color | Red and Grey |
Product Net Weight | 533g |
Product Size | 286mm X 105mm X45mm |
Standard Accessories | Alkaline Battery, Test Lead, Tool Box |
Standard Individual Packing | Gift Box, English Manual |
Standard Quantity Per Carton | 5 PCs |
Standard Carton Measurement | 480mm X 372mm X 315mm (0.056 CBM Per Standard Carton) |
Standard Carton Gross Weight | 11Kg |

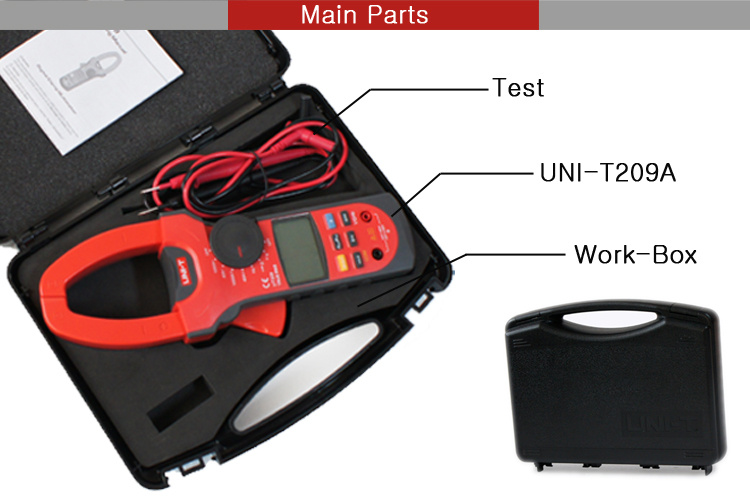

III. Detailed PhotosIV. Company InformationHuaZheng Electric Manufacturing (Baoding) Co., Ltd is the supplier of the State Grid in China. It means we are the supplier of the Chinese Government. And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malaysia, Vietnam and so on.
Our main products are Digital Multimeter, Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
V. Our Services1. 24 hours hot line.
2. We supply OEM service.
3. Our engineers available to service machinery overseas.
4. We can produce the products as your request.
5. To produce high quality products, services to the public.
6. To act quickly, seize the opportunity, continuous innovation, the pursuit of excellence.
VI. FAQ1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Baoding city, Hebei province, China.
You can go to Baoding by train directly.
All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A:Quality is priority.we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained BV, CE,ISO, SGS authentication.
5. Q: May I send deposit by Paypal?
A: yes, for the small amount, we accept paypal.
6. Q: May I know your payment term?
A: Mostly, we work with: FOB / CNF / CIF or EX-WORK.
100% by T/T before delivery. Small amount by T/T or Western Union or Paypal are acceptable.
7. Q: May I know your delivery term?
A: Depending on your quantity, for goods we have in stock, Delivery takes 2 days to comply with your
request.
For Regular order, delivery takes between 20-30 days.
VII. Customer VisitVIII.Exhibition
