V Groving Machine, V Groove Cutter, Stainless Steel Flush Cutter

V Groving Machine, V Groove Cutter, Stainless Steel Flush Cutter
Price: US $ 21700-22000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SCV SERIES
Voltage: 220V/380V/400V
Main Motor: Siemens Electrical
Machine Body: Steel Plate Welded Structure
Work Table, Flywheel, Slider: Cast Ht200,Anneal Treatment
Ball Screw: Forged Steelwork 45, Nitrogen Treatment
Main Power: Siemens Electrical
Cam Controller: Has 8 Proximity Switches, Reliable Performance
AC Contactor,Switches, Buttons, Lights: Schneider Electric SA
Hydraulic Components: Acb Oil Seal
Pneumatic Component: Dual Valve
Process Usage: Metal-Forming CNC Machine Tools
Movement Method: Linear Control
Control Method: Semi-Closed Loop Control
Numerical Control: CNC/MNC
Performance Classification: High-End CNC Machine Tools
Certification: Nr12

Product Description

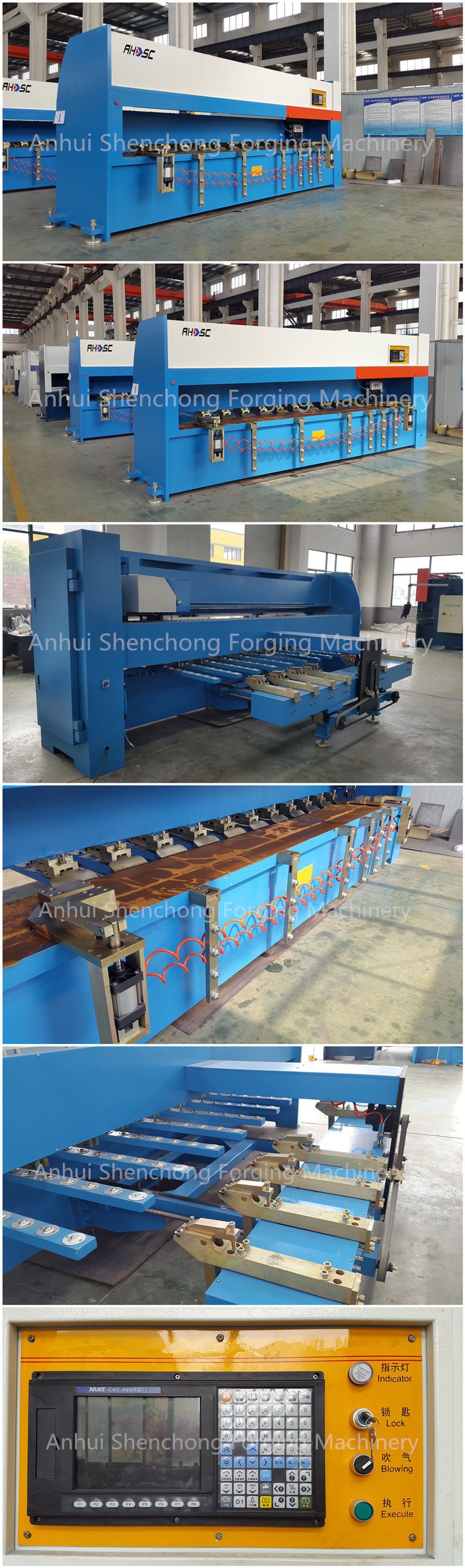

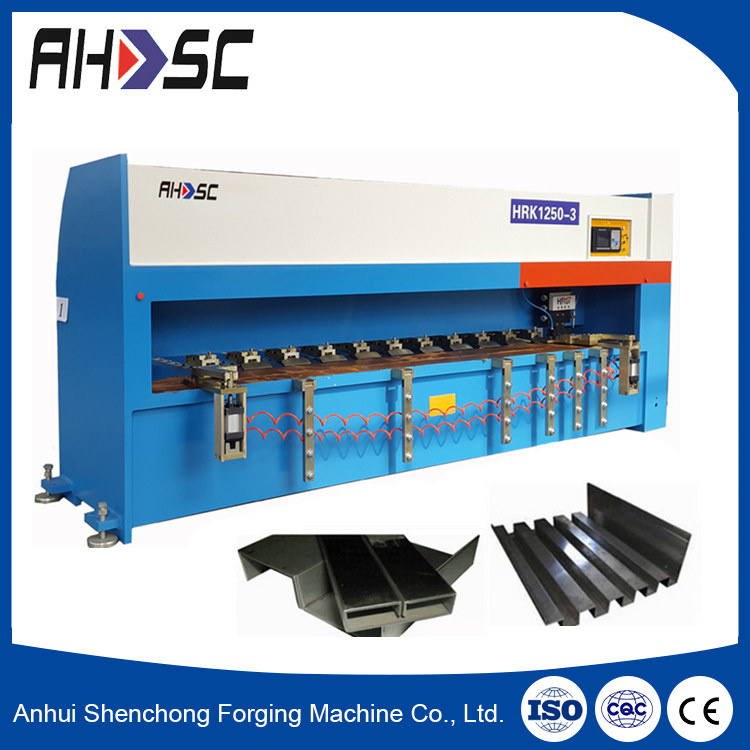

CNC Metal V Groover Machine  SCV-3200mm
                                      The structure of the CNC Metal V Groover Machine

This equipment is fully CNC V Groover Machine for metal sheet. It adopts advanced CNC system and innovative design with the advantages of high processing precision, simple operation, no noise, no vibration and so on. It is widely used in the sheet metal V-groove, U-groove and other irregular groove processing(including stainless steel, aluminum, aluminum plate, copper, iron, plastic, wood, acrylic panels and other special plates.). Particularly, it is applicable to the V-groove processing of sheet metal before bending .

 The clutch gives continuous strokes for mass production.
1.The Press adopts the low inertia combined dry pneumatic friction clutch and brake from OMPI, Italy, Smoother pres
s
 performance, easier maintenance, to ensure reliable safety and flexible action,Iow noise, long service life.
2.Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic
governor. which is stepless speed regulation within a certain range and enlarge the area of craf.
3.Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.
4.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
5.The press adopts cam controller which be combined with proximity switch (Schneider) which will realize the synchronous
detection and monitoring reliably.

Application Areas
1.precision:within 0.04mm
2.PLC system,easy to operate
3.widely use,v grooving all the metal steel
4.customize to your need
5.cnc with servo motor

6.Pneumatic drive environmental friendly
7.We stand at the top design.
8.Whole welding structure
9.Long using life and high rigidity.




Technical Specifications
 Technical parameters3200mm4000mm5000mm6000mm
1Thickness (mm)0.4-60.4-60.4-60.4-6
2Length(mm)3200400050006000
3Width of sheets (mm)100-1500
Optional
100-1500
Optional
100-1500
Optional
100-1500
Optional
4Grooving speed(m/min)15-6015-6015-6015-60
5Plate speed (m/min)0.5-50.5-50.5-50.5-5
6Y axis Minimum unit0.010.010.010.01
7Y axis Minimum positioning accuracy0.050.050.050.05
7Z axis Minimum unit0.010.010.010.01
9Z axis Minimum positioning accuracy±0.01±0.01±0.01±0.01
10X axis Motor power(kw)W=3W=3W=3W=3
11Y axis Motor power(kw)W=2W=2W=2W=2
12Z axis Motor power(kw)W=0.4W=0.4W=0.4W=0.4
13Air pressure (Mpa)0.4-0.60.4-0.60.4-0.60.4-0.6
14Dimension (L*W*H)5200*2100*23006000*2100*23007000*2200*23008000*2200*2300
15Weight9 ton11ton14ton16ton
16Shipping20GP40GP40GP40GP

ShenChong Forging Machine Co., Ltd. is committed to bringing high standard of professionalism, integrity and service in order to achieve a high reputation in the manufacturing & processing industry. We are a professional manufacturer of National Mechanical Industry, which produces press brake, shearing, section forging machines. The registered capital is RMB 6, 000, 000.

Shenchong occupies 20, 000 square meters workshop and office place. At present, the Company is staffed with 200 employees, 70% of which have junior college education background. During the producing of high-tech machine in the long run, the Company is not only able to supply a full range of CNC products, but also foster a strong skilled and talented team. The Company boasts to have its own R&D facilities, the strongest R&D capabilities in China.

Based on the advanced international management mode, our company brings pays more attention to the machine designs and quality of raw materials. In the process of prospecting its modern corporate system, the Company has attached importance on and given full play to the large-scale production, specialization in its development, standardization of its management, network construction for its sales and distribution, full and complete product lines in R&D, independent IPR, quality of services and knowledge increase of the employees; And it has gained advantages in science and technologies, quality and market share through state-of-the-art management, technical innovationm, equipment. We believe that we are a competitive supplier in our field and we warmly welcome your inspection.
