| Prod Model: |
CB0632A01 |
| Usage: : |
Concrete, Marble, Granite,PVC Tube,Timber, Brick |
| Feature: |
Cutting Sharp,Long Service Life,Less Sewing,Small |
| Technology: |
Brazed Welding |
| Wet And Dry: |
Wet and Dry |
| Material: |
Diamond and Metal |
| Customized: |
Customized |
| Origin: |
China |

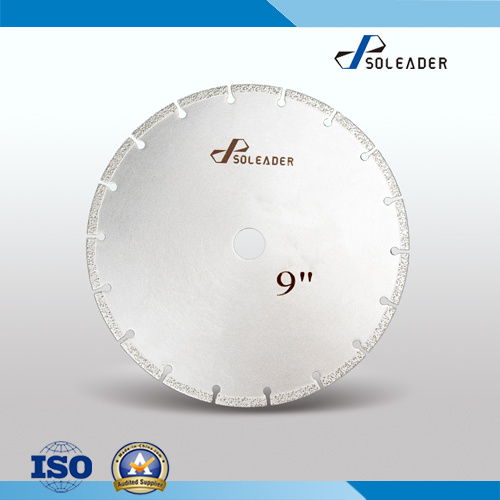

Product Description
Technology Introduction:
Vacuum Brazing is a material jointing process that directly bonds diamond to the blade. It is a three steps process that creates a bond which is significantly stronger that other joining methods.Vacuum brazed diamond blades are made with a much higher quality process than typical sintered or laser welded diamond blades. Blades mostly have a mixture or diamond matrix of different materials that are bonded onto the steel core of the diamond blade. With the vacuum brazing process, the segments are coated in diamonds. Instead of regular diamond blades that wear away and almost re sharpen themselves, vacuum brazed blades use the exterior of the segment of the cutting edge.
Product Application:
The Vacuum Brazed Diamond Saw Blades are bestly used for cutting Marble , Granite , Ceramics and Bluestone in Stone Processing , cutting Concrete with rebar in construction industry, Cutting Metal and Fiber Glass.
The Vacuum Brazed Diamond Grinding Disc are widly used for grinding Marble, Ceramic Materials and Fiber Reinforced Plastic.
The Vacuum Brazed Diamond Grinding Wheel are suitable for grinding metal in Foundry Industry.
Product Description:
1) Best suitable for cutting Cast Iron, Marble, Ceramical Materials, Fiber glass, PVC Pipe and Concrete block.
2) Suitable for both Wet Cutting and Dry Cutting.
3)High degree of exposed diamond grains and sharp cutting
4)Characteristic of High Efficiency , longer working lifetime, more safe and Environment Frinedly Compared with resiniod Tools
Vacumm Brazing is a material joining process that directly bonds diamond to the blade. it is a three steps process that creates a bond which is significantly stronger than other joining methods.
USAGE: used for cutting high hardness granite, marble,concrete,timeber, pvc tube,brick, Angle steel, rebar and other kinds of materials.
FEATURES: cutting sharp, long service life, less sewing, samll cut scraps, low noise,bright cut surface and clean energy saving equipment.
Advantages:
*For concrete, marble, granite,PVC tube,timber, brick,angle steel,rebar and other kinds of materials.
*Perfect safety, excellent fast, high efficiency and complicated shape
*Rather longer life than the electroplated tools.
*Various diamond grain and grade to meet various application-cutting, drilling, grinding.
*Environment friendly
*Special application and design are available upon request
Brazed diamond saw blade (no electroplated coatings) | NO. | size | Matrix thickness | Segment thickness | Segment height | Grit |
| 1 | 4"(100mm) | 1.2 | 1.6 | 5 | 40-50 |
| 2 | 4.5''(115mm) | 1.2 | 1.6 | 5 | 40-50 |
| 3 | 5''(125mm) | 1.2 | 1.6 | 5 | 40-50 |
| 4 | 6''(150mm) | 1.4 | 2 | 5 | 30-50 |
| 5 | 7''(180mm) | 1.6 | 2.2 | 7 | 30-50 |
| 6 | 9''(230mm) | 1.8 | 2.4 | 7 | 30-50 |
| 7 | 10''(250mm) | 2 | 2.6 | 7 | 30-50 |
| 8 | 12''(300mm) | 2.2 | 2.8 | 8 | 30-50 |
| 9 | 14''(350mm) | 2.4 | 3 | 8 | 30-50 |
| 10 | 16''(400mm) | 2.8 | 3.4 | 8 | 30-50 |
| 11 | 18''(450mm) | 3.2 | 3.6 | 8 | 30-50 |
Brazed diamond saw blade for emergency(silicon carbide)| NO. | size | Matrix thickness | Segment thickness | Segment height | Grit |
| 1 | 7''(180mm) | 1.6 | 2.2 | 7 | 30-50 |
| 2 | 9''(230mm) | 1.8 | 2.4 | 7 | 30-50 |
| 3 | 10''(250mm) | 2 | 2.6 | 7 | 30-50 |
| 4 | 12''(300mm) | 2.2 | 2.8 | 8 | 30-50 |
| 5 | 14''(350mm) | 2.4 | 3 | 8 | 30-50 |
Note:Various spec. and size available upon client's request
Soleader Tools Can also Manufacture and Provide New Products:
- Brazed diamond drill bit
- Brazed diamond cup wheel
- Brazed diamond saw blade
- Brazed diamond profiling wheel
- Brazed diamond hand profiling
- Brazed diamond graver
- Brazed diamond drum wheel
- Brazed diamond wire saw
FAQ:
Q1: Do you have your own brand?
A1: Yes, the brand name is SOLEADER , we can provide OEM services to our customers as well.
Q2: What's your target market?
A2: We mainly focus on European and Noth America right now.
Q3: What is the biggest advantage compared to the rivals?
A3: We are one of the strongest oscillating multi tool saw blades suppliers in China.
Q4: What is your MOQ?
A4: 500 pcs/blade
Q5: What is about the payment and delivery time?
A5: Delivery time: Within 30days after receiving your advance payment.
Payment: TT,LC,Western Union, Paypal, Money Gram,etc
Q6: Can I get some samples?
A6: Yes, we are honored to offer you samples for quality check.
Q7: How does your factory do regarding quality control?
A7: Quality is priority.Soleader People always attach great importance to quality control from the very beginning to the end of the production. Every product will be carefully tested before it's packed for shipment.
Q8. How is your quality?
A8. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q9. Do you have different quality for different kind of stone?
A9. Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q10. If we need technical support, can you offer us?
A10. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment staff, engineers and technicians.
Q11. Is there cheap shipping cost to import to our country?
A11. For small order, Express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to airport or by Express send to your door.
Q12. When you can reply to me when I send you an Inquiry?
A12. We promise to reply within 24 hours( including holidays) on receipt of your inquiry.
Q13. Do you offer free samples?
A13. Normally we do not offer free samples, but we could properly adjust according to detailed requirement
Please feel free to contact me if you have any concerns!
After-sales Service
Reply within 24 Hours
Professional consultation service is available within 24 hours after receiving your feedback regarding the iterms that that you bought.
Global Insurance Service
Global insurance service guarantees the safety of iterms when installation and application.
Compensation Policy
Any quality problem caused by our company side with enough evidence, we promise you that if could be re-produced for free.
Contact us, you will get more than what you see.
Available specification as following: | Diameter/mm | Thickness/mm | Bore/mm | Teeth |
| 105 | 1.2 | 20/22.23 | 12 |
| 110 | 1.2 | 20/22.23 | 12 |
| 115 | 1.4 | 20/22.23 | 13 |
| 125 | 1.4 | 20/22.23 | 15 |
| 150 | 1.6 | 20/22.23 | 11 |
| 180 | 1.6 | 20/22.23 | 13 |
| 230 | 1.8 | 20/22.23 | 16 |
| Specification (mm) | Core Thickness(mm) | Segment Dimension (mm) | Segment Number | Segment Number | Note |
| 300 | 2.2/2.0 | 40*3.2*10(12) | 21 |
Granite |
Silent or Non Silent |
| 350 | 2.4/2.2 | 40*3.2*10(12) | 24 |
| 400 | 2.8/2.4 | 40*3.6*10(12) | 28 |
| 450 | 2.8/2.6 | 40*4.0*10(12) | 32 |
| 500 | 3.2/2.8 | 40*4.0*10(12) | 36 |
| 550 | 3.2/3.0 | 40*4.2*10(12) | 38 |
| 600 | 3.6/3.2 | 40*4.6*10(12) | 42 |
| 650 | 4.0/3.6 | 40*4.6*10(12) | 42 |
| 700 | 4.0/3.8 | 40*5.0*10(12) | 50 |
| 800 | 4.5/4.2 | 40*5.5*10(12) | 57
|
