| Prod Model: |
WSDRB-35 |
| Application: |
for CNC Machine Work on Granite and Marble |
| Thread: |
1/2'' Gas |
| Diameter: |
16-25mm |
| Overall Length: |
80mm |
| Rpm: |
Over 10,000 |
| Working Condition: |
Wet Use Only |
| Delivery Time: |
3-10days |
Product Description

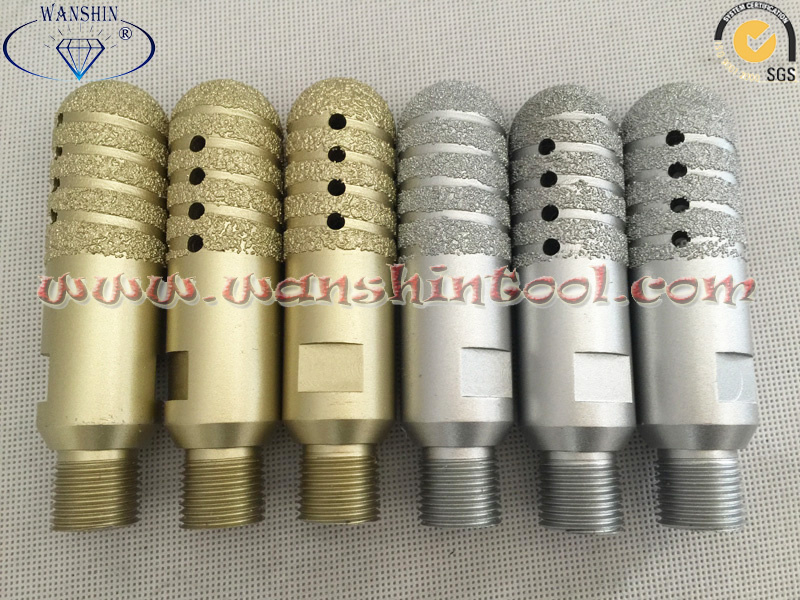

Finger bit for stone
Our diamond finger bit is designed for granite & marble slabs trimming, drilling and milling.
Due to the special shape of the diamond bit, there should be less blow out on the bottom of the stone. The diamond portion of the bit is tapered so it becomes smaller towards the tip.
Features:
1. The unique design of our diamond bit allows better cooling and easy dust removal, good sharpness and long life.
2. Wet use only. Center waterfeed holes in each bit.
3. Connection: GAS1/2" for CNC machines
4. Strenthened bottom make the bit longer lifespan and higher efficiency.
| Diameter(mm) | Segment Length(mm) | Connection Thread |
20 | 30 |
1/2'' GAS |
| 40 |
| 50 |
22 | 30 |
| 40 |
| 50 |
25 | 30 |
| 40 |
| 50 |
Wanshin Diamond Tool Co., Ltd is a professional manufacturer and exporter of various types of diamond tools. Our company is located in the city of Nan' An_the biggest stone base in China.
With over 20 years experience in the researching and manufacturing of stone tools, over 5 years in the vacuum brazed diamond tools, our products are widely accepted by many customers all over the world. Our main products include the following series:
1. Cutting tools: Diamond saw blade, diamond segments, diamond gang saw, diamond wire saws, diamond drill bits, construction cutting saw blades, etc;
2. Vacuum Brazed Diamond Tools: Such as vacuum brazed drill bits for tiles, porcelain, ceramics;
3. Stone Engraving Tools
4. Polishing&Grinding Tools: Such as diamond polishing pads, diamond cup wheels, metal grinding discs, resin grinding discs, concrete floor polishing pads, etc;
5. Electroplated Diamond Tools: Such as wet drill bits, CBN plated diamond wheels, grinding pins, etc
All of our products are inspected under a strict quality control system before it goes to customers' Hands.
Now our products are exported USA, UK, Germany, Australia, Iran, Peru, Mexico, Brazil, South Africa, Cyprus, Egypt, Poland, etc.
Our principle is helping you get the best solutions for your limitations in the processing of stones and many other materials. We sincerely welcome to you to join us, we can supply you the constantly good quality products, the best after sale service.
