| Prod Model: |
YS2017041401 |
| Size: |
30/32/38/ |
| Cavity: |
2/4/8/12/16/18/20/24/28/32/36/48 |
| Mould Matieral: |
P20\S136\2316\#45\718/ Copper |
| Polish: |
High Polish |
| Warranty: |
5, 000, 000 Times |
| Process: |
Hot/Cold |
| Gate: |
Pin Point |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Single-Process Mode |
| Application: |
Home Use |
| Installation: |
Fixed |
| Plastic Material: |
PP, PC, PS, PE, PU, PVC, ABS. PMMA, etc. |
Product Description
Various Kinds Plastic Injection Cap Mould
Saving 10%-30% cost than others.
1. Direct factory price
2. Life: 5, 000, 000 time
3.2D and 3D provided
4. Diliver time: 25-35 days
Plastic injection cap mould 28/30/32/38mm
Mould details:
1. Design 3D drawing for customers' confirmation according to their 2D drawning or sample when placing to order.
2. Mould Matieral: Different grade: P20, S136, 2316, H13, #45etc.
3. High Technology: Advanced second-level taper positioning technology and slide- type independent self-locking, hence the concentricity of the product is guaranteed.
4. Independent temperature control & heating system Which boasts an even heating temperature and keeps product with reliable and stable quality.
5. Cavity: Depend on your selection, 1, 2, 4, 8, 12, 18, 24, 36, 48...All inserts can be interchangable.
6. Product matieral: PE/PP/PVC/PET, ect
7. Quick deliver time: 25-60 days
Why choice us? Advantage:
1. We are manufacturer, so we have competitive price.
2. We exported mould to more than 30 countrys.
3. We have the right of export by ourself.
4. We made near 500 sets moulds per year.

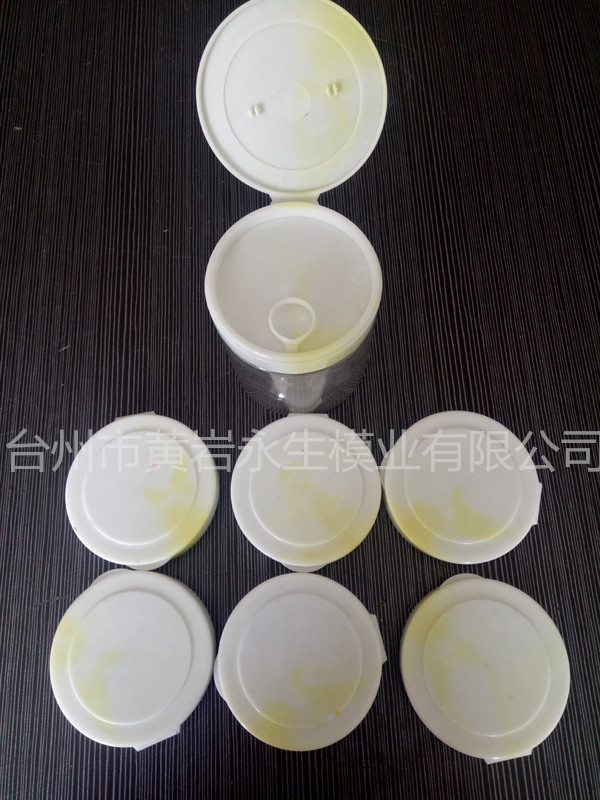

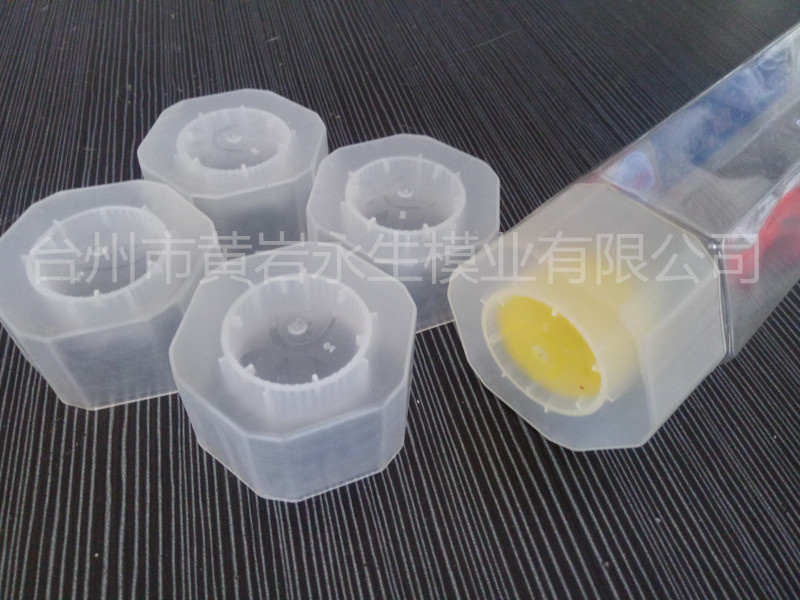

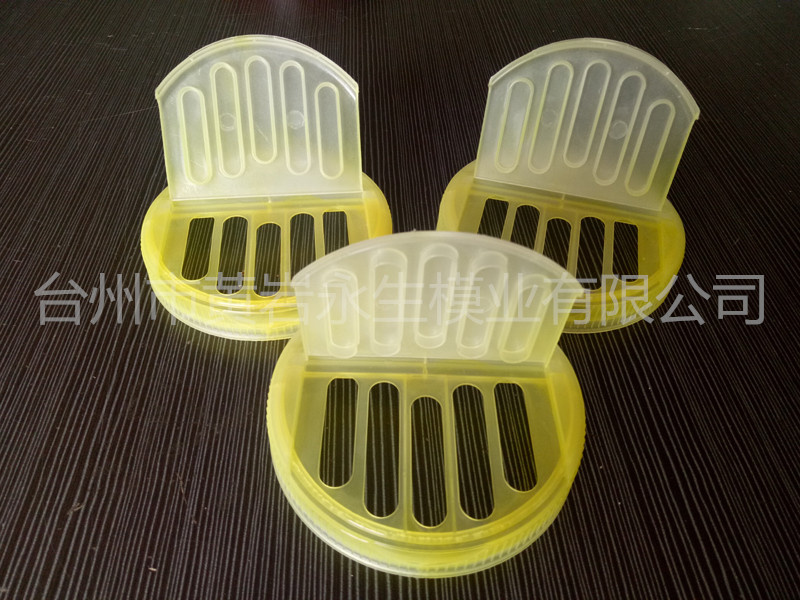

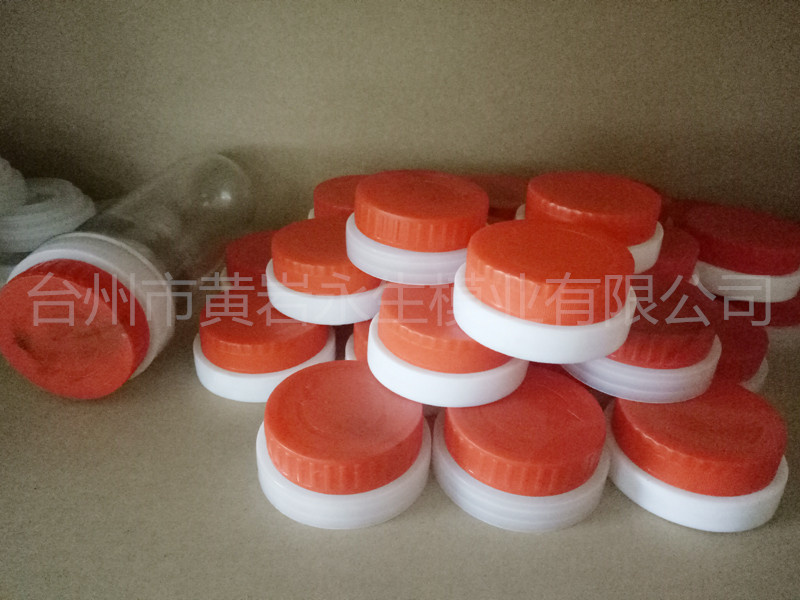

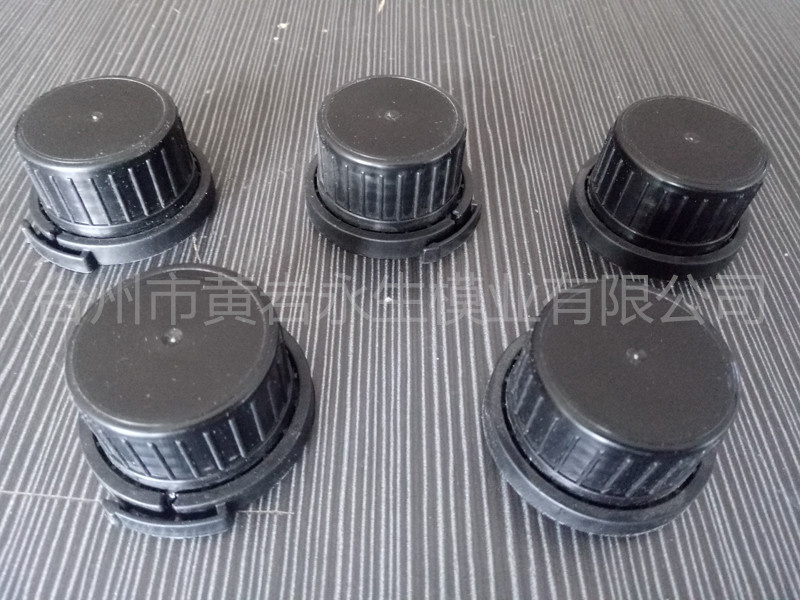

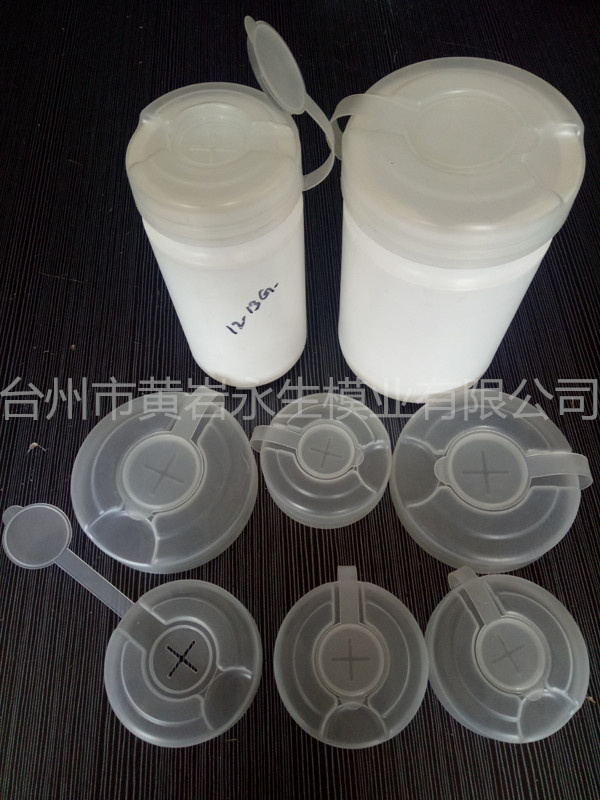

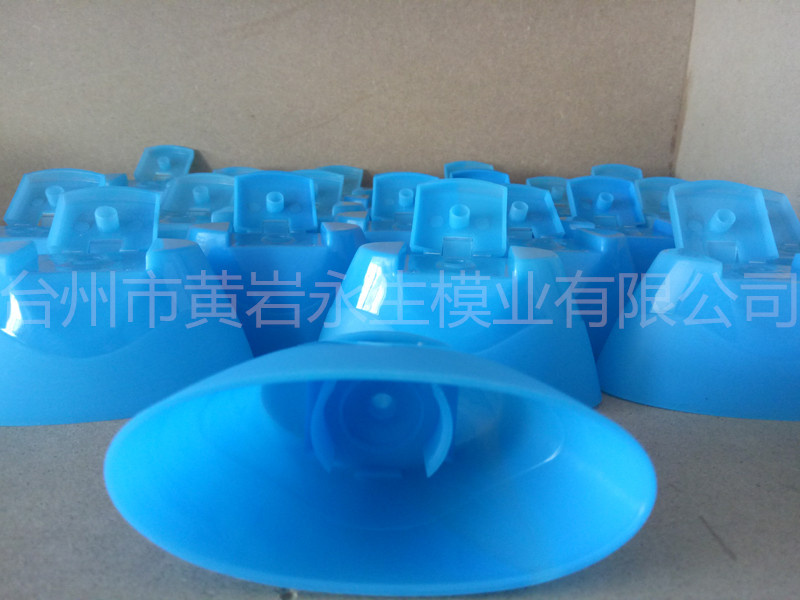

We can supply: Mineral water cap mould, beverage cap mould, 5gallon cap mould, theft proof cap mould, shampoo cap mould, different kinds of oil cap mould, sport cap mould, cosmetics cap mould, wine cap mould...
1, SERVICE
1), More than 10 years experience in plastic cap Mould...
2), Devote to professional packaging solutions for beverage, daily chemail, medicine...
2, MOULD FEATURES
1), Core, Cavity and Neck can be interchanged.
2), Excellent hot runner system and cooling system.
3), High quality materials and proven mold design ensure long life time
4), Pneumatic Pin Valve strcuture without manual cut tail, reduce the labor force.
5), Double self-lock structure ensures mold thickness tolerance less than 0.1mm
3, HOT RUNNER SYSTEM
1), Less energy cost and pressure lost.
2), Use imported heaters, like Germany HOTSET and Italy ROTFIL
3), Cavity-to-cavity control system ensure nozzle temperature fluctuates within 1oC
4), Hot Runner Balance design ensures evenly force, uniform heating and identical preforms.
4, COOLING SYSTEM
1), Spiral Water Cooling Way on cavity enhances cooling performance.
2), Cooling System on neck and move neck plates enhance cooling performance.
3), Precise Distributary Plate distributes cooling water into cavity evenly, quicken preform cooling.
Equipment list:
1. High speed milling center
2. Milling center
3. Numerical controlled EMD machine
4. High speed EMD drilling machine
5. Mirror EMD machine
6. Quick wire cutting machine
7. Slow wire cutting machine
8. COMERO
9. Large grinding machine
10. Precise grinding machine
Any inquiry, pls contact Qearli, thanks!
| 1 | Sample or 2D drawing from customer |
| 2 | Build 2D and 3D drawing |
| 3 | CAD mould design |
| 4 | Parts inspection / CNC machining / EDN machining |
| 5 | Mould assembly |
| 6 | Mould test |
| 7 | Sample confirm |
| 8 | Deliver the mould |
Taizhou Huangyan Yongsheng Mould Co., Ltd, founded in 2007, is located at Zhejiang province. It is near Hangzhou and Ningbo port. And domestic flights can arrive directly. You can go anywhere freely. Our company covers an area of more than 1, 000 meters. We are specializing in the development, production and sales of no gate hot runner cap mould, cut-free independent self-locking gate perform mould, free-gate valve perform mould, anti-theft cap mould, die cut cap mould, handle mould, bottles mould and daily necessities mould. Now we have had first-class experts and production machines.
After many years of efforts and sustained fast developments, we have obtained customers' recognition with our scale, quality and good faith. Now we have got a clear advantage on technologies and equipments levels, quality grades, market share etc. And our core competencies are keeping on being stronger and stronger. It goes without saying that our company will develop steadily, rapidly and healthily. In order to be more professional, solider, stronger and bigger, we insist on perfect quality, good faith and customers first from our foundation, never stopped developing technologies and products.
Now our products are popular in domestic market, and become a famous national brand. In oversea market, they are sold to Americas, Europe, Middle East, Africa and Southeast Asia. We will keep on fast development, strengthening personnel training and introduction, developing technologies, enhancing the capability of independent innovation, accelerating new plastic perform development, improving technology progress and industry upgrade, and carry out "going-out" strategy seriously, take part in the competition actively to open much wider market all over the world.
"YONGSHENG- keeps up with times and makes friends with all over the world
