Vcl Neodymium Double 12 Inch 3-Way Passive Line Array Speakers

Name: Vcl Neodymium Double 12 Inch 3-Way Passive Line Array Speakers
Brand: tool-buy.com
SKU: 816611485
Availability: InStock
Rating: 4.9 (143 reviews)

Price:	US $ 1000-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Guangzhou Zsound Proaudio Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	VCL
Frequency Response:	50Hz~16kHz(+-3dB)40Hz~18kHz(-10dB)
Nominal Coverage:	90°(H)7.5°(V) Adjustable
Sensitivity:	Hf:113 dB Spl;Mf:105 dB Spl;Lf:99 dB Spl
Power Rating:	Hf/Mflf/:140W/350W/900W
Nominal Impedance:	Hf/Mf/Lf/:16/16/16 Ohm
Maximum Spl:	Hf:135/141dB Mf:130dB/136 Lf:128/134dB
Lf:	2*12"(75mm Voice Coil) Woofer
Mf:	1*10"(65mm Voice Coil) MID Range
Hf:	2*2.5" Compression Driver
Finish:	Black Polyurea Coatings
Noise:	<95dB
Hi-Fi:	Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Commercial
Certification:	SGS
THD:	<0.03%
Monitor:	N/a

Product Description

Dual 12 inch coaxial professional stage speaker system

VCL line array is a large-scale 3-way, tri-amped system, which provides frequency ranges from 50Hz to 16KHz. The system consists of 2X65 mm(voice coil) neodymium compression drivers, one 10″ neodymium MF driver and 2X12″ neodymium LF drivers to achieve an impressive headroom.

Applications:
Touring performance
Stadium
Theatre

Feature:
Large-scale,thri-amp,three-way line array system
Presettable angles
Neodymium high sensitivity driver,Maximum headroom
Rubber edge LF driver,extend low frequency

TECHNICAL SPECIFICATION
Frequency Response:	50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB)
Nominal Coverage:	90°(H) adjustable
Sensitivity (@1w/1m):	HF:113dB SPL MF:105 dB SPL LF:99 dB SPL
Power Rating (AES):	HF/MF/LF:140W/350W/900W
Nominal Impedance:	HF/MF/LF:16/16/16 Ohm
Maximum SPL:	HF135/141 dB MF:130/136 LF;128/134 dB
Drivers:	LF 212"(75mm Voice coil)neodymium woofer; MF 110"(65mm voice coil)neodymium mid-range; LF 2*2.5" neodymium compression driver

PHYSICAL DATA
Dimension (HWD):	3741030565mm
Weights:	60kg
Connectors:	2WP7 connectors or 2NL8FC connectors
Speaker Cables:	1-2+…LF 3-4+…MF 5-6+…HF
Materials:	18mm,24mm birch multi-plywood
Finish:	Black polyurea coatings
Grille:	Black epoxy mesh grille with acoustically reticulated cloth
Rigging:	0,1 ,2,3,4,5,7.5 degree adjustable

VCL system advantage

1) All of speaker driver is used import and neodymuim drivers which is deal with and tested by 200 degree high temperature treatment.
2) The plywood, All the plywood was import from Russia. Just go ahead used in outdoor.
3) Our hander cup is the same as LA, D&B. All of our spare parts are used penn elco
4) the pin, our pin was use stainless steel , and must be pass 7:1 safe factor weight test. As you are a professiona people, you must know how important about the pin. If te pin is not good. It is danger when you rigging the line array speaker in the air."
5) Our design, the length about our speaker is 1030mm and 60KG. This is few factory can do that small size with maximum heatroom, We also use more than ten years to choosie the best speaker drive for our line array speaker system. And our MF&HF parts is coaxial structure to optimise acoustic image. We can repair it when the speaker was in problem.

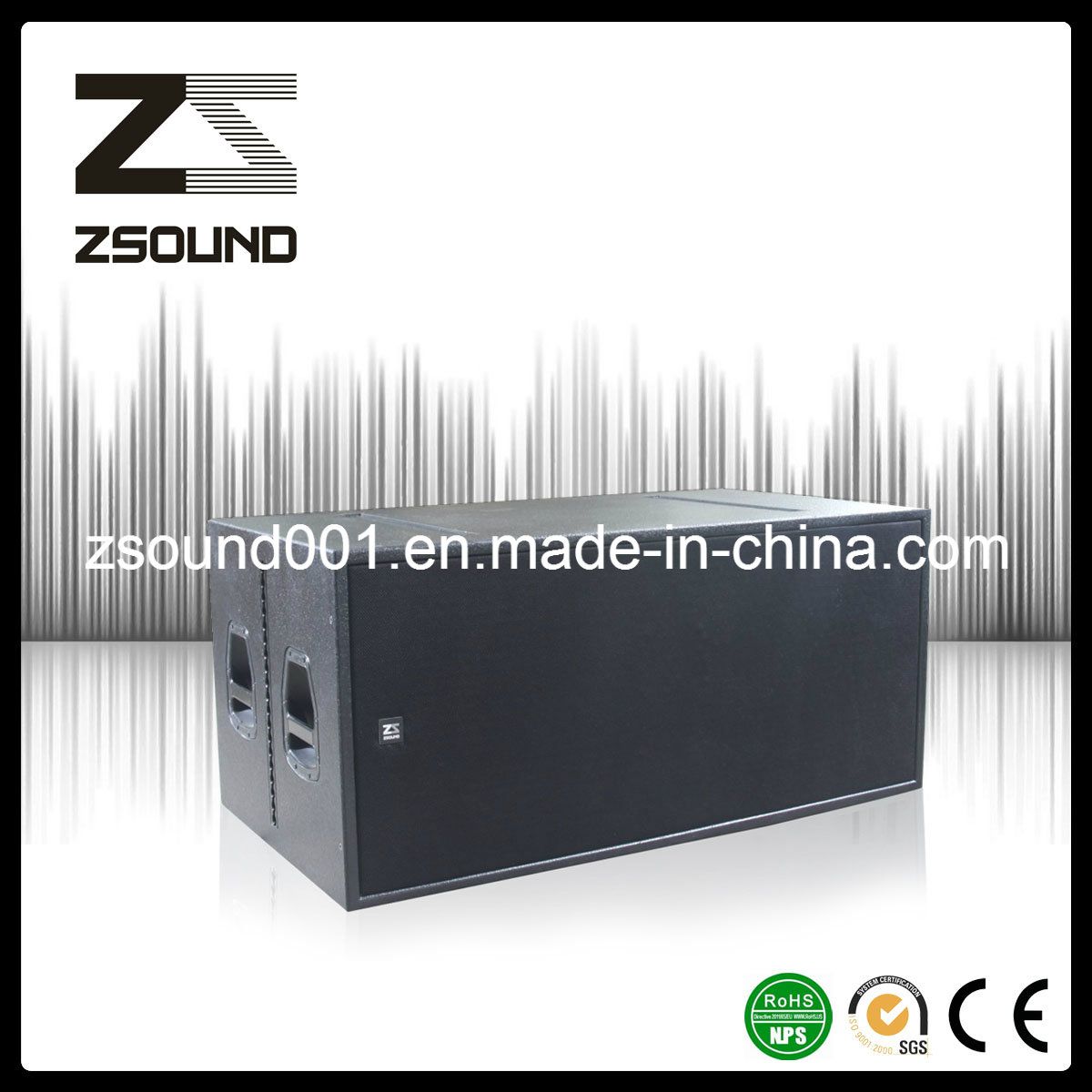

6) VCL is recommanded to match SS2 (double 18" flying sub), S118H, S21H,(SS2 single and double 18" horn loaded subs) powerful subwoofers.

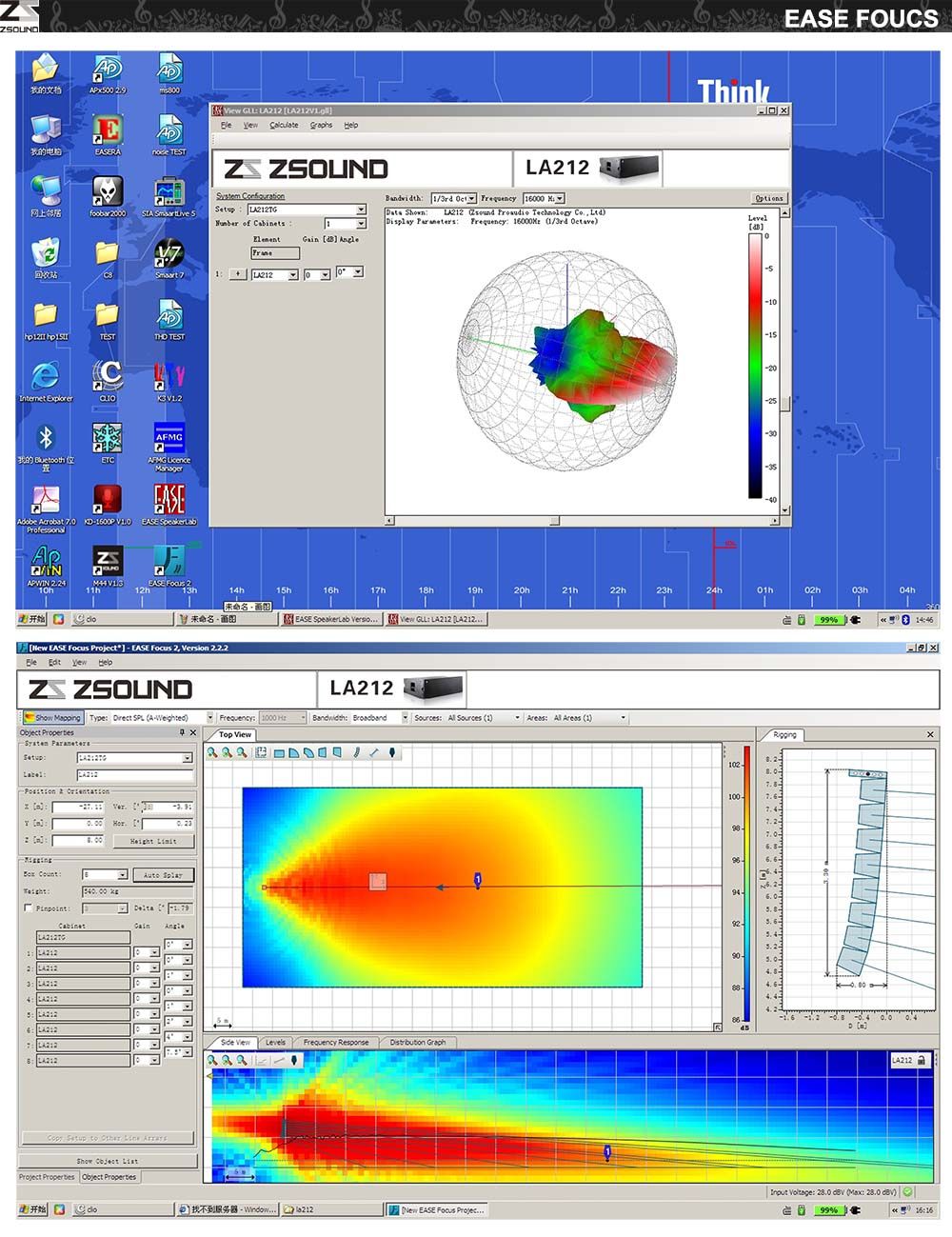

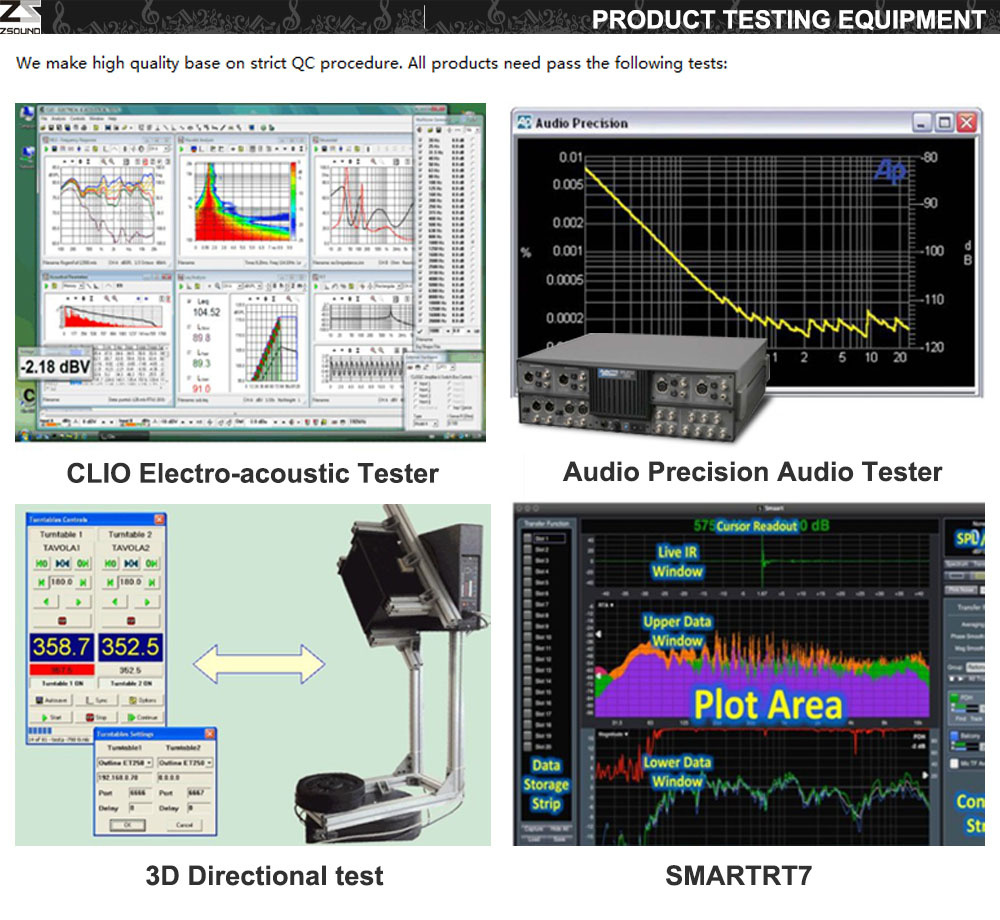

7) All the technoloy data is real. We use SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision test,And all the data is open. We also have our own EASEFOCUS data and GLL picture

Sunny Yan
Tel:0086 15818739656

Have a nice day!

Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.

Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.

During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.

What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance

In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.

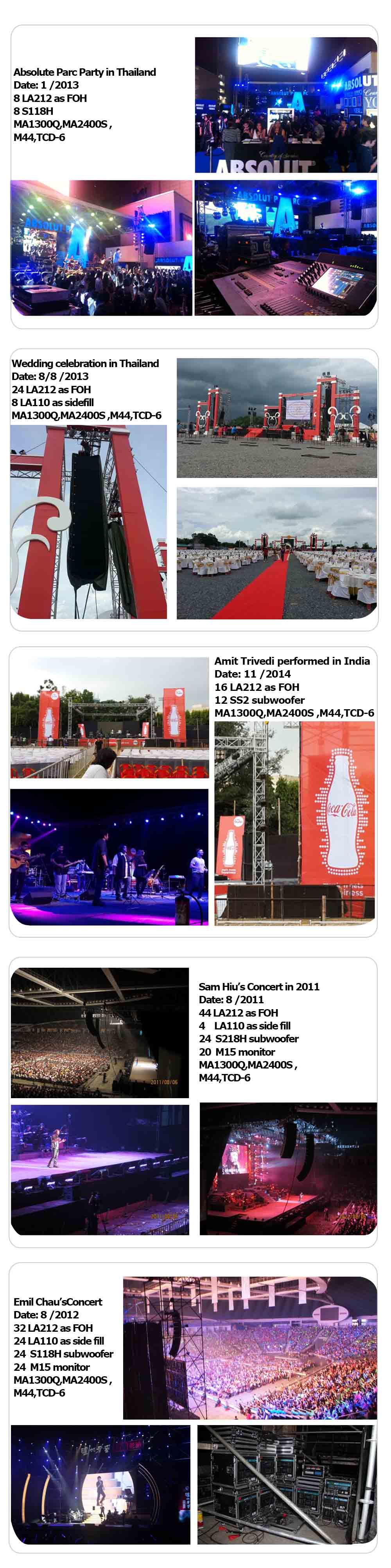

After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.

Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
