Prod Model: |
VERA AF |
Delivery Time: |
Three-Seven Days |
Warranty: |
One Year |
Amplifier: |
with Inside Amplifier |
Finish: |
Polyurea Paint |
Cabinet: |
18mm Birch Plywood |
Hf: |
Neodymium Tweeter |
Lf: |
2262HPL/2268HPL Neodymium Woofer |
Color: |
Black |
Weight: |
3.5kg |
OEM: |
Yes |
Noise: |
<95dB |
Hi-Fi: |
Hi-Fi |
Operation Mode: |
Wire / Remote Control |
Speaker System: |
2.0 Channel |
Speaker Material: |
Metal |
Application: |
Home |
Certification: |
RoHS |
THD: |
<0.005% |
Product Description
VERA AF Flying Kit Line Array System Rigging Hardware
Features
The VERA AF is an array frame kit designed to be used for suspension Of the VRX932LA line array loudspeaker.

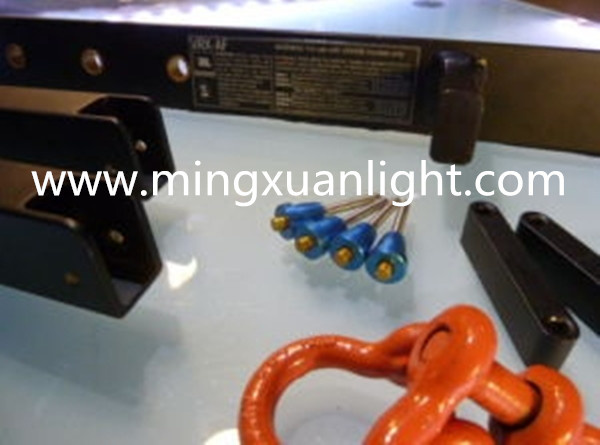

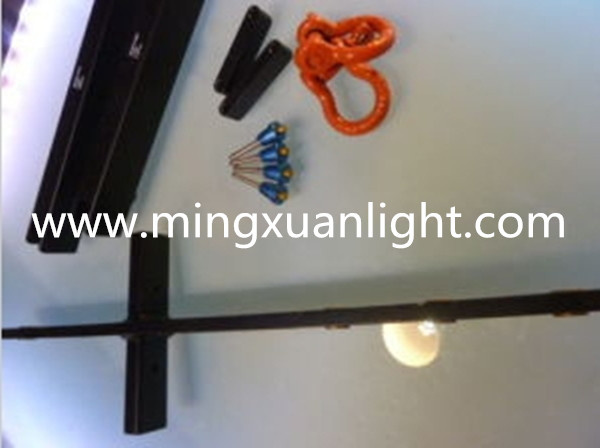

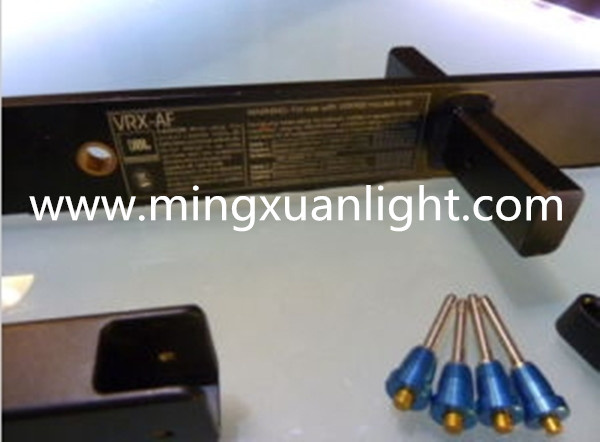

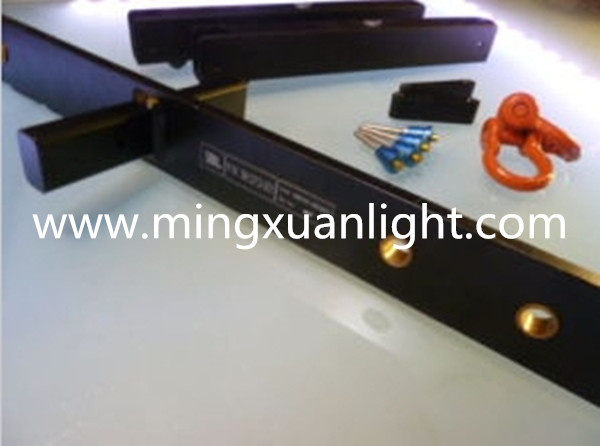

The optional array frame kit includes an array frame, four quick Release pins, a pair of forged 3/8" shackles, and a pair of drop Levers.
The following table defines the maximum number of speakers that may Be suspended using the VRX-AF frame. A minimum design factor of 7: 1 is maintained for all speaker Configurations at or below thosed indicated in the table.
For some applications, it may be necessary to pull back the array From the bottom in order to achieve the desired coverage. Every VRX-AF is supplied with a spare set of quick release pins and a pair Of spare drop levers that are used to adapt a second array frame to The bottom of a VRX932LA array. Once these are installed on the Bottom enclosure, the array frame may be attached as previously Described.
Ground-stacked, upward aimed array: Applications such as covering stadium bleachers from the playing field may be addressed be installing the VRX-AF array frame to the bottom of the array as described above. Up to four VRX932LA loudspeakers may be locked together and ground stacked using the VRX-AF array frame kit.
Specifications
VERA AF specification |
Model | VERA AF |
Name | line array frame kit |
component | 1x center frame 2 x side arms 4x quick release pins 2 x drop levers |
material | aluminum |
Packing size (carton) | 73*28*12CM/PCS |
Packing gross weight | 4KG/PCS |
please use speaker numbers according to following table |
maximum number of VRX918S in array | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
maximum number of VRX932LA-1 in array | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
|
maximum number of VRX918SP in array | 0 | 2 | 3 | 3 | 4 | 4 | |
maximum number of VRX932LAP in array | 5 | 4 | 3 | 2 | 1 | 0 | |
