| Prod Model: |
PHLD-3.5 |
| Length: |
1100 mm |
| Width: |
650 mm |
| Height: |
1000 mm |
| Gross Weight: |
150 Kg |
| Type: |
Vibration Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description

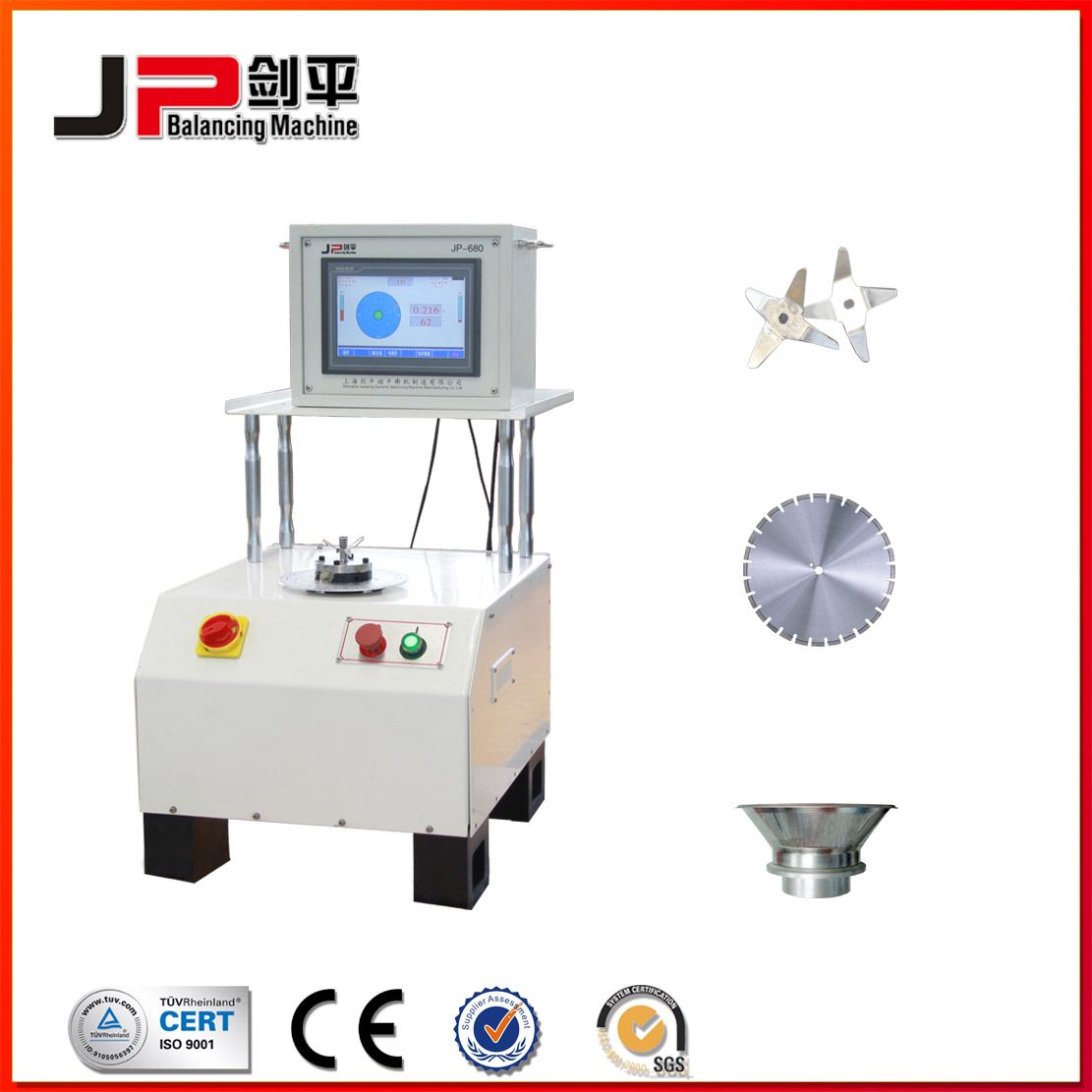

Vertical Balaning Machine forpulley, fan, saw blade up to 3.5 kg
Production DescriptionSpecially designed, solid brackets can effectively transmit mechanical force
Durable and reliable sensor possesses high sensitivity and good linearity
Permanent calibration brings high accuracy
Special clamp offers higher accuracy and easier operation
Advanced electrical measuring system and friendly man-machine interface
As the customer's request, the de-weighting system can be equiped

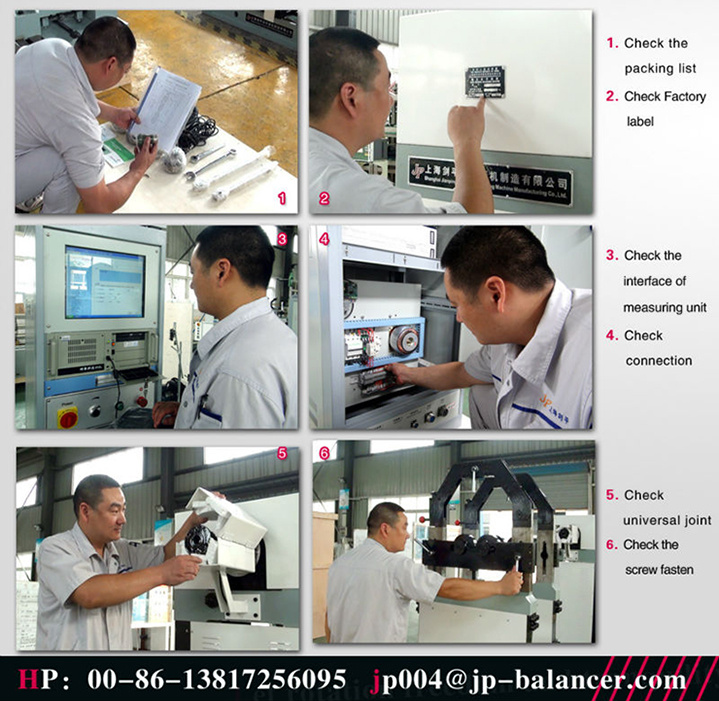

Delivery inspection
Range of ApplicationVertical Balancing Machine for Fan Blade isalso mainly used in balancing fan impeller, pump impeller, range hood fan, flywheel, grinding wheel, chuck, clutch, brake disc, saw blade, brake, tool, torque converter, belt pulley etc.
It can be equipped weight-removing equipment for customer if demanded.

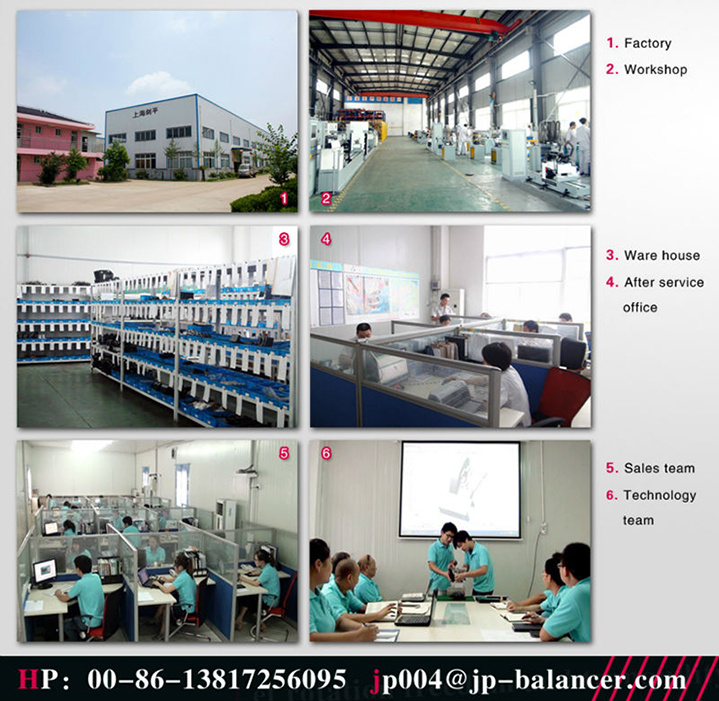

Factory Outlook
Special FeaturesDisplay mode of measuring unit is all digital micro-compujter display, This model has the function of clamp compensation. Its resolution for weight is 1mg, and resolution for angle: 1°
It has the character of elaborate design, high measuring precision, high reliability, easy operation.
The measuring unit employs JP-580B Electrical Measuring unit is a system of top function and precisionIt can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer mainboard which equiped with 15-inch LCD screen and 1G Memory, Electric board 4G, Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

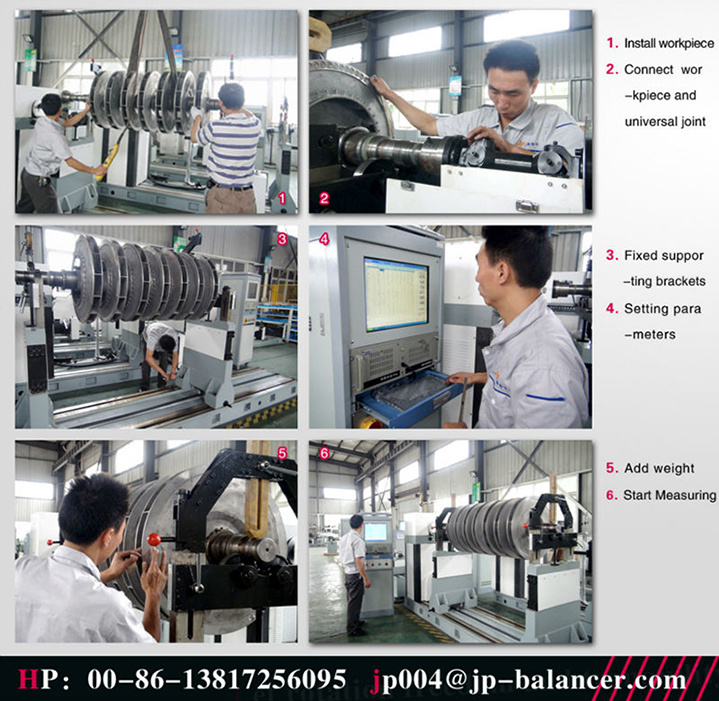

Workshop debugging
Production Parameters| Technical data at a glance | PHLD-3.5 |
| Weight of Workpiece (kg) | 3.5 |
| Max. Outer Diameter of Workpiece (mm) | 200 |
| Height of Workpiece (mm) | 100 |
| Rotating Speed of Main Shaft (r/min ) | 1630 |
| Motor Power (KW) | 0.12 |
| Min Achievable Residual Unbalance Amount. (e mar ) | 2g. mm/kg |

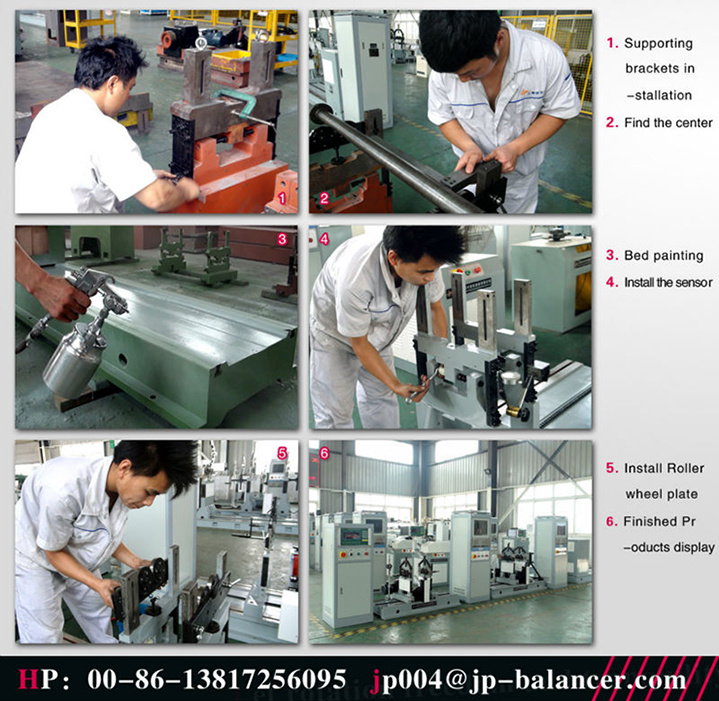

Production Process-Mechanical parts
Certificates
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. is a professional manufacturer of dynamic balancing machine, which locates in the largest city of China-Shanghai. The high-tech business entity composed of scientific and technical personnel who have devoted to the design, development and manufacturing of balancing machines for many years as well as the backbone elite with abundant experience.
Dynamic balancing machine produced by the company cover horizontal Balancing Machine, vertical Balance Machine, various semi-automatic Balancing Machine, automatic Balance Machine for industrial production flow, special dynamic balancing machine for turbo, main shaft of machine tool, crankshaft of automobile, driving shaft, electric armature, fans, roller, aerospace engine, on-site balance for power factory and station, including automobile, electric, aerospace, turbo, common machinery industries. The products are also batch exported to Occident, Australia, South Africa, Russia, Middle East, Southeast Asia and etc.
Company sticks to a "Human Oriented" management pattern and attaches importance to the selection and cultivation of qualified employees. Outstanding expertise and employee quality guarantees high-quality products. What' S more, good after-sale services and technical support eradicate your fear of trouble in the future when purchasing or using Jp balancing machine. Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001: 2008 authentication of TUV. CE Certificate of Ente Certificazione Macchine
Quality is our fundamental, credibility is our aim, customer satisfaction is our eternal pursuit. Welcome visits, discussions and suggestions as well as inquiries from the new and old customers. Wish to establish a long-term partnership and friendship with clients all over the world
