| Prod Model: |
XQL-8/XQL-16 |
| Control Type: |
PLC |
| Power Source: |
Electric |
| Type: |
General Rubber Machinery |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Using Life: |
More Than 15 Years |
| Warranty: |
1 Year |
| Color: |
Green or as Customer Require |
| Delivery Time: |
Customized as Your Request |
| Application: |
Rubber Cut |
| Advantage: |
Low Noise and High Safety |
Product Description
Product Description

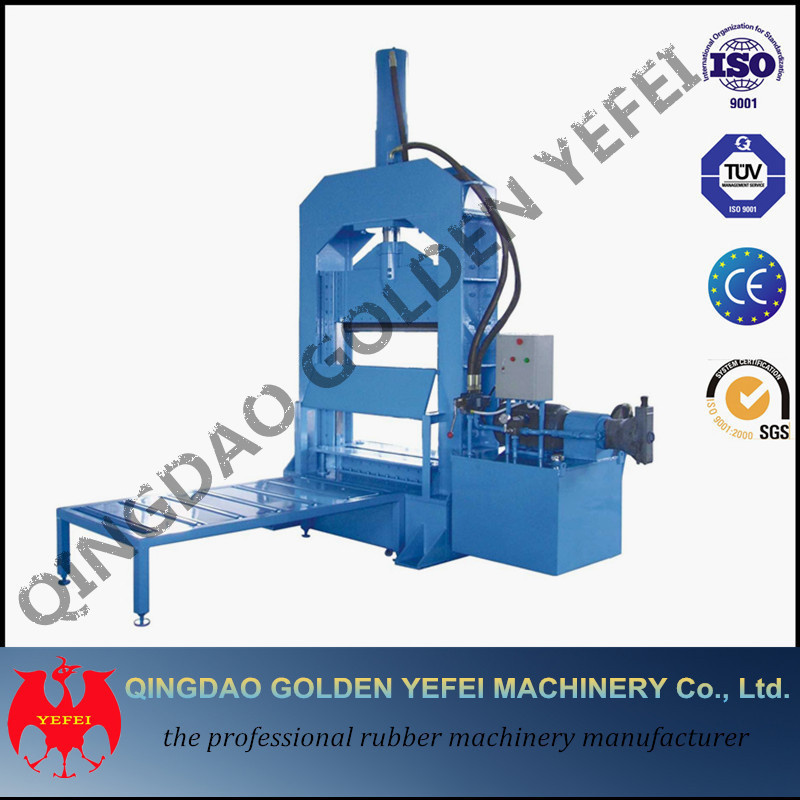

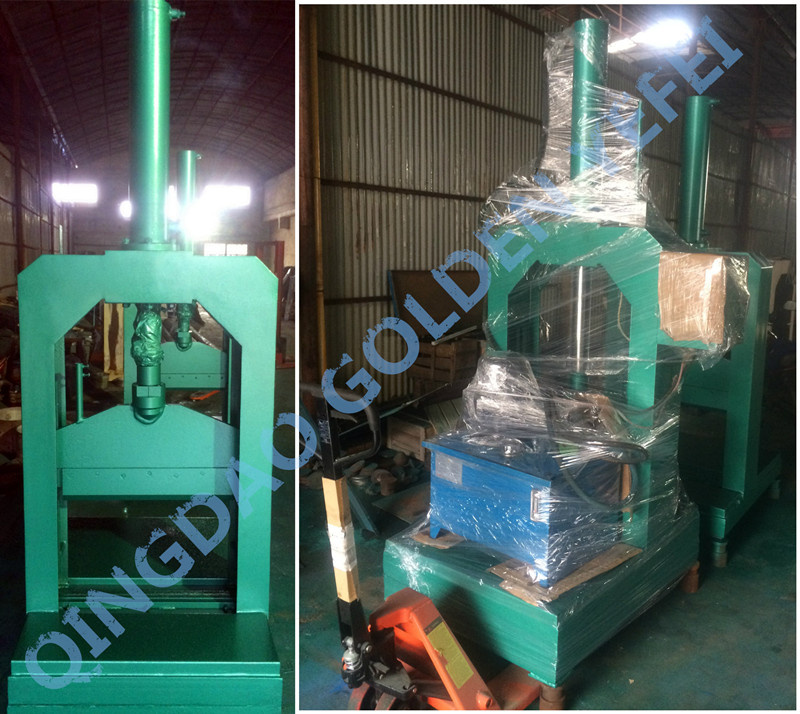

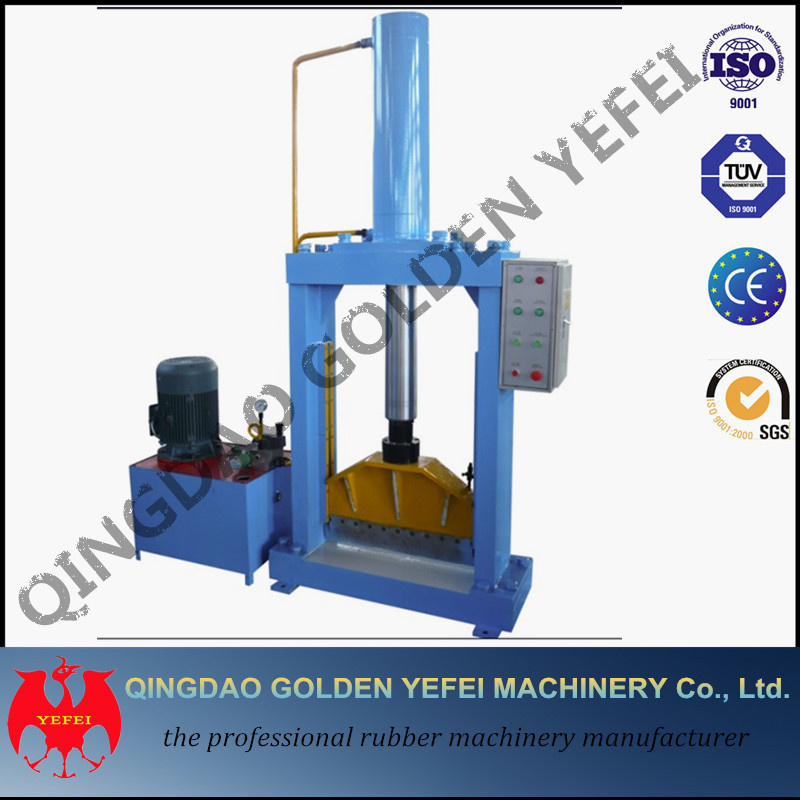

Vertical Rubber Cutting Machine, Rubber Bale Cutter
Rubber Bale Vertical Cutter is mainly used to cut the natural rubber, synthetic rubber, and other plastics
Materials, especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.
Rubber Bale Cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The nylon plate is installed on the base under the cutting knife for protecting the edge of the cutting knife. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.
| Model | XQL-8 | XQL-16 |
| Cutting Width(mm) | 660 | 1000 |
| Stroke(mm) | 680 | 680 |
| Diameter of the piston(mm) | 150 | 150 |
| Recycle Time(s) | 16~25 | 16~25 |
| Power(KW) | 5.5 | 5.5 |
| Overall Dimension (mm) | 1900*720*2580 | 2240*720*2580 |
| Weight(kg) | 1500 | 2000 |
Our sevices
• Best Price & Good Quality for all kinds of Machine
• Strong manufacturer ability
• Well equipped facilities and excellence quality control through out
• All stage of production.
• Quality raw material and outstanding workmanship can offer you more commercial opportunities.
• High quality solid frame
• Available in Various Colors
• OEM order welcome
• We provide all kinds of Rubber Machine, such as Vulcanizing Machine , Rubber Mixing Mill ,Rubber Cutting Machine and Batch Off Cooling Line .

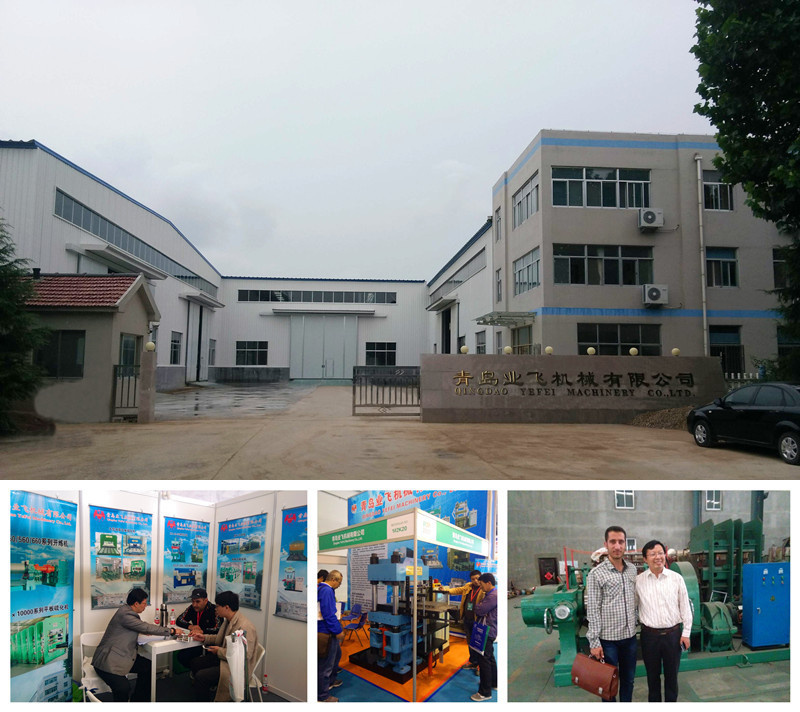

Qingdao YeFei Machinery Co., Ltd is located in the scenic beauty of the west coast of Qingdao/jiaonan, is a collection research and development, design, production, sales and service as one of the rubber machinery manufacturing enterprises.
We are a professional manufacturer of all kinds of environmental rubber tires, motorcycle inner tubes, all kinds of rubber products, rubber machineries and its accessory equipments. We are the best manufacturer of European standard vironmental protection and energy saving rubber tires. Our rubber products are all with high quality and competitive price and compliance with EU REACH and PHAs standard in China. About the rubber machines we can design and manufacture all kinds of non-standard rubber machineries according to the requirement of the customers. We have cooperations with several agencies major in designing and producing rubber & plastic products, on the R & D of rubber-plastic field, technology assessment, technical training, technological achievements. We contract a full set of equipments on making all kinds of large engineering
Rubber-plastic, tyres and other rubber-plastic products. We provide commissioning process and installation, until customers produce satisfied products and achieve maximum economic benefits.
Our company passed ISO9001: 2008 International Quality Management System Certification. The company gathered a number of outstanding technical staffs, management persons, have a young marketing team which has international perspective and local experiences, offering the professional international marketing services. We have high level, high efficiency, high-speed marketing network, quickly seizing the international market.
Our company has excellent machine-processing equipments, advanced technology, unique test method, full of quality products and good sale-service system, we are well received by consumers, leaves a good corporate image in the peer.
" Excellent, customers first, scientific management, continuous improvement " Is our quality policy, Qingdao YeFei Machinery Co., Ltd will serve you the best.
