| Prod Model: |
180CC000000000001 |
| Name: |
Metal Lathe |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Table |
| Precision: |
High Precision |
Product Description
Introduction

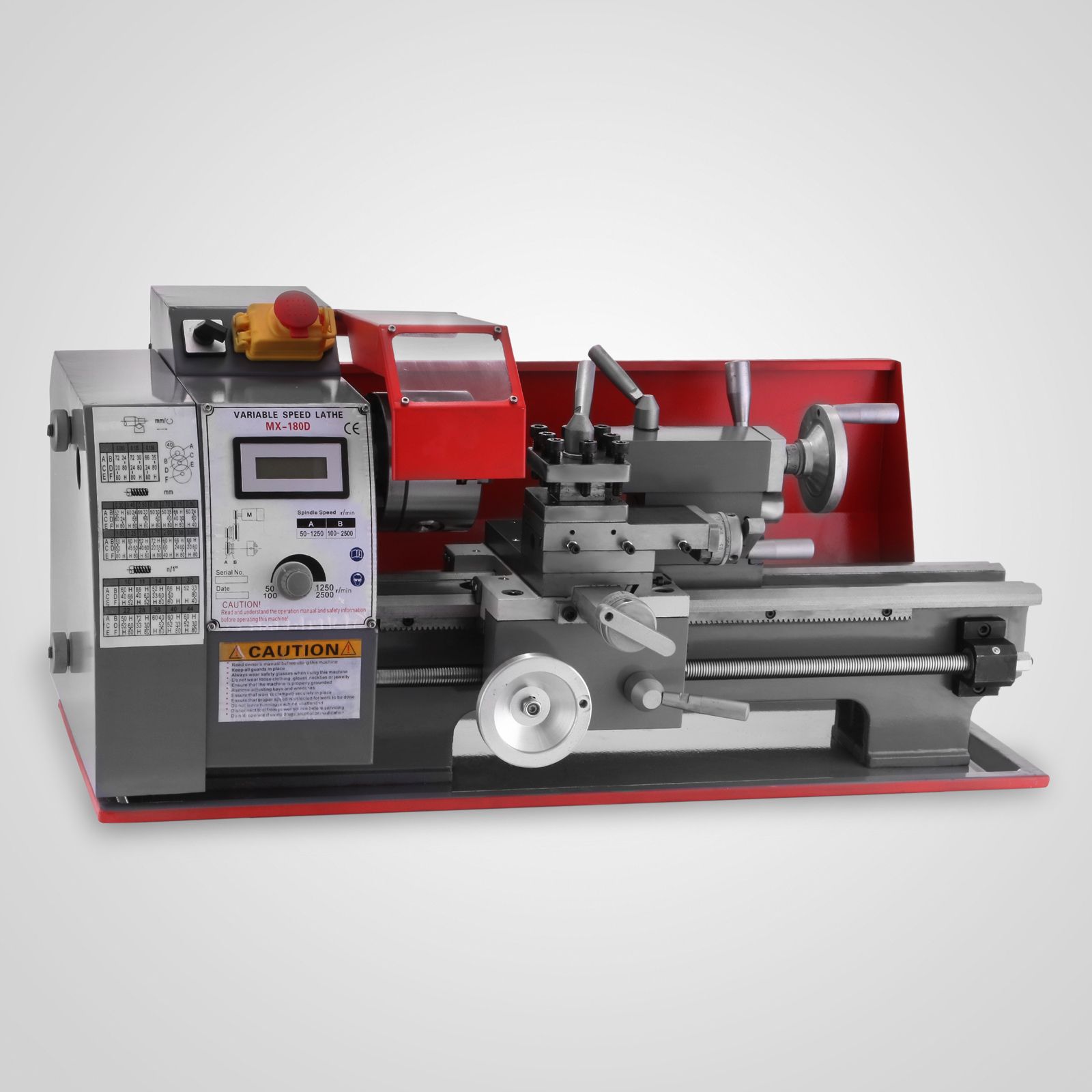

This 600W miniature lathe is a benchtop lathe which is designed to perform various types of metal, jade and wood turning. It is an ideal equipment for single-processing or small batch production and can be used in areas such as mini precision parts processing, sample processing and modeling works in Industry and school teaching, vehicle maintenance, home maintenance, scientific research units. It is also perfect for hobbyists and modelers who is looking to add finite detail to their construction project.
Whether you're turning, counter facing or making bushings, spindles, prototypes or models, this precision mini lathe will meet the challenge.
Application
Suitable for turnings of metal, wood, jade, etc.
Ideal for use in labs, workshops, engineering and education.
Can be turned within foreign aid, turning thread, turning taper and so on.
Product advantages
This micro lathe with a number of electronic control system for the magnetic induction digital single-chip control the transition wheel system can be 2-speed mechanical speed
Emergency shutdown: Just take the red cover to shut, which is very safe.
Telescopic sets with scale, you can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized or adjusted by lateral movement.
By adjusting the speed switch, the spindle speed can be adjusted from 50 to 2500RPM.
Equipped with all-metal gears of strong power, this machine is wear-resistant, durable, more accurate rotation and in particular, more precise, accurate and professional.
Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical.
Automatic tool with multi function and usage, infinitely variable.
Features
CE certification.
DC motor driven.
Stepless speed regulation.
High-frequency quenched slideway.
Variable spindle speed of 50-1250/100-2500RPM.
Spindle bearings use precise tapered roller bearings.
Speed infinitely variable, easy to read via digital speed display.
Prism bed guides inductively hardened and precision ground
Rails have been quenched with high frequency and elaborate milling.
Spindle can be adjusted positive and reverse rotation.
600w strong power, 300mm processing distance.
High precision, able to turn out standard qualified works.
Metal gears, metal shell, metal hand wheel,All metal gear without any plastic parts.
Technical
Power: 600W, 110V/60Hz
Distance Between Centers: 12" (300mm)
Swing Over Bed: 7" (180mm)
Swing Over Cross Slide: 4" (95mm)
Width of Bed: 4" (100mm)
Taper of Spindle Bore: MT3
Spindle Bore: 1inch (21mm)
Range of Spindle Speeds: 50-1250RPM(LOW)/100-2500(HIGH)
Range of Longitudinal Feeds: 0.08-0.16mm
Range of Threads: 10-44T.P.I (0.5-3mm)
Top Slide Travel: 2" (55mm)
Cross Slide Travel: 3" (75mm)
Tailstock Quill Travel: 2.5" (60mm)
Taper of Tailstock Quill: MT2
Gross Weight: 68kg (149.6lbs)
Package Dimensions: 780*480*420mm (31"*19"*17")
Package
1 X Mini Lathe
1 X 3-jaw Chuck (100mm)
1 X Splash Guard
1 X Chip Tray
1 X Toolbox
1 X English User Manual
Tool Box Accessories
5 X Change Gears
3 X External Jaws
1 X Fasten Thimble
1 X Oil Can
1 X Chuck Wrench
5 X Hexagon Wrenches
2 X Screwdrivers
