Vitrified Bond PCD&PCBN Grinding Wheels for PCD&PCBN Insert

Vitrified Bond PCD&PCBN Grinding Wheels for PCD&PCBN Insert
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: 1A1, 6A2C, 2A2T, 11A2, 12A2, 14A1
Grit Size: D22 - D6
Machine: Ewag-RS15&RS12, Farman-Fd250
Materials: Diamond/ CBN
Packing: Box
Advanteges: Short Grinding Times
Application: PCD/ PCBN

Product Description

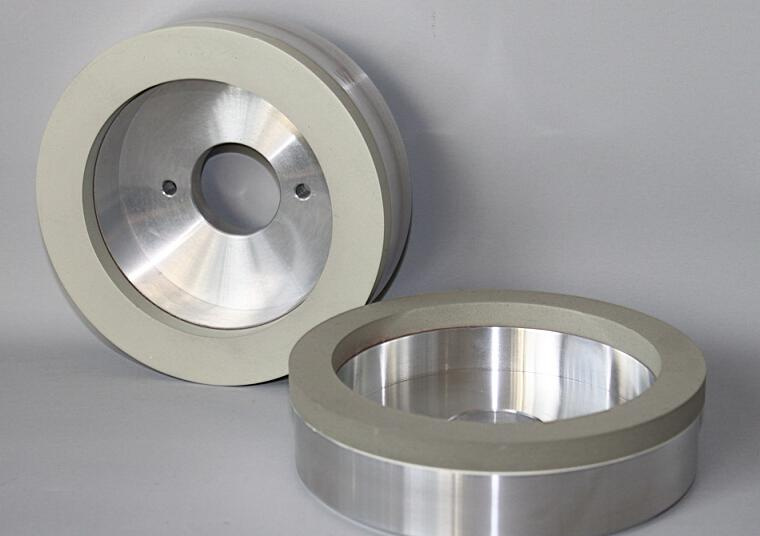

With special vitrified bond, E-Grind created a highly efficient diamond wheels for sharpening PCD/PCBN insert.

The advantages of our bond are as follows:

* The perfect grinding process efficiency
* Shortened shut-down grinder times
* High machining accuracy
* Short grinding times
* Very good tool profile stability
* Remarkably higher life in comparison with traditional grinding wheels

Grit SizeMachining TypeApplication
D22RoughRegeneration grinding a blade edge, profiling and sharpening of worn inserts.
D15UniversalStandard grain size - there is a possibility of obtaining a high sharpening efficiency and good quality machined surfaces by taking advantage of additional spark-out passes.
D9FinishFinishing grinding - obtaining a very good quality of machined surfaces.
D6SuperfinishSuperfinish grinding - obtaining a brilliant quality of machined surfaces.

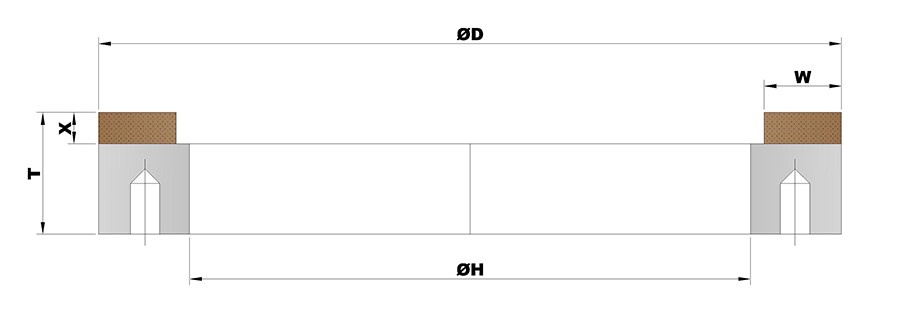

Wheel Drawing:
                                  2A2T




With 40 years experience in Superabrasive industry, E-Grind Abrasives is a very reliable partner in supplying full range of Diamond and CBN grinding wheels for many industries: Woodworking, Die&Tooling, Bearing, Paper-Making, Automobile, Aerospace, Semi-Conductor...Our technology and bond systems are from US and Europe. Our producing machines are mainly imported from US, Europe, Japan and Taiwan; Specially we have 6 CNC machines for the machining and grinding our products; And the testing machines are also from Japan and Europe. All of these make our products to be premium grade with high tolerance and to meet US and Europe standard and level. Our capacity is 30, 000PCS of Diamond CBN wheels per month; Meanwhile we have more than 3000 sets of mold available; More than 4000 wheel specs; Thousands of standard wheels in stock; Customs made wheels are always available. All these make us able to supply wheels in fast delivery time: 5 days for urgent items and 14 days for standard items.
