| Prod Model: |
Y30 |
| Power: |
5.5kw~11kw |
| Weight: |
3t~13t |
| Application: |
Hole Punching, Trimming, Embossing, Blanking |
Product Description

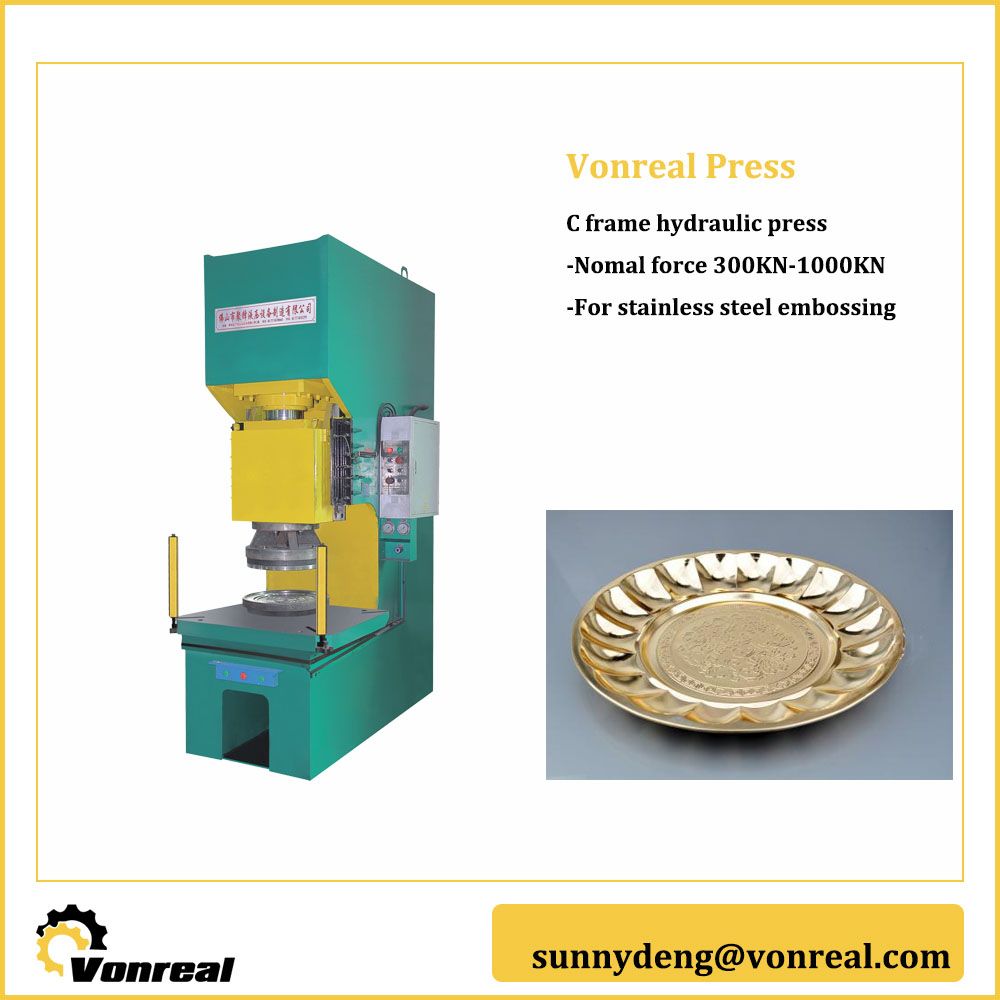

VONREAL c type power press for sale (Y30)
Product Applications
Bow Punch Hydraulic Press is exploited for adding stiffeners in the button of stainless steel products and superficial patterns.
Characteristics·Start fast, small noise, stable pressure, small damage to mold.
·Using the back-to-back type fit, the volume is small.
Function
·Auto. count
·The main seal is made of imported material
·Schneider button device
·PLC control
·Main circuit with no-voltage, overload and open-phase protections
·The main hydraulic components using Taiwan products
·Piston rods are IF heat treated with electroplated hard chromium coat
·Infrared photoelectric reflection sensor safe and reliable protection
Model
| No. | Item | Unit | Parameters |
| Y30-30 | Y30-50 | Y30-70 | Y30-100 |
| 1 | Nomal Force | KN | 300 | 500 | 700 | 1000 |
| 2 | Maximum Working Pressure of Liquid | Mpa | 15 | 20 | 21 | 20 |
| 3 | Master Cylinder Stroke | mm | 300 | 300 | 300 | 350 |
| 4 | Maximum Closed Height | mm | 850 | 900 | 900 | 950 |
| 5 | Height from Settled Workbench to Ground | mm | 780 | 780 | 780 | 780 |
| 6 | No-load Down Running Speed of Master Cylinder | mm/s | 200 | 200 | 180 | 180 |
| 7 | Feeding Speed of Master Cylinder | mm/s | 16 | 16 | 14 | 11 |
| 8 | Opening Speed of Master Cylinder | mm/s | 170 | 148 | 148 | 145 |
| 9 | Active Area of Workbench(left-rightXfront-back) | mm | 600x1100 | 700x1150 | 700x1300 | 750x1300 |
| 10 | Boundary Dimension(left-rightxfront-backxheight) | mm | 1500x1100x2400 | 1600x1150x2400 | 1650x1300x2495 | 1700x1300x2600 |
| 11 | Motor Power | kw | 5.5 | 7.5 | 7.5 | 11 |
| 12 | Machine Weight (approximately) | t | 3 | 4.5 | 8.5 | 13 |
