| Prod Model: |
VRX932LA/ VRX932LAP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Line Array |
| Model: |
Vrx932la |
| Hf: |
3X 2408h Neodymium Driver |
| Lf: |
1X 2262HPL Neodymuim Woofer |
| Cabinet: |
Finland Plywood Cabinet |
| Operation Model: |
Bi-AMP or Full Range |
| Grille: |
16-Gauge Perforated Steel |
| Finish: |
Imported Polyurea Paint |
| Horn: |
ABS Plastic |
| Color: |
Black |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Certification: |
CCC |
| THD: |
<0.005% |
| Speaker Material: |
Birch Plywood |
| Monitor: |
Non |
| Application: |
Events, Outdoor Performance |
Product Description
2018 exhibition information
We will attend 2018GETshow(Guangzhou Entertainment Technology Show)
www.getshow.com.cn
Time: May8-11,2018
Booth: Hall2-2E-06B
Add: Guangzhou Pazhou Poly World Trade Center
Welcome to visit.
VRX932LA single 12" Passive/Active Line Array
1.This model 12" sound system mini line array speakers hold the top-sellers in past 5 years.
2.Fantastic nice sound quality has gained 95% customers placed repeated orders.

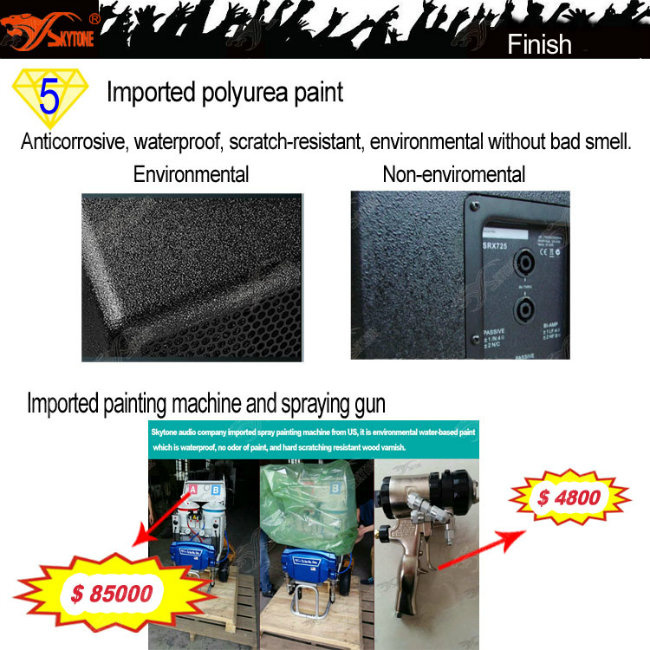

3.Outside polyurea paint is environmental, Anti-corrosive, waterproof, scratch-resistant.
4.It's the most classic model in mini line array sound system speakers.
Skytone quality advantages:1.Equipped birch plywood cabinet, CNC-machined cabinet
2.Painted imported polyurea paint, which is Anti-corrosive, waterproof, scratch-resistant, environmental without bad smell.
3.Features neodymium magnet speakers

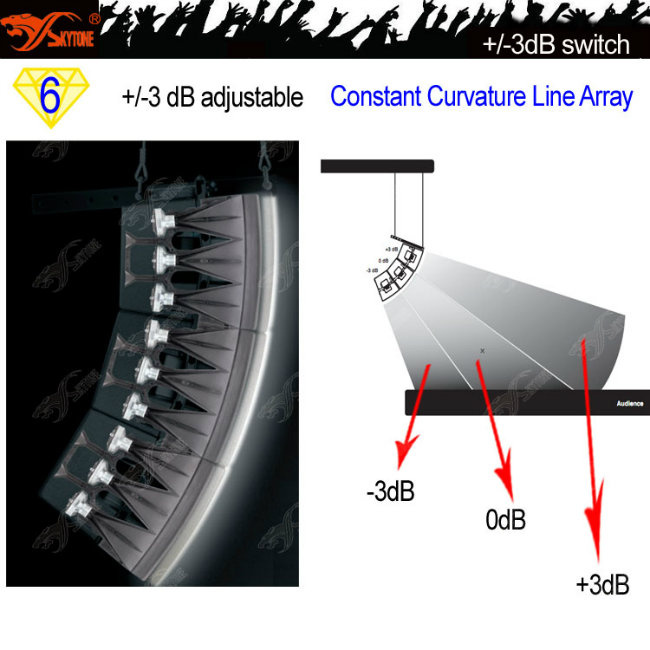

4.+/-3dB available, constant curvature line array
5.The goods has passed European standard ECM CE certificateFeatures:1.Neodymium magnet speakers inside, provided high-power capacity and liight weight\
2.Constant Curvature line array,+/-3db assured whole audiences have same feeling
3.Two angle pole socket for aiming flexibility 4.Flying hardware arrays of up to six speakersSpecifications| Model | VRX932LA | VRX932LAP |
| Power Rating | 800 W / 1600 W / 3200 W | 800 W / 1600 W / 3200 W |
| System type: | 12 inch, two way, line-array speaker | 12 inch, powered two way, line-array speaker |
| Frequency Range (-10 dB): | 57 Hz - 20 kHz | 57 Hz - 20 kHz |
| Frequency Response (±3 dB): | 75 Hz - 20 kHz | 75 Hz - 20 kHz |
| Coverage pattern: | 100° x 15° nominal(horizontal x vertical) | 100° x 15° nominal(horizontal x vertical) |
| Maximum System SPL1: | 130 dB | 136 dB |
| Components: | 1 x 2262HPL 305 mm (12 in) neodymium woofer | 1 x 2262HPL 305 mm (12 in) neodymium woofer |
| 3 x 2408H 38 mm (1.5 in) neodymium tweeter | 3 x 2408H 38 mm (1.5 in) neodymium tweeter |
| Impendence | 8 ohms | 8 ohms |
| Operation model | Bi-amp / Full range | / |
| Paint | Imported polyurea paint | Imported polyurea paint |
| Cabinet material | 18mm Birch plywood cabinet | 18mm Birch plywood cabinet |
| Input connector | 2x NL4 speakon | 2x powercon
2x XLR male+female |
| Dimensions (H x W x D): | 343 mm x 597 mm x 376 mm | 349 mm x 597 mm x 444 mm |
| (13.5 in x 23.5 in x 14.8 in) | 13.75 in x 23.5 in x 17.5 in |
| Weight: | 21 kg | 32 KG |
Applications:- Large outdoor live concerts performance
- Mid-size and Small Venues
- Small-scale stage performance
- Night club, bar
- Church
- Wedding
- Hall, Stadium, theater, Auditorium
- Professionals and sound system hire companies
- Other entertainment performance place

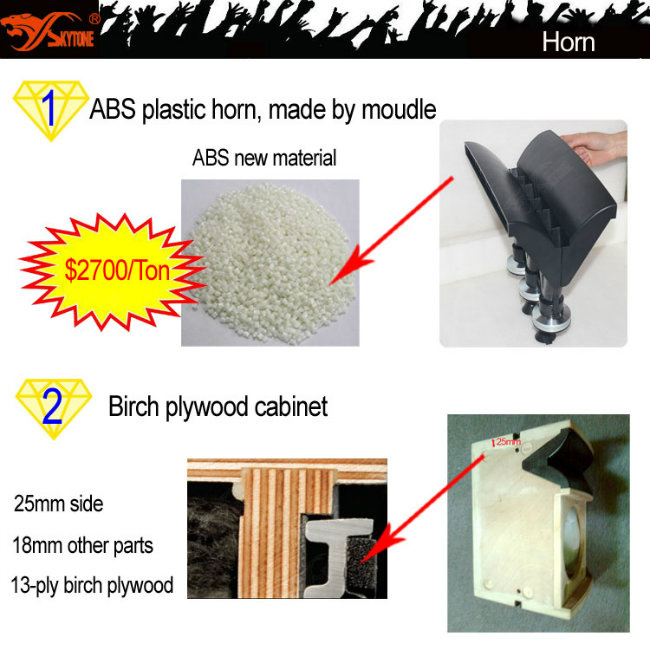

Why choose our skytone audio?1. Horn is made by module, ABS plastic horn, everyone is same shape
2. CNC-machined cabinet, 18mm,13-ply birch plywood

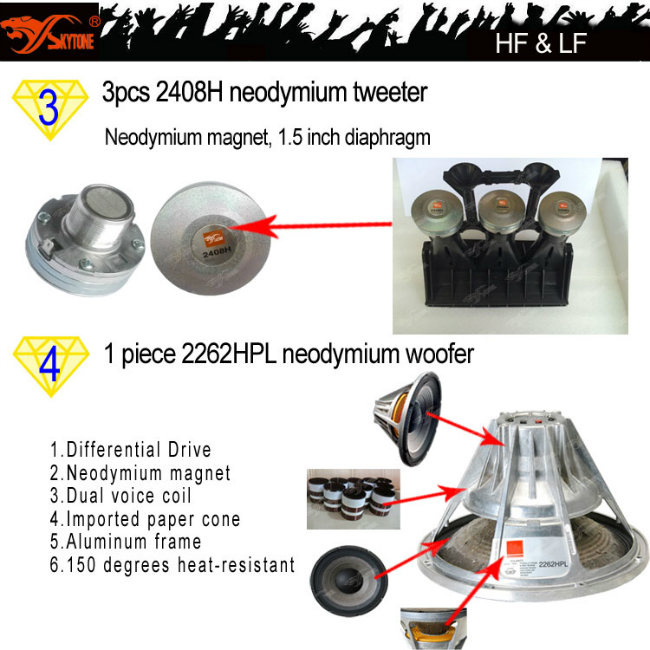

3. HF is 3pcs 2408H (1.5") neodymium driver
4. LF is 1 piece 2262HPL(12") neodymium woofer
5. Used imported ployurea paint, which is Anticorrosive, waterproof, scratch-resistant, environmental without bad smell.
6. +/-3dB is available

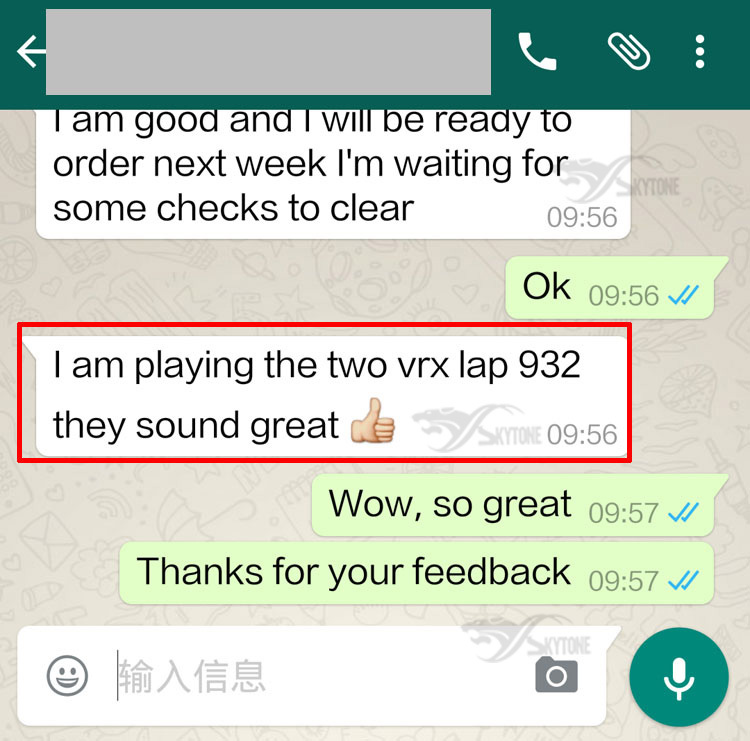

We have a lot good feedback from our clients.
VRX932LA Line Array Loudspeaker
12 in. Two-Way Line Array Loudspeaker System
2 Way, 12 Inch Differential Drive Woofer
Black line array
Passive line array
VRX932la Line array/ pro audio/loudspeaker
12 in. Two-Way Line Array Loudspeaker
Full frequency line array speakers
High power line array system
Line array
Light weight line array
Neodymium speaker line array
Passive pa speakers
