| Prod Model: |
VRX932 |
| Model: |
Vrx932la |
| Hf: |
Neodymium Tweeter |
| Lf: |
2262HPL/2268HPL Neodymium Woofer |
| Bi-AMP: |
Bi-AMP Type |
| Amplifier: |
Passive |
| Finish: |
Polyurea Paint |
| Cabinet: |
18mm Birch Plywood |
| Grille: |
Punched |
| Products Packing: |
Packaged in Carton Case or Flight Case |
| Warranty: |
1 Year |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Button Control |
| Speaker System: |
5.1 Channel |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
CCC |
| Monitor: |
LED Screen |
| THD: |
<0.005% |
Product Description

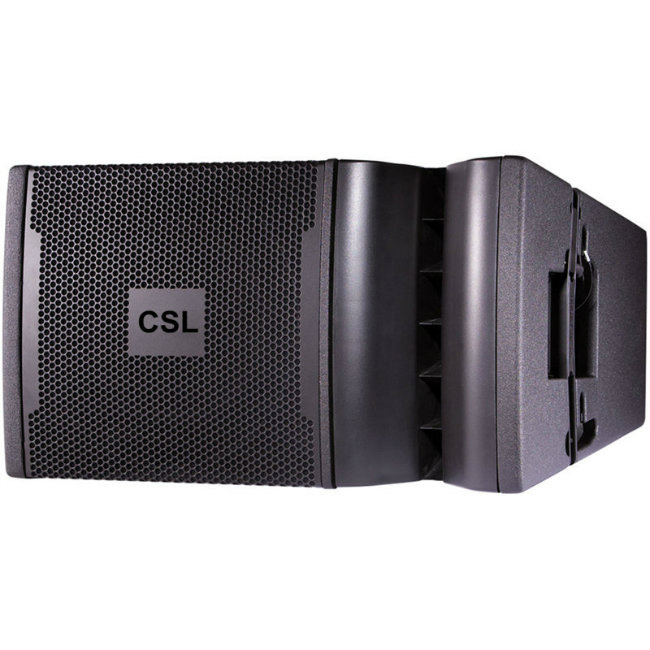

Vrx932lap Active Line Array Speaker BoxVrx932lap Active Line Array Speaker Box:1. Compact line array 12"
2. Fantastic nice sound
3. Coming with neodymium drivers inside with light weight
4. The most popular models of active line array
5. 18mm plywood cabinet enclosure
6. Dureflex finish, which was imported, environmental water-based paint , which can be dried in 3 seconds, no bad smell
VRX932LAp line array system----ApplicationA. Music playback and sound reinforcement in MID-size venues
B. Entertainers, corporate A/V professionals and sound system hire companies
C. Permanent Installation
D. Multi-function hall, church, wedding
E. Outdoor or indoor hug, middle, small events
F. Other entertainment places
VRX932LA line array system----Specification:
| Vrx932lap Line Array Speaker |
| Specifications : |
| Power Rating | 800 W / 1600 W / 3200 W |
| Frequency Range | 57 Hz - 20 kHz |
| | (-10 dB) |
| Dimensions | 343 mm x 597 mm x 376 mm |
| (H x W x D) | (13.5 in x 23.5 in x 14.8 in) |
| Frequency Response | 75 Hz - 20 Hz |
| (+/-3db) |
| Coverage Pattern | 100 x 15 nominal |
| Crossover Modes | Bi-amp / passive, externally switchable |
| Crossover Frequency | 132 dB SPL peak 1.2 kHz |
| System Maximum SPL | Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak |
| System Sensitivity (1w @ 1m | Passive: 95 dB SPL |
| Bi-amp LF: 95 dB SPL |
| Bi-amp HF: 114 dB SPL |
| LF Driver | 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with |
| neodymium magnet, dual voice-coils, and dual magnetic gaps. |
| Nominal Impedance | Passive: 8 ohm |
| Bi-amp LF: 8 ohm |
| Bi-amp HF: 8 ohm |
| Enclosure | 18 mm, 11-ply birch plywood |
| Suspension / Mounting | Optional VRX932LA-AF line array frame kit |
| Finish | Black DuraFlex™ finish |
| Grille | Power coated, black, 16-guage perforated steel with with acoustically transparent foam |
| Input Connectors | Speakon® NL-4 (x2) |
| Net Weight | 21 kg (46 lb) |
Cast Sound & Light Stage Equipment Co., Ltd in Guangzhou City, acts as a major innovator,
Developer and manufacturer dedicated to designing and manufacturing professional stage lighting Speaker products. Under the support from our professional technical and design term, our factory produces high quality intelligent lighting products for professional entertainment, architectural and themed environment markets. All our products undergo rigorous testing and very strict QC procedures to ensure trouble-free performance.
The main products are Professional Speaker, Micphone, Power amplifier, Microphone Refurbished Computer
Beam Light, Moving Head Light, LED moving head light, LED Wall Washer Light, LED PAR light, LED Dance Floor, LED Effect Light, Stage Equipment, outdoor light, Stage, Truss, etc.
At CSL, we dedicate ourselves to providing you with reliable, stable and creative products at Compatitive Price. We will do our best to let our customers purchase high quality products, reasonable price and timely delivery.
Welcome New and Old customers from all walks of life to contact us for future business relationships and mutual success!
Our mission is "Highest quality, Top-class reputation, service first, customer foremost
