Certificate: |
CQC, TUV, ISO |
Type: |
Direct Acting |
Valve Structure: |
Direct-Acting Piston Structure |
Power Supply: |
AC Solenoid Valve |
Application: |
Industrial Usage |
Connection Form: |
Welding |
Material: |
Copper |
Product Description

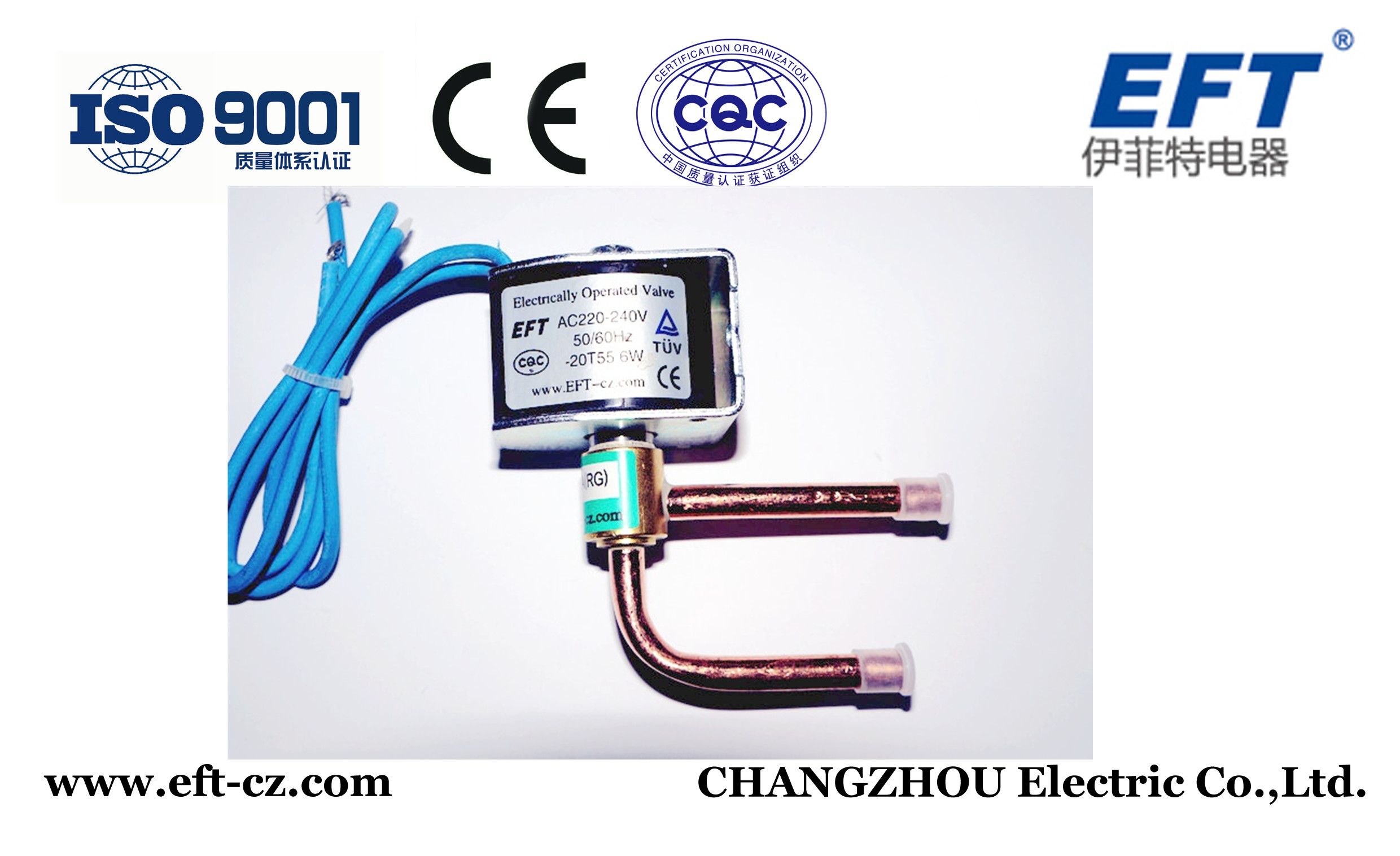

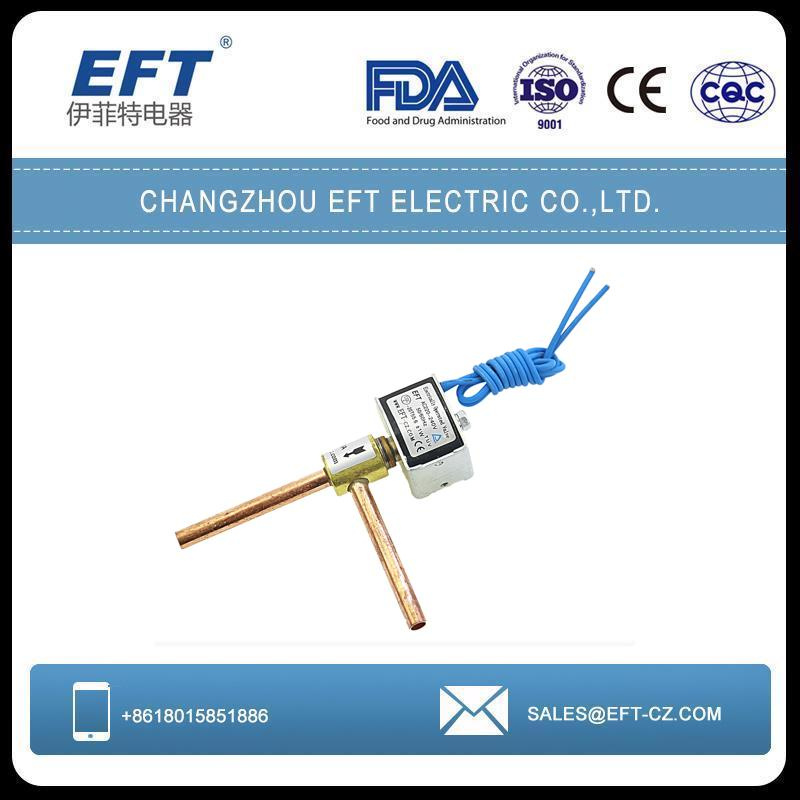

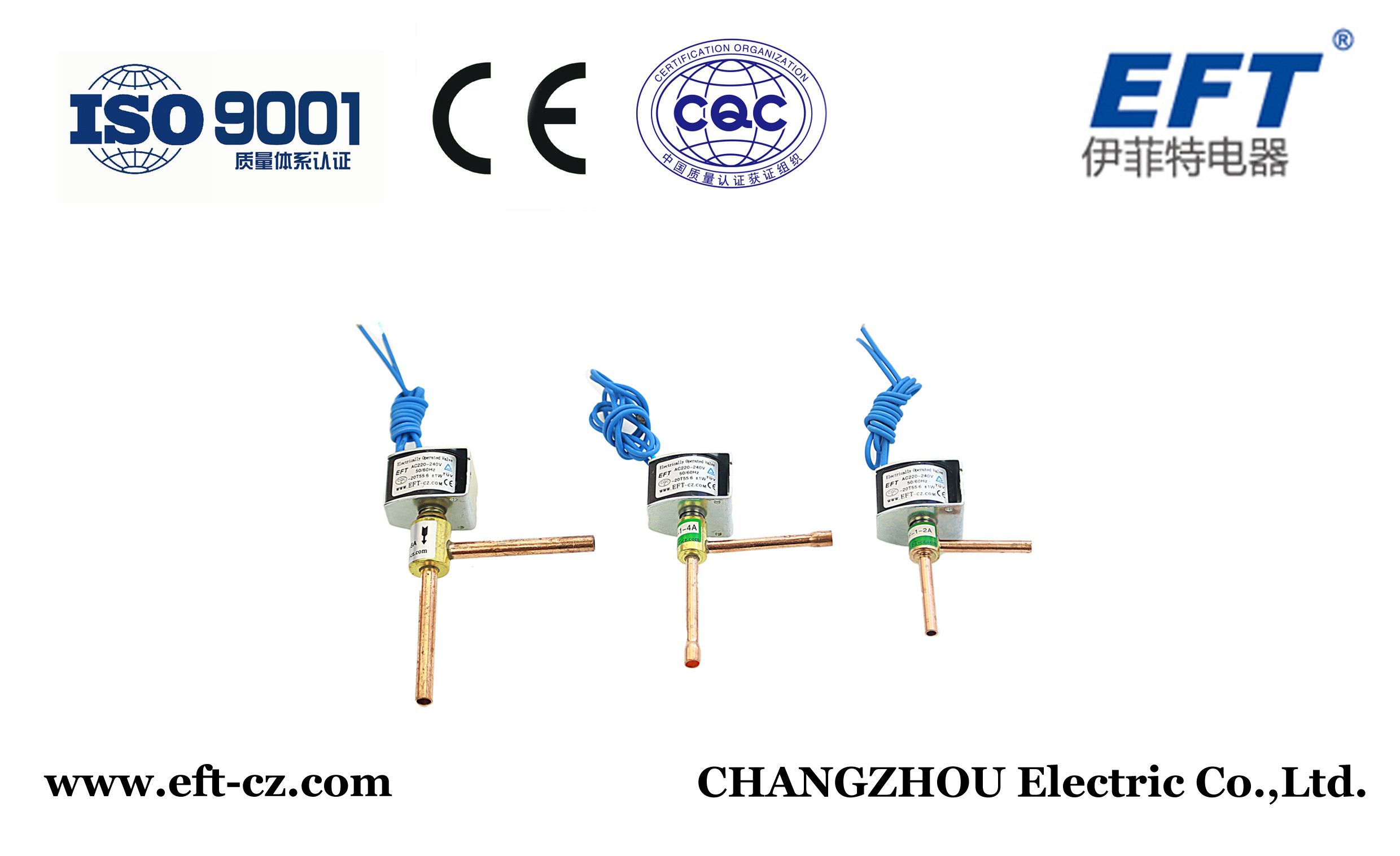

Dtf series solenoid valve consists of the valve body and the solenoid coils,pass off through the solenoid coil to control the valve opening and closing,ultimately to control the refrigerant media in the system off and flow.
Mainly used in refrigeration industry,application on ice cream machine,ice maker,frying ice cream machine,and vending machine.
The copper can be made in different shapes as required.
operating valtage | AC220V/110V±10%,50-60Hz |
Insulation resistance | ≥100MΩ |
Pressure of electric strength test | 4.5Mpa |
Pressure of air tightness test | 2.0Mpa |
Highest pressure difference | Under 85% of rated voltage 2.1Mpa of difference of pressure work normal |
Inner leaking amount | P=2.1Mpa,less than 50ml per minute |
suitable temperature of fluid | -20ºC-120ºC |
permitted ambient RH | below 95% |
Model | drift diameter of valve | inlet | outlet | consumption of power | action form |
DTF-1-2A | φ1.8mm | φ6mm | φ6mm | 6W | act directly,when turn on,open |
DTF-1-4A | φ4.0mm | φ6.4mm | φ6.4mm | 6W | act directly,when turn on,open |
DTF-1-6A | φ6.0mm | φ8mm | φ8mm | 6W | act directly,when turn on,open |
DTF-1-8A | φ8.0mm | φ10mm | φ10mm | 10W | act directly,when turn on,open |
DTF-2-2A | φ1.8mm | φ6mm | φ6mm | 6W | act directly,when turn on,close |
Q1: What is the Warranty for the solenoid valves?
A1: For the valves,we have one and half year warranty.If any quality problems on our side occured in this period ,we will make replacement.
Q2:: What is NO and NC?
A2: NO stands for normally open, that is , valve keeps open without power.If connect it with power, the valve will get closed.NC stands for normally closed,that is valve keeps closed without power.If connect it with power, the valve will get open.
Q.3: What is the assembly way of solenoid valves?
A.3 we suggest to make horizontal installation to enlarge life time,but it can be vertical installation if have special request.
Q4:Is there cheap shipping cost to import to our country?
A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.
Q5:Can we make customized product?
A5: Yes, we are good at making customized products.More than 30% of our products are customized products. We have successfully customized for customer from various fields from USA,Norway.Australia, Germany ect.
EFT is founded in 1996, the company produces a variety of refrigeration machinery parts and has achieved the national and industry standards. It established a good relationship of cooperation with a number of domestic enterprises and access to the majority of users.
Our main products include cube ice machine, crescent cube ice machine, almost all the parts are produced by ourselves or top-class supplier in the industry.
Cube ice evaporator for water-flowing mode ice machine, electronic expansion valve for refrigeration and ice machine, check valve for air condition system, pump for ice maker, PPO solenoid valve for coffee machine, solenoid valve(copper with nickelplate), pressure switch for refrigeration and etc.
We have cooperation with famous companies in the industry all over the world includes Scotsman, hoshizaki and etc. We sincerely believe that producing high quality products and providing excellent service will lead us to a greater future.
We have 8000 square meters of factory buildings, advanced production equipments--most important of all, we have a group of serious and responsible staffs.
We are sincerely looking forward to cooperating with you!
