Waterproof Customized Silicone Rubber Gasket for Machinery Equipment

Prod Model:	zm-gasket
Process Technology:	Die Cutting, Vaculation, Injection
Type Of Enterprise:	Manufacturer
Certification:	SGS, FDA, Reach, RoHS, etc
Application:	Household Appliance
Cross-Section Shape:	Any Shape
Material:	EPDM, Nr, Silicone, FKM, NBR, etc

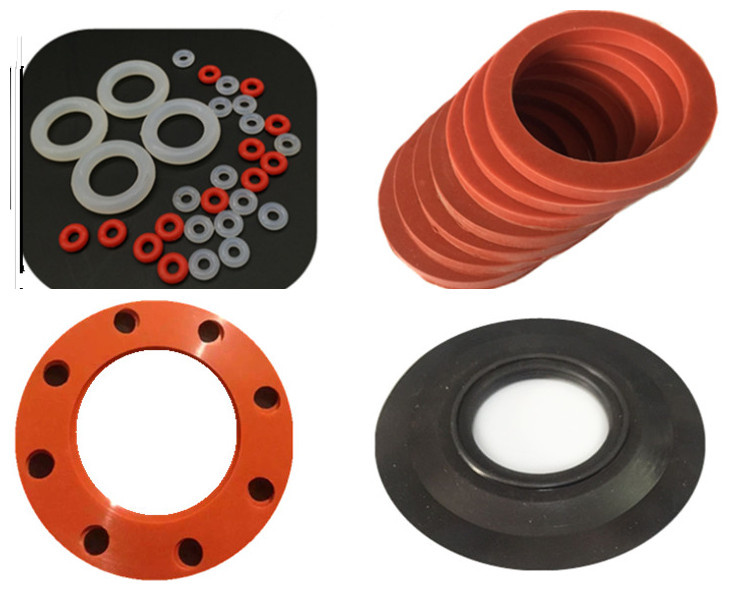

Product Description

Rubber gasket is formed by vulcanization once with various of material, any color, all kinds of shape. such as black, white, yellow, red,etc. Rubber gasket with different material has different property, Such as EPDM rubber gasket, Silicone rubber gasket, FKM rubber gasket, etc
Are widely used for any area in our life.

Production Description

Item Name	Rubber gasket
Material	Silicone NR, NBR,SBR,BR,IR,CR,EPDM,IIR,VITON(FKM)
Hardness	Silicone about 20~80 Shore A; rubber about 30~90 Shore A
Color	White, black, yellow, blue, red,etc
Feature	Oxidation , Chemical,oil, acid ,alkali , weather resistance colorful ,Anti-aging,good flexibility, good elasticity
Temperature Resistance	~40 to 300ºC
Application	Automotive, industry, building, train,airplane,construction,etc
Process	Molded or injection
OEM	welcome
Certification	SGS, FDA, REACH, ROHS, etc
Tolerance	0.05mm


The property and advantage of our rubber gasket
1.smooth surface without any burr
2.super sealing performance, for blocking water, wind, dust, noise outside
3.Weather resistant(Ozone, UV, freezing cold, sunlight)
4.excellent flexibility and anti-deformation
5.Widely temperature range(~40~300ºC)
6.Chemical and water resistance

The property of various of material for Rubber gasket is as below,
1. the property of NR
 It has good wear resistance, high elasticity, breaking strength and elongation, But in the air, it is easy to get age, and it is get sticky when it get in touch with heat, which is easy to expand and dissolve in mineral oil or gasoline, but it is resistant to strong acid, but not to Alkali . working temperature is -50~70ºC.
2. the property of EPDM
Weather ability, aging resistance, ozone resistance, chemical stability are excellent, and CFCS and a variety of refrigerants. Working temperature is -50~150
3. the property of silicone
It has excellent heat resistance, cold resistance, ozone resistance and atmospheric aging resistant.Good electrical insulation performance,The tensile strength and wear resistance are generally poor and has non- oil resistant. The working temperature is -55~250ºC
4. The property of NBR
Good oil resistance, heat resistance, abrasion resistance, solvent resistance and high - pressure oil,But it is not suitable for polar solvents, such as ketones, ozone, nitro-hydrocarbons, and chloroform. The working temperature is -40~120 ºC
5. the property of CR
It has good elasticity, wear resistance and atmospheric aging resistance. It is not afraid of violent distortion and flammability.Chemical stability. The working temperature is -40~100 ºC
6. The property of FKM
Excellent high temperature resistance,And have excellent chemical resistance, most oil and solvent (other than ketones and esters).cold resistance is not good.
6. The property of PU
High strength, excellent wear resistance, good oil resistance and solvent resistance,,In particular, it has good anti-swelling properties for lubricating oil and fuel oil,Good ozone resistance. But it's not high temperature. The working temperature is -45~110 ºC.
 The advantage of our company

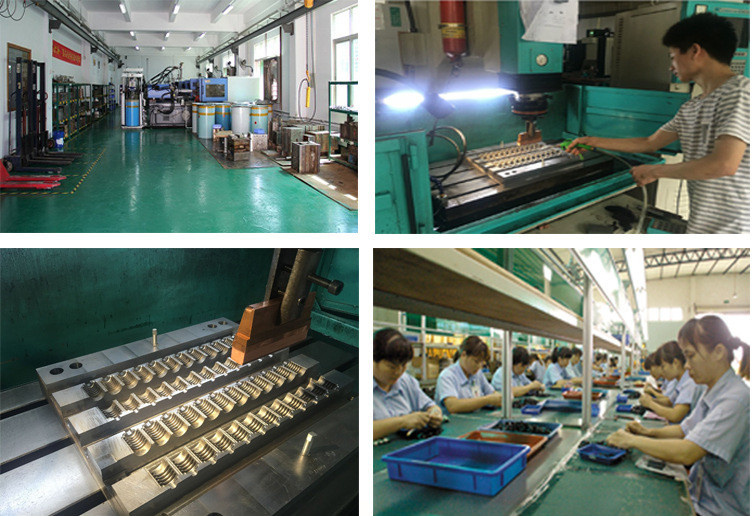

1.We have excellent complete production line with advanced production and test equipment
 Adding First-class technicians, so that we can  offer you the competitive price and high quality ,fast delivery time .
2.We have a special drawing design department to design the correct drawing data meeting your requirements. Then, we will use CAD or other format drawing to carry on tracking the production of tooling, sample ,mass goods. To avoid something wrong to each process. To make sure all of dimension are correct.
3.We also has special production supervision department. The engineer staff will Supervise  each process from the manufacture of tooling to the production of mass goods.
Reduce something wrong happened, finally offer you parts meeting your technology requirement.
4. All of Raw material are past quality certification,In the meantime, we will first delivery test report of rubber part when all of mass goods are finished. And make sure the quality meet your requirement, then make shipment

• Packing and shipment
• Four buffer is packaged with one plastic bag, then certain quantity of mounting are put into carton box.
• Carton box insider rubber mounting is with packing list detail. Such as, item name, the type number of rubber mounting, quantity of rubber mounting, gross weight,net weight, dimension of carton box,etc
• All of carton box will be put on one non-fumigation pallet, then all carton boxes will be wrapped by film.
• .We have our own forwarder which has Rich experience in delivery arrangement to optimize the most economic and quickest shipping way, SEA,  AIR,  DHL, UPS ,FEDEX, TNT , etc.About us
  These years, We are working on various project of customers and long term working in rubber industry. We have faith in giving your professional advice on your particular project.
  At present, our market have been expanded to more than 30 countries, and still growing.
  First we will get drawing or sample from our client to check their design. If there is no drawing or sample, we will ask some question about product concept and design idea.
  Then according to what application environment of rubber part, we will help design drawing and what raw material is best for rubber part. OEM parts are ok for us.

  We can meet your requirement of the design and use for different shapes and material,
   And high/low temperature, foam/sponge or solid rubber profile, fire resistance and special property of any rubber profile and molding rubber part

  The certification of our company
• Why choose us?
  1.Product: we specialize in rubber molding,injection and extruded rubber profile.
     And complete advanced production equipment and test equipment
  2.High quality:100% of the national standard has been no product quality complaints
  the materials are environmentally friendly and the technology reaches the international advanced level
  3.The competitive price:we have own factory, and the price is directly from factory. In additional,perfect advanced production equipment and enough staff. So the price is the best.
  4.Quantity :Small quantity is available
  5.Tooling:Developing tooling according to drawing or sample, and solve all of questions
  6.Package: all of package meet standard internal export package, carton outside, inside plastic bag for each part; as your requirement
  7.Transport:We have our own freight forwarder which can guarantee our goods can be delivered safely and promptly by sea or air
  8.Stock and delivery:Standard specification,lots of stocks, and fast delivery
  10. Service:Excellent service after-sales

  Common Questions
• What is the minimum order quantity for your rubber products?
• Answer:We didn't set the minimum order quantity,1~10pcs some client has ordered.
• If we can get sample of rubber product from you?
•  Answer:Of course, you can. Feel free to contact me about it if you need it.
• Do we need to charge for customizing our own products? And if it is necessary to make tooling?
• Answer: if we have the same or similar rubber part, at the same time, you satisfy it.
   Well, you don't need to open tooling
  New rubber part, you will charge tooling according to the cost of tooling.
  In additional,if the cost of tooling is more than 1000 USD, we will return all of them to you in the future when purchasing order quantity reach certain quantity our company rule
• How long you will get sample of rubber part?
• Answer: Usually it is up to complexity degree of rubber part. Usually it take 7 to 10work days.
• How many your company product rubber parts?
•  Answer:It is up to the size of tooling and the quantity of cavity of tooling. If rubber part is more complicate and much bigger, well maybe just make few, but if rubber part is small and simple, the quantity is more than 200,000pcs.
• Silicone part meet environment standard?
• Answer:Our silicone part are all high grade 100% pure silicone material. We can offer you certification ROHS and SGS, FDA .Many of our products are exported to European and American countries. Such as: Straw, rubber diaphragm, food mechanical rubber, etc.

   FAQ
  1. Are you factory or trade company?
  We  specialize in manufacturing rubber and plastic manufacturer, founded in 2004
  2. What's the order process?
  A: Inquiry---provide us all clear requirements, such as drawing with detail technical data, or original sample
  B: Quotation---official quotation sheet with all detail specifications including price terms,shipment terms,etc
  C: Payment terms---100% prepaid the cost of tooling before making new sample
                  T/T 30% in advanced, and the balance according to the copy of the B/L
  D:Develop tooling---open the mould according to your requirement
  E:Sample confirmation---send you the sample for confirmation with test report from us
  F:Production---mass goods for order production
  G:Shipping--- by sea, air or courier. Detailed picture of package will show you.

  3. What other terms of payment you use?
     PayPal, Western Union
