| Prod Model: |
HD6016 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panle And Handle Materials: |
304 Stainless Steel |
| Size: |
60*280mm |
| Card Chip: |
Mfs50/S70 Card |
| Mortise Standard: |
U.S.a Standard |
| Mortise Center Distance: |
70*95mm/62*95mm |
| Carton: |
8sets/Carton |
| Battery: |
4PCS AAA Batteries |
| Suitable Door Type: |
Wooden/Steel |
| Suitable Door Thickness: |
38-55mm |
| Warranty: |
2 Years |
| Material: |
Stainless Steel |
| Type: |
Single Type |
| Shape: |
Spherical |
| Style: |
European Antique Style |
| Lock: |
With Lock |
| Installation Type: |
Surface Installation |
| Surface Treatment: |
Brushed |
| Color: |
Silver |
| Usage: |
Hotel |
| Customized: |
Customized |
Product Description

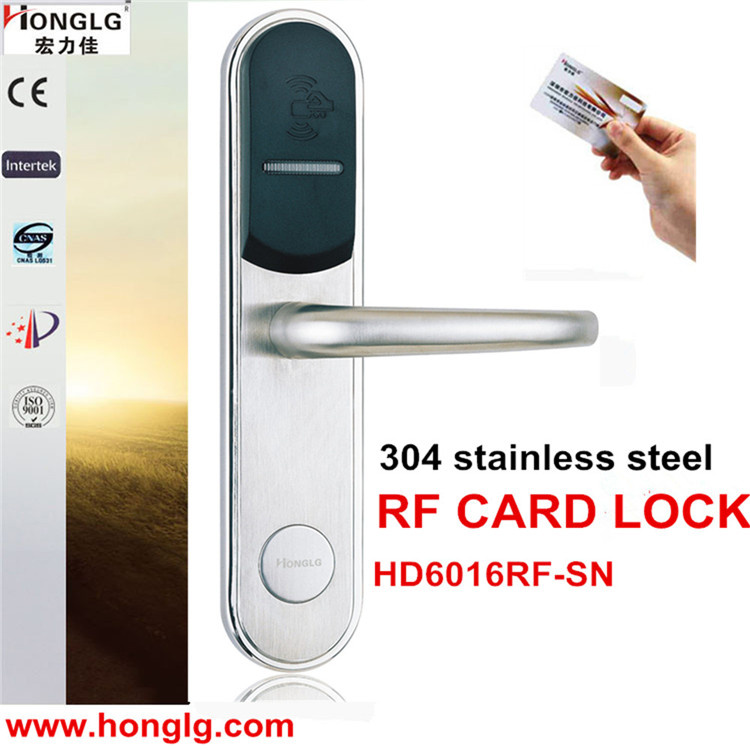

Waterproof Hardware Access Control Hotel Door Lock (HD6016)
Mortise: Europe and ANSI
Material: 304 Stainless steel
Interface with most of the PMS systems.
Interface with Famous Germany Hotel Management system ---Micros FIDELID.
Doha Asian Games in 2006 athletes' apartment specified use the Mifare one card lock
National sales: South America, the Middle East, Japan, Korea and other
Application: Hotels, home, office, luxury villas, apartment's buildings and other places;
Technical parameters
| operating frequency | 125KHZ-13.56MHZ | Card Type | Temic/Mifare card (Proximity) |
| sensing range | 3-5 CM | Voltage | 4 sections 1.5 v alkaline batteries |
| Static current | <=20uA | Dynamic current | <=150mA |
| Working emperature | -10 º C ~ 55 º C | Working humidity | 20%-90% |
| Low voltage tip | 4.5V-6.5V | antistatic | >15000v{it stillensures the information not
lost and static interference} |
| Card capacity | 200 votes | Garbled set | support |
| battery unlock life | >=10000 times | Reliability | >=30000 times |
| Certificate | CE/FCC | international standard | ISO11784/785 |
| Suitable door thickness | 38-70MM | Suitable door type | wooden door/Steel wooden door |
Advantages
Easy to use: The lock is operated by handles from both the inside and the outside of the door. Outside handle is fixed while in locking state; the handle can be turned only
in unlocking state. The Inside handle can be turned always. When ingress, the guest insert the keycard then the lock unlocked, turn the outside handle to open the door;
when egress, the guest turn the inside handle directly to open the door.
Emergency unlocking: The door can be opened by Master Card or Mechanical key even if the deadbolt works.
Free HONGLG hotel lock management system software provided.
Step by step installation software, easy operation.
Keycardsare limited by lock's clock, when the guest's lodging is out of the deadline, the keycard will be invalid, and so the guest has to take the card to renew.
Keycards are grouped into several levels to make the access authority clear. There are Master Card, Building Card, Floor Card, Waiter Card, and Guest Card.
Hotel managers can modify the authority of each card according to actual need at any moment.
Features
304 Stainless Steel panel and handles
5 latch ANSI U.S. standard mortise
Override mechanical key
4 pc AA Cell, minimum 14 months lifespan.
Low Voltage warning.
Mifare Technology
Classified Access Authorization
General Master card, building card, Emergency card, waiter card
Lost card suspension.
Common door function like Swimming pool, Gym, fitness center.
Meeting room function
830 pcs opening records
Step by step user friendly software
Software operation records.
Classified operating authorization.
Download the lock opening records.
Support Winxp,win7, win8, vista.
Support 32/64 digit system.
Interface with major PMS.
Suspend lost card, blacklist certain users
Control system
1. Electronic key door lock, which install on the doors, to keep room security.
2. Encoder: To issue all the open door cards, the master cards, floor control card for waiters, building control card, guest cards and so on.
3. Card: To open the door, and insert to the switch to get power in room.
4. Recorder: To collect the open door date, such as who, at what time, use which card to open the door.
5. Energy saving switch: Install in room, to control the room power after insert the open door cards.
6. Software system: Install on computer to manage the whole working system, at the reception, for guests check-in and check-out.
7. Wireless stand alone lock realizes 95% of on line lock function.
Can be integrated with Lift/Parking/Swimming/Sauna Room/Gym access...Etc(One card system)
8. Interface with most of the PMS system, Fidelio registered!
Delivery
| Warranty | 2 years |
| MOQ | 50 sets |
| Delivery | 15days after confirming all order details |
| Packing | 5 sets of locks for one carton. Meas./Ctn: 70X48X36cm |
| Payment Terms | TT and Western union. 30% deposit and full payment before delivery |
The lock will be delivered within7-15 workdays according to quantity. No matter you choose DHL, FEDEX, UPS, EMS or other trasportation way, we will struggele to find the best solution for you.
After-sales Service
The warranty of our products is 2 years. If anything I can help, please contact with us.
