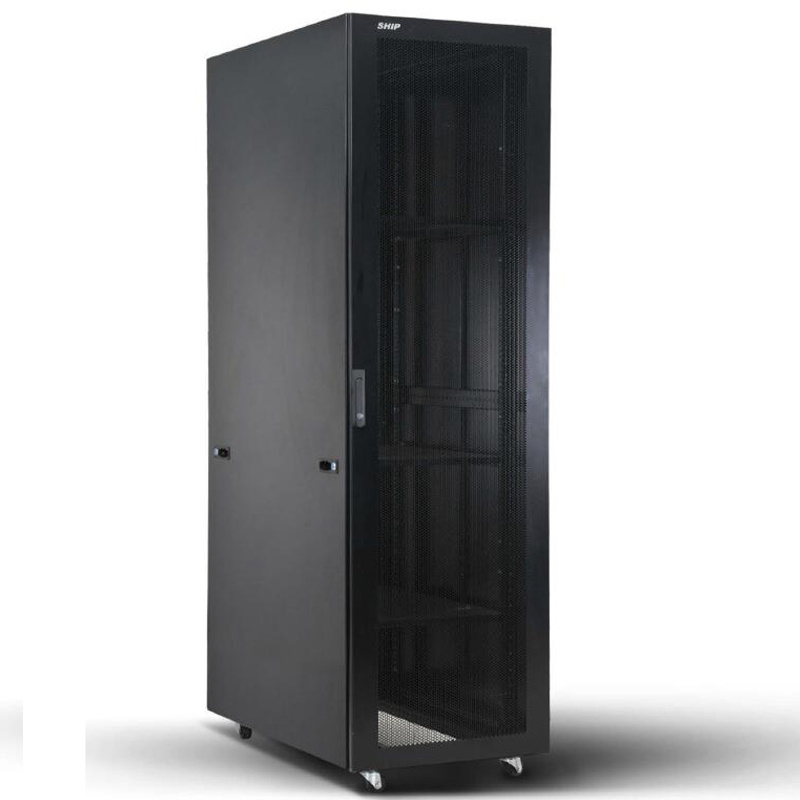

Welded Frame Nine-Folded 19" Server Cabinet
| Price: |
US $ 200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
603 |
| Material: |
SPCC Cold Rolled Steel |
| Standard: |
ANSI/Eia RS-310-D/IEC60297-2/DIN41494 Part 1 /7 |
| 19" Rails: |
2.0mm |
| Frame: |
1.5mm |
| Others: |
1.2mm |
| Colour: |
Ral 7035 / Ral 9004 |
| Static Loading: |
1000 Kgs |
| Type: |
Server Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Fan Number: |
Four |
| Certification: |
RoHS |
| Condition: |
New |
| Capacity: |
42u |
Product Description
StandardComply with ANS/EIA RS-310-D,IEC60297-2,DIN41494, PART1,DIN41494,PART7
MaterialSPCC Cold Rolled Steel,
19''rails:2.0mm,frame:1.5mm,orter:1.2mm
ColourRAL7035 RAL9004
Loading CapacityStatic loading:1000KG

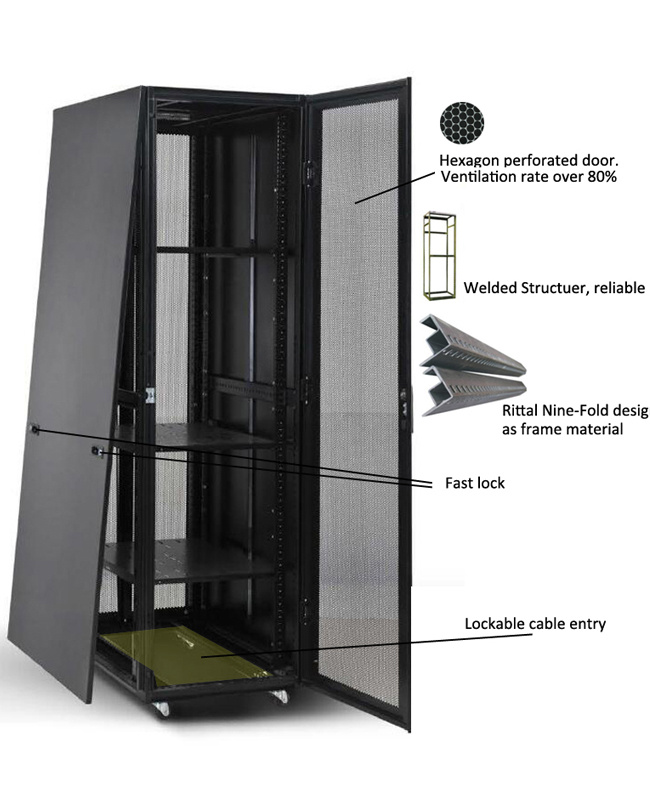

Main Features:
1. Reticular high-density vented front door(patent)&rear door for protection, ventilation and reliable and reliable operation
2.Eequisite image(patent)with precise dimension and craftsmanship
3.Lockable cable entry on top cover and bottom panel with adjustable sizes,
4.Optional plinth enables cabinets to stay in a fixed position while meeting requirements of under-base wiring/ventilation and rat prevention
5.Strong cabinet connection by baying kit(patent)
6.Lock with handle

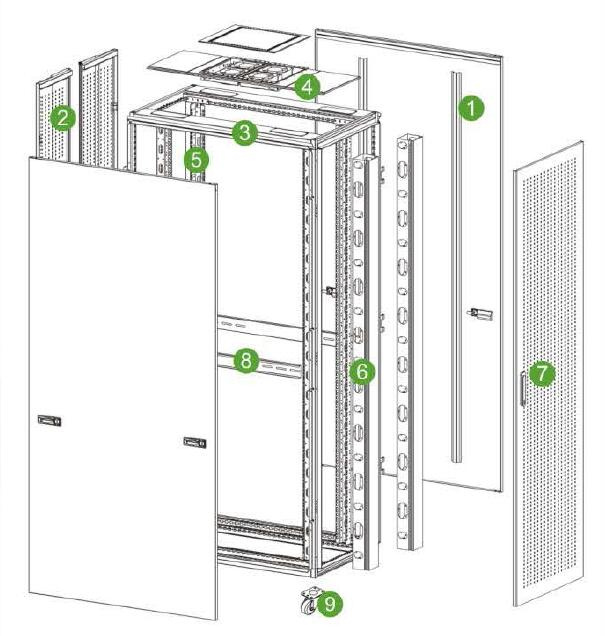

Products Overview:
| S/N | Specification | Qty | Material | Surface Finish | Remark |
| 1 | Side Panel | 2 | SPCC t1.2mm | Powder coated | |
| 2 | Rear Door | 1 | SPCC t1.2mm | Powder coated | Double high-density vented |
| 3 | Frame | 1 | SPCC t1.5mm | Powder coated | |
| 4 | Top Cover | 1 | SPCC t1.2mm | Powder coated | |
| 5 | 19" rails | 4 | SPCC t2.0mm | Powder coated | |
| 6 | Cable management | 2 | SPCC t1.0mm | Powder coated | only for 800mm width |
| 7 | front door | 1 | SPCC t1.2mm | Powder coated | |
| 8 | Mounting plate | 2 | SPCC t1.5mm | Powder coated | |
| 9 | 2" heavy duty castor | 4 | | | |
| A | M12 adjustable feet | 4 | | | |
| B | M6 screws & nuts | 20 | Steel | Color Zinc | 40 PCS for over 33 U |
| C | Trox tooling | 1 | Steel | Color Zinc | |

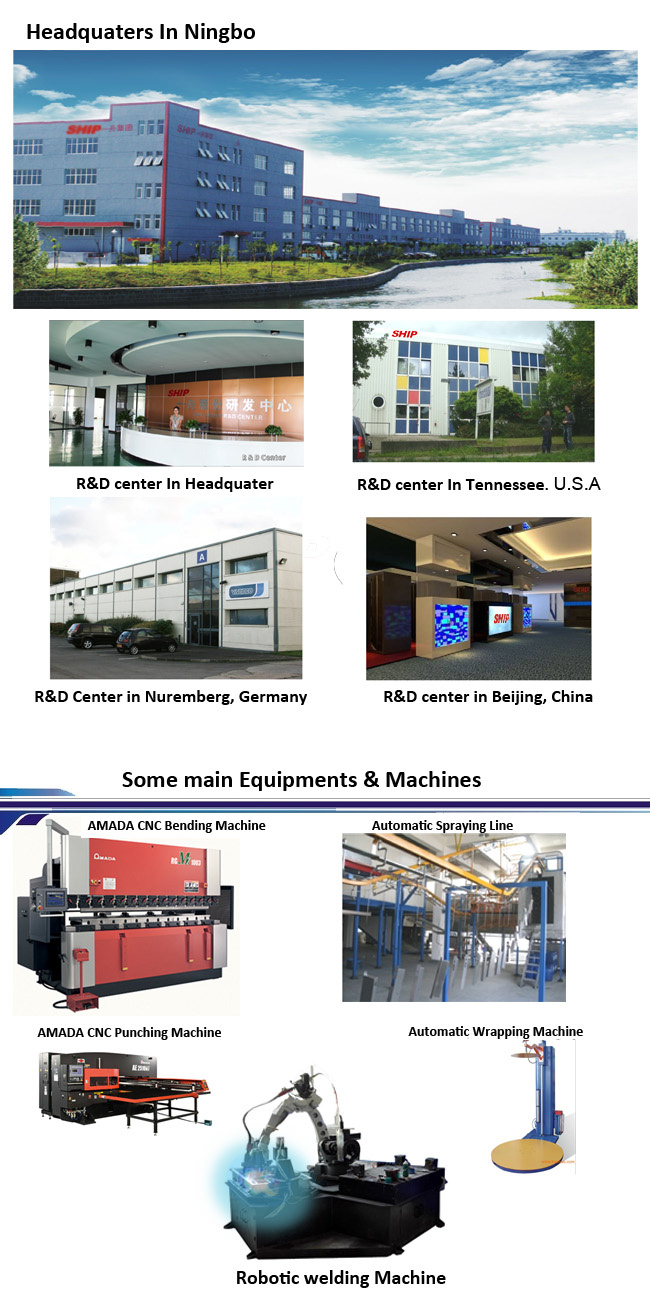

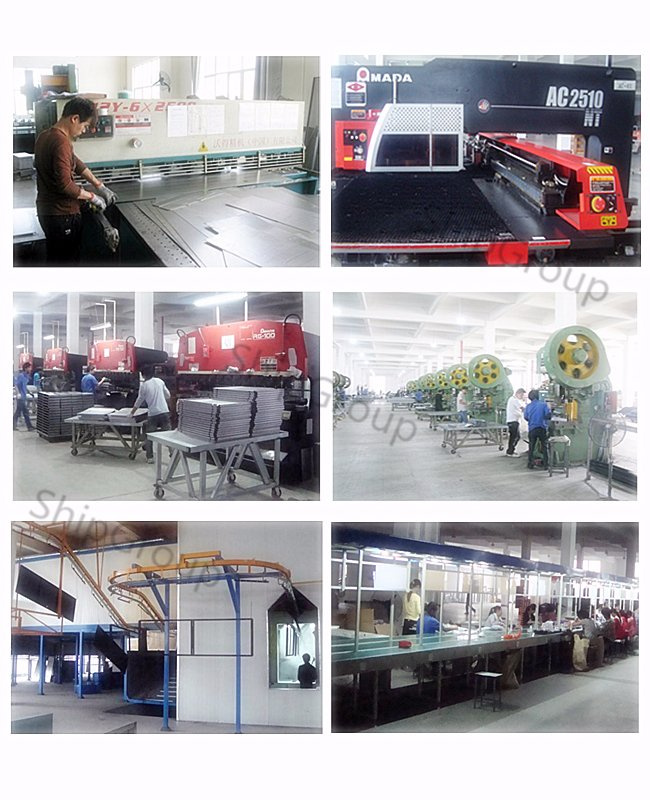

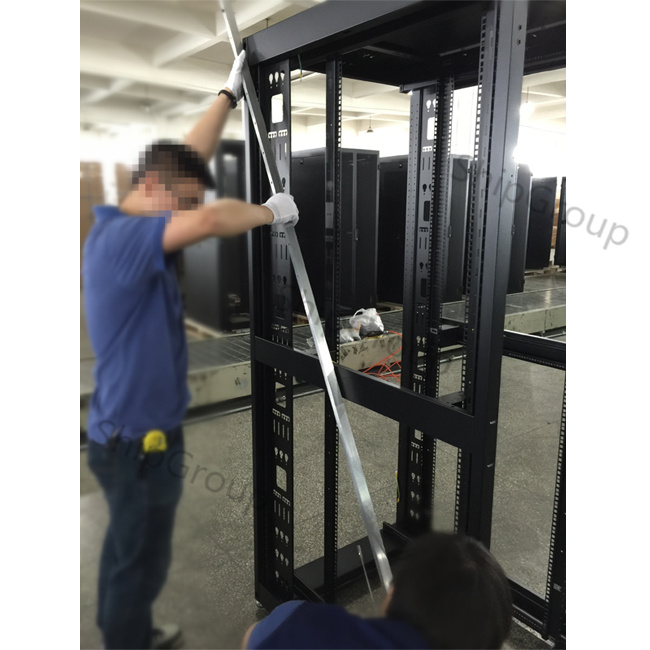

Production & QC
About ShipGroup.Ship Group is a comprehensive high-tech company which integrates the research, development, manufacturing and marketing of networking products, cables and consumer electronics etc. With the corporate spirit of "Faith, Devotion and Pragmatic", the company has accumulated rich business experiences and client resources in the designing and manufacturing and been the leading position of the trade. Currently, in the Ship Group, the staff number is more than 4,000 and the annual sales is over 200 million US dollars in 2007. There are 15 subsidiaries in Ship Group, which produce professionally and respectively: data cable from category3, category5, category5E, to category6, category6A, with capacity of 2 million cartons per year ; networking accessories, such as patch cord category5e and category6, with capacity of 50 million pieces per year; keystone jack, with capacity of 10 million pieces per year; patch panel with capacity of 500 thousand pieces per year; faceplate and back box, with capacity of 10 million pieces per year; home smart wiring box, with capacity of 1 million pieces per year; optical-fiber indoor and outdoor, with capacity of 100 million kilometers(inner core) per year; optical fiber patch cord, with capacity of 20 million pieces per year; Cabinet, wall mounted cabinet, and rack, with capacity of 100 thousand pieces per year; HDMI, with capacity of 30 million pieces per year; Computer cable, with capacity of 10 million pieces per year; Scart, with capacity of 40 million pieces per year; AV control, with capacity of 5000 thousand pieces per year; alarm cable, with capacity of 200 thousand kilometers per year; speak cable, with capacity of 100 thousand kilometers per year; Telephone cable, with capacity of 200 thousand kilometers per year.
The Ship Group obtained ISO9001:2000 and ISO14001, and introduced such as DCM detector, network analyzer, fluke detector and Time domain reflector, HDMI tester etc., Meantime, several certificate such as UL, ETL, CE, USB2.0, HDMI association, ROSH has been obtained, which makes reliable quality assurance for our clients.
Now the products of Ship Group have been sold to over 30 countries and regions such as the U.S.A., the U.K., Germany, Italy, France, Japan etc. The global market with the center of China and the heading directions of Asia, Europe and North America is being formed.
Ship Group is a comprehensive high-tech company which integrates the research, development, manufacturing and marketing of networking products, cables and consumer electronics etc.
We specialize in designing and manufacturing and been the leading position of the trade. Currently, in the Ship Group, the staff number is more than 4, 000 and the annual sales is over 200 million US dollars in 2007. There are 15 subsidiaries in Ship Group which produce professionally and respectively: Data cable from category3, category5, category5E, to category6, category6A, with capacity of 2 million cartons per year; Networking accessories, such as patch cord category5e and category6, with capacity of 50 million pieces per year; Keystone jack, with capacity of 10 million pieces per year; Patch panel with capacity of 500 thousand pieces per year; Faceplate and back box, with capacity of 10 million pieces per year; Home smart wiring box, with capacity of 1 million pieces per year; Optical-fiber indoor and outdoor, with capacity of 100 million kilometers(inner core) per year; Optical fiber patch cord, with capacity of 20 million pieces per year; Cabinet, wall mounted cabinet, and rack, with capacity of 100 thousand pieces per year; HDMI, with capacity of 30 million pieces per year; Computer cable, with capacity of 10 million pieces per year; Scart, with capacity of 40 million pieces per year; AV control, with capacity of 5000 thousand pieces per year; Alarm cable, with capacity of 200 thousand kilometers per year; Speak cable, with capacity of 100 thousand kilometers per year; Telephone cable, with capacity of 200 thousand kilometers per year.
We obtained ISO9001: 2000 and ISO14001, and introduced such as DCM detector, network analyzer, fluke detector and Time domain reflector, HDMI tester etc., Meantime, several certificate such as UL, ETL, CE, USB2.0, HDMI association, RoHS has been obtained, which makes reliable quality assurance for our clients.
Now the products of Ship Group have been sold to over 30 countries and regions such as the U. S. A., the U. K., Germany, Italy, France, Japan etc. The global market with the center of China and the heading directions of Asia, Europe and North America is being formed.
