Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No.: |
Marble Granite Concrete All Kinds of Nature Stone |
Feature: |
Fast Cutting Speed, Long Life |
Quality: |
a |
Certificate: |
ISO9001:2008, SGS |
Price: |
Diamond Tools Factory |
Type: |
Segmented, Continuous Rim, Turbo |
Bond: |
Metal |
Performance: |
Stable Performance and Long Lifespan |
Package Details: |
Carton, Box |
Shape: |
Round |
Manufacturing Arts: |
Welding |
Usage: |
Stone Cutting |
Customized: |
Customized |
Graininess: |
Upon Your Request |
Thickness: |
Upon Your Request |
Kind: |
Diamond Saw Blade Diamond Disc |
Brand: |
Sang |
Saw Blade External Diameter: |
105mm~3500mm |
Specification: |
4 Inch~140 Inch |
Product Description
Product Description

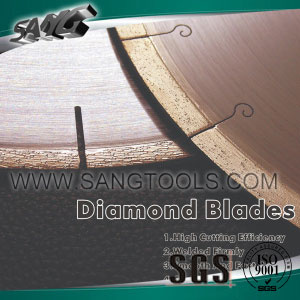

SANG Laser Welded diamond saw blades
--- Adopt laser welding techniques which bring fast and safety cutting.
--- Used for dry cut asphalt,reinforced concrete, concrete and firebrick ect...It can be widely applied.
Advantage:
--- Easy to operation;
--- Sharp and fast cutting;
--- Suitable for dry and wet cutting.
Features:
1. Using high quality raw materials
2. High daily output
3. Save energy
4. Quick delivery 10-15days
5. Diamond tools factory
6.long life
7.Without clip
8.Dull segment
If you are looking for this kind of goods, pls contact us, we are pleased to offer you the high quality goods with attractive price.
Sangtools also supplies small blades for diameter 105mm to 230mm diamond blade use for cutting granite, marble, concrete and aphalt.
Diamond saw blade, tools, cutter blade, diamond blade, diamond cutting blade, Laser Welded Diamond Saw Blade, cutting tools, diamond asphalt Blade, cutting green concrete blade, diamond concrete saw blade.
Some specifications for small diameter blade:
Dia. (mm) | core Thick (mm) | segment size (mm) | segment nos. |
300/350 | 2.0/2.2/2.4 | 40*3.0/3.2*10 | 21/24 |
300/350 | 2.0/2.2/2.4 | 40*3.0/3.2*12 | 21/24 |
400 | 2.6/2.8 | 40*3.4/3.6*3.8*10 | 28 |
400 | 2.6/2.8 | 40*3.4/3.6*3.8*12 | 28 |
500 | 3.0 | 40*4.0/4.2*10 | 36 |
500 | 3.0 | 40*4.0/4.2*12 | 36 |
600 | 3.6 | 40*4.6/4.8*10 | 42 |
600 | 3.6 | 40*4.6/4.8*12 | 42 |
700 | 4.0 | 40*5.2/5.5*10 | 42/46 |
700 | 4.0 | 40*5.2/5.5*12 | 42/46 |
800 | 4.5 | 40*6.0*10 | 46/57 |
800 | 4.5 | 40*6.0*12 | 46/57 |
15mm and 20mm segment height are available.
customized specification is also available.
Some specifications for big diameter blade:
Dia. (mm) | core thick (mm) | segment size (mm) | segment nos. |
900 | 5.0 | 24*6.6/6.0*12 | 64 |
900 | 5.0 | 24*6.6/6.0*15 | 64 |
900 | 5.0 | 24*7.0/6.0*20 | 64 |
1000 | 5.5 | 24*7.0/6.4*12 | 70 |
1000 | 5.5 | 24*7.6/6.4*15 | 70 |
1000 | 5.5 | 24*7.4/6.4*20 | 70 |
1200 | 5.5/6.0 | 24*8.0/7.4*12 | 80 |
1200 | 5.5/6.0 | 24*8.0/7.4*15 | 80 |
1200 | 5.5/6.0 | 24*8.4/7.4*20 | 80 |
1300 | 6.0 | 24*8.4/7.8*12 | 88 |
1300 | 6.0 | 24*8.4/7.8/15 | 88 |
1300 | 6.0 | 24*8.8/7.8*20 | 88 |
1600 | 7.2 | 24*9.0/8.4*12 | 108 |
1600 | 7.2 | 24*9.0/8.4*15 | 108 |
1600 | 7.2 | 24*9.4/8.4*20 | 108 |
1800 | 7.2/8.0 | 24*9.8/9.2*12 | 120 |
1800 | 7.2/8.0 | 24*9.8/9.2*15 | 120 |
1800 | 7.2/8.0 | 24*10.2/9.2*20 | 120 |
2000 | 8.0 | 24*10.5/9.5*12 | 128 |
Dia. (mm) | core thick (mm) | segment size (mm) | segment nos. |
2000 | 8.0 | 24*10.5/9.5*15 | 128 |
2000 | 8.0 | 24*10.5/9.5*20 | 128 |
2200 | 8.5/9.0 | 24*11.5/10.5*12 | 132 |
2200 | 8.5/9.0 | 24*11.5/10.5*15 | 132 |
2200 | 8.5/9.0 | 24*11.5/10.5*20 | 132 |
2500 | 8.5/9.0 | 24*12.5/11.5*12 | 140 |
2500 | 8.5/9.0 | 24*12.5/11.5*15 | 140 |
2500 | 8.5/9.0 | 24*12.5/11.5*20 | 140 |
3000 | 11.0/10.0 | 24*13.5/12.5*12 | 160 |
3000 | 11.0/11.0 | 24*13.5/12.5*15 | 160 |
3000 | 11.0/10.0 | 24*13.5/12.5*20 | 160 |
3500 | 11.0 | 24*14.5/13.5*15 | 180 |
3500 | 11.0 | 24*14.5/13.5*20 | 180 |
15mm and 30mm segment height are available.
customized specification is also available.
Established in 1993, Sang Diamond Tools Co., Ltd. is an innovative company specializing in research and manufacture of various diamond tools, such as diamond segments, diamond blade, diamond wire saws, diamond core bits, diamond polishing pads, diamond cup wheels, and diamond profiling wheels.
Our products are widely used for cutting and grinding granites, marbles, concretes, asphalts, tiles, slabs, countertops, pavement, bricks, curb, steps, palisades, wall stones, pillars, memorials, and sculptures.
Based on advanced technology and comprehensively systematic research and analysis of cutting nature of diverse stones and non-metal materials at home and abroad, we have developed unique diamond tools of sawing, cutting, grinding, milling and drilling which are adaptable in different areas. Owing to the latest manufacturing techniques, the most stable products and the best services, our products enjoy high reputation in both domestic and foreign markets such as Europe, America, East Asia and Southeast Asia.
With high quality products at reasonable prices, we sincerely hope to set up close relationships with customers all over the world.
