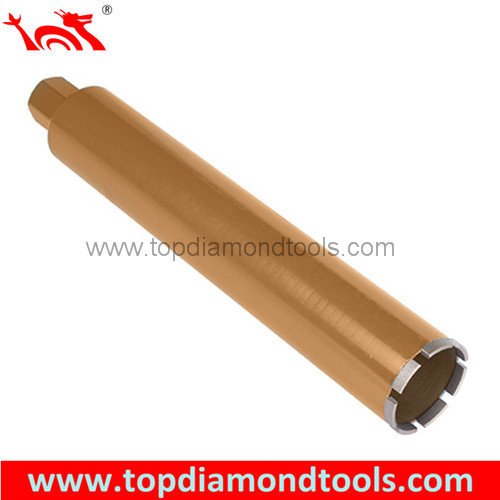

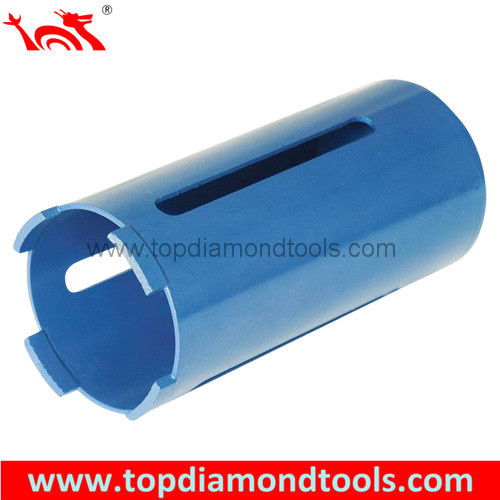

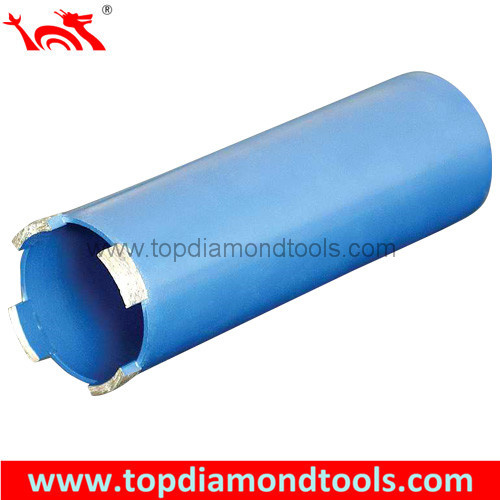

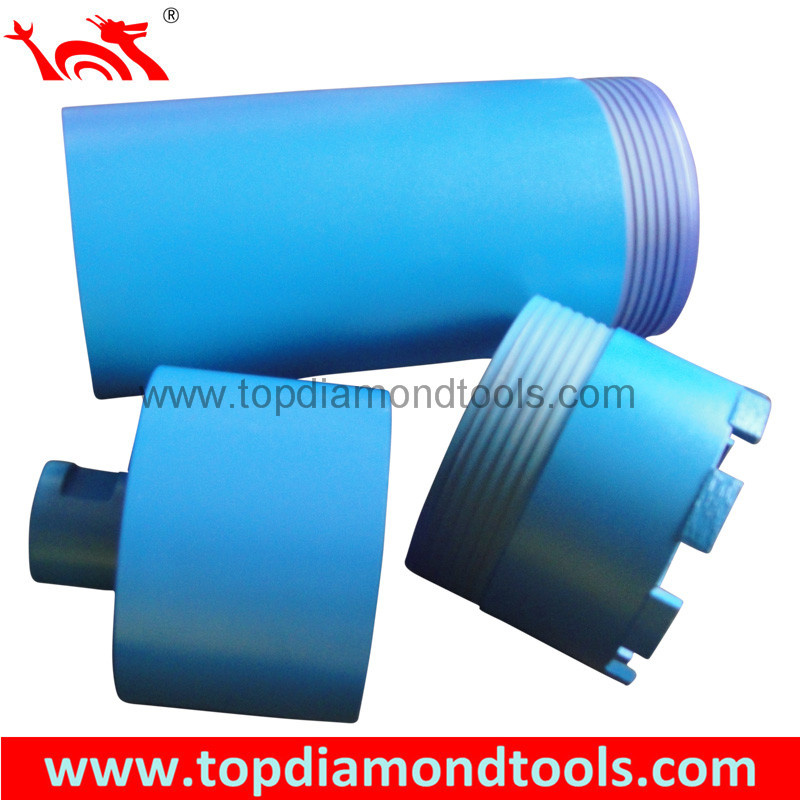

Wet Type Single Diamond Drill Bits

Name: Wet Type Single Diamond Drill Bits
Brand: tool-buy.com
SKU: 719639955
Availability: InStock
Rating: 4.9 (141 reviews)

Price:	US $ 10-30/Piece
Trade Terms:	CFR,CIF
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Quanzhou Top Diamond Tools Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Drilling
Manufacturing Arts:	Welding
Adpator:	1/2" Bsp, 1 1/4" Unc

Product Description

Diamond Core Bits designed for maximum cutting capacity required by professional applications such for cured reinforced concrete, green concrete and abrasive material.
Used on Hydraulic drilling machines, electric hand-held drillers.

Item	Diameter	Segment Size	Segment No.	Overall Length	Welding Method	Adaptor
Diamond Core Drill Bits For Wet Use	7/8"(22mm)	17/12x3.0x10	3	270-450mm Normal 400mm	Silver or Laser	1/2" BSP 1 1/4" UNC
	1"(25mm)	17/12x3.0x10	4
	1.18"(29mm)	17/12x3.0x10	4
	1.25"(32mm)	16x3.0x10-14	4
	1.38"(35mm)	16x3.0x10-14	4
	1.50"(38mm)	16x3.0x10-14	5
	1.63"(42mm)	16x3.0x10-14	5
	1.75"(45mm)	16x3.0x10-14	6
	1.88"(48mm)	16x3.0x10-14	6
	2"(52mm)	16x3.0x10-14	7
	2.25"(57mm)	22x3.5x10-14	5
	2.50"(63mm)	22x3.5x10-14	6
	2.75"(70mm)	22x3.5x10-14	7
	3"(76mm)	22x3.5x10-14	8
	3.25"(82mm)	22x3.5x10-14	9
	3.50"(89mm)	22x3.5x10-14	10
	4"(102mm)	22x3.5x10-14	10
	4.25"(108mm)	22x3.5x10-14	11
	4.50"(114mm)	22x3.5x10-14	11
	4.75"(120mm)	24x4.0x10-14	11
	5"(127mm)	24x4.0x10-14	11
	5.5"(140mm)	24x4.0x10-14	12
	5.75"(146mm)	24x4.0x10-14	13
	6"(152mm)	24x4.0x10-14	13
	6.25"(159mm)	24x4.0x10-14	14
	6.5"(165mm)	24x4.0x10-14	15
	7"(178mm)	24x4.0x10-14	16
	8"(203mm)	24x4.5x10-14	18
	9"(229mm)	24x4.5x10-14	20
	10"(254mm)	24x4.5x10-14	23
	11"(280mm)	24x5.0x10-14	25
	12"(305mm)	24x5.0x10-14	27
	13"(330mm)	24x5.5x10-14	30
	14"(356mm)	24x5.5x10-14	32

Quanzhou TOP Diamond Tools Co., Ltd is one of the most professional manufacturers of top quality diamond tools in China with the management system certificate of ISO9001. All of our production and inspection are rigidly controlled according to the International Standard which guarantee our steady quality and reasonable cost of diamond tools, such as diamond saw blades, diamond segments, diamond wire saw, diamond / PCD cup wheels, diamond polishing pads, diamond grinding plate / pucks / plugs, diamond fickert / frankfurt, diamond core bits, router bits, brushes etc.

They are widely used for cutting and grinding granite, marble, concrete, asphalt, ceramics, etc.
