Prod Model: |
HKL1401 |
Working Conditions: |
Water Cooling |
Industry: |
Ceramic Industry |
Used: |
for Wall Tiles |
Advantage: |
Low Noise, Fast Cutting and Longer Life |
Product Description

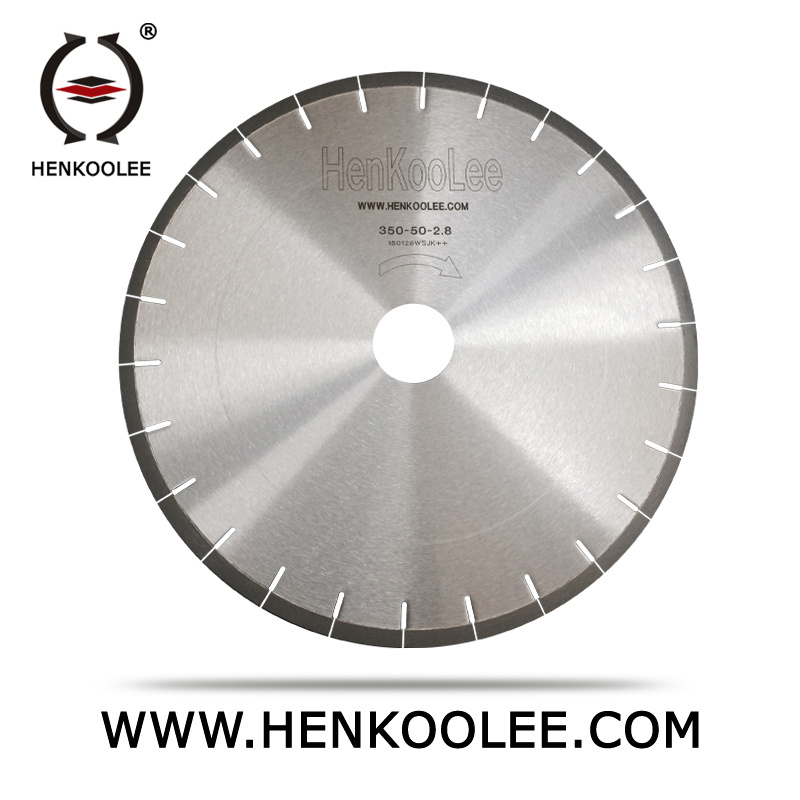

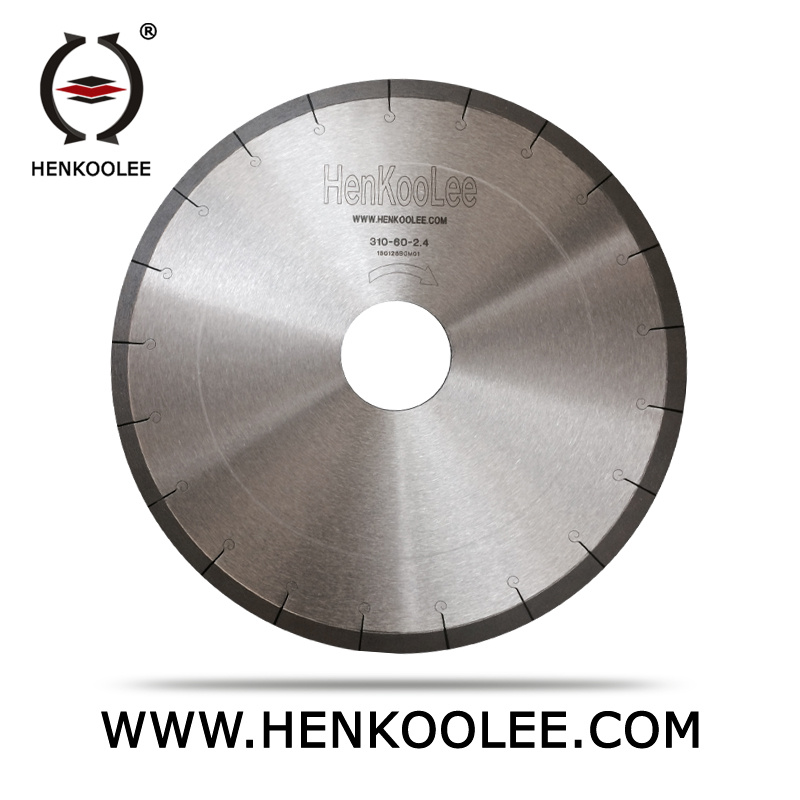

DIAMOND CUTTING DISC

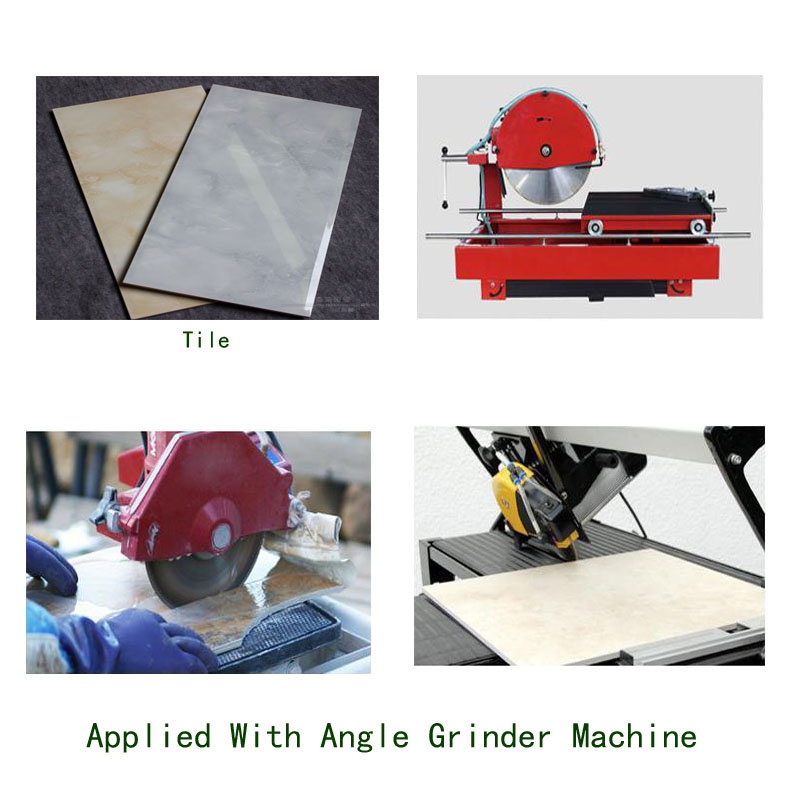

This product is used to make cutting and grooving on ceramic tiles on automatic and manual cutting machines. There are four normal working modes; manual single-blade full cutting, automatic single- blade full cutting, automatic two-blade full cutting and pre-cutting, chamfering and full cutting Our diamond cutting disc are approved for their high working speed, fine and precise cutting effect, low tiles edge-breaking ratio and long working lifetime.

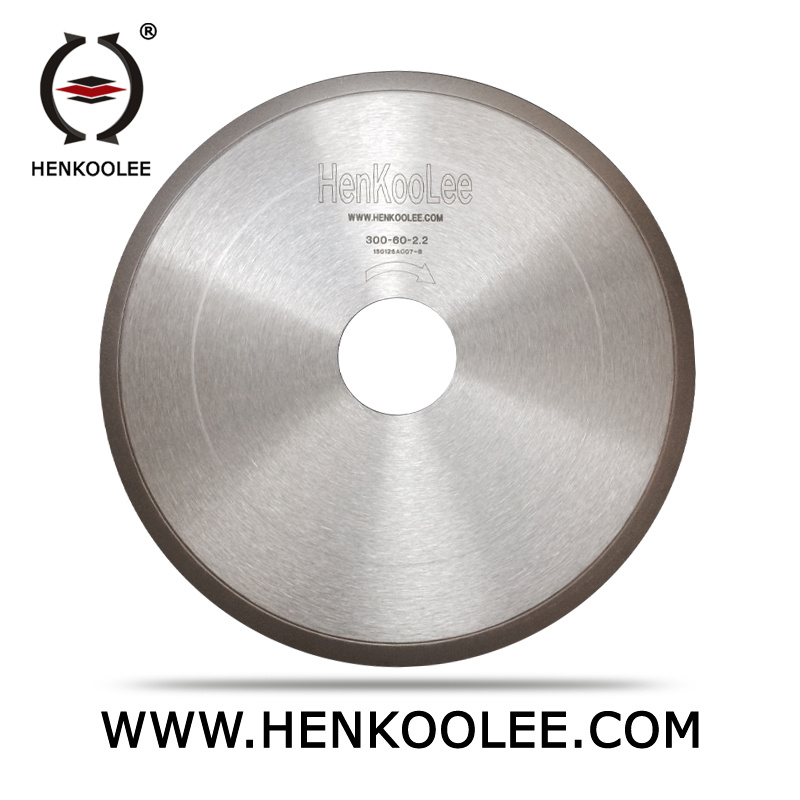

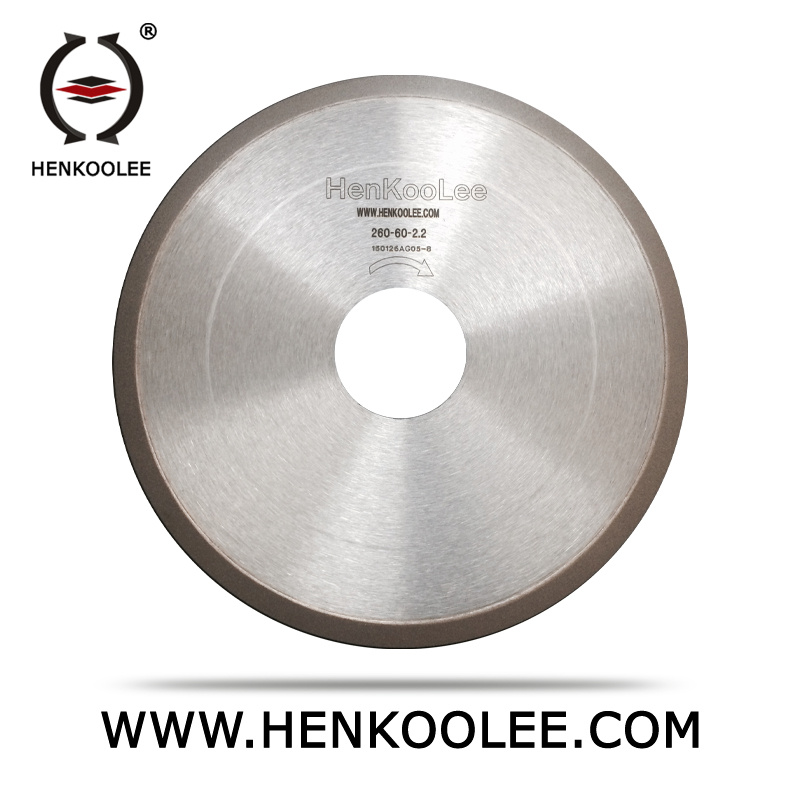

WHOLE SINTERED DIAMOND CUTTING DISCThis product is used to make full cutting,half-cutting or grooving on polished porcelain tiles, wearable ceramic tiles, rustic tiles, glaze floor and wall tiles. It can be used by single blade and multi blades Our whole sintered diamond cutting discs are approved for their good sharpness, smooth and flat cutting slots and no chipping. This product is normally used on single-head or two-head automatic cutting machines and manual cutting machines.
APPLICATIONSPEC AND PARAMETERDESCRIPTION | OUTER DIAMETER | THICKNESS (MM) | HEIGHT (MM) | ARBOR (MM) | GRIT |
INCHES | METRIC(MM) |
WHOLE SINTERED DIAMOND CUTTING DISC | 4 | ∅105 | 1.8 | 8 | 20 | D64 D76 D91 D107 D126 D151 D181 D213 D252 D301 D427 |
41/3 | ∅110 | 1.8 | 7/10 | 20 |
4.5 | ∅114 | 1.8 | 7/10 | 20 |
5 | ∅125 | 1.8/2.0 | 7/10 | 20 |
51/4 | ∅130 | 2.0/2.2 | 10 | 20 |
6 | ∅150 | 2.0/2.2 | 7/10 | 20/22.23 /50/60 |
7 | ∅180 | 2.0/2.2 | 7/10 | 20/22.23 /50/60 |
8 | ∅200 | 2.0/2.2 | 7/10 | 22.23/50/60 |
10 | ∅250 | 2.0/2.2/2.4 | 9/10 | 60 |
12 | ∅300 | 1.6/1.8/2.0/2.2/ 2.4/2.6/2.8/3.0 | 9/10 | 60 |
14 | ∅350 | 2.0/2.2/ 2.4/2.6/2.8 | 8/10 | 50/60 |
16 | ∅400 | 2.2/2.4 | 10 | 75 |

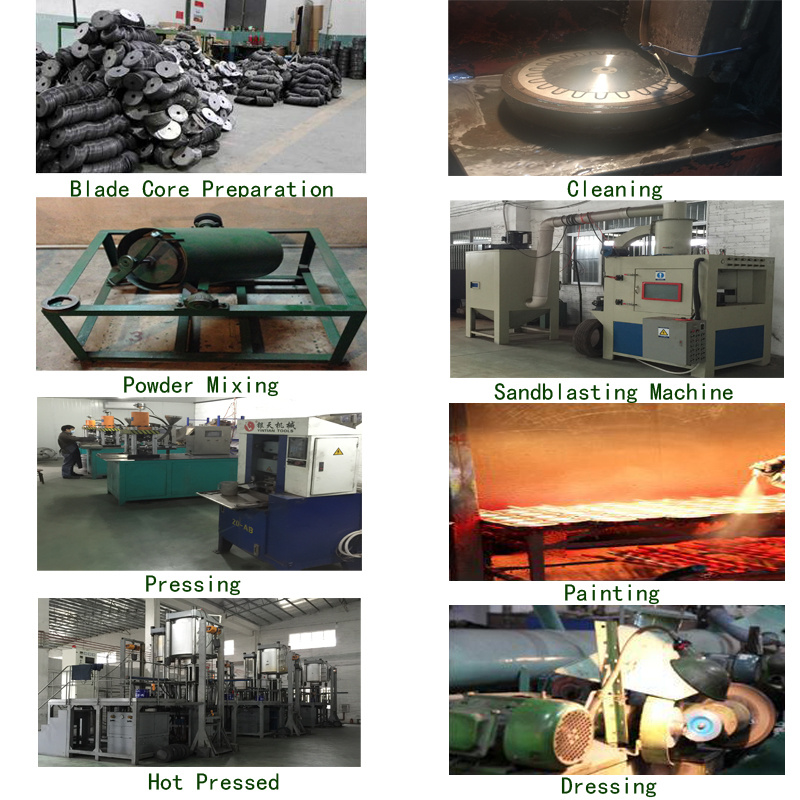

Other specifications are available on requirement.Procedure
