| Prod Model: |
Access building cables |
| Characteristics: |
Small out Jacket ,Light Weight |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
According to Customers Request |
| Sheath Material: |
PE, LSZH, PVC (Can Be Required). |
Product Description
Wholesale Fiber Optic Access building cables for FTTH

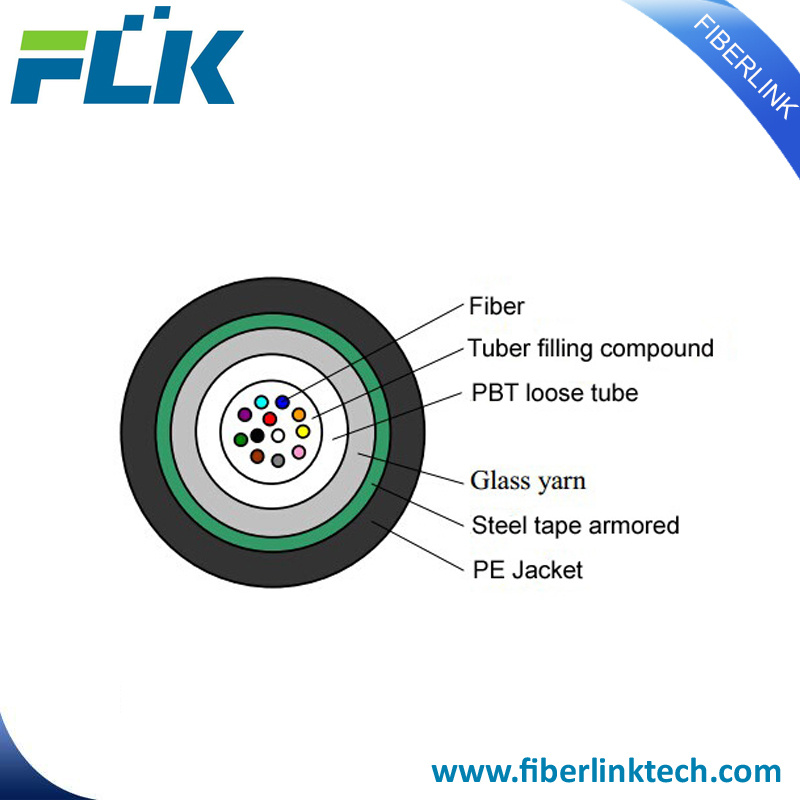

Characteristics:
1. Steel Armored and glass yarn strength
2. Small out jacket ,light weight
3. Excellent mechanical and environmental performance
Application:
1. Backbone in LAN's
2. Indoor / outdoor in ducts
3. Internal wiring/Fan-outs
4. FTTx
Technical Parameters:
Cable Count | Out sheath
Diameter | Weight | Minimum allowable Tensile Strength(N) | minimum allowable Crush Load
(N/100mm) | Minimum Bending Radius
(MM) | Storage
temperature |
(MM) | KG/km | short term | long term | short term | long term | short term | long term | (ºC) |
2 | 8.5±0.2 | 76 | 1000 | 400 | 1000 | 400 | 20D | 10D | -20+60 |
4 | 8.5±0.2 | 76 | 1000 | 400 | 1000 | 400 | 20D | 10D | -20+60 |
6 | 8.5±0.2 | 76 | 1000 | 400 | 1000 | 400 | 20D | 10D | -20+60 |
8 | 8.5±0.2 | 76 | 1000 | 400 | 1000 | 400 | 20D | 10D | -20+60 |
10 | 8.5±0.2 | 76 | 1000 | 400 | 1000 | 400 | 20D | 10D | -20+60 |
12 | 8.5±0.2 | 76 | 1000 | 400 | 1000 | 400 | 20D | 10D | -20+60 |
16 | 8.8±0.3 | 80 | 1000 | 400 | 1000 | 400 | 20D | 10D | -20+60 |
24 | 8.8±0.3 | 80 | 1000 | 400 | 1000 | 400 | 20D | 10D | -20+60 |
Technical data-transmission:
Fiber type | Single-mode 1310/1550nm | Multi-mode 50/125μm 850/1300nm | Multi-mode 62.5/125μm 850/1300nm |
Attenuation | Typical | 0.36/0.22 | 3.0/1.0 | 3.0/1.0 |
Maximum | 0.5/0.4 | 3.5/1.5 | 3.5/1.5 |
Zero dispersion slope | <0.093ps/km . nm2 | ----- | ----- |
Dispersion (1285~1340nm) | -3.5 - 3.5ps/(nm . km) | ----- | ----- |
Mode field diameter | 9.3±0.4μm | ----- | ----- |
Cutoff wavelength cable | <1270nm | ----- | ----- |
Bandwidth | @850nm | ----- | ≥500MHz . km | ≥200MHz . km |
@1300nm | ----- | ≥1000MHz . km | ≥600MHz . km |
Cladding diameter(μm) | 125±1.0 | 125±1.0 | 125±1.0 |

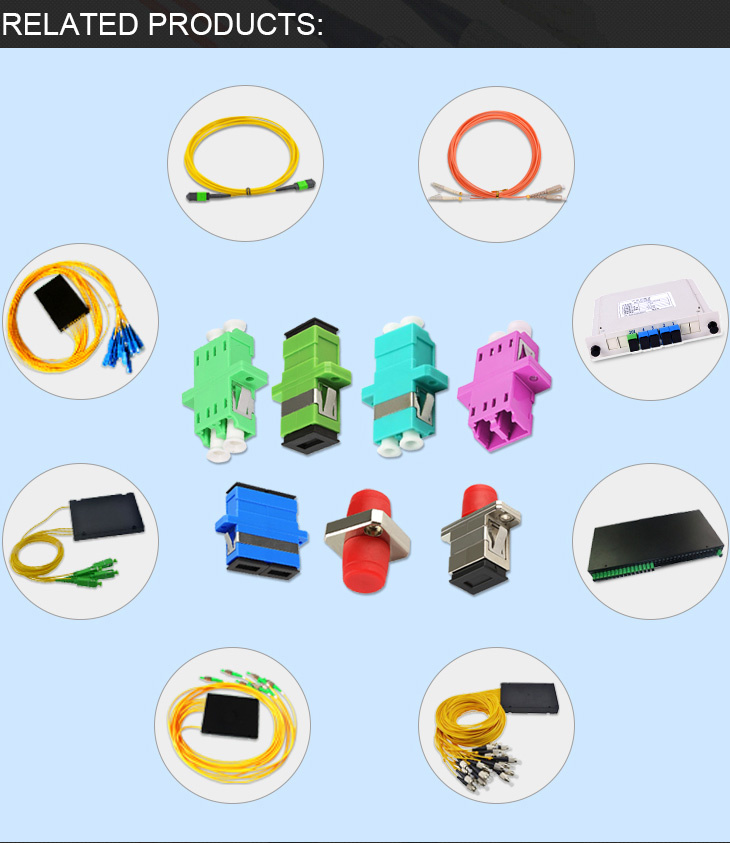

Related products

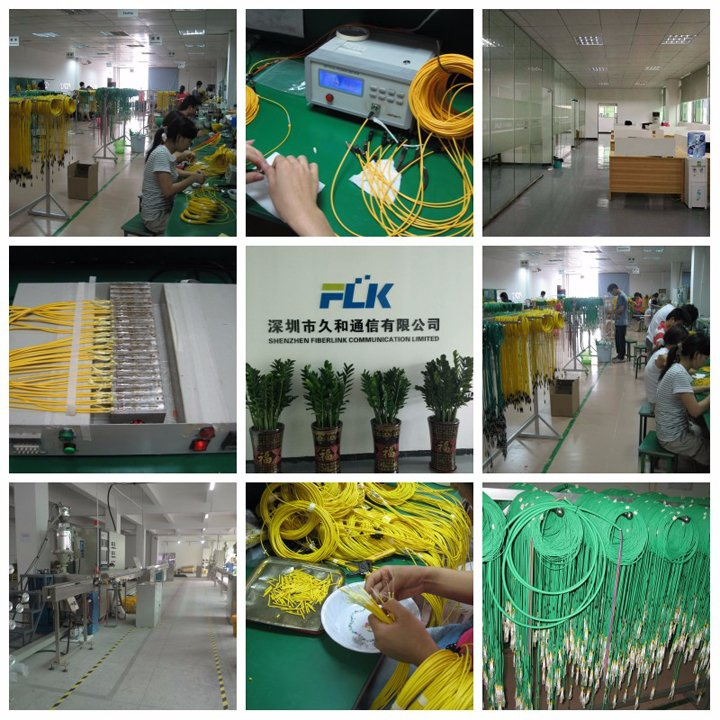

Our fiber patch cord production line:

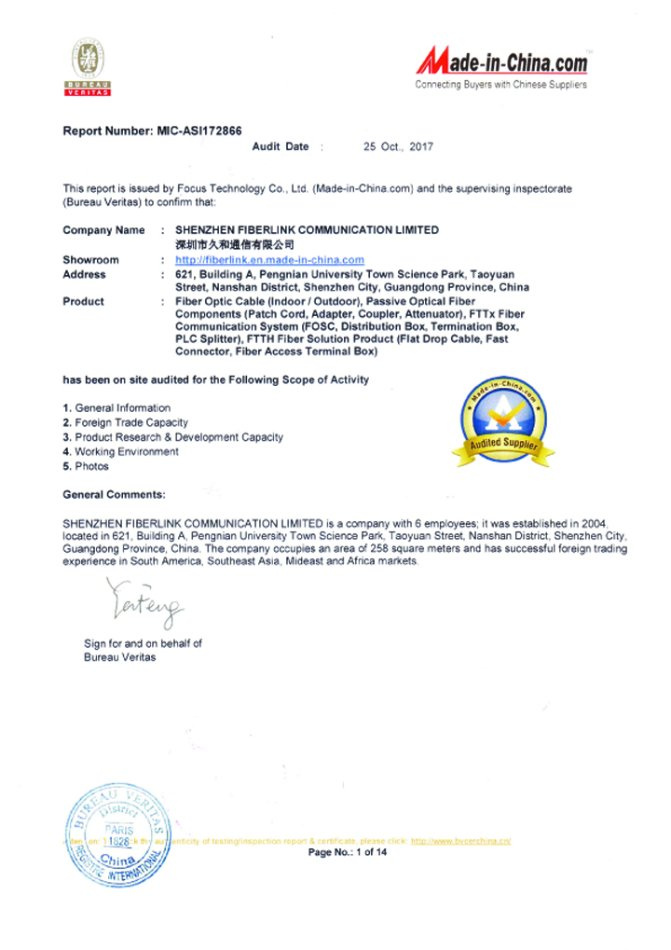

Certifications
