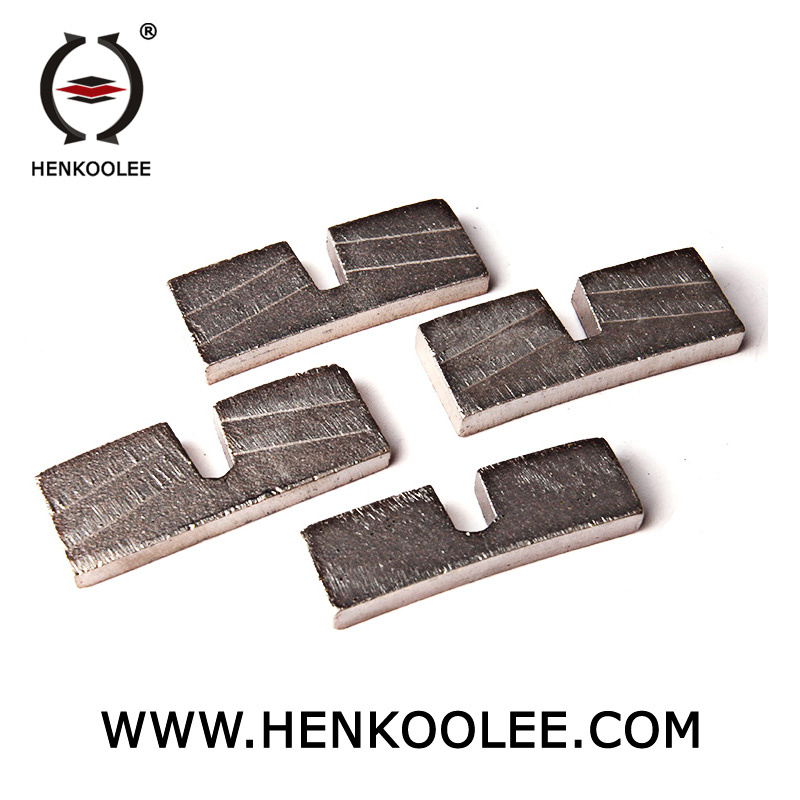

Wholesale High Efficiency U Shaped Granite Stone Cutting Tools for Segment
| Price: |
US $ 0.5-3/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HKL109 |
| Features 1: |
High Percent of Bond Materials |
| Features 2: |
High Grade of Diamonds |
| Features 3: |
Competitive Price and Stable Quality |
| Features 4: |
Strict Quality Control |
| Usage: |
for Granite Cutting |
| Advantage: |
Fast Cutting with Longer Life |
| Processing: |
Hot Pressing |
| Technology: |
Sintering and High Frequency Welding |
| Segment Size(L*W*H): |
as Customer's Request |
| Product Name: |

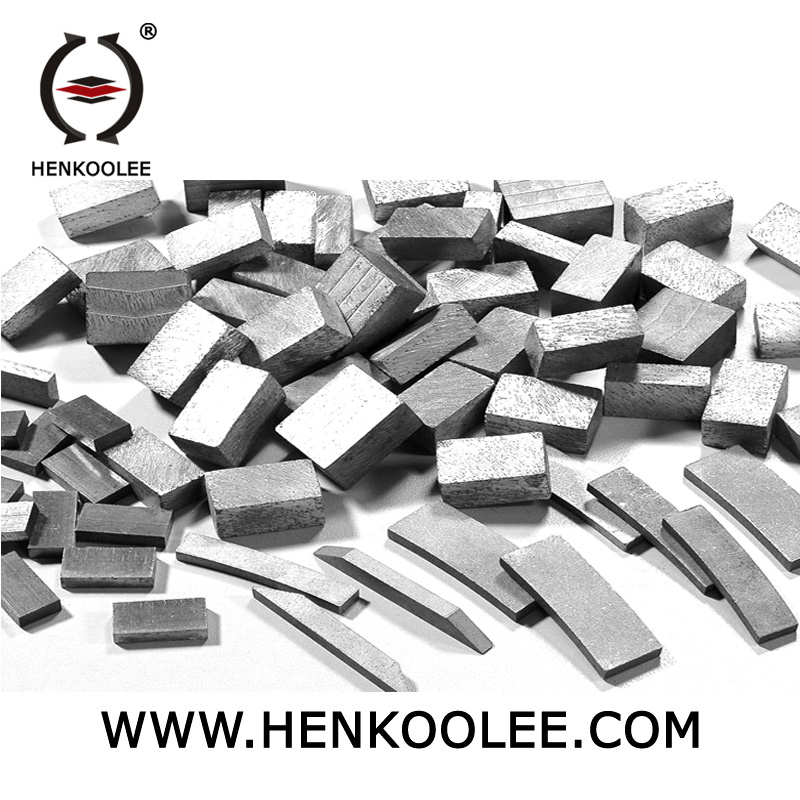

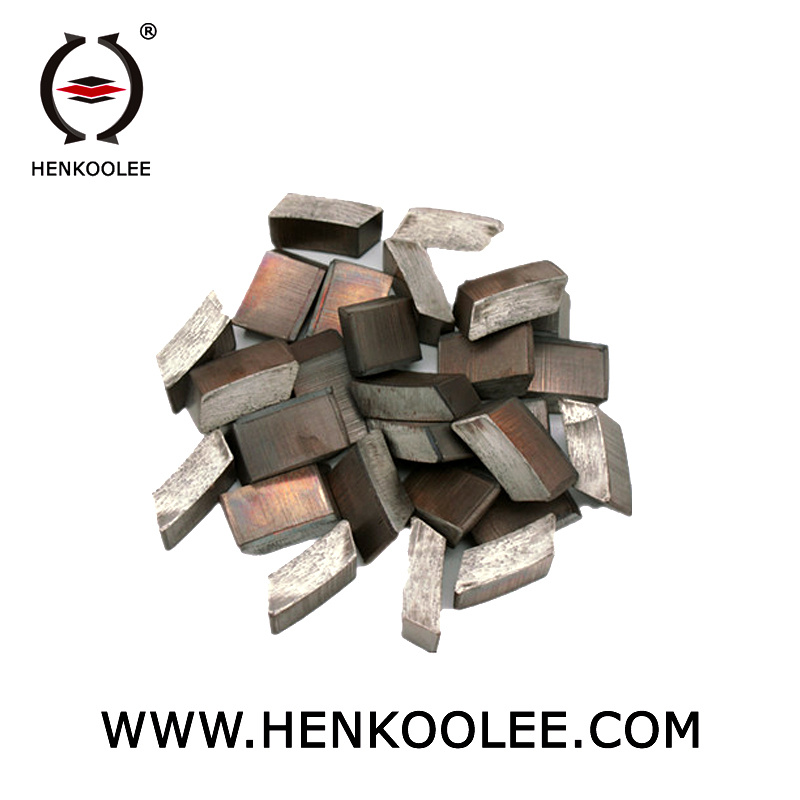

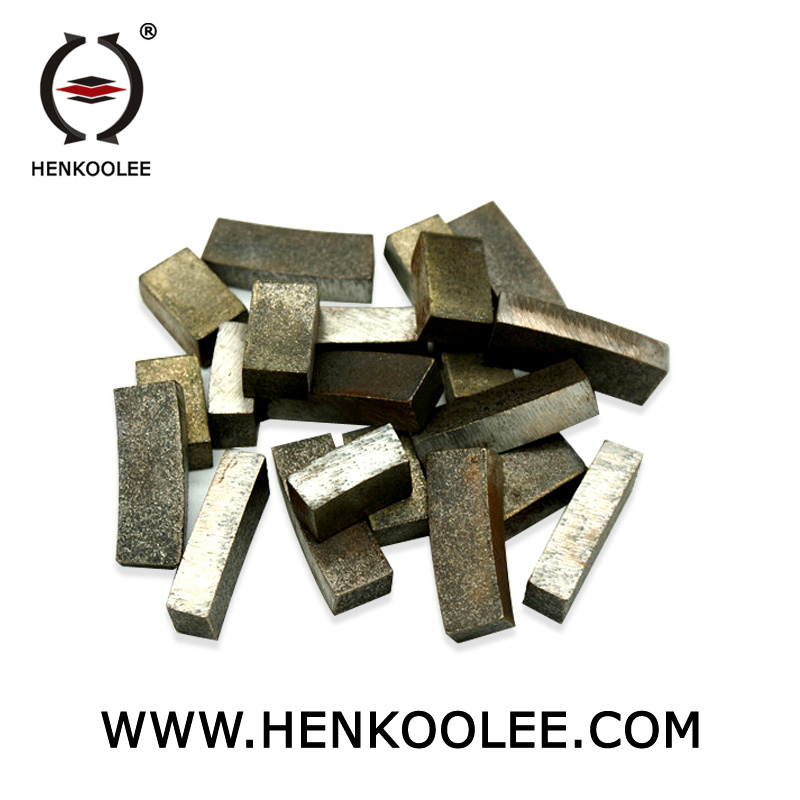

Diamond Segment for Granite Cutting |
Product Description
DIAMOND TOOLSAs increasing of the higher quality and performance requirement of diamond tools by customers, diamond tools become the most important polishing tools that widely ues in grinding and cutting of ceramic,stone,and artificial stone area. The product series including diamond roller, diamond cylindrical wheel, diamond squaring wheel, diamond chamfering wheel, diamond resin bond squaring wheel, diamond abrasive, cutting blade, segment, diamond chamfering wheel , diamond resin bond squaring wheel, diamond abrasive, cutting blade, segment, diamond gang saw etc, it has the characteristic of high sharpness, good effect, long working lifetime, high efficiency&environment protecting and low cost, we can also supply other size and formula upon different requirements, different processed material.DIAMOND SEGMENTS FOR CUTTING GRANITE MARBLE AND OTHER STONEDiamond Segment can be produced for cutting granite, marble, asphalt, tile, concrete, fire-proof materials or for continuous polishing machine. Our diamond segments for large circular saw blades are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability.
SPEC AND PARAMETER| DIAMETER | DIMENSION OF SEGMENTS | No.OF TEETH |
| INCH | mm | LENGTH | THICKESS | HEIGHT | |
| 10" | 250 | 40 | 3 | 8\10 | 18 |
| 12" | 300 | 40 | 3 | 8\10 | 22 |
| 14" | 350 | 40 | 3.4 | 8\10 | 25 |
| 16" | 400 | 40 | 3.6 | 8\10 | 29 |
| 18" | 450 | 40 | 4 | 8\10 | 32 |
| 20" | 500 | 40 | 4.2 | 8\10 | 36 |
| 24" | 600 | 40 | 4.6 | 8\10 | 42 |
| 28" | 700 | 40 | 5.6 | 8\10 | 42 |
| 32" | 800 | 40 | 5.6 | 8\10 | 46 |
SPEC AND PARAMETER| DIAMETERD | SEGMENT DIMENSION | CORE THICKNESS | SEGMENT
No. |
| (MM) | L x W x H (MM) | (MM) |
| 900 | 24 x 6.6/6.2 x 10 | 5 | 64 |
| 24 x 6.6/6.2 x 15 |
| 1000 | 24 x 7.4/6.8 x 10 | 5 | 70/72 |
| 24 x 7.4/6.8 x 12 |
| 24 x 7.4/6.8 x 15 |
| 1100 | 24 x 7.4/6.8 x 10 | 5.5 | 74 |
| 24 x 7.4/6.8 x 12 |
| 24 x 7.4/6.8 x 15 |
| 1200 | 24 x 7.5/7.0 x 10 | 5.5 | 80 |
| 24 x 7.5/7.0 x 12 |
| 24 x 7.5/7.0 x 15 |
| 1300 | 24 x 7.6/7.0 x 10 | 6 | 88 |
| 24 x 7.6/7.0 x 12 |
| 24 x 7.6/7.0 x 15 |
| 1350 | 25 x 8.4/7.7 x 12 | 6 | 88 |
| 25 x 8.4/7.7 x 15 |
| 25 x 8.4/7.7 x 20 |
| 1400 | 24 x 9.0/8.4 x 10 | 6.5 | 96 |
| 24 x 9.0/8.4 x 12 |
| 24 x 9.0/8.4 x 15 |
| 1600 | 24 x 9.2/8.6 x 12 | 6.5 | 104/108 |
| 24 x 9.2/8.6 x 15 |
| 24 x 9.2/8.6 x 20 |
| 1800 | 24 x 9.5/9.0 x 12 | 7 | 120 |
| 24 x 9.5/9.0 x 15 |
| 24 x 9.5/9.0 x 20 |
| 2000 | 24 x 10.6/9.6 x 15 | 8 | 128 |
| 24 x 10.6/9.6 x 20 |
| 2200 | 24 x 11.5/10.5 x 15 | 8.5 | 132/136 |
| 24 x 11.5/10.5 x 20 |
| 2500 | 24 x 12/11.5/11 x 20 | 9.5 | 140 |
| 24 x 12/11.5/11 x 30 |
| 2700 | 24 x 12/11.5/11 x 20 | 10 | 140 |
| 24 x 12/11.5/11 x 30 |
| 3000 | 24 x 12.5/12/11.5 x 20 | 10 | 160 |
| 24 x 12.5/12/11.5 x 30 |
| 3500 | 24 x 13/12.3/11.1 x 20 | 10 | 180 |
| 24 x 13/12.3/11.1 x 30 |
Application:For trimming and slabbing Granite

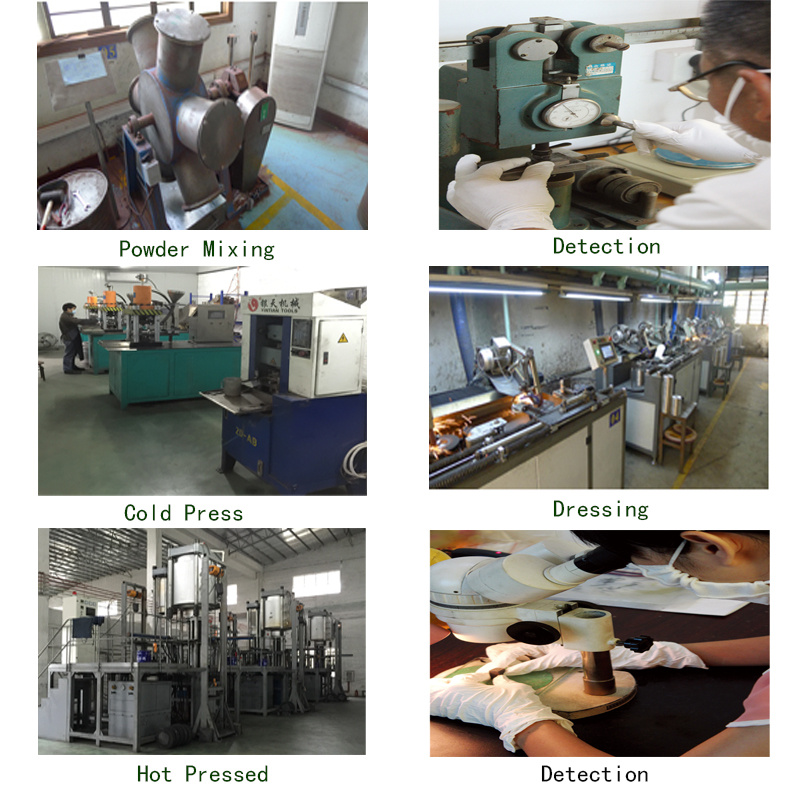

PROCEDURE
