| Prod Model: |
2LG |
| Frequency: |
50 Hz/ 60Hz |
| Rated Output: |
1.6kw/2.05kw |
| Voltage: |
200-480V |
| Max Airflow: |
150m3h/180m3h |
| Max Compressor: |
150mbar/180mbar |
| Weight: |
25kg |
| Phase: |
Three Phase |
| Structure/Pressure: |
Double-Stage & High Pressure |
| Material: |
Aluminme Alloy |
| Usage: |
for Manufacture |
| Structure: |
Reciprocating Vacuum Pump |
| Exhauster Method: |
Vacuum |
Product Description

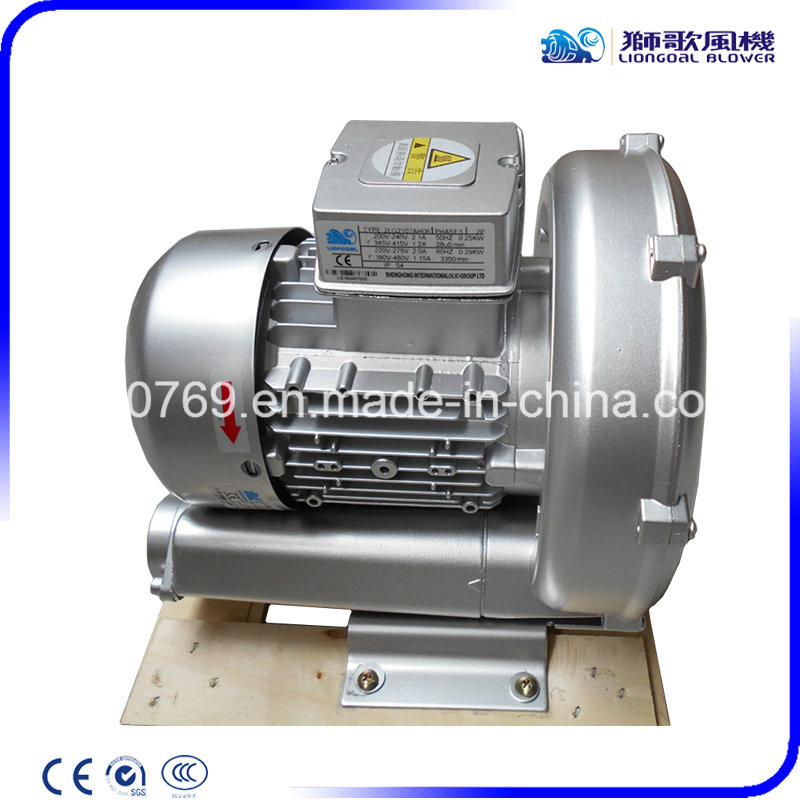

widely used cnc machine air vortex motor power pump| Model | Frequency
(Hz) | Power
(KW) | Voltage
(V) | Current
(A) | Max Airflow
(m³/h) | Max Vacuum
(mbar) | Max Compressor
(mbar) | Noise
(dB) | N.W.(kg) |
| 2LG410-7AH16 | 50 | 0.85 | 200-240△
345-415Y | 4.0/2.3 | 145 | -160 | 160 | 63 | 16 |
| 60 | 0.95 | 220-275△
380-480Y | 3.85/2.25 | 175 | -160 | 160 | 64 |
Our advantages :
1. Adopt SKF & NSK bearing.
2. Use ADC12 aluminum alloy material.(same to BMW's wheel hubs)
3. Random installation( vertical or horizontal)
4. Insulation class: F, Protection class: IP54
5. 100% oil free air delivery ( Impeller connected to the motor directly, without any oil lubricating)
6. No routine maintenance (whithout wheel gear and belt,don't need to do maintenance towards those parts)
7. Quiet operation, low noise(adopt low noise motor, meanwhile inlay muffler is available if lower noise required)
8.Variable output control(pressure or vacuum)
9.Pulsation-free compression(use quakeproof footstand)
10.Long term durability(24H running)
11.Strictly tested before leaving the factory

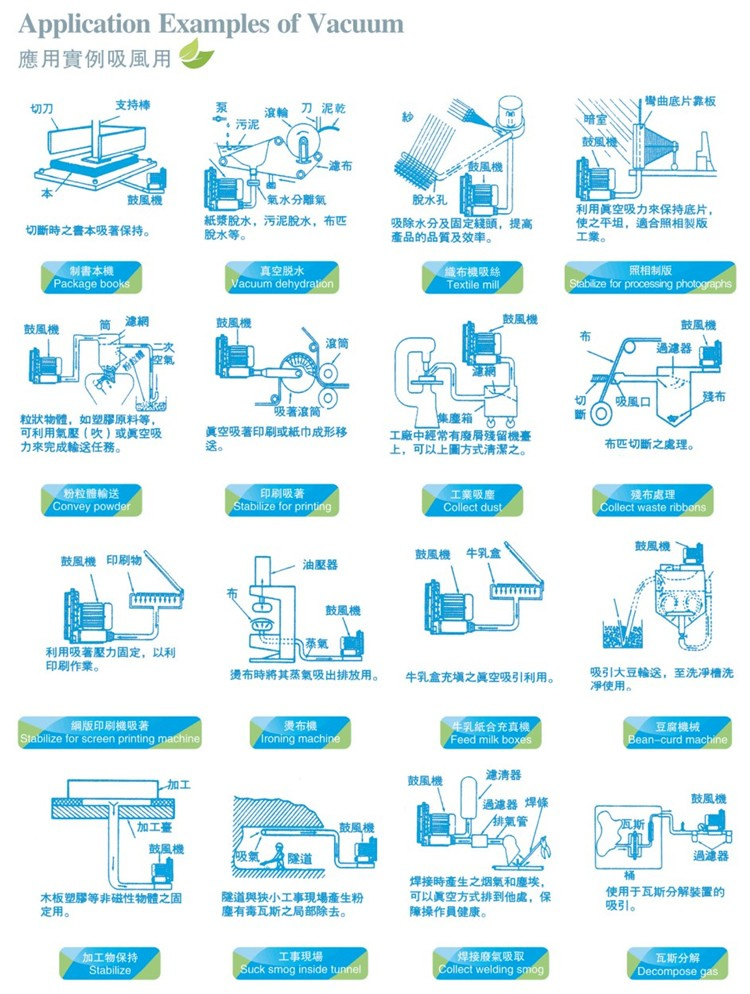

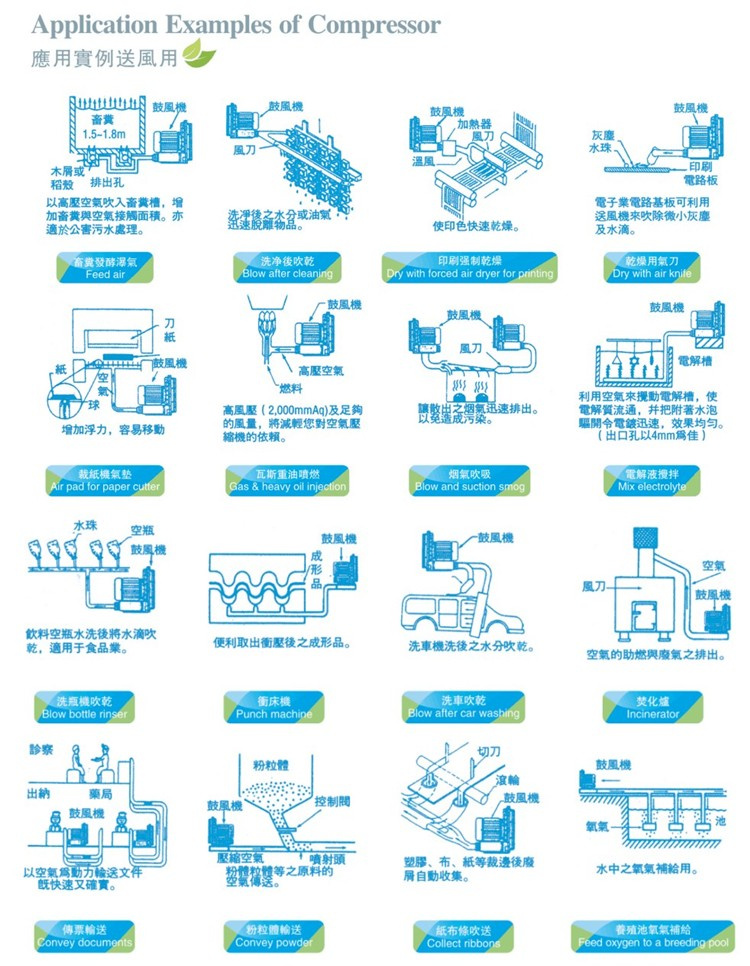

Applications :
1. Aquaculture (fish and prawn pond aeration)
2. Waste water treatment, sewage treatment system.
3. Pneumatic conveying systems.
4. Lifting and holding of parts by vacuum.
5. Packing machines.
6. Filling of bags/bottles/hoppers.
7. Soil remediation
8. Food processing.
9. Laser printers
10. Dental suction equipment.
11. Paper processing.
12. Gas analysis.
Our service:
Marketing Service
100% tested CE certified blowers.Special customized blowers(ATEX blower,belt-driven blower) for special industry.Like gas transportation,Medical industry...Professional advice for model selection and further market development.
After-sale Service
Experienced suggestion for blower installation and use.12 months warranty.Long-term technical support.
FAQs:
Q: Can water be pumped through my blower?
A: No, clean dry air only
Q: My blower is leaking around the cover is this normal?
A: Normal goorui blowers are not leak-free designed,but if you care a lot about the leaking,then you can contact us for a leak proof one(special customized).
Q: What kind of oil do I need for my blower?
A: All our goorui blowers are oil-free and maintenance-free designed.
Q: Can I pump combustible gas through my blower?
A: Normally,if you'd like to use blower for combustible gas conveying,we suggest to choose our explosion proof ATEX blower(special customized) .
Q: Are the foam pieces inside my blower for filtration?
A: No, they are not for filtration. They are designed for sound reduction, an inlet filter should be sourced separately.
Q: What will be the consequences if I don't use a relief valve on my blower?
A: The blower may get overheat, and may cause thermal expansion of internal parts, which will do harm to the impeller and Bearing.
Package : wooden case
Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.
High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

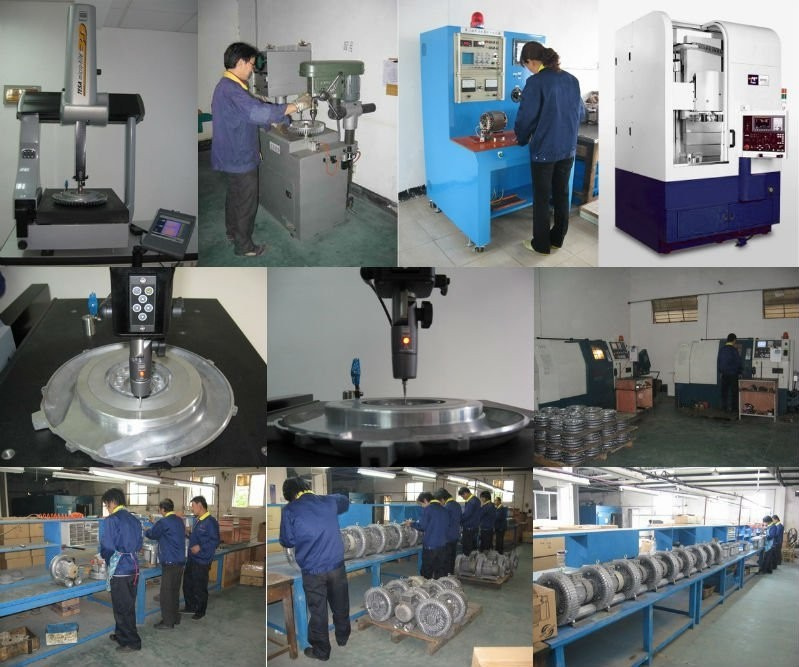

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.
Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
