| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| PLC: |
Siemens |
| Invert: |
Yaskawa |
| Warranty Period: |
1 Year |
| Usage: |
Wire Sawing |
| Graininess: |
Constrution Tools |
| Thickness: |
Constrution Tools |
| Shape: |
Constrution Tools |
| Kind: |
Wire Saw Machine |
| Manufacturing Arts: |
Machine |
| Brand: |
Skystone |
| Saw Blade External Diameter: |
Wire Saw Machine |
| Specification: |
Machine |
Product Description

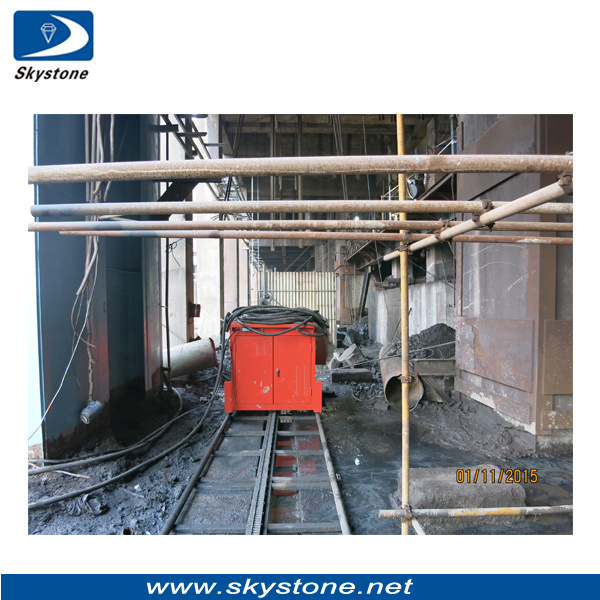

Skystone 15kw wire saw machine is a high effeciency parter for concrete demoslishing contrator. It is withed a 15kw motor and can cuttign 360' without moving machine position;
Advantages:
1.Manufactured with first quality materials and components, the TSY G series is a strong and reliable machine that allows to easily make great cuts on any kind of material.
2. The feed movement is automatically controlled by PLC and inverter that allows a precise and complete management of the diamond wire during the cutting , so that to obtain the best output and production on any material.
3. The machine have protection functions which including: wire broken, machine overload, cutting finished,and other malfunction happened, so that to maintain the best efficiency of the system.
4. The motor head can move per side, in order to make two parallel cuts without moving the machine,which is driven by motor with Position Limited Function. The same device allows to make horizontal cuts at ground level without the use of any auxiliary accessories
PARAMETER:
Model | TSY-15 |
| Main motor power | 15KW/20HP |
| Cutting head rotation | 360°(by hand or motor) |
| Linear wire speed | 0~40m/s |
| Machine Travelling speed | 0~60m/h |
| Working condition | -15°C~+40°C Humidity<95%(without dew) |
| Dimension(mm) | L=1200,W=570,H=730 |
| Weight | 450KG
|
Certification:CE certificated.
Dimension(L*W*H):1200mm*570mm*730mm
Weight:450 kg
Warranty: One year
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
