| Prod Model: |
MWN-N |
| Material: |
SUS304 |
| Hole Shape: |
Diamond |
| Application: |
Wire Mesh |
| Type: |
Stainless Steel Plain Wire Mesh |
| Material Type: |
Stainless Steel Wire |
| Weave Technique: |
Plain Weave |
| Technique: |
Woven |
| Certification: |
ISO9001 |
Product Description
Flexible Stainless Steel Wire Rope(Cable) MeshFlexible Stainless Steel Wire Rope(Cable) Mesh is the charateristic leading product of BZ Wire Mesh Plant which has been manufacturing the product since 1990. The Plant's independent developed equipments and skilled technique can ensure high quality products and sound service worldwide.

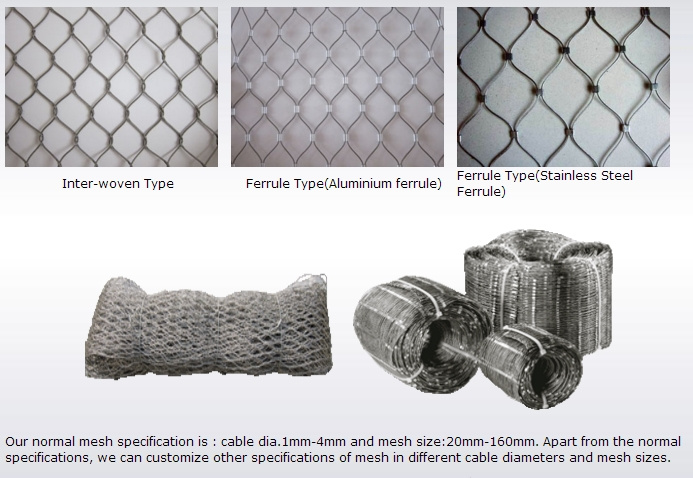

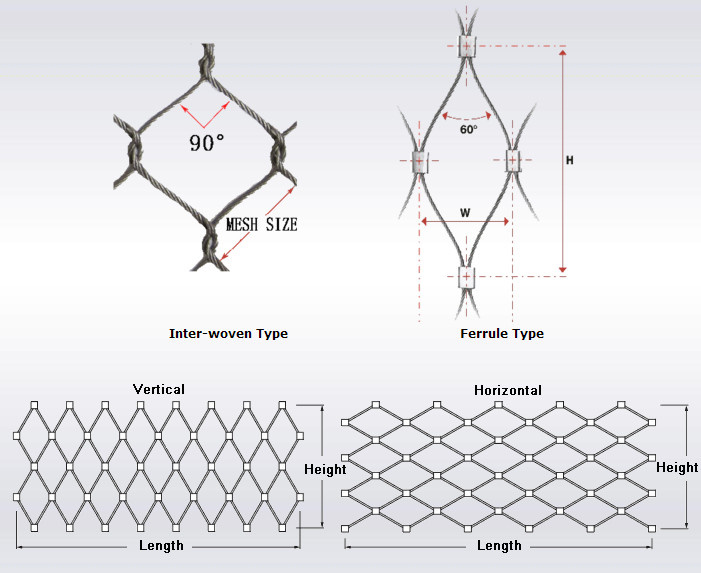

Flexible Stainless Steel Wire Rope(Cable) Mesh is made from s.s.wire rope in various material type like SUS304,SUS304L,SUS316,SUS316L etc. and two main strand structures:7*7 and 7*19. Our mesh products are supplied in two main series according to different weave-types: Inter-woven and Ferrule Type. The ferrule type series are sub-divided into aluminum alloy mesh and stainless steel mesh by the material of the ferrule.

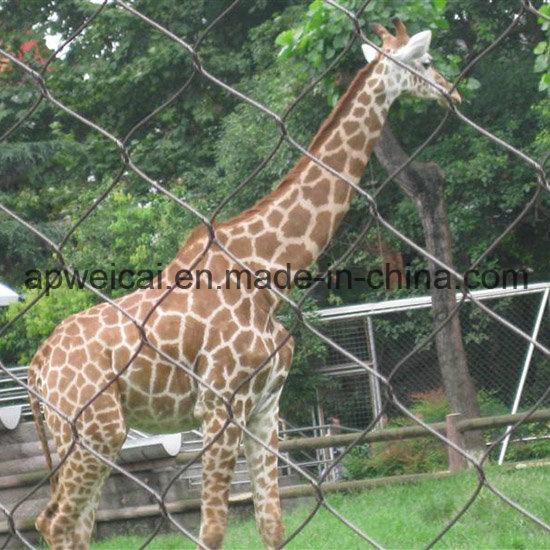

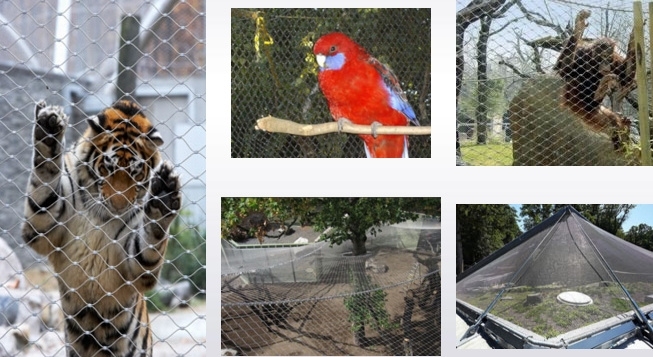

Flexible Stainless Steel Wire Rope(Cable) Mesh,inter-woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
The

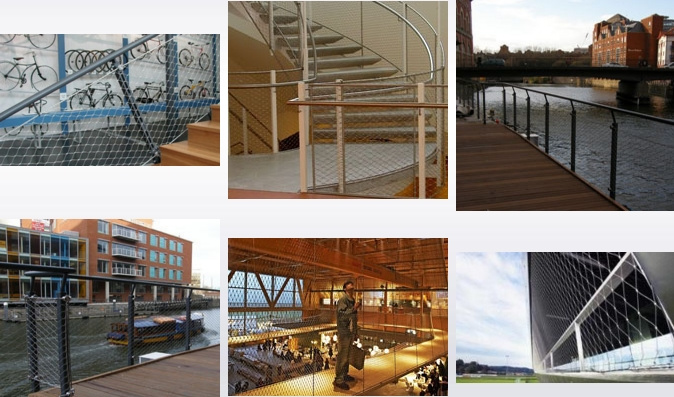

stainless steel wire rope mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.
Code |
Rope Construction
|
Rope Diameter
(Inch) (mm) |
Aperture
(mm) |
Breaking Force
(kn) |
| MWN-01 | 7×19
| 1/8 | 3.2 | 120 ×208 | 7.38 |
| MWN-02 | 7×19
| 1/8 | 3.2 | 100 ×173 | 7.38 |
MWN-03
| 7×19 | 1/8 | 3.2 | 90 × 156 | 7.38 |
| MWN-04 | 7×7 | 3/32 | 2.4 | 100 ×173
| 4.18 |
MWN-05
| 7×7 | 3/32 | 2.4 | 90 × 156 | 4.18 |
MWN-06
| 7×7 | 3/32 | 2.4 | 80 × 139 | 4.18 |
MWN-07
| 7×7 | 3/32 | 2.4 | 70 × 121 | 4.18 |
MWN-08
| 7×7 | 5/64 | 2.0 | 100×173 | 3.17 |
MWN-09
| 7×7 | 5/64 | 2.0 | 90×156 | 3.17 |
MWN-10
| 7×7 | 5/64 | 2.0 | 80 × 139 | 3.17 |
MWN-11
| 7×7 | 5/64 | 2.0 | 70 × 121 | 3.17 |
MWN-12
| 7×7 | 1/16 | 1.6 | 80 × 139 | 2.17 |
MWN-13
| 7×7 | 1/16 | 1.6 | 70 × 121 | 2.17 |
MWN-14
| 7×7 | 1/16 | 1.6 | 60 × 104 | 2.17 |
MWN-15
| 7×7 | 1/16 | 1.6 | 51 × 87 | 2.17 |
MWN-16
| 7×7 | 3/64 | 1.2 | 80 × 139 | 1.22 |
MWN-17
| 7×7 | 3/64 | 1.2 | 60 × 104 | 1.22 |
MWN-18
| 7×7 | 3/64 | 1.2 | 50 × 87 | 1.22 |
MWN-19
| 7×7 | 3/64 | 1.2 | 40 × 69 | 1.22 |
If you have any interests on our products, please feel free to contact us. We would also love to give you our practical advices and full supports on specification choices and installation schemes.
