Wire Saw for Granite and Marble Block Dressing Stationary Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
GCP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Kind: |
Stone Cutting |
| Usage: |
Stone Cutting, Abrasive and Carving |
Product Description

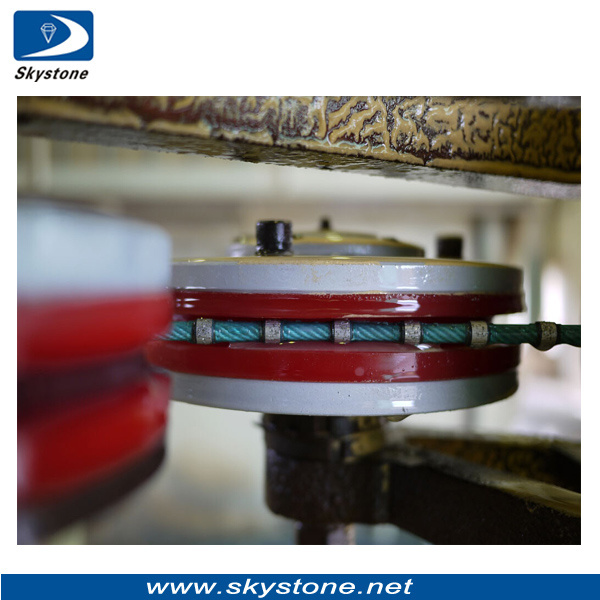

Diamond wire for squaring and blocks cutting
Diamond wire is common used in most factory now, since there are many advantages:
l There is not much block size limited for wire sawing compare with disk saw.
l The wire saw inter-space is thinner and more precise than the large disk saw (deviation < 1 mm)
l Wire saw cutting is more effective and relatively cheaper in long term working.
l By virtue of its greater and greater reliability, wire sawing technology is more and more automated and thus becomes just as productive as competing techniques.
l Noise nuisance generated by diamond wire sawing is significantly less than that produced by other sawing techniques.
| Wires for marble block dressing |
| Model | Diameter(mm) | Fixing | Beads/m | Material | Sawing speed
(mm/min) | Life time
(m2/m) | Line speed
(m/s) |
| MCP10 | 10 | plastic | 32 | soft marble
medium hard marble
hard marble
mixed marble | 20-40
15-30
20-20
15-40 | 30-70
20-50
15-30
20-40 | 30-40
30-40
26-35
30-40 |
| MCP10.5 | 10.5 | plastic | 32 |
| MCP11 | 11 | plastic | 32 |
| EMCP11 | 11 | rubber | 32 |
|
| Wires for granite block dressing |
| Model | Diameter(mm) | Fixing | Beads/m | Material | Sawing speed
(mm/min) | Life time
(m2/m) | Line speed
(m/s) |
| GCP11.4 | 11.4 | plastic | 40 | soft granite
medium hard granite
hard granite | 12-20
8-15
6-10 | 12-20
10-15
7-10 | 28-30
28-30
26-30 |
| GCR11.4 | 11.4 | rubber | 40 |
| GCP11 | 11 | plastic | 37/40 |
| GCR11 | 11 | rubber | 40 |
| GCP10.5 | 10.5 | plastic | 37 |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
