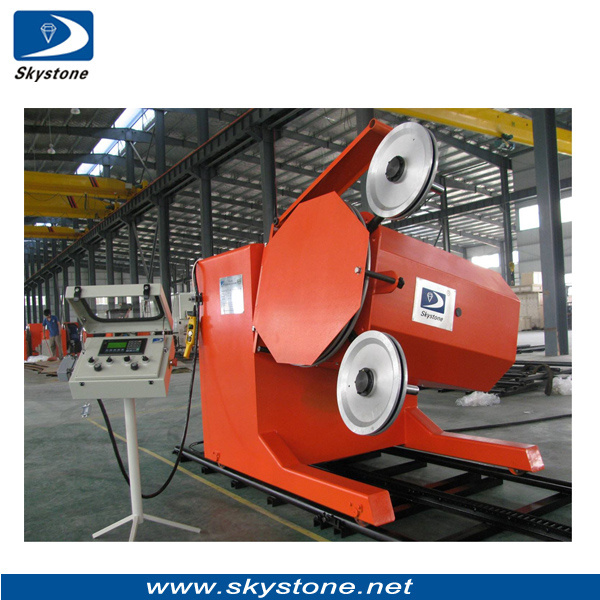

Wire Saw Machine for Quarry
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
TSY35-G/TSY55-G/TSY75-G |
| Warrantee: |
1 Year |
| Cutting Method: |
Automatic |
| Colour: |
Red |
| Invert: |
Yaskawa |
| PLC: |
Siemens |
| H.S Code: |
84641020 |
| Dimension(mm): |
L=2095mm,W=1483mm,H=1485mm |
| Net Weight(Kg): |
3470 |
| Diameter Of Main Flying Wheel(mm): |
800mm |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Automation: |
Automatic |
| Type: |
Stone Cutting Machine |
| Source Voltage: |
as Client's Request |
| Control: |
Electrical |
Product Description
Product Description: Wire saw machine for granite and marble quarrying Character&Advantage of SKYSTONE Diamond Wire Saw Machine- The inverter of main motor & travel motor is YASKAWA-H1000 (From Japan) with waterproof, dust-proof treatment.
- Most of electrical components are Schneider and Siemens.
- The PLC brand is SIEMENS.
- The brand of main motor and travel motor are WANDER(Chinese Brand, OEM OF SIEMENS).
- The angle and height of the main flywheel can be adjusted by manual control button.
Product DetailsThe date of wire saw machine for granite or marble quarrying description| Main motor power | | 37-55-75 kW |
| Total power | | 40-58.75-78.75KW |
| Wire tension and cutting current | | automatic controlled by a
PLC and Inverter |
| Diameter drive wheel | | 800 mm |
| Lateral movement of cutting head | | 1,8 or 2,00 m |
| Cutting head rotation | | 360° |
| Linear wire speed | | 0-40 m /sec |
| Length of rails | | 3 m× 3 |
| Traveling speed | | 0-150m/h |
| Working condition | | -15ºC~+40ºC Humidity< 95% (w |
ApplicationSkystone wire saw machine is widely used in Brazil, America, Iran,Russia, Poland and so on. Our product performance is stable and durable. If you want better product used in your quarry, please contact me!
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
