Prod Model: |
AQ, BQ, NQ, HQ, PQ |
Work Layer: |
7-25 mm |
Rock Grade: |
From F1 to F15 |
Product Description

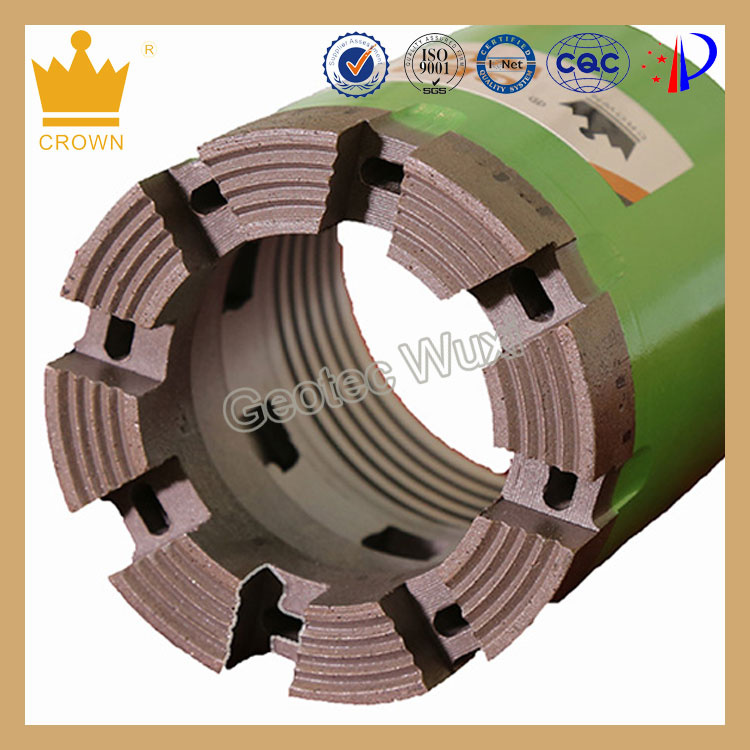

Wireline Impregnated Diamond Core Drill Bit Impregnated Diamond Bits
We can provide:
1.Test Report & MTC
2.Ready stock for normal sizes
3.Customized sizes welcomed
4.One stop service
Impregnated Diamond Bits |
Size | GEOTEC bits are available in all standard drilling sizes. Also, non-standard sized bits can be produced according to requirements from clients. |
Crown Height | GEOTEC offers crown impreg depths of 9mm, 12mm, 16mm and 25mm. The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance. |
Waterways | Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems. |
Threads | Standard threads as well as regional thread types required by clients are available. |
Compatibility | Our diamond bits and reaming shells are designed to be compatible with all standard core barrels from other suppliers. |
Matrix | Impregnated bits matrices can be selected according to the chart below. |
Series number | Rock |
11 | magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate, taconite. |
10 | magnetit,metamorphschist,gneiss,granite,basalt,gabbro,rhyolite,diorite,conglomerate, taconite. |
9/10 | andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro, rhyolite,diorite. |
9 | andesite,pegmatite,hematite,magnetit,metamorph schist,gneiss,granite,basalt,gabbro, rhyolite,diorite. |
8 | dolomite,marble,peridotite,andesite,pegmatite,hematite,magnetit,metamorph schist, gneiss,granite,basalt. |
7/8 | dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite, marble,peridotite,andesite,pegmatite,hematite. |
7 | dolomitic limestone,schist,serpentine,hard & mica schist,siliceous limestone,dolomite, marble,peridotite,andesite,pegmatite,hematite. |
6/7 | med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine, hard & mica schist,siliceous limestone,dolomite,marble,peridotite. |
6 | med-hard limestone,hard limestone,hard shale,dolomitic limestone,schist,serpentine, hard & mica schist,siliceous limestone,dolomite,marble,peridotite. |
5 | claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits, calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone. |
4 | claystone,sandy limestone,soft schist,med-hard sandstone,siltstone,alluvial deposits, calcitic limestone,med-hard limestone,hard limestone,hard shale,dolomitic limestone. |
3 | soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone, sandy shale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone, alluvial deposits,calcitic limestone. |
2 | soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone, sandyshale,claystone,sandy limestone,soft schist,med-hard sandstone,siltstone, alluvial deposits,calcitic limestone. |
1 | sand,soft shale,chalk,marly shale,med-hard limestone,salt,frozen soil&ice,soft sandstone,sandy shale,claystone,sandy limestone,soft schist. |
We specialized in manufacturing Drill Rods, Casings, Core barrels, Diamond bits, Reaming
shells, Drill rigs, PDC bits and other drilling tools & equipment for geological exploration,
mining, geotechnical, dam grouting, water well and horizontal directional drilling.

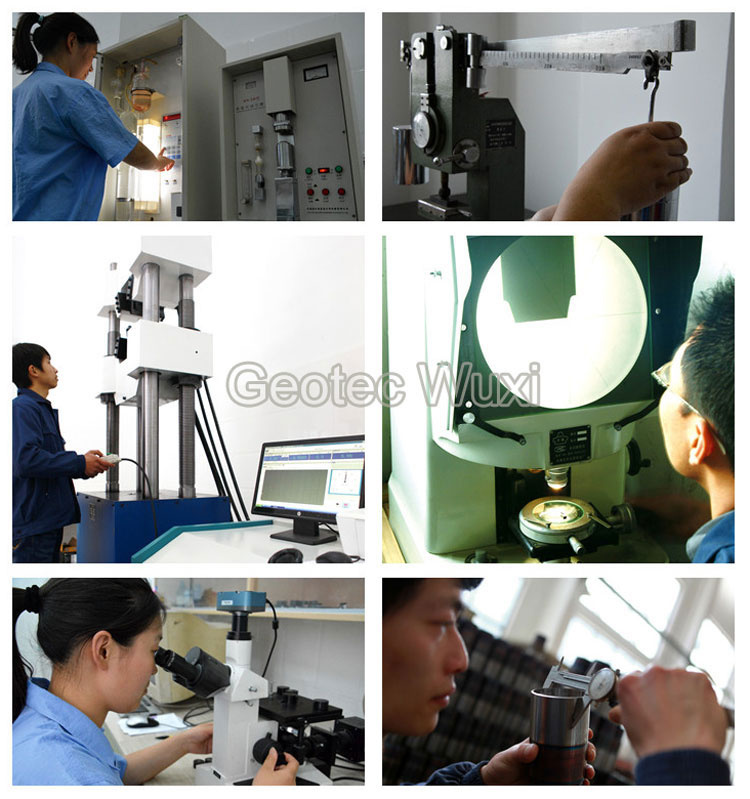

Quality guarantee is not only responsible for customers, but also the assurance of enterprise's
steady development. The necessary test equipment and the effective & perfect production
process control is the assurance of product quality. Taking the spirit of "To win the market with
innovation, to serve the customers with friendship, to build the brand with quality, to develop
the enterprise with sincerity", we utilize the advanced testing methods to make each product
meticulously.
With it's "high-quality, competitive price, variety complete and timely delivery", GEOTEC
WUXI has own the trust of many businessmen both from home and abroad.
GEOTEC WUXI has established a long-term friendly cooperative relations with many foreign
customers from more than 60 countries and regions, like Australia, Europe and the United
States, Asia, Africa etc., which will further explore the international market for the Company.
Our company covers an area of 55 acres, and built a new modern plant covering more than
40,000 square meters. The manufacturing facility is located in Wuxi City which is very close
to Shanghai. With the unaided design capabilities and advanced flow of production, as well
as a whole set of high precision equipment, our high-quality products well favored by the
majority of customers. We have been striving to develop new and innovative products to
meet the changing needs of the drilling industry.
Q1. Where is your factory ?
A1: Our company's processing center is located in Wuxi, Jiangsu, China.
which is now the leading manufacturer of diamond core driling equipment and tools in China.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and
best after-sales service than other companies.

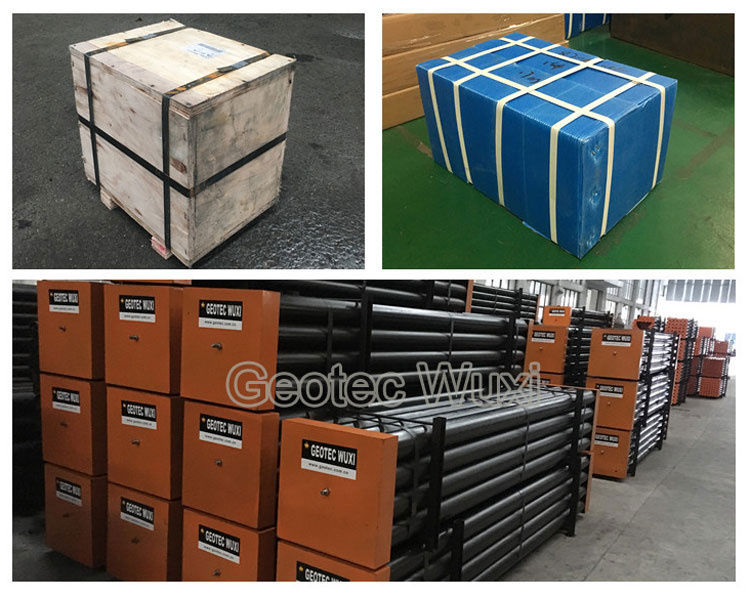

Q4. Can you arrange the shipment ?
A4: Sure we can help you with the shipment. We have forwarders who have cooperated
with us for many years.
Q5. How about the delivery time ?
A5: It is based on the order, normally within 3 days after receiving your advance payment.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 2-3days.
--------------------------------------------------------Welcome to Geotec Wuxi--------------------------------------------------------
Our company GEOTEC WUXI was established in the year 1989, which is now the leading manufacturer of diamond core drilling equipment and tools in China.
We manufacture Drill Rods, Casings, Core barrels, Diamond bits, Reaming shells, Drill rigs, PDC bits and other drilling tools & equipment for geological exploration, mining, geotechnical, dam grouting, water well and horizontal directional drilling.
The manufacturing facility is located in Wuxi City which is very close to Shanghai. From this location at the geographic center of East China, GEOTEC can rapidly expedite products all over China and export to overseas.
With the unaided design capabilities and advanced flow of production, as well as a whole set of high precision equipment, we output high quality products. In the year 2006, we passed the ISO 9001: 2000 quality system certification, and in the year 2011 passed ISO 9001: 2008 quality system certification.
We have been striving to develop new and innovative products to meet the changing needs of the drilling industry, and we always keep our delivery time very short to meet all our customer's requirement.
Today, GEOTEC WUXI distributes a wide range of drilling products to more than 60 countries all over the world.
Due to the rapid development of our business, our company purchased the land and the expansion of 40, 000 square meters of new plant has been completed and put into production in October 2013.
We cordially welcome every customer and friend come to our company for a visit.
