Prod Model: |
EFDL105 115 125 |
Company Type: |
Manufacture |
Blade Rotor: |
with Double Blades |
Roller: |
with Bearings in Two Ends |
Gearbox: |
Nodular Cast Iron |
Transmission: |
Belt |
Structure: |
Firm,Stamped Cover |
Colour: |
Upon Your Request |
Noise: |
with Low Shock and Noise |
Main Market: |
Europe,North and South American,Australia |
Characteristic: |
with Pinch Roller to Adjust Belt Pulley |
Type: |
Professional Mowers |
Moving Way: |
Tractor-Mounted |
Applicable Area: |
500-1000m² |
Feature: |
Cordless |
Certification: |
CE |
Cutter Kind: |
Straight Metal Blade |
Mowing Requirements: |
Ground Type |
Usage: |
Garden |
Cutter Type: |
Flail Mower |
Power Source: |
Tractor |
Product Description
Specification:
1.3 point u shape linkage
2. Graphite casting iron gearbox
3. Tractor power required: 18-30h
4. Can cut slope, bush grass.
Product attribute

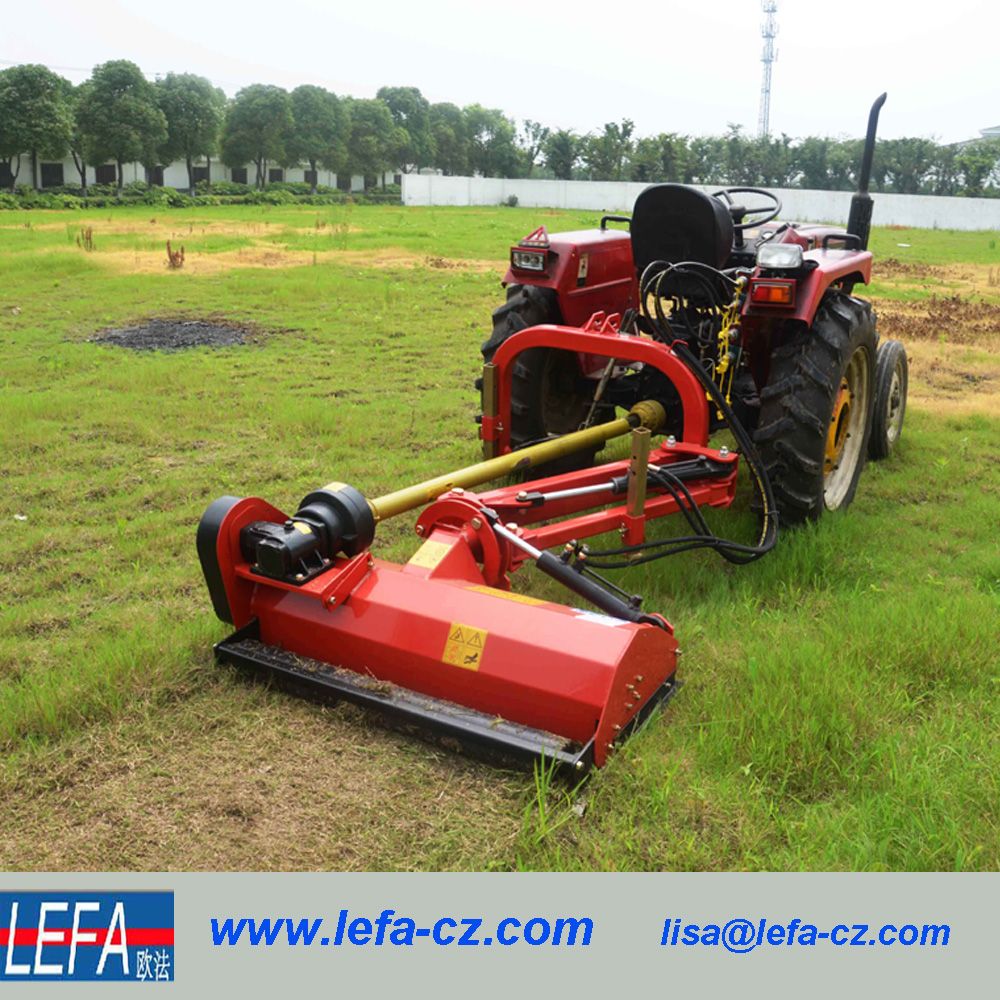

1. This series verge flail mowers designed for small tractors, power required in 18-30hp. They are used for the flat land grass, the weed in the slop and bush side trimming.
2. The machine has passed the dynamic balance testing. It ensures the blades stability in high speed running and less noise. We test every machine before delivery.
3. With double y shape blades, higher cutting efficiency.
4. The mower roller two ends are with bearing. It makes sure the flexibility of rotating and prevents hard abrasion.
5.3 kinds of blades choices.
(1) y shape blade (2) hammer (3) straight blade
6. It can be turned in sideways. Vertical and horizontal sides.
7. With belt tension pulley device.
8. With hydraulic system.
Trade terms
1. Trade terms: Fob, cif, exw
2. Sample policy: You can test the quality of our sample firstly before you purchase them in mass quantity.
3. Moq: 1 set
4. Payment way: T/t, l/c, western union, d/p.
5. Delivery date: 10-30 days after deposit paid. It depends on your order quantity.
6. Shipping way: By sea or by air.
7. After service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need them urgently.
Best after-sale service
We have france branch. Lefa europe can give europe customer best service.
1. Lefa europe can drive the car to repair the machine once you give the calling.
2. Lefa europe can send the spare parts to the customers in time.
3. Our machine warranty time: 1 year. We provide free spare parts.
4. We provide lifetime repair service and spare parts. You just tell us what you want. We will give you the solution in time.
5. If the lefa europe cannot give you the satisfaction. The head office engineer is willing to wear the lefa blue uniform clothes to your site for repair.
Model | EFDL-105 | EFDL-115 | EFDL-125 |
Structure Dimension(mm) | 1365×1355×836 | 1365×1355×836 | 1365×1355×836 |
Weight(Kg) | 210Kg | 225Kg | 240Kg |
Cutting Width | 1050mm | 1150mm | 1250mm |
PTO Input Speed | 540r/min | 540r/min | 540r/min |
Number of blades | 72 | 78 | 78 |
Angle | Left 45°and right 90° | Left 45°and right 90° | Left 45°and right 90° |
Power Required(Min/Max) | 18-25HP | 20-25HP | 20-30HP |
