| Prod Model: |
W2-F9249V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
1024*600 |
| Model Number: |
W2-F9249V |
| Steering Wheel Control: |
Supported |
| Screen Type: |
9'' Capactive HD 1024X600 Screen |
| CPU: |
Cortex A9 Dual-Core Built in 8GB Flash |
| Type: |
Car Radio |
| Placement: |
Dashboard |
| Certification: |
CE |
| Voltage: |
12/24V |
| Audio Output: |
Digital Audio Coaxial |
Product Description

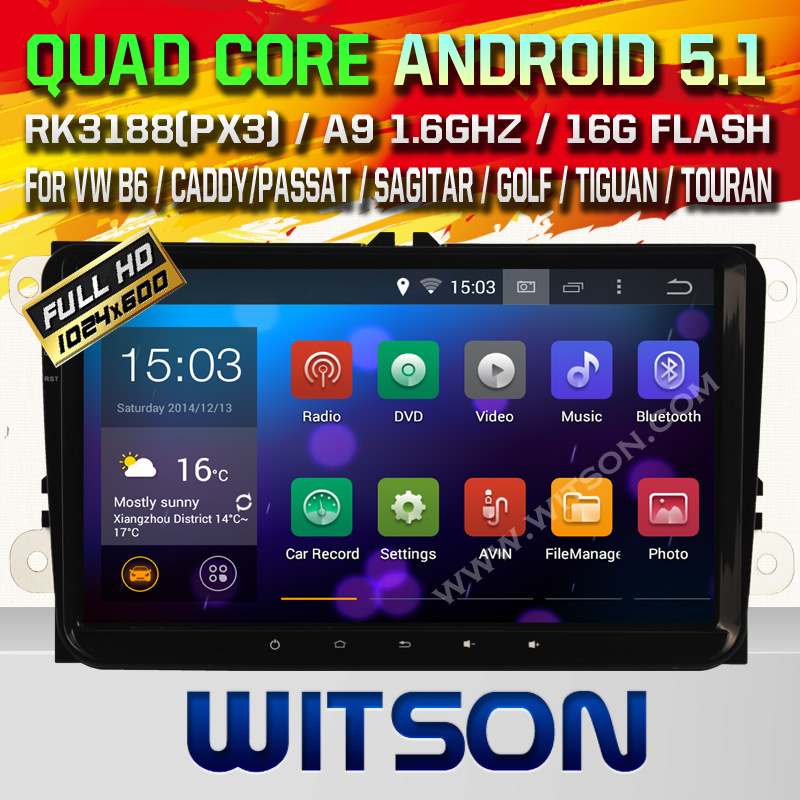

Android 5.1 SystemCAPACITIVE 1024X600 Screen
1080P HD Video CPU: Rockchip 3188(PX3) Cortex A9 Quad-Core 1.6GHZ Frequency
1G DDR3 RAM Memory
Built In 16GB ROM
Built-In DVR Function With External USB Camera (Click HERE for details)
External Microphone and Built-in Microphone Both Included
Mirror Link for Android and iPhone Mobile
Built-In WIFI Module
Picture in Picture
Support External 3G Dongle APE Music
Support HD 2D & 3D Games
Front And Rear Camera Can Work Together
Support Thousands Of Softwares Downloading From Android Market
Support SD/MMC/SDHC SD Ports, SDHC Supports Max 32G, HDD
Bluetooth Supports All Brands Cellphones,Phonebook Input,Music Playback, Supports Name Search By A-Z
Video Support: WMV(VC1 Code)AVI (H.264, MPEG4,Xvid, WMV),MP4 (H.263, H.264, MPEG4), MPG(MPEG-2),M4V(H.264, MPEG4)| Configuration |
| OS | Android 5.1 system |
| CPU | Rockchip 3188(PX3) Cortex A9 quad-core |
| RAM | DDR3 1GB |
| Flash | Built in 16GB |
| Video Decode Support | 1080P |
| Touch Screen | Capacitive 1024X600 touch screen |
| GPS |
| Map | Stored in memory or SD card |
| Map Formate Support | Google map online, Sygic, IGO, 3D maps, etc. |
| Media Player | Yes |
| Card Supported | Micro SD Card |
| INTERNET |
| 3G | Support 3G WCDMA 3G dongle |
| Wi-Fi | Built-in WiFi Receiver |
| Android Apps Installation | Yes |
| Display Screen |
| Screen Type | Digital TFT touchscreen |
| Resolution | 1024*600 |
| Screen Dimension | 9 inch 16:9 |
| Wall Paper | Live wallpaper |
| GUI Interface | 3D Interface |
| Language |
| Main Interface Language | English, Deutch, Franch, Portuguese, Spanish, Italian, Espanol,etc. |
| DVD Control Language | / |
| DVD Playback |
| Disk Format Supported | / |
| Media | / |
| Bluetooth |
| A2DP | Yes |
| Microphone | Built-in Mic+External Mic |
| Received Call | Yes |
| Dialled Call | Yes |
| Missed Call | Yes |
| Download Contacts | Yes |
| Store Contacts | Yes |
| TV Tuner |
| Built-in Analog TV | No |
| Analog TV System | / |
| Built-in DVB-T Tuner | / |
| DVB-T Format | / |
| Built-in ISDB Tuner | / |
| Radio |
| AM Frequency Range | 522-1620 (Europe), 530-1710 (America) |
| FM Tuning Range | 87.5-108 (Europe), 87.5-107.9 (America) |
| RDS | Yes |
| iPod Control |
| Touchscreen Control | / |
| Show Information Of Music | / |
| Play Video | / |
| Storage Media |
| SD Card Slot For Music/Movie | / |
| / |
| USB Port For Music/Movie | Mini USB Port |
| MAX Memory Supported 32GB |
| Position: Back of the unit |
| Portable HD | Yes |
| Video & Audio |
| Video Input | 1-Channel RCA Input |
| Video Output | / |
| Audio Input | 2-Channel RCA Input |
| Audio Output | 4.1Channel RCA Output |
| Reverse Camera Input | Yes |
| 3 Zone Out | No |
| Other Functions |
| 2-Zone | Yes (Listen Radio/CD While Watching GPS Image) |
| 3-Zone | No (Listening To Radio/Watching GPS Image At The Front And Watching DVD/SD/USB/TV
From The Sub-monitor Simultaneously) |
| Pictrue In Pictrue | Yes |
| Steering Wheel Control Function | Yes |
| CANBUS | No |
| MFD | Yes |
| TMC | No |
| V-6 Disc Changer Memory | No |
| CDC | No |
| Parking Assistance | Yes |
| Game | Yes |
| Button Back Light | Red button light |
| Accessories |
| User Manual*1,Power Cable*1,RCA Cable*1,GPS Antenna*1,USB Cable*1 |
WITSON is a professional CAR DVD PLAYER manufacturer and exporter in China. Especially for Special OEM integrated car DVD player for different car brand like BMW, Audi, Volvo, Volkswagen, SKODA, Toyota, Honda, Nissan, KIA, HYUNDAI, Ford, MAZDA etc....,
Welcome OEM order with customer brand name on the box and products, so if you want to order our models by OEM way, we can discuss it together
We have abundant exporting experience, espeically in EU market and South America market, so we can provide our customers with professional question reply and after-serivce support.
We attend every version of Hong Kong Electronics Fair (Spring Version 14-17 April; Autumn Version 13-16 October) and foreign Electronics Fair(CAR+SOUND in Germany, MOTORTECH in Spain, etc. ) as well.
If you have further inquiry, please feel free to contact us.
