| Prod Model: |
SF606 |
| Brand: |
Saifan |
| Product Name: |
Hicas High Efficient Auto Wood Cutting off Saw Mac |
| Warranty: |
1 Year |
| Usage: |
Wood Process |
| Application: |
Making Wood Pallet |
| Power: |
8.5kw |
| Modle: |
Sf606 |
| Voltage: |
380V, 3 Phase, 50Hz |
| Layout: |
Horizontal |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
ISO |
| Type: |
Wood Cross Saw |
Product Description

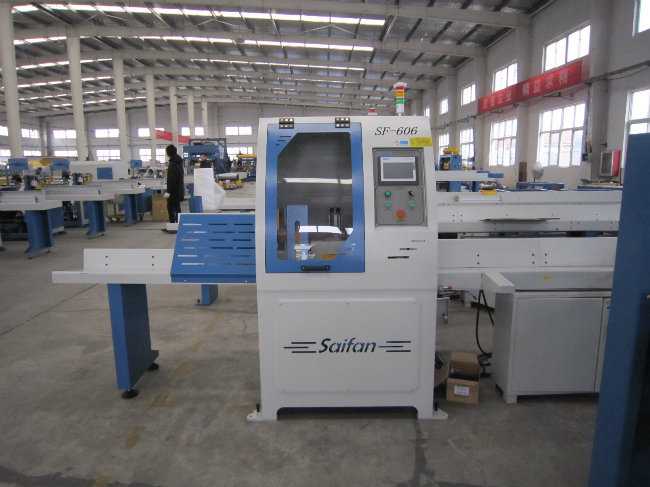

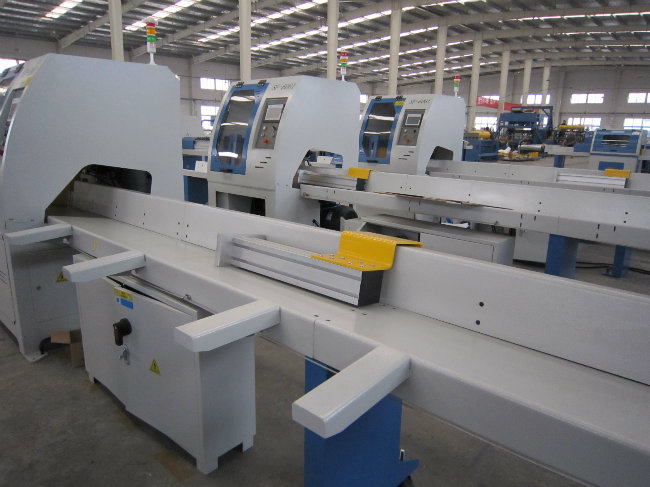

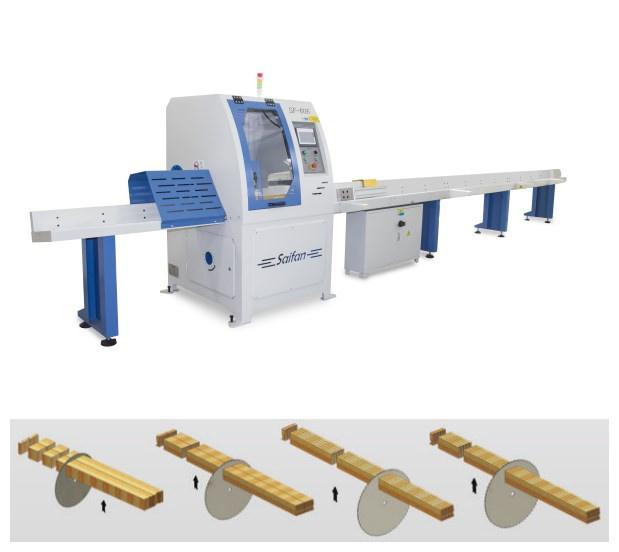

Wood Cross Cutting Saws
An video link about this machine
https://www.youtube.com/watch?v=8253RLmw83U&list
Parameters
From the video you can see our machine is easy to operate, high efficiency, safty for worker.
| Model | SF606 | SF6061 |
| Cutting length | Max. 2m/ 4m/ 6m |
| Cutting height | 10-120mm | 10-140mm |
| Cutting width | 30- 200mm | 30-300mm |
| Cutting section | Max. 120*150mm/100*200mm | Max.140*140mm/140*300mm |
| Feeding speed | 5-30m/min |
| Cutting speed | 40pcs/min | 45pcs/min |
| Blade diameter | 450mm*30mm | 600mm*30mm |
| Cutter spindle rotation speed | 3000rpm | 3150rpm |
| Servo drive motor power | 0.75kw | 1kw |
| Cutting motor power | 7,5kw/11HP | 11kw/15HP |
| Total power | 8.5kw | 12.5kw |
| Pressing method | Cylinder, air pressure 0.5-0.7Mpa |
| Cutting tolerance | In +/-1mm | |
| Machine working dimension | L*W*H, 5.4m*1.2m*1.6m/7.4m*1.2m*1.6m/9.4m*1.2m*1.6m |
| Dust collection port | Dia. 100mm*2pc |
| Electrical components | Schneider |

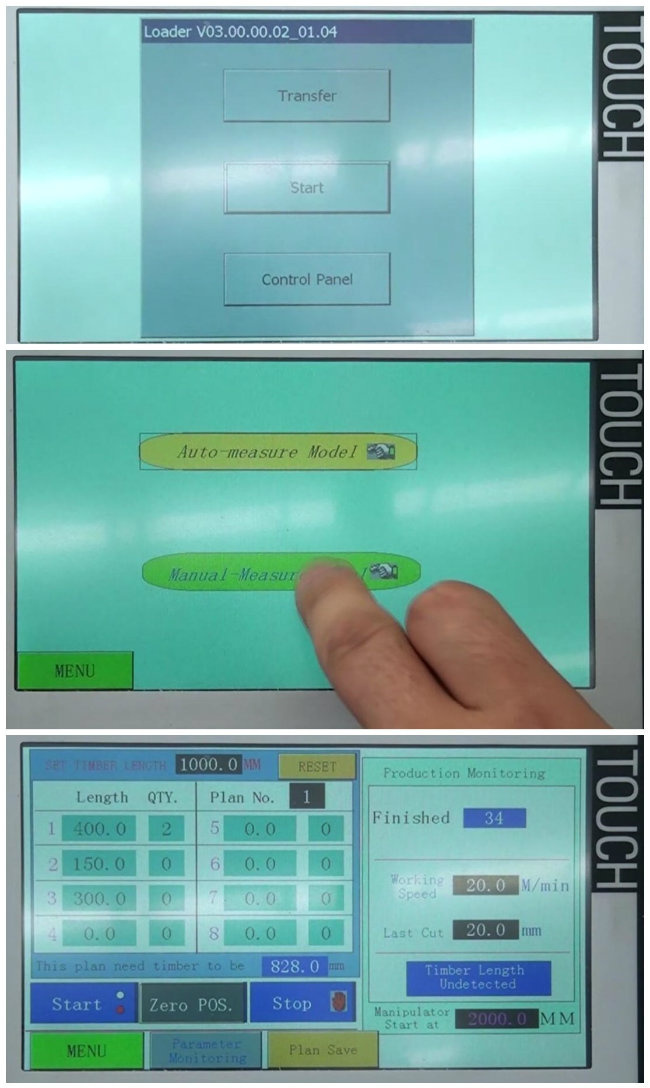

| PLC Touching screen | Siemens |
| Voltage | 380v, 3 phase, 50Hz
Can customize (extra cost $200) |
Details
Package&Shipment 1.Packing details: Warrping film with plywood box or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
FAQ
1) How quick we can get the parts from you?
As long as the problem with parts, we will send you free accessories by express, and you can get the parts in 4~5 days usually.
2) How much support we can get for problems ?
We will do our best to help you solve the problem by phone or video, also we can do the overseas services.
3) Manuals and electrical for drawings can made in English?
Of course we can do that in English.
4) What's the cutting section of this saw?
This saw max cutting section is 140*280mm or 120*300mm (thickness*width).
5) How many workers needed for this machine?
Just need 1 worker, when wood material placed on working table, machine feeding the wood automatic, then just need worker take the finished wood.
After-sale service
1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.
