Prod Model: |
MJ344 |
Brand: |
Hicas |
Voltage: |
380V, 3phase, 50Hz |
Warranty: |
12 Months |
Name: |
Wood Optimizing Cross Cutting Saw |
Application: |
Woodworking |
Key Word: |
Optimizing Saw |
Dimension: |
8500*1400*1550mm |
Total Power: |
16kw |
Usage: |
Cutting Wood |
Suitable: |
Furniture Factory |
Layout: |
Horizontal |
Controlling Mode: |
CNC |
Automatic Grade: |
Automatic |
Precision: |
High Precision |
Certification: |
ISO |
Type: |
Optimizing Cross Cutting Saw |
Product Description

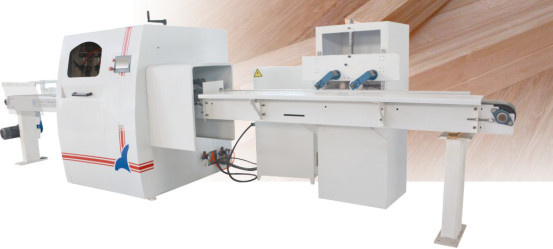

MJ344 optimizing cross cut saw
Technical ParametersSaw blade diameter | 405mm |
Cutting section | 140*40mm/70*70mm |
Cutting thickness | 15-70mm |
Cutting width | 20-140mm |
Feeding wood length | 350-6300mm |
Saw axle rotation speed | 4000RPM |
Saw blade driven motor | 5.5kw |
Servo driven motor | 4.5kw |
Saw blade lifting method | servo motor |
Saw blade lifting motor | 4.5kw |
Total power | 16kw |
Voltage | 380v 50hz 3phase (can customized) |
Upper pressing rollers | 6pcs |
Down pressing rollers | 6pcs |
5 optimizing principles | 1) more timber yield 2) long wood cutting 3) quantity optimizing 4) waste cutting 5) less waste optimizing |
Feeding speed | max. 100m/min |
Machine weight | 2000kg |
Machine dimension | 8500*1400*1550mm |
Software control system | Schneider |

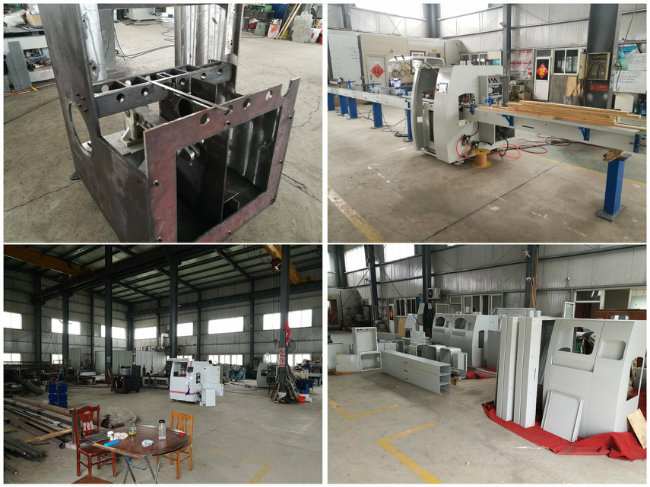

Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.
Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.
We have our own trade services company, currently has online service department, network development department and purchasing department.
We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
