Prod Model: |
HICAS |
Type: |
Circular Saw |
Layout: |
Horizontal |
Controlling Mode: |
CNC |
Automatic Grade: |
Automatic |
Precision: |
High Precision |
Certification: |
ISO |
Product Description

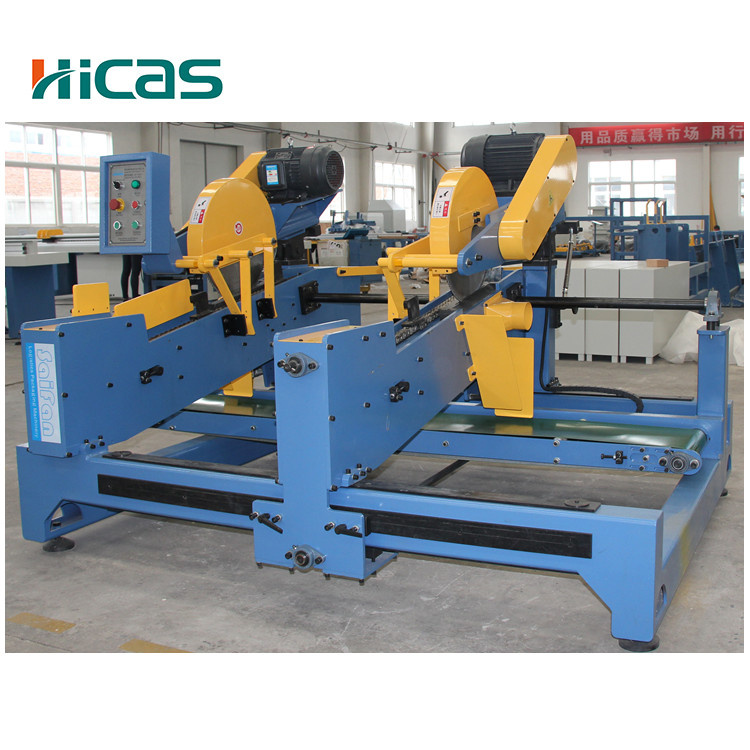

wood saw machine double end saw
Cutting length | 500-1500mm |
Cut off length | Left side max.95mm, right side no limit |
Cutting thickness | Max.120mm |
Cutting width | Max.200mm |
Feeding speed | Fixed 20m/min |
Saw blade diameter | Inside Ø30-outside Ø450-120T |
Cutting tolerance | Less than 1mm |
Cutting motor | 4*2kw |
Cutting motor rotation speed | 2830RPM |
Feeding motor | 2.2kw |
Total motor power | 12.2kw |
Voltage | 380v, 3 phase, 60Hz. |
Exhaust duct | Dia.100mm*2pc |
Machine packing dimension | 2380*2150*1550mm |
Machine weight | 1270kg |
Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.
Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.
We have our own trade services company, currently has online service department, network development department and purchasing department.
We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
