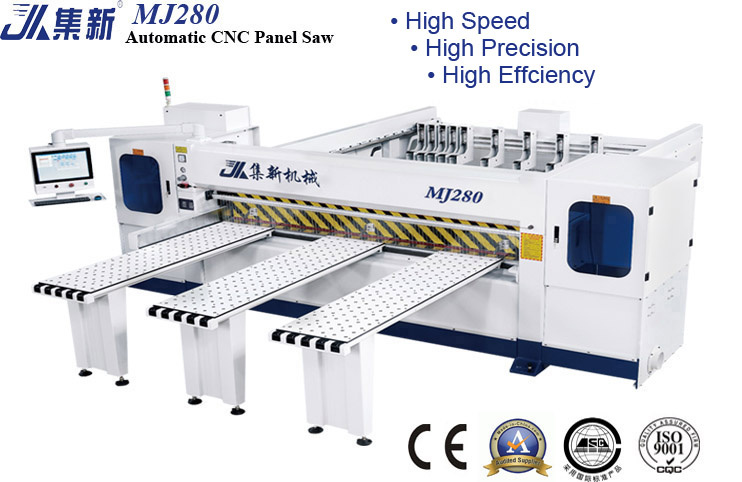

Woodworkin Machine Automatic CNC Panel Saw

Woodworkin Machine Automatic CNC Panel Saw
Price: US $ 20000-26000set
Min Order: 1set
Pay Type: L/C,Western Union
Prod Model: MJ280
Port: Shunde or Guangzhou
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Certification: CE
Color: White&Blue

Product Description



Specification
Sawing  length2800/3300/3800MMSaw carriage astern speed120M/MIN
Sawing thickness100MMMain saw drive motor15KW
Main saw diameterΦ350MM-Φ450MMGroove saw drive motor2.2KW
Main saw shaft diameterΦ75MMSaw carriage servo motor1.5KW
Main saw Speed4800M/MINFeeding servo motor1.5KW
Groove saw  diameterΦ160MMHigh voltage air supply motor2.2KW
Groove saw shaft diameterΦ45MMAutomatic feeding speed70M/MIN
Groove saw speed6300M/MINAir pressure7-8KG/CN²
Saw carriage cutting speed0-100M/MINWeight5200KG/5800KG
Power380V/50-60HZ
Touch screens languangEnglish&Chinese



Established in 2004, Foshan Jizhixin CNC Machinery Co., Ltd is a professional manufacturer of woodworking machinery located in Lunjiao Town, which is famous for "China woodworking machinery manufactoring base".

We have several series of production lines, main products are computer panel saw, CNC panel saw, beam saw, CNC router, edge banding machine, CNC drilling machine and other related woodworking machinery.

At the beginning of the establishment, Enterprise adhering to the operating principle "quality of the factory, the credibility of the city", keep making progress, improving quality and management.

At present, there are 60 staff members, including technology, development, quality management, production management and sales management, including R & D design team of the total staff of 30%.

The company successfully passed the ISO9001 quality management system certification, product and Technical Supervision was awarded the "quality of trust products", and access to the "quality of products produced permits", quality assurance, reliable service!

Products of JIXIN, must be competitive and quality.

Products with its innovative, high quality, cost-effective features, favored by domestic and foreign customers and exported to Russia, Ukraine, the Middle East, South Africa, Southeast Asia and other countries and regions. Companies in the provinces are equipped with distribution points to professional and technical services to win customers trust and support.

Made in China, created boutique hand in hand.

"Brainstorming, innovation, continuous improvement, improve quality", JIXIN Machinery Manufacturing Co., Ltd. Will continue to spare no effort to create better product. In response to national "2025" power strategy, innovation-driven, quality first, green development, and the majority of customers to become the leader of Chinese made.

1) About Jizhixin
Foshan Jizhixin CNC Machinery Co., Ltd. Founded in 2004. With more than 15 Years' experience on woodworking machinery industry, Jixin Brand has become one of the leading companies and most famous brand of woodworking machines in China.

2)Jizhixin CNC Panel Saws
· CNC Panel Saw is the full automatic cutting equipment that can provide the complete solutions of panel cutting for custom furniture manufacturing.
· The material for the saw carriage is aviation aluminum, which make the carriage move light, fast and smoothly. And other factory use steel for this parts.
· The material for the pressure beam is pure aluminum, which can be more proof pressure, wear-resisting and not easily to out of shape. And other factory use steel for this parts.
· There're 9 grips for MJ280, and 11 for MJ330 and MJ380. And most factory in China it's always seven.

3) Jizhixin wood working machine series:
· CNC panel saws
· Sliding table saws
· CNC Router
· Edge banding machines
· High-precision CNC drilling machines
· . Boring machines

4)FAQ
Why choose Jizhixin?
· 15 Years experience in woodworking machinery, since 2004.
· Professional sales & technical team at your service.
· Jizhixin is specialized in providing whole plant equipment, fabrication, design for customers.
· Factory with the best competitive price and quality.
· Directly after-sales service from Factroy
· Owned different certificates such as CE, TUV, ISO9001, etc.
Do you accept OEM orders?
· Yes, we can make OEM for the machines according to your requests.
What is your warranty?
· Quality: 100% brand new made in China, manufactured according to export.
What is the payment term if I placed orders to you?
· Normally we will accept T/T or L/C. More details can be discussed case by case.
What is your lead time?
· 25 to 35 days after received deposit. Special situation can be discussed case by case.
