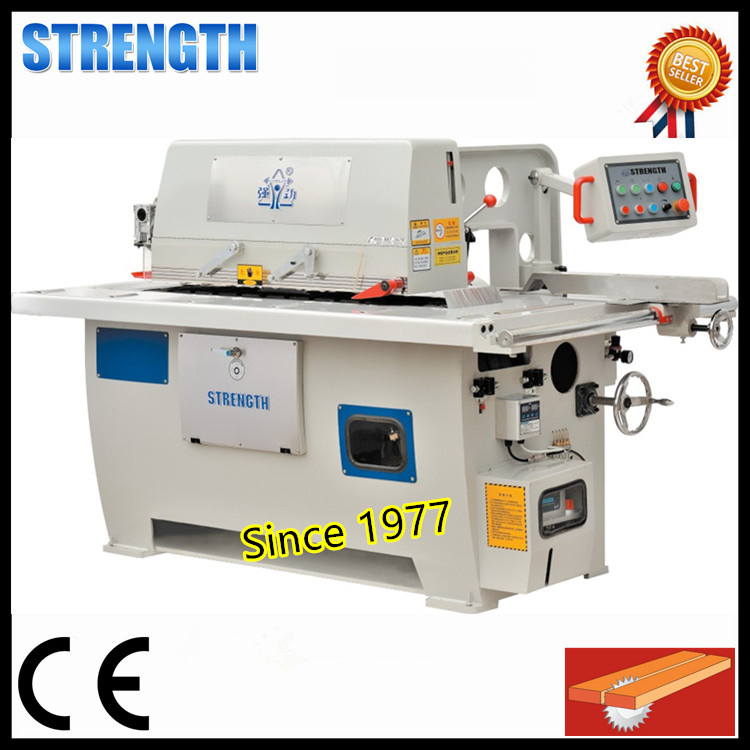

Woodworking Machine for Edging Rip Saw

Woodworking Machine for Edging Rip Saw
Price: US $ 7000-10000Sets
Min Order: 1Sets
Pay Type: L/C,T/T,Western Union
Prod Model: MJ163D
Cutter: Taiwan Brand
Material For: Wood
Function: Wood Straight Line Cutting
Motor: 3 Phase
Votage: 380V/Customize
Brand: Stregnth or OEM or ODM
Weight: 1400kg
Working Height: 10-115mm
Type: Rip Saw
Layout: Vertical
Controlling Mode: Hydraulic Semi-automatic
Automatic Grade: Automatic
Precision: High Precision
Certification: ISO
Color: White and Blue

Product Description


Edge trimming rip saw machine
Model: MJ163D/MJ164D
Main technical parameterMB163DMB164D
Working thickness10-70mm10-115mm
Min. working length120mm120mm
Throat capacity460mm660mm
Saw spindle apertureΦ50.8mmΦ50.8mm
Saw blade diameter 250-355mm355-455mm
Spindle speed2930r/min2930r/min
Feeding speed0-26m/min0-26m/min
Spindle motor10HP15HP
Feeding motor2HP3HP
Machine dimension1880*1400*1360mm2150*1600*136mm
Machine weight1200kg1850kg

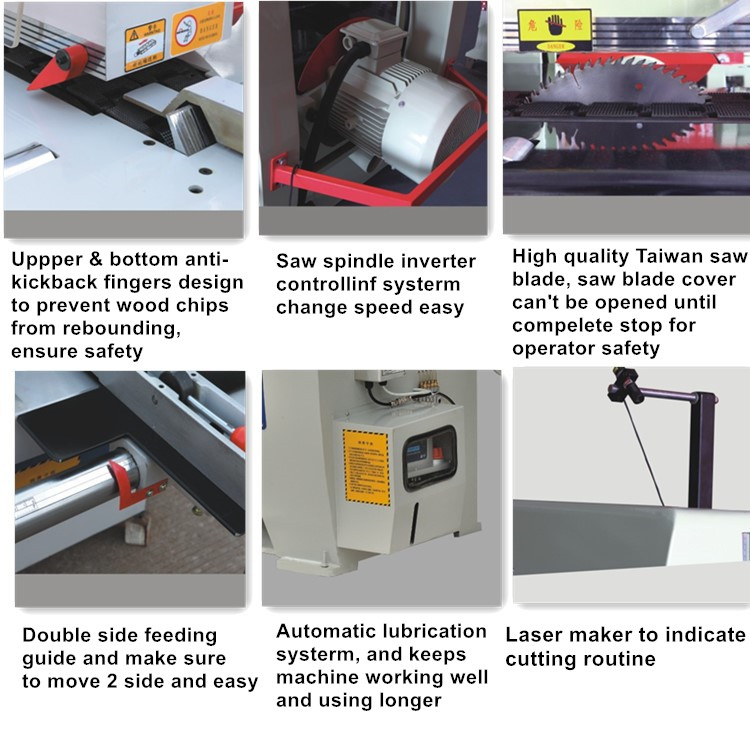

Wood rip saw cutting machine:

1.It's widely used to cut  thin wood chips in high precision.



2.Whole cast iron machine frame keeps the working steadness.

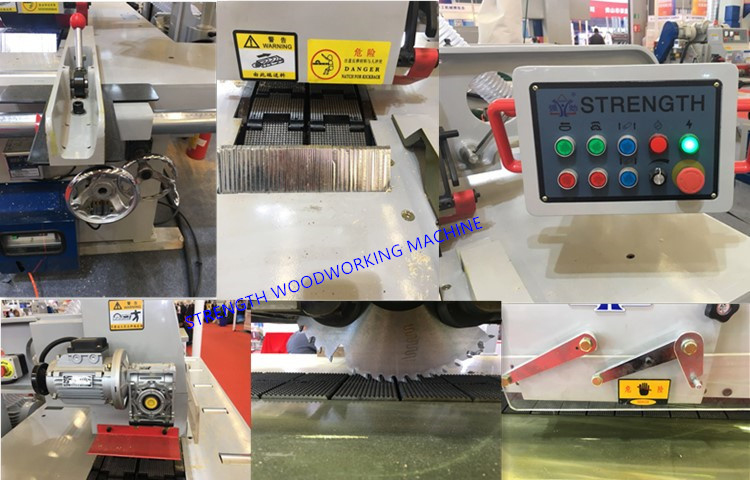

3.Top control panel with digital indicator, render  the operation easy & ensure the working accuarcy.



4.With sliding rip fence,  so the users could manage and adjust the working width as the processing requirement.

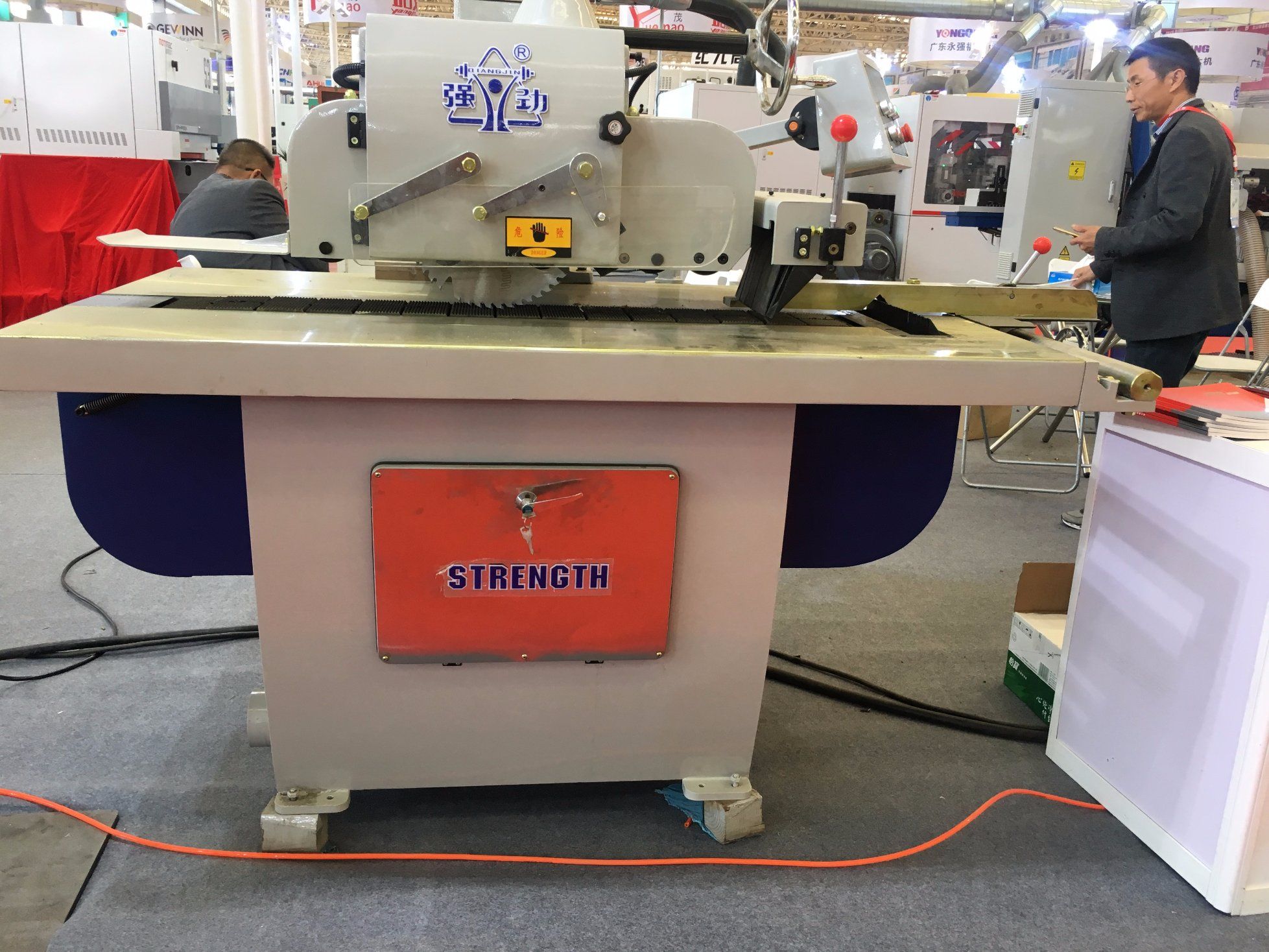

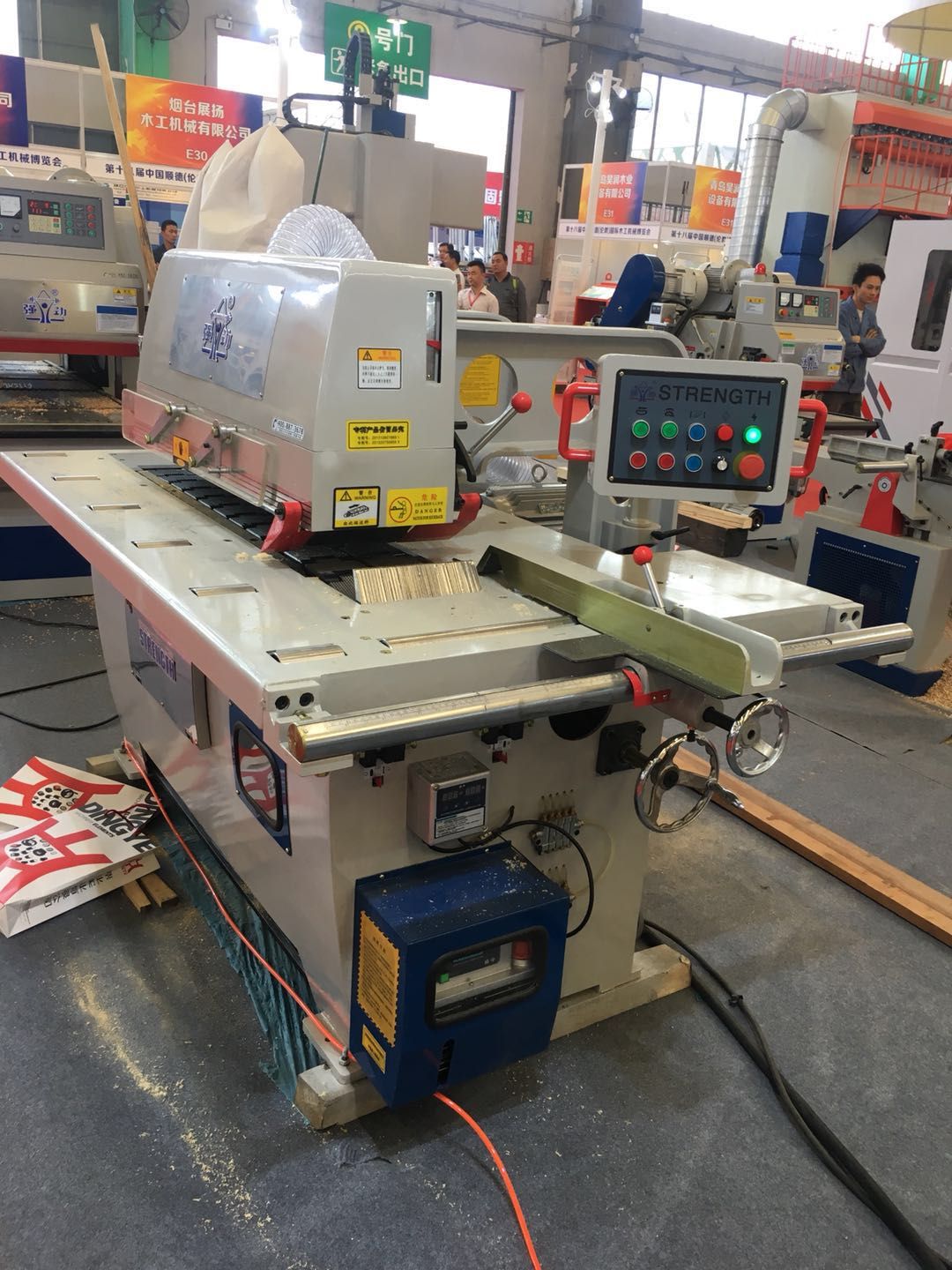

We are producing different type wood rip saw machine
Straight line rip saw machine
Model:MJ153A/MJ153C/MJ153D

Main technical dataMJ153AMJ153CMJ153DMJ154
Max. working thickness85mm85mm85mm125mm
Min. working length120mm200mm200mm220
Saw blade and fuselage distance460mm365mm460mm610mm
Saw spindle apertureΦ30mmΦ30mmΦ30mmΦ30mm
Saw blade diameter and working thicknessΦ250(10-60)mm                              Φ305(10-85)mmΦ250(10-60)mm                              Φ305(10-85)mmΦ250(10-60)mm                              Φ305(10-85)mmΦ305(10-80)mm                              Φ400(10-125)mm
Spindle speed3500r/min3500r/min3800r/min3500r/min
Feeding speed13,17,21,23m/min13,17,21,23m/min15,20,25,31m/min13,17,21,23m/min
Saw blade motor7.5kw7.5kw7.5kw11kw
Feeding motor0.75kw0.75kw1.5kw0.75kw
Chip removal diameterΦ100mmΦ100mmΦ100mmΦ100mm
Machine dimension2024*1337*1480mm1730*1050*1380mm1785*1100*1415mm2200*1350*1550mm
Machine weight1000kg950kg1000kg1450kg


Company Profile

Q:what is your leading time?

A:Within 7 days for motor 3 phase, 380V, 50Hz,  10-20 days if the motor is different.

Q:Where is your loading port?

A:Shanghai or Ningbo.etc, China port

 Q:what are your payment term?

A:30% deposit and balance T/T

 Q: What's your warranty time?

A: 12 months for machining parts and 6 months for electronic parts.

Jinghua Powerful(STRENGTH) Woodworking Machinery Co., Ltd., is an advanced enterprise of ministry & technology advanced enterprise of Zhejiang province. It lies in Yangbu town by the south of Qu River, the upper reach of Qianjiang River, which is the central section of Zhejiang province. Preponderance in location, convenient in traffic, with 03 provincial road & Hangjingqu autobahn pass through the town. The company occupies 78 thousand sq. M., with 31 thousand sq. M. Architectural area. The company, which is specialized in manufacturing "STRENGTH" brand woodworker machine series, has excellent technicians, complete machine equipments, advanced inspection & account method, and has passed ISO9001-2000 and CE System of Quality Certification. After thirty years development, the company enlarges gradually and has owned eight series, more than forty kinds of products from the original single product. It also accepts the order of special specs. The products are well sole all over the country and the Southeast Asia, among which the produce and sale quantity of single side planer is No. 1 China. The products are favorable to the consumers. With the improverment of the market demand, we will continue to develop new products to meet different consumers`requirementS.

"manufacture high quality products, create value for consumers" is our target.

"quality first, consumer foremost" is our tenet

We always embrace the market principle of "satisfy the consumer"

We believe "Qiangjin will boost its own development with powerful motility & bring powerful development to the consumers at the same time. "

We are looking forward to cooperating with you!

We are the manufacturer for woodworking machinery 40 years with good quality and best price.

Main machines has: 1, Wood Jointer; 2, Wood Single Planer; 3, Wood Double Sided Planer; 4, Wood Four Side Moulder; 5, Wood Rip Saw; 6, Wood Ede Trimming Saw; 7, Wood Multiple Rip Saw; 8, Wood Horizontal Band Saw.
