| Prod Model: |
HCZ-MJ250 |
| Brand: |
Hicas |
| Name: |
Multi Blade Rip Saw |
| Maximum Working Width: |
250mm |
| Max Thickness: |
80mm |
| Saw Spindle Motor Power: |
22kw |
| Saw Shaft Diameter: |
50mm |
| Saw Shaft Power Saw: |
4000r/Min |
| Total Motor Power: |
25.32kw |
| Dimensions: |
3076*1250*1600mm |
| Type: |
Rip Saw |
| Layout: |
Horizontal |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
| Certification: |
ISO |
| Controlling Mode: |
Automatic |
Product Description

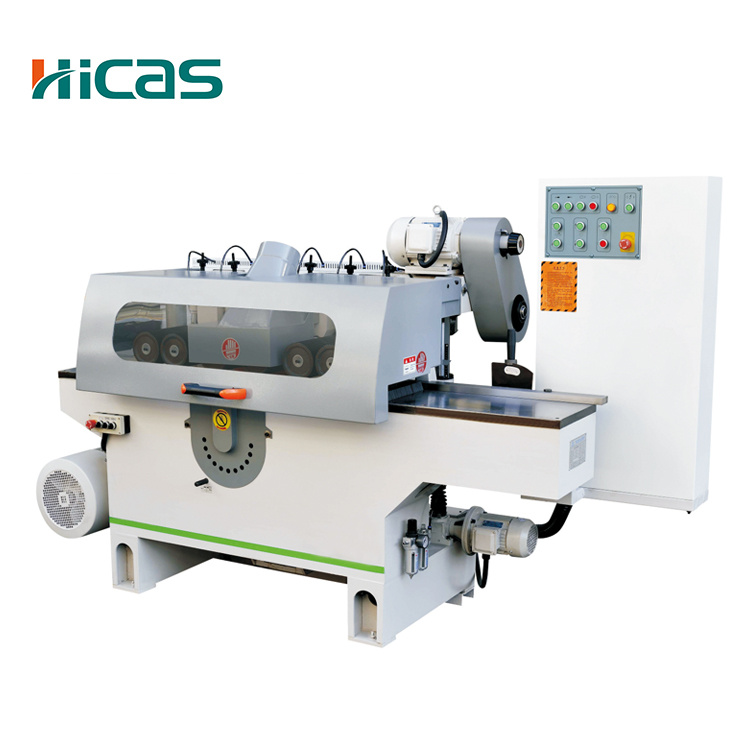

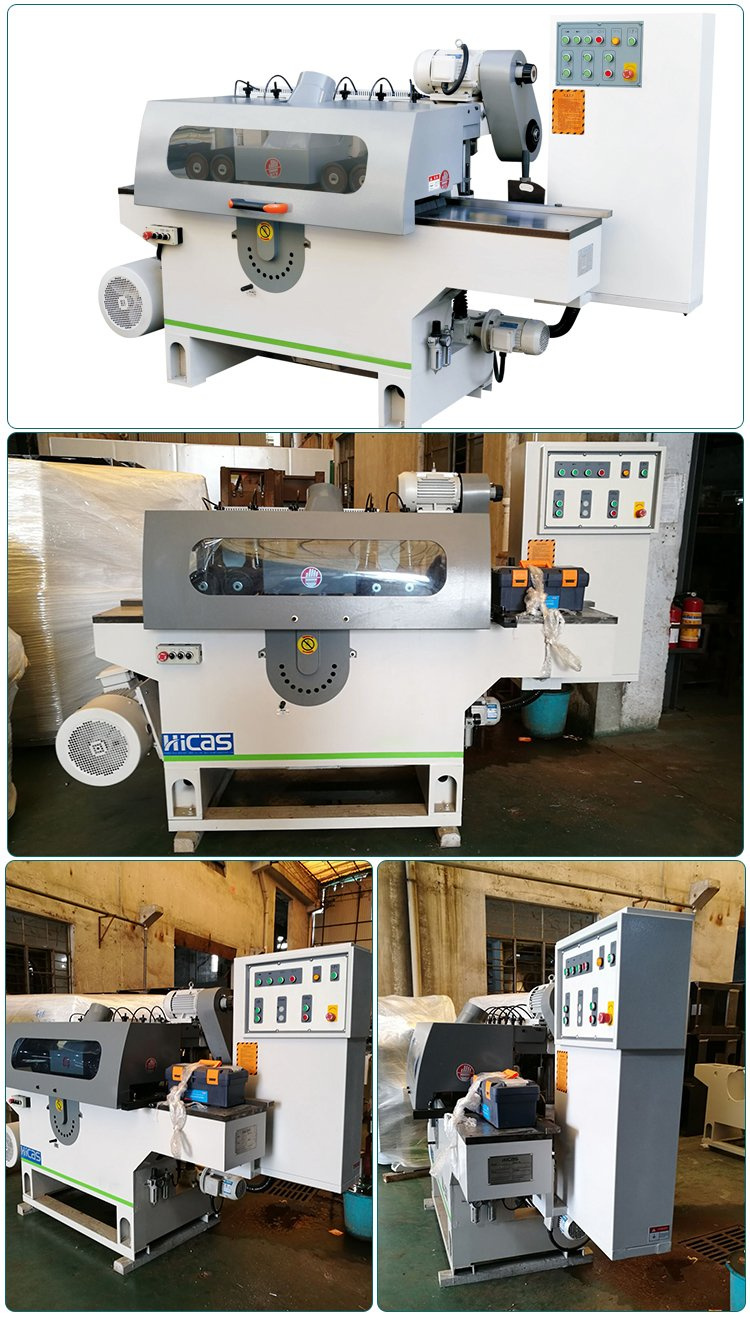

Woodworking Machine Multi Rip Saw
| Model | HCZ-MJ250 |
| Maximum Working Width | 250mm |
| Max Thickness | 80mm |
| Feeding Speed | 5-18m |
| Saw The Largest Diameter | 300mm |
| Saw Spindle Motor Power | 22kw |
| Saw Shaft Speed | 4000r/min |
| Vapor Pressure Steam Source | 0.5mpa |
| Saw Shaft Diameter | 50mm |
| Saw Shaft Keyway | 16*5mm |
| Saw Shaft Power Saw | 4000r/min |
| Lift Shaft Power Saw | 0.37kw |
| Motor Transportation System | 0.75kw |
| Total Motor Power | 25.32kw |
| Dimensions | 3076*1250*1600mm |
Package
1.Packing details: Stretch film with wooden case or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
Quality Control:
1) During procurement, we have strict control about the quality of the spare parts.
2) Manufacturing period, we have QC department to monitor each step of production process by different testing tools and inspection forms.
3) Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sampling videos for customers.
Warranty:
1.one years warranty for the whole machine; Lifetime Maintenance.
2.Within warranty period, any damage happens due to machine quality problems; we will be responsible for replacing parts for free, except regular consumables (such as cutting tools) and the damage by man-made irregular operating.
3.Customer has to pay the International Express cost and accommodation etc.
4.Warranty time starts after goods arrival in customer's site.
| Pre-sale services | Services during the sales | After sale services |
1> Provide the free consultation
of the equipment
2> Provide the standard device
and the flow chart
3> According to the clients'
special requirement, we offer
the reasonable plan
and free design helping to
selecthe equipment.
4> Welcome to visit our factory | 1> Inspect the machine
before leaving the factory.
2> Oversea instal and debug the equipment.
3> Train the first-line operator. | 1> 24 hours online service
2> Provide the VIDEO with
Install and debug the
equipment
3> Provide technical
exchanging |
Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.
Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.
We have our own trade services company, currently has online service department, network development department and purchasing department.
We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
