| Prod Model: |
xinlihui |
| Voltage: |
380V/Customize |
| Material: |
Hard Wood |
| Function: |
Planing for Wood Surface |
| Motor: |
3 Phase |
| Machine Item: |
Single-Side Planer Wood Thicknesser Wood Working M |
| Type: |
Single-sided Pressure Planer |
| Certification: |
FDA |
| Working Width: |
400-1000 |
| Working Depth: |
5-220 |
Product Description

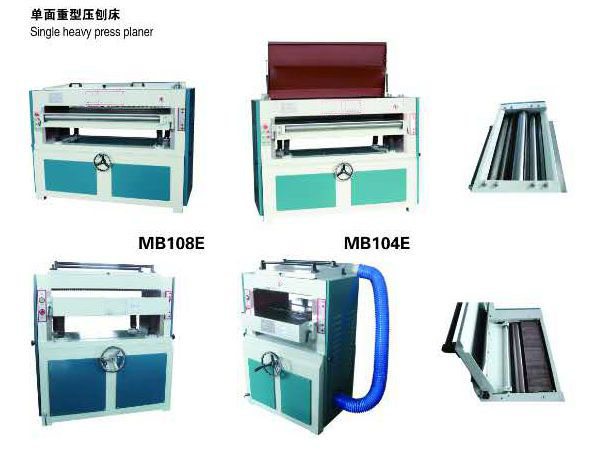

1, Introduction of Single-Side Planer Wood Thicknesser Wood working machine:
Gear driven structure, instead of chain driven structure, more powerful and longer service life
Two feeding speeds available by electric button
Heavy duty structure.combines rugged reliability with unequalled quality
side-monuted hand wheel for height adjustment is more covenient for operation
2,Main technical parameter:
Specification | HCB204E | HCB206E |
| Max. planing width | 400mm | 630mm |
| Max.planing thickness | 120mm | 150mm |
| Min. planing length | 300mm | 300mm |
| Min. planing thickness | 10mm | 10mm |
| Top cutter pianing capacity | 7mm | 7mm |
| Bottom cutter planing capacity | 5mm | 5mm |
| Feed speed | 5-20m/min | 6-18m/min |
| Spindle speed | 5000r/min | 5000r/min |
| Cutting diameter | 112mm | 112mm |
| Top horizontal cutter motor | 7.5KW | 11KW |
| Bottom horizontal cutter motor | 4KW | 7.5KW |
| Feed motor | 2.2KW | 3KW |
| Lifting motor of feed mechanism | 0.75KW | 0.75KW |
| Overall dimensions | 2500*1210*1630mm | 2500*1440*1685mm |
| Net weight | 2400KG | 3200KG |
3 Here we promise these :
1:One stop service for all kinds of woodworking machines for you
2, high cost performance with reasonable price and our best quality
3:15-20 days delivery time
4:Excellent after-sale services
5:24 hours technical support through email or calls.
6:Not only business, hope to make good friend with you
For further information about machine or price or other service , plz contact with us by email or QQ or wechat
Your enquiry are always warmly welcomed
