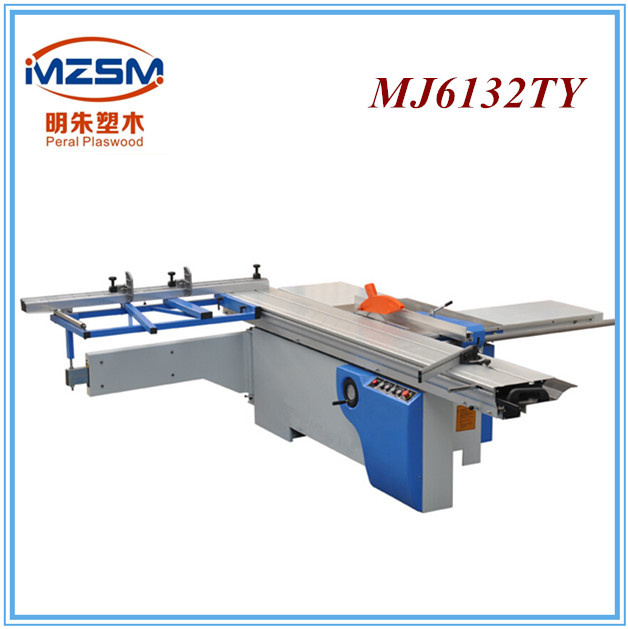

Woodworking Machinery Furniture Cutting Machine Sliding Table Panel Saw
| Price: |
US $ 2200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
MJ6132TY |
| Voltage Condition: |
220V/380V/415V/440V etc ; Single Phase/Three Phase |
| Hertz: |
50Hz or 60Hz |
| Saw Blade Tilting: |
0-45 Degree |
| Optional Cutting Length: |
1600mm, 2200mm, 2800mm,3000mm,3200mm,3800mm |
| Motor Power: |
4kw/0.75kw |
| Saw Blade Diameter: |
300mm/120mm |
| Sliding Table Size: |
3200/375(mm) |
| Optional Accessories: |
European Dust Collector/LED Readout/Lubrication |
| Warranty Period: |
12 Months |
| Weight: |
750kgs |
| Application: |
Wood Saw |
| Type: |
Fixed |
| Power Source: |
Electricity |
| Saw Type: |
Sliding Table Panel Saw |
| Brand: |
Peral |
Product Description
Basic version:| 1, Manual titling 45 degree/lifting |
| 2, Use of conventional structure |
| 3, With auxiliary working table |
| 4, Guide shaft spindle, the diameter is 40mm |
| 5, With standard protection hood |
| 6, With manual eccentric swage/press board |
| 7, With saw blade(one set) |
| 8, Voltage condition: 220V/380V/415V etc; single phase/three phase ; 50Hz or 60Hz |
| 9, Max . motor power is 3kw(220V/single phase/60Hz) |
Main technical parameter:| Model | MJ6132TY |
| Dimensions sliding table | 3200/375mm |
| Cutting length | 3200mm |
| Cutting width | 1250 |
| Saw blade | 250-300mm |
| Cutting height | 80-120mm |
| Diameter of guide shaft spindle | 40mm |
| Max. working height | 55-90mm |
| Speed of main saw spindle | 4000/6000 rpm |
| Spindle diameter | 30mm |
| Tilling saw blade | 45-90 degree |
| Main motor | 4kw |
| Scriber specification | 120mm |
| Non-load speed | 8000rpm |
| Scoring spindle diameter | 20mm |
| Scoring motor power | 0.75kw |
| Weight | 750kg |
| Dimension | 3350/3150/900mm |
Optional Accessories:| 1, European dust collector |
| 2, Single bag dust collector |
| 3, Double bags dust collector |
| 4, FREUD saw blade |
| 5, LED readout |
| 6, Lubrication pump |
| 7, Magnetic fence |
| 8, Pneumatic eccentric swage |
| 9, Air compressor |

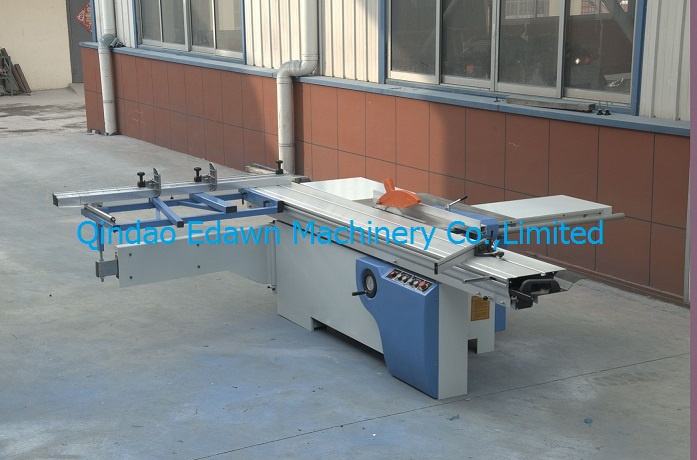

Details Picture:
QINGDAO EDAWN MACHINERY Co., Limited, has been dealing in woodworking machinery for more than 30 years, started at the beginning of 1992. Our own factory, QINGDAO EDAWN MACHINERY Co., Limited, has over 30 years' history of manufacturing all kinds of China-made woodworking machinery since 1988, especially for the MJ series sliding table panel saw & MF series edge banding machine, KDT series edge banding machine, MFS series curve&straight edge banding machine etc, MJB/MJP series beam saw machine, MZB series line drilling and hinge drilling machine etc. It has the extremely important guiding function in the circle. During the past few years, with the development of the company and the staff, we also expanded our production line to related fields like general machinery, CNC routers, Laser machinery, Plywood making machine and related hardware, ect.
QINGDAO PERAL PLASWOOD TRADE Co., Ltd, has been dealing in kinds of woodworking machinery, plastic machinery, wood product, plastic product and hardware tool for maore than 15 years!
EDAWIN MAIN PRODUCT:
1, Sliding table panel saw
2, Beam saw
3, Edge Banding machine
4, Wide belt sanding machine
5, Drilling machine
6, Cold press machine/hot press machine
7, Dust collectors
8, Planer/Thicknesser etc
PERAL PLASWOOD TRADE MAIN PRODUCT:
1, Plastic pipe extrusion line
2, Plastic sheet/board extrusion line
3, Plastic profile extrusion line
4, Plastic pipe butt fusion machine
5, Plastic recycling machinery
6, Plastic and wood composite machinery
7, Plastic and wood composite product
8, Wood product
9, Plastic product
10, Hardware tool
Thanks for our top quality, excellent service and competitive price, thanks for all the support from our customers, now our machine has got great reputation as the brand EDAWN for woodworking machinery, PERAL for butt fusion machine and DISCOUNTMACHINERY MACHINERY etc all over the world.
