Aplication: |
Woodworking Machine |
Feature: |
Saw |
Type: |
Table Panel Saw |
Layout: |
Horizontal |
Controlling Mode: |
Hydraulic Semi-automatic |
Automatic Grade: |
Automatic |
Precision: |
Precision |
Certification: |
ISO |
Product Description
1.Precision table saw for woodworking machine linear guide rail
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and othrs with woodstructure and similar hardness.
2.Further Specificataion
A. Movable table guide track is plating chromium steel bars structure, exact and durable.
B. Made of high-strength extruded alumium alloy, movable table is high in strength and won't bend.
C. With oxdation treatrment, movable surface is beautiful and hardwearing.

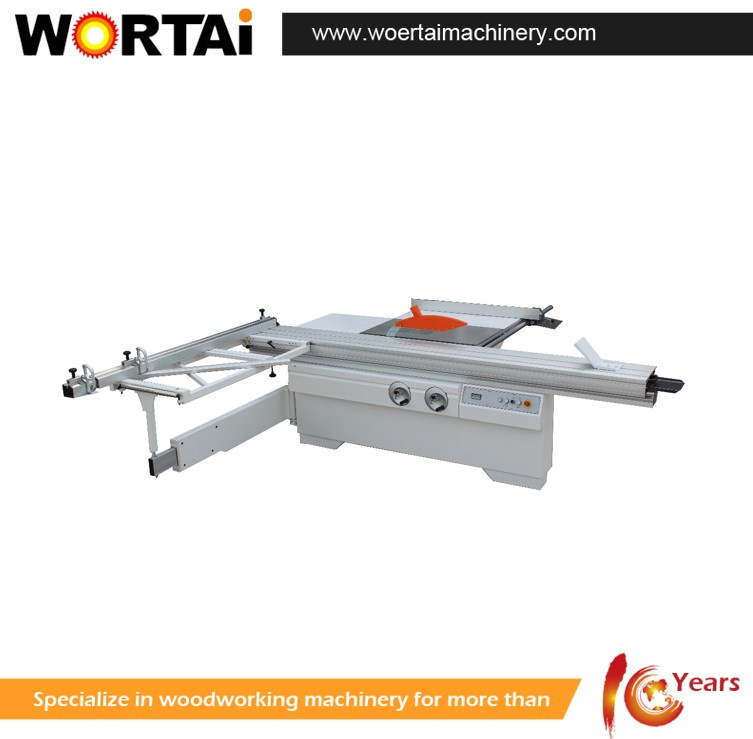

Sliding table panel saw
Precise sliding table saw
Sliding table saw machine
Sliding table saw cutting machine panel saw
Circular saw sliding table
Sliding panel saw
Woodworking machine sliding table saw
Precision wood cutting sliding table saw
Table saw mdf cutting machinery
Table saw machine wood cutting machine
Particle board cutting machine

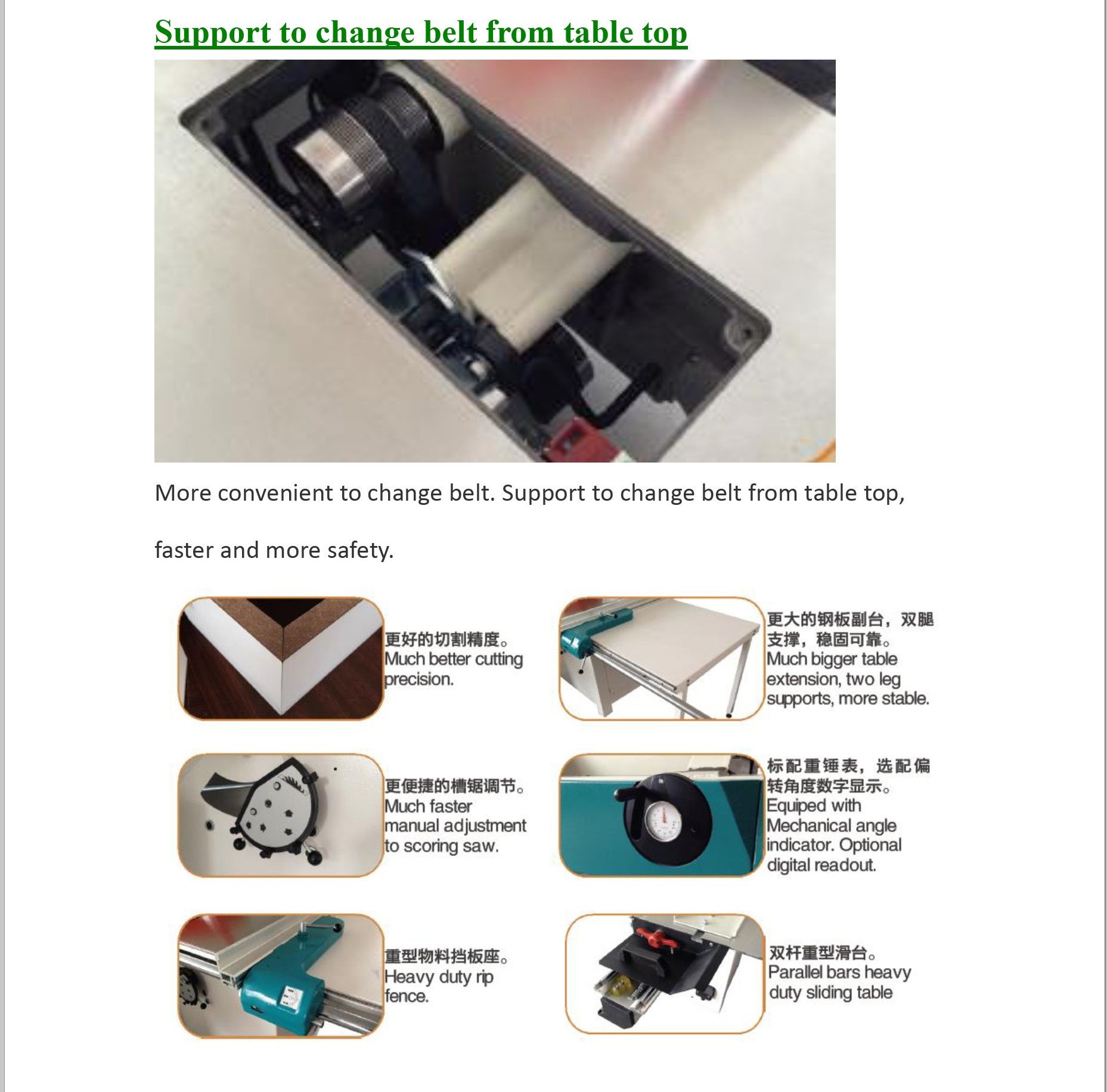

Much better cutting precision.
Much bigger table extension, two leg supports, more stable
Much faster
Manual adjustment to scoring saw.
Equiped with mechanical angle indicator. Optional digital readout.
Heavy duty rip fence.
390 mm Parallel bars heavy duty sliding table.
SPECIFICATION |
Main blade dimension | 350(400)*30mm |
Scoring blade dimension | 120*20mm |
Main blade speed | 3k/4k/5k RPM |
Scoring blade speed | 8500 RPM |
Blade tilt | 0-45 degree |
Max cutting height at 90° | 140 mm(Φ400blade) |
Max cutting height at 45° | 97 mm(Φ400blade) |
Sliding table dimension | 3200*390*223mm |
Max cutting length | 3200mm |
Max ripping width | 3200mm |
Main motor power | 5.5kw |
Scoring motor power | 0.75kw |
Blade lifting motor power | 0.12kw |
Weight | 930kg |
Our Value and Obligation:
1) Do business with integrity. No cheating and deception.
2) We are committed to offer high quality products.
3) We are committed to provide professional and efficient premium services.
4) If you are or will be a distributor, we are willing to help you develop new markets, enhance performance.
5) If you are the end user, we will help you choose the right products and offer life-time technical support.
Quality Control:
1) During procurement, we have strict control about the quality of the spare parts.
2) Manufacturing period, we have QC department to monitor each step of production process by different testing tools and inspection forms.
3) Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sampling videos for customers.
Warranty:
1.One year warranty for the whole machine; Lifetime Maintenance.
2.Within warranty period, any damage happens due to machine quality problems; WRT will be responsible for replacing parts for free, except regular consumables (such as cutting tools) and the damage by man-made irregular operating.
3.Customer has to pay the International Express cost.
4.Warranty time starts after goods arrival in customer's location.
After-sale Service:
1. Guarantee long-term supply for spare parts; Unlimited Lifetime maintenance.
2. Offer life-time 24 hours online technical support for free. We can communicate by way of phone, e-mail, whatsapp, wechat, QQ, skype, or team-view, etc.
3. Offer free training for operation & maintenance of equipment in our factory.
4. Offer On-Site paid service for machine installation and technical training. Customer need to pay visa application cost, air ticket cost, local hotel & food cost, and service cost is 100USD per day.
5. We will make return visit non-scheduled, in order to make assessment for after-sale service technician, make sure our service more and more better.
Company Introdution:
WOERTAI MACHINERY Co.,Ltd is a Chinese manufacturer of Panel saw, Edge bander, CNC routers, Four side moulder, Band saw, Planer, Tenoning machine and other woodworking machines, having its own manufacturing base and official license for export & import business.
Our brand (WRT) focuses on overseas market, to provide the customer woodworking machinery with an affordable solution without sacrificing options or function.
Market: Now the market is mainly distributed in North America, South America, Europe, Oceania, Middle East, Southeast Asia, South Asia and West Asia. We have established cooperative relationship with hundreds of clients in nearly 30 countries. We are actively looking for new partners to explore the new market, to achieve win-win. We prefer to provide valuable product, service and solution for more end users. We appreciate you join us, to be partner in business, to be friend in life, to be one family forever.
Product: We produce woodworking machinery, such as panel saw, edge bander, CNC routers, four side moulder, band saw, planer, tenoning machine and other woodworking machines. We offer customized service according to your special requirement, such as, shape, dimension, color, specification and structure design, etc. OEM is available.
Team: We have our own production factory in Qingdao city, Shandong province. 120 employees in all, 50 percent workers have over 5 years manufacturing experience. More than 10 experienced engineers and designers in R&D department focus on improving and updating products, to meet with market. More than 10 sales people have excellent skills both in technology and international business service. All the service engineers have experience in providing technology service in overseas market. Support remote training and door-to-door service. Help is always just one call or email, and then we can provide a suitable solution promptly by analyzing and estimating the problem.
Qingdao Woertai Machinery Co., Ltd is located in the beautiful coastal city - Qingdao which is also famous for woodworking machinery. Specializing in the area of woodworking machine for more than 10 years. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services. It's a diversified company with research and development, production and sales. The main products of the company are edge banding machine, panel saw, wood sander machine, CNC router and all kinds of woodworking machines.
Woertai devotes itself to the first-class quality, its development and existence are depend on quality and innovation, the best honour to the enterprise is to satisfy the customers. We regard the product quality as No. 1 and chase for it all the time. Now, we have won the identification from customers and agencies. In order to expand market, we should continue to expand our production scale, promote technical innovation and keep improving. We should do our best to provide the best products to help our customers making more profits.
Our eternal service principle is "quality first, customers highest, thorough service".
In the future, Woertai should keep on improving the quality and service, creating more value to more customers, sparing no effort to the development of all over the world woodworking machinery industry.
