Prod Model: |
HC-MJ143 |
Brand: |
Hicas |
Name: |
Multi Blade Rip Saw |
Blade Diameter: |
380mm |
Voltage: |
380V, 3 Phase, 50Hz. |
Model: |
Hc-Mj143 |
Application: |
Woodworking |
Usage: |
Cutting Wood |
Weight: |
2600kg |
Overall Dimensions: |
2200X1500X1580 mm |
Power: |
37kw |
Type: |
Rip Saw |
Layout: |
Vertical |
Automatic Grade: |
Automatic |
Precision: |
High Precision |
Certification: |
ISO |
Controlling Mode: |
Automatic |
Product Description

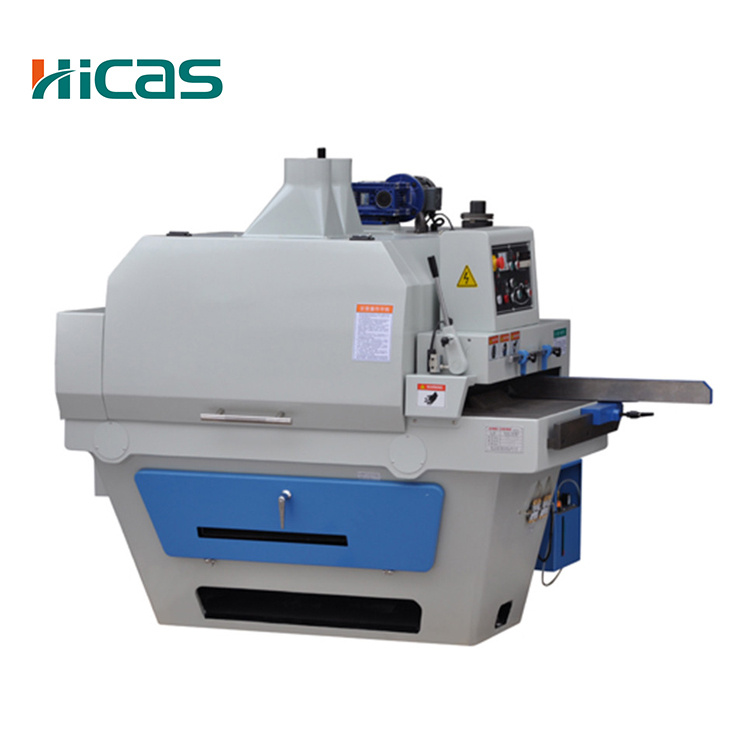

Woodworking Multi Blade Rip Saw
Max. Working Thickness | 120 mm |
Min. Working Thickness | 10 mm |
Min. Length Of Single Piece To Be Fed | 600 mm |
Min. Length Of Pieces To Be Continuously Fed | 300 mm |
Max. Working Thickness Of Press Plate For Short Piece | 95 mm |
Max. Working Width | 300 mm |
Distance From Post To The Middle Point Of Chain Blocks | 360 mm |
Max. Diameter Of Saw Blades | 380 mm |
Min. Diameter Of Saw Blades | 200 mm |
Bore Diameter Of Saw Blades | 70 mm |
Saw Spindle Diameter | 55 mm |
Saw Spindle Speed | 4000 rpm |
Saw Spindle Motor | 37 kw |
Feeding Motor | 2.2 kw |
Feeding Speed (Frequency Converter Control) | 4 - 30 m/min |
Press Roller Unit Elevating Motor | 0.37 kw |
Suction hoods diameter | 2×150 mm |
Dust suction system air need quantity | 3800m3/h |
Dust suction system air wind speed | 25~35m/s |
Work table height | 740 mm |
Work table size | 1735X760 mm |
Overall dimensions | 2200X1500X1580 mm |
Encasement dimensions | 1900x1600x1750mm |
Net weight | 2300kg |
Encasement weight | 2600kg |

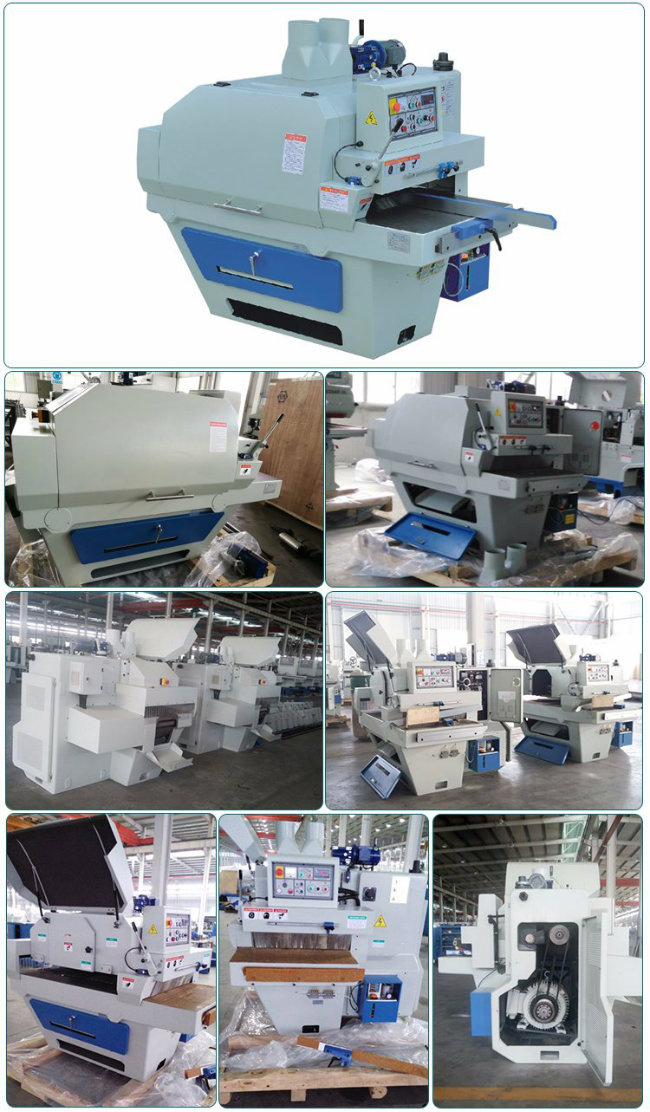

Machine's overviewWood multiple rip saw MJ143 main features:
1, Good stability and cushioning effect as the machine processing for case iron.
2, Best intensity and high precision as main spindles using special steel with good processing.
3, Easy structure and convenient maintain as using roller feeding system.
4, Best endurance as special processing for workbench.
5, High sensitive and safety as using French Schneider electric system with protection.
6, Smooth feeding and less maintain.

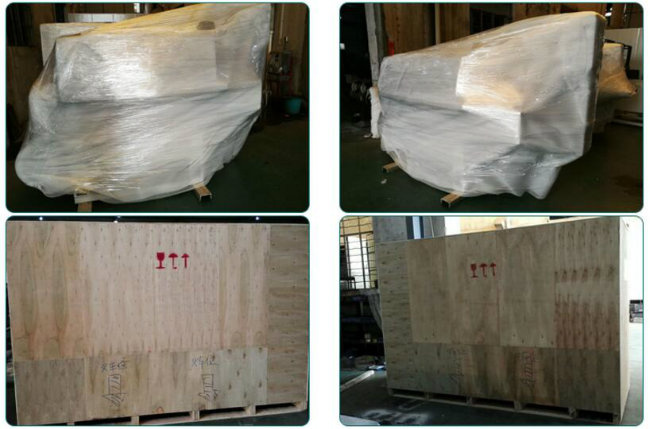

Machine's detailsPackage1.Packing details: Stretch film with wooden case or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
Quality Control:
1) During procurement, we have strict control about the quality of the spare parts.
2) Manufacturing period, we have QC department to monitor each step of production process by different testing tools and inspection forms.
3) Before shipment, we will test machine by different common materials, and make necessary adjustment and data record. Also we will take photos and some sampling videos for customers.
Warranty:
1.one years warranty for the whole machine; Lifetime Maintenance.
2.Within warranty period, any damage happens due to machine quality problems; we will be responsible for replacing parts for free, except regular consumables (such as cutting tools) and the damage by man-made irregular operating.
3.Customer has to pay the International Express cost and accommodation etc.
4.Warranty time starts after goods arrival in customer's site.
After-sales Service:
1. Guarantee long-term supply for spare parts; Unlimited Lifetime maintenance.
2. Offer life-time 24 hours online technical support for free. We can communicate by way of phone, e-mail, whatsapp, wechat, QQ, skype, etc.
3. Offer free training for operation & maintenance of equipment in our factory.
4. Offer On-Site paid service for machine installation and technical training. Customer need to pay visa application cost, air ticket cost, local hotel & food cost, and service cost is 100USD per day.
5. We will make return visit non-scheduled, in order to make assessment for after-sales service technician, make sure our service better and better.
