Prod Model: |
SW-400NC |
Type: |
Table Panel Saw |
Layout: |
Horizontal |
Controlling Mode: |
Artificial |
Automatic Grade: |
Semiautomatic |
Precision: |
High Precision |
Certification: |
TUV, Gmc |
Customized: |
Standard& Customized |
Product Description

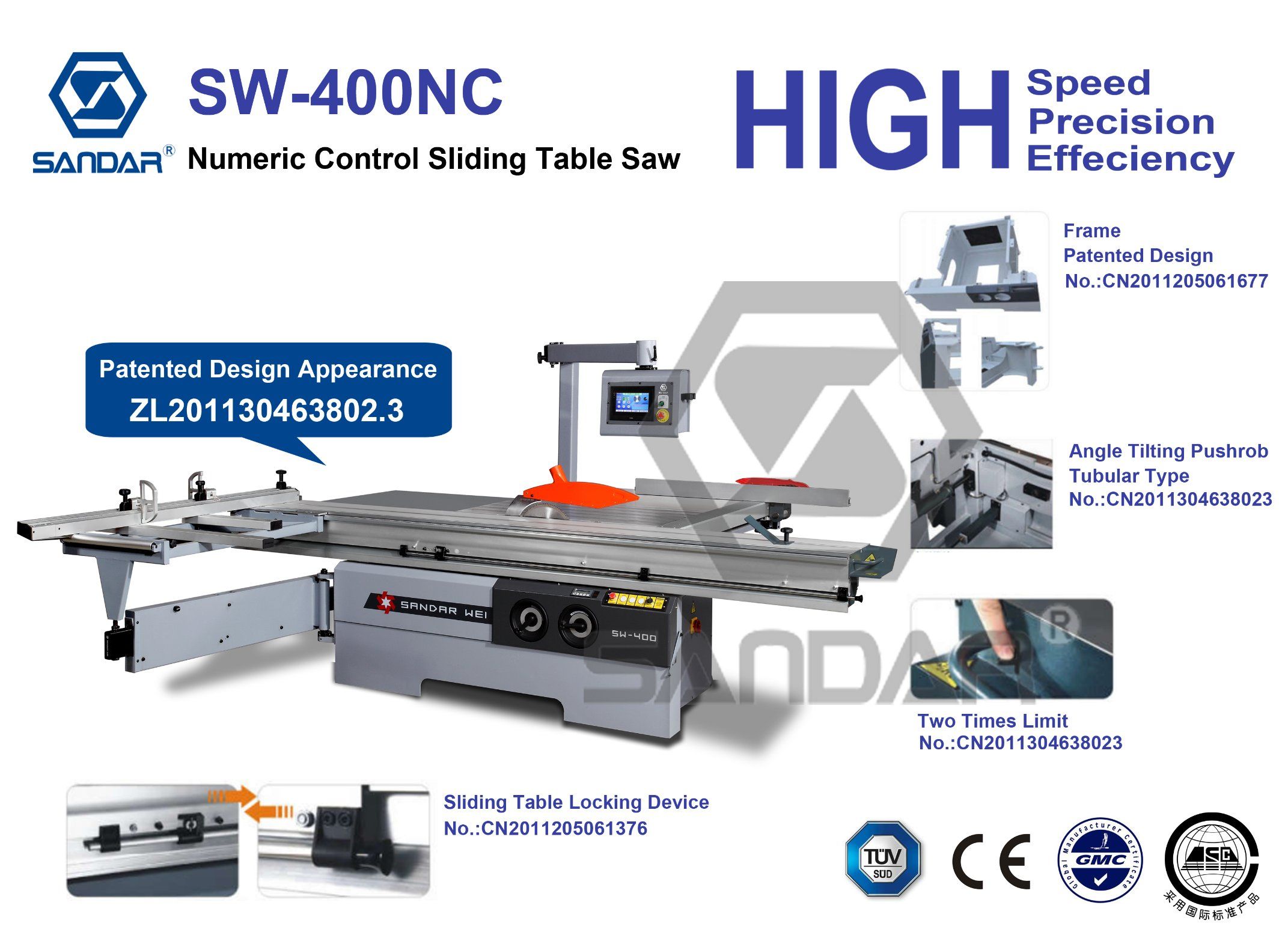

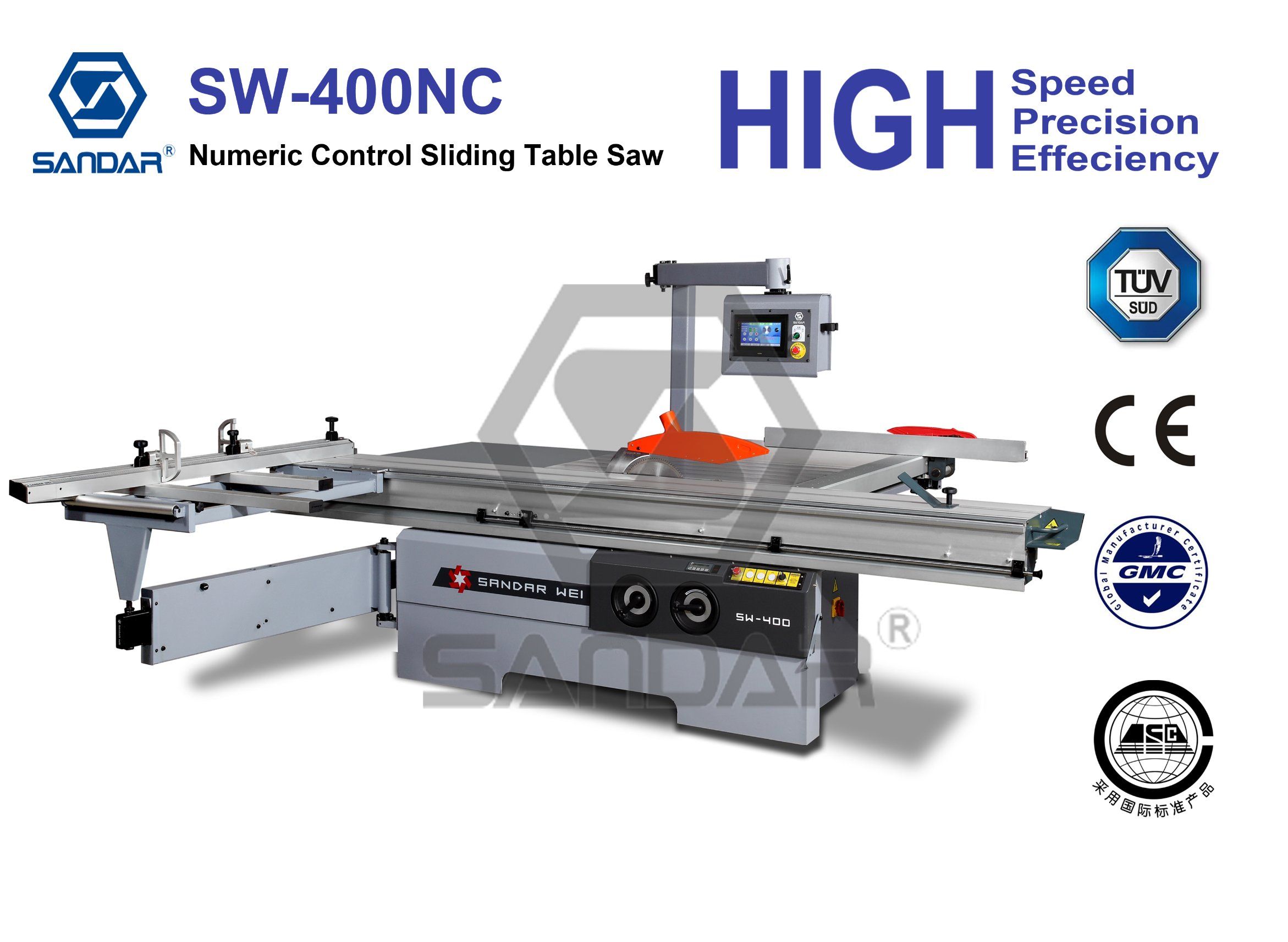

Model | SW-400NC |
Main Saw |
Motor power | 5.5KW |
Blade diameter | Φ250mm-φ400mm |
Bore diameter of blade | 30mm |
Inclination angle of blade | 0°-45° |
Spindle speed | 3000/4000/5000rpm |
Max.cutting height | 100mm |
Grooving Saw |
Motor power | 0.75kw |
Blade diameter | 120mm |
Bore diameter of blade | 22mm |
Spindle speed | 8000rpm |
Voltage | 380V/50HZ/3Phase |
Free strock of sliding table | 3000(3200/3800)mm |
Max.positioning size of rip cut baffle | 1200mm |
Max.positioning size of cross cut baffle | 3200mm |
Working table height | 860mm (optional 910mm) |
Installation dimension | 3130(3330/3930)*3220*860(910)mm |
Weight | 970kg |
Suction Device |
Upper connector diameter | 60mm |
Lower connector diameter | 120mm |
1.
About SANDARGuangdong SANDAR CNC Machinery Co., Ltd. founded in 1995. With more than
20 Years' experience on woodworking machinery industry, SANDAR has become one of the leading companies and most famous brand of woodworking machines in China.
2.
About SANDAR Sliding Table SawsSW-400 series sliding table saw is the only one that can reach the German standard around the whole China. Perfect performance of high precision cutting to all kinds of materials. SW-400 series sliding table saws have been obtained the Guangdong Innovative and High Technology Certification in 2012.
3.
SANDAR wood working machine series:·SKL series - CNC labeling & processing centers
·SK series - CNC panel saws
·SW series - Sliding table saws·SE series -Edge banding machines
·SKD series - CNC drilling machines
·DW series - Boring machines
4.

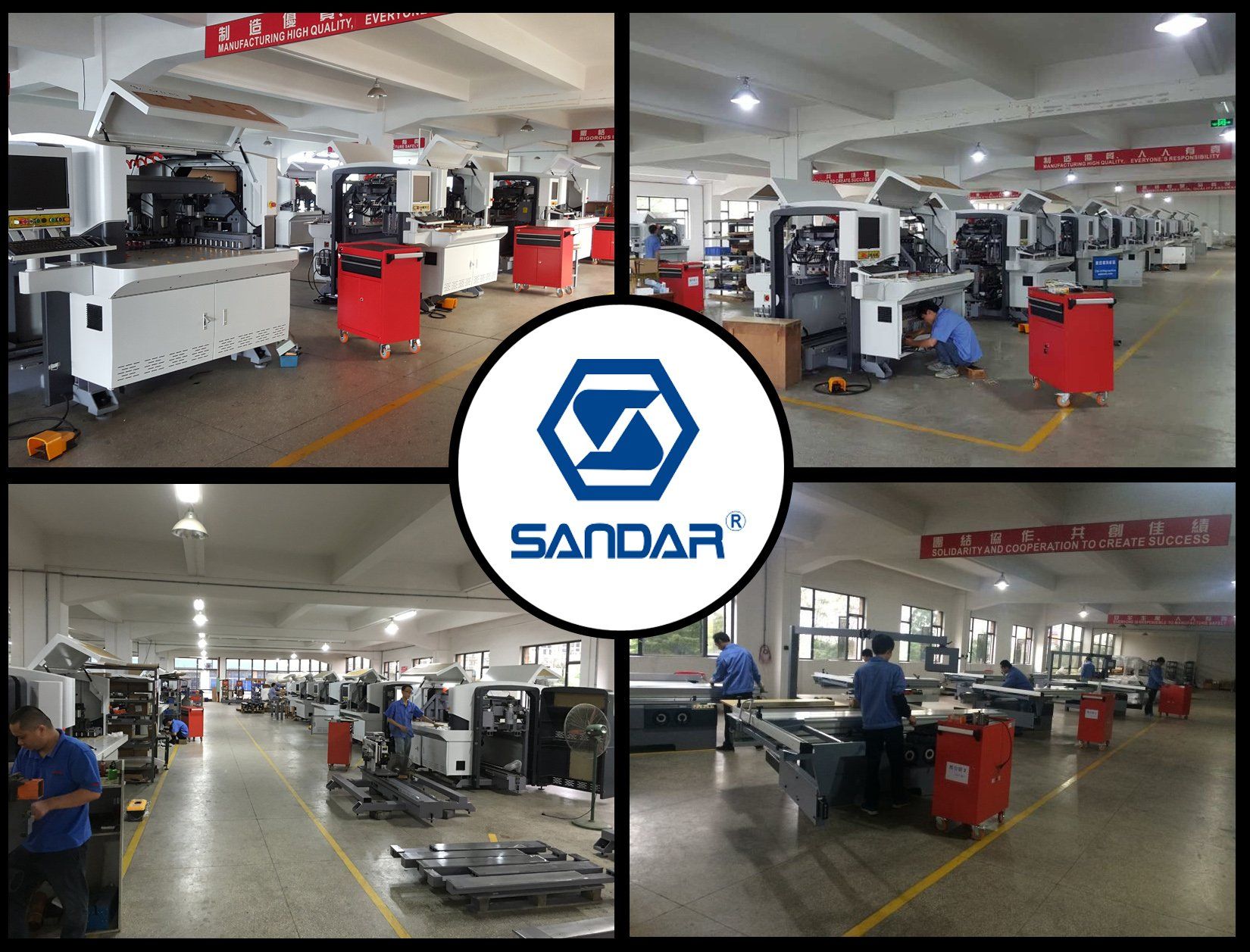

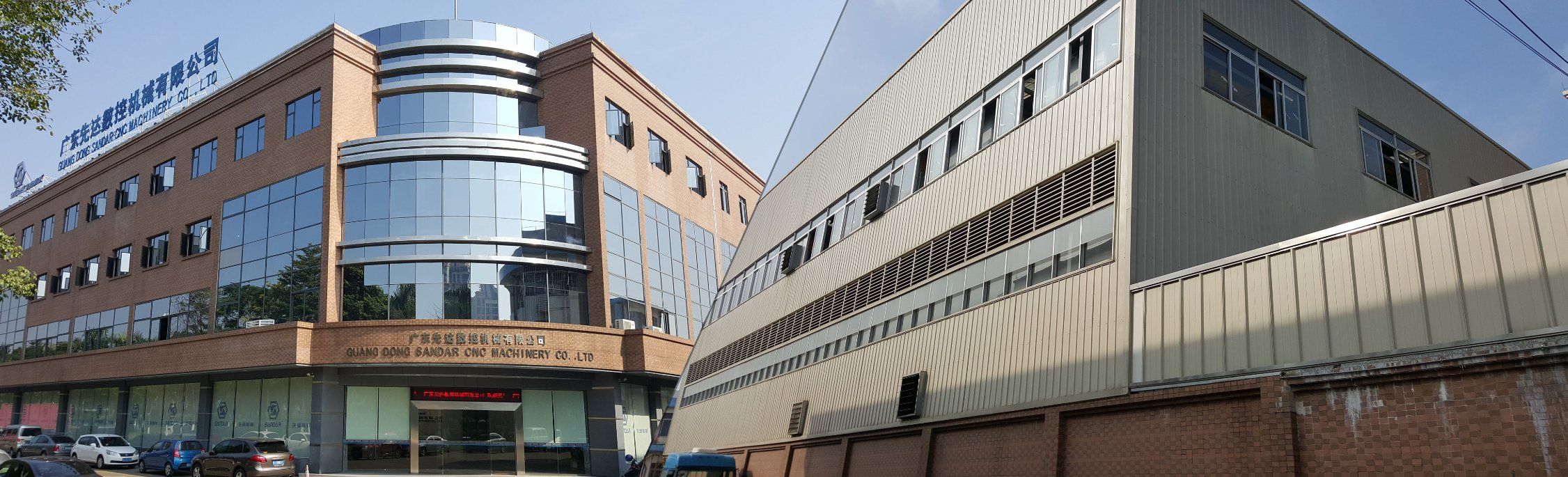

SANDAR factory5.
SANDAR processing6.

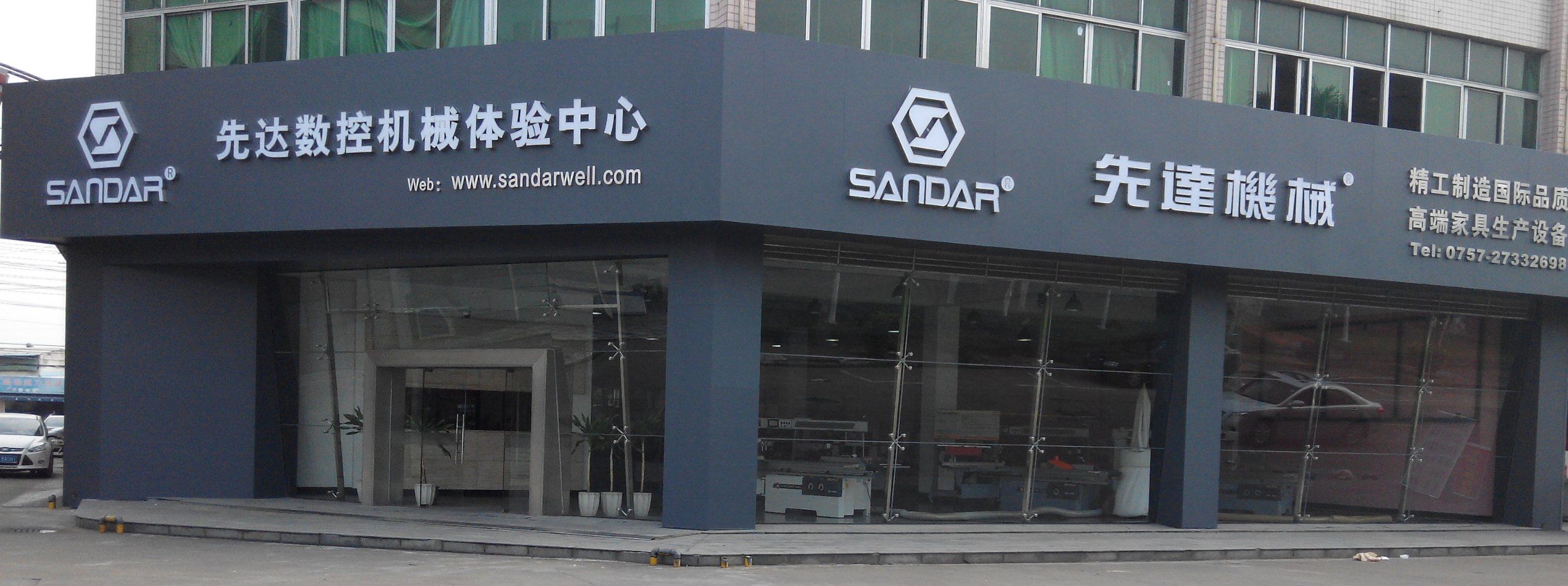

SANDAR showroom7.
SANDAR trade shows 8.
FAQWhy choose SANDAR?- 22 years' experience for woodworking machinery industry.
- Professional sales & technical team at your service.
- SANDAR specialized in providing whole plant equipment, fabrication, design for customers.
- Obtains and patent-pending 21 national technical patents of invention, practical, appearance and so on .
- SANDAR has been entitled National High-Tech Enterprise & 7th Chairman Enterprise of Lunjiao Woodworking Machinery Chamber of Commerce.
- Owned different certificates such as CE, TUV, ISO9001, etc.
Do you accept OEM orders?- Yes, we can make OEM for the machines according to your requests.
What is your warranty?- Quality: 100% brand new made in China, manufactured according to export.
What is the payment term if I placed orders to you?- Normally we will accept T/T or L/C. More details can be discussed case by case.
What is your lead time?- 25 to 35 days after received deposit. Special situation can be discussed case by case.
Where is your factory or showroom?- No.3 North Xingye Road, Beihai Industrial Park, Lunjiao Town, Shunde District, Foshan, Guangdong, P.R.China.
Guangdong Sandar CNC Machinery Co., Ltd. Established in 1995. Company mainly produces and operates production equipments for panel-type furniture. Main products of SANDAR are CNC woodworking machinery, which applied to the production and enterprises of customized panel-type furniture, such as, cabinet, wardrobe, office furniture etc.
SANDAR adopting international standard product manufacturing. Machinery are positioning in domestic high-end, superior quality, advanced technology and stable. At present, "SANDAR" products mainly includes SKL series CNC labeling&processing center, SK series CNC panel saws, SW-400 series sliding table saws, SE1, 2, 3 series edge banders, SKD series CNC drilling machine and DW series boring machines etc. With the experienced engineers and technicians, SANDAR specializd in providing whole plant equipment, fabrication, design for customers.
Certificates and honors:
- ISO9001: 2015 QMS Certification;
- Products achieved CE and TUV certifications;
- Obtains and patent-pending 21 national technical patents of invention, practical, appearance and so on.
- Adopting International Standard Product Marking;
- Guangdong high-tech product certification;
- Enterprise credit evaluation AAA credit enterprise;
- Quality brand of Chinese woodworking machinery industry;
- National high-tech enterprises;
- The 7th council president enterprise of Lunjiao Woodworking Machinery Chamber of Commerce;
- "Intelligent manufacturing benchmarking enterprise" certificate, "Golden award for science and technology innovation series" certificate, and "Silver award in intelligent mechanical equipment competition" certificate, which are issued separately from furniture equipment exhibition organizing committee of Guangzhou, Jiangxi and Qingdao.
The spirit of our manufacturing is " Innovation: Keep on learning, to surpass", while our management ideas are "integrity, quality, service and innovation
