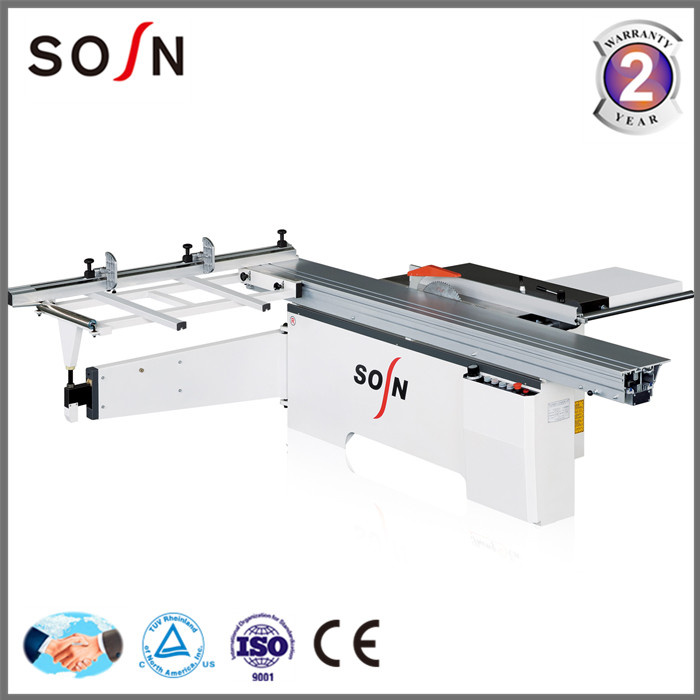

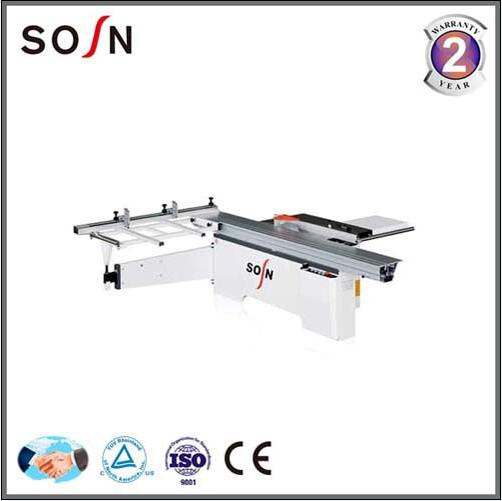

Woodworking Sliding Table Panel Saw with Scoring Saw (MJ6128D)
| Price: |
US $ 1000-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
MJ6128D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Mj6128d |
| Motor Power: |
5.5+1.1 Kw |
| Dimension Of Sliding Table: |
2800*375mm |
| Spindle Diameter: |
30+20 mm |
| Saw Type: |
Sliding Table Panel Saw |
| Brand: |
Sosn |
| Application: |
Wood Saw |
| Original: |
Qingdao |
| Warranty: |
2 Years |
| Voltage: |
220V,380V |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description
| Main technical parameter for MJ6128D |
| Dimension of sliding table | 2800x375mm |
| Gross cut capacity | 2800mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(250-300mm) |
| Height of cut (300mm) | 80mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 90° |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000rpm |
| Scoring saw diameter | 20mm |
| Scoring motor | 0.75kw |
| Weight | 750kg |
| Overall dimension | 2800x3150x900mm |
Apply to processing all kings of density boards, shaving boards, wood-based panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

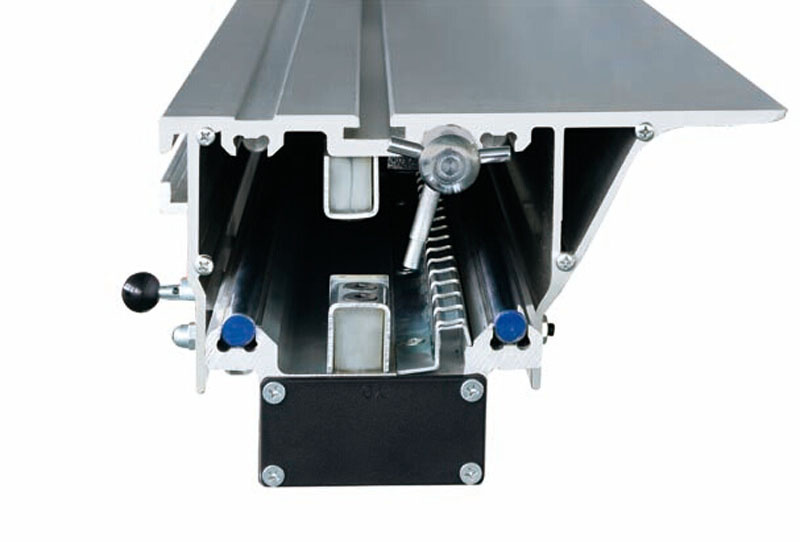

Movable table guide track is plating chromium steel bars structure, exact and durable.
Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
With oxidation treatment, movable table surface is beautiful and hardwearing.
Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.
FAQ
List some questions below we think you may want to know, if you have more doubts, we are right here to help you.1, What size of sliding table panel saw is right for me?---Standard length of the saw is 3200mm, 3000mm, 2800mm.Considering your own usage, you can know which size saw you need. Or we will recommend to you. 2, After knowing the size, then which model is right for me?---There are three main matters you need to consider, then we can know which model for you.---Firstly, the cutting angle, do you need tiliting 0-45 degree(0 degree is just 90 degree), or fixed 90 degree?
If tilting, you prefer electric tilting or manual tilting?3, After knowing the right model saw, then what's your price?---Price depends on the components is imported or Made-In-China, usually we recommend imported world famous components, because once they are broken, you can buy in your side easily.4, What's your warranty?---In 24 months.5, What's youe lead time?---In 25 working days.6, What's your delivery term?---FOB Qingdao China usually7, What's your payment term?---30% T/T deposit, balance T/T payable before delivery after inspection.8, What's the HS code of sliding table panel saw?---In China it is 8465910000. If any question , please feel free to contact with us

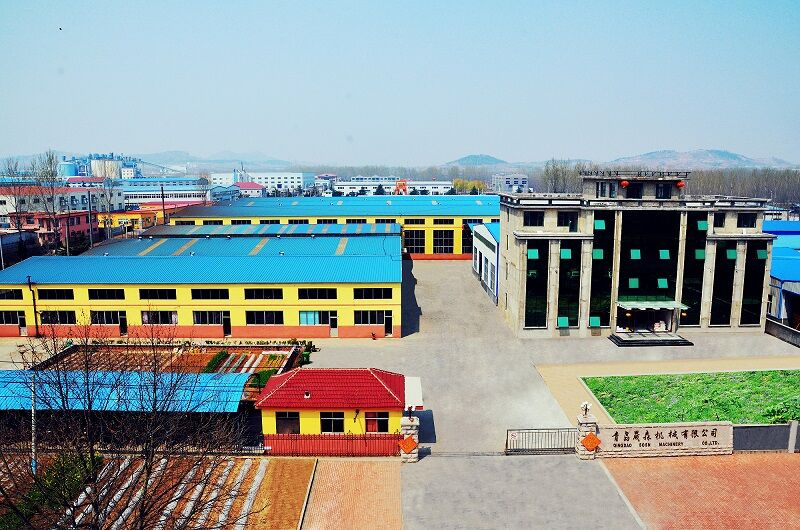

Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
