| Prod Model: |
MJ6132 |
| Dimension Of Sliding Table: |
3200*370 mm |
| Max Cutting Length: |
3200mm |
| Max Cutting Width: |
1250 |
| Tilting Saw Group: |
45-90 Degree |
| Max Cutting Thickness: |
80mm |
| Main Saw Motor Power: |
5.5kw |
| Scoring Saw Power: |
1.1kw |
| Diameter Of Main Saw Blade: |
300mm |
| Diameter Of Scoring Saw Blade: |
120mm |
| 45 Degree Cutting Thickness: |
56mm |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Automatic |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description

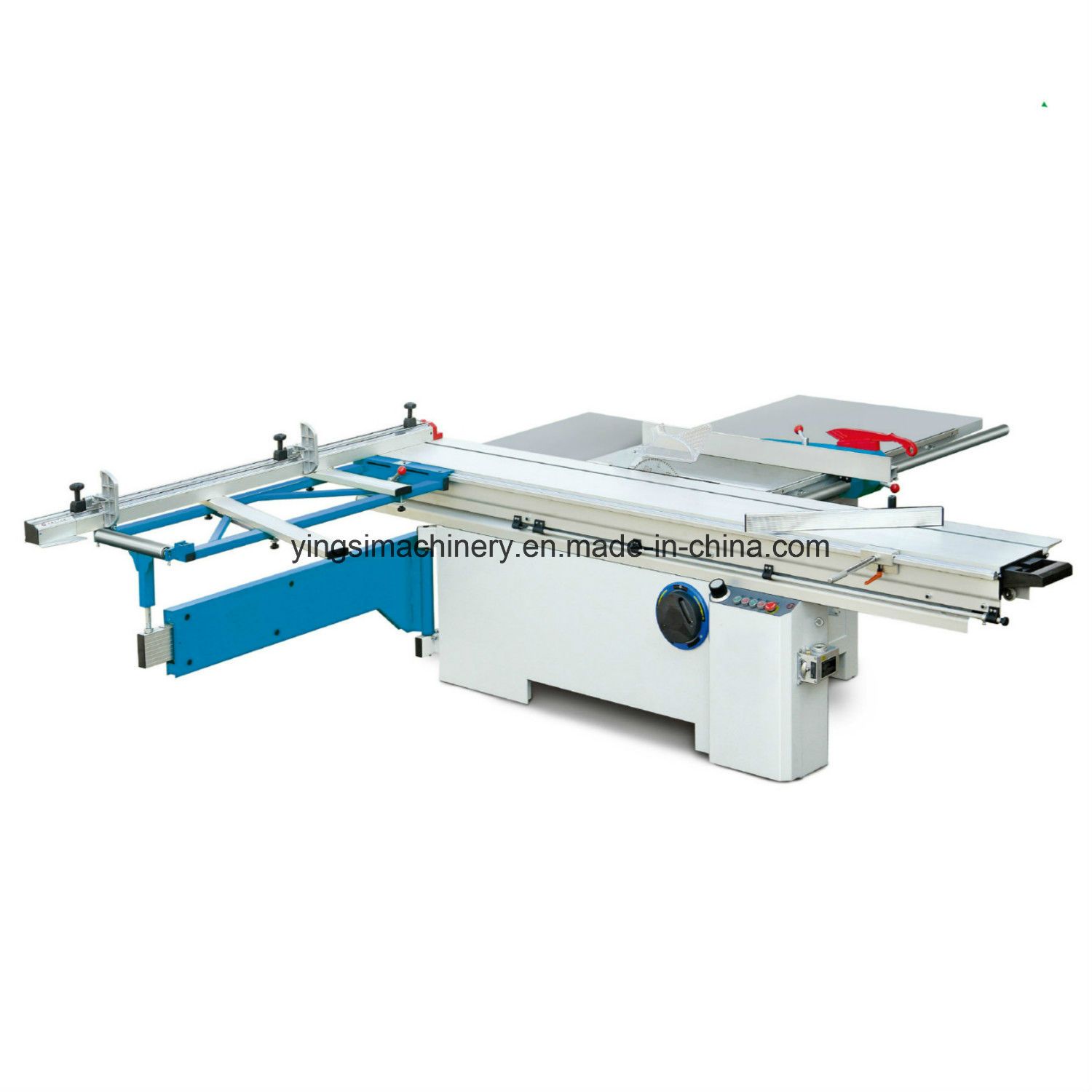

Woodworking Sliding table saw
Precise panel saw used for cutting a variety of MDF, particleboards, wood-based panels, ABS boards, PVC boards, organic glass plates and solid wood and other wood similar to the hardness of the plate. Product Show
Technical Parameter| Dimension of sliding table | 3200×370 mm |
| Width of cut between saw blade and rip fence | 1250 mm |
| Diameter of main saw blade | 300 mm |
| Main spindle diameter | 30 mm |
| Speed of main saw spindle | 4000/6000 r. P. M |
| Diameter of scoring saw blade | 120 mm |
| Scoring saw spindle diameter | 20 mm |
| Speed of scoring saw spindle | 8000 r. P. M |
| Tilting saw group | 45° - 90° |
| Max cutting height ( 90°) | 80 mm |
| Max cutting height ( 45°) | 56 mm |
| Main saw motor power | 5.5 kw |
| Scoring saw motor power | 1.1 kw |
| Weight | 800 kg |
| Overall Dimension | 3200×3150×900 mm |

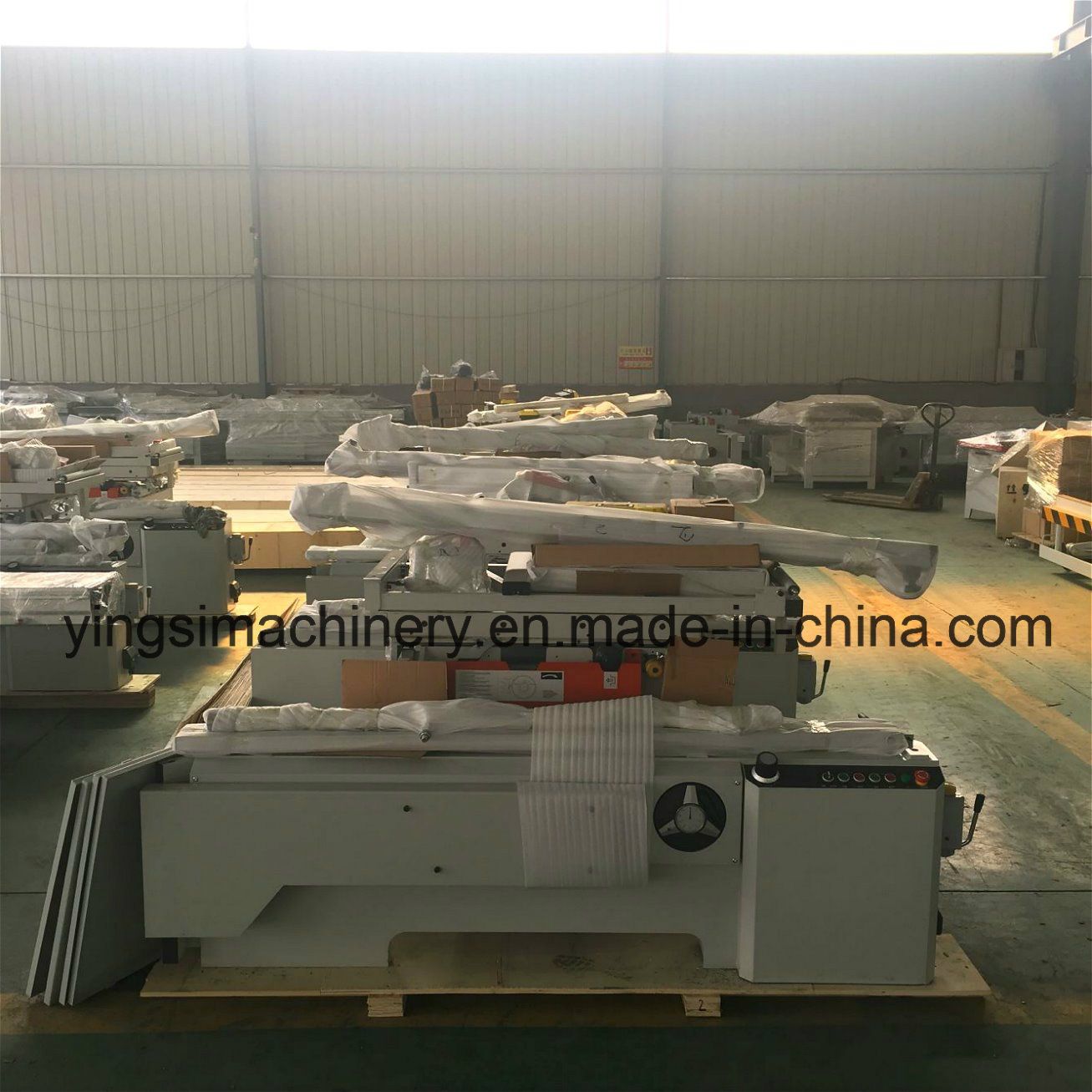

Packing and DeliveryPackage: Plywood case
Shipment: Within 10 days after receiving paid
Our CompanyOur company located in beautiful seashore city Qingdao, it is the leading manufacturer that makes mechanical equipment. The enterprise-like corporation taking hi-tech industry as direction, the company has production woodworking machinery experience for more than 20 Years.
Company's research and development strength is rich, have more than 30 people's professional research and development teams, have full range of testing lines and pipelining, and four professional production lines for machinery manufacture. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
As the domestic famous mechanical manufacturing company, our company passes the informazation to machine-building of tradition, intelligent transformation, finish upgrading of product in time, won the majority of customer support. We have kept the lasting competitiveness in the manufacturing field of mechanical equipment. We sell to all parts of China and export to Southeast Asian, Western Europe, North America, Russia, Africa etc more than 20 countries and regions.
