X348, X458, X678, 689, 9118 Drop Forged Link Chains for Conveyor Machine
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
X348 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Pitch: |
76.60mm |
| Pin Diameter: |
12.70mm |
| Pin Length: |
47.00mm |
| Side Corner: |
9 Degree |
| Sidebar Width: |
27.00mm |
| Tensile Strength: |
98.00kn |
| Inside Link Thickness: |
0.75inch |
| Another Inside Link Thickness: |
0.50inch |
| Sidebar Height: |
1.09inch |
| Surface Treatment: |
Shop Peening |
| Chain Size: |
76.60inch |
Product Description

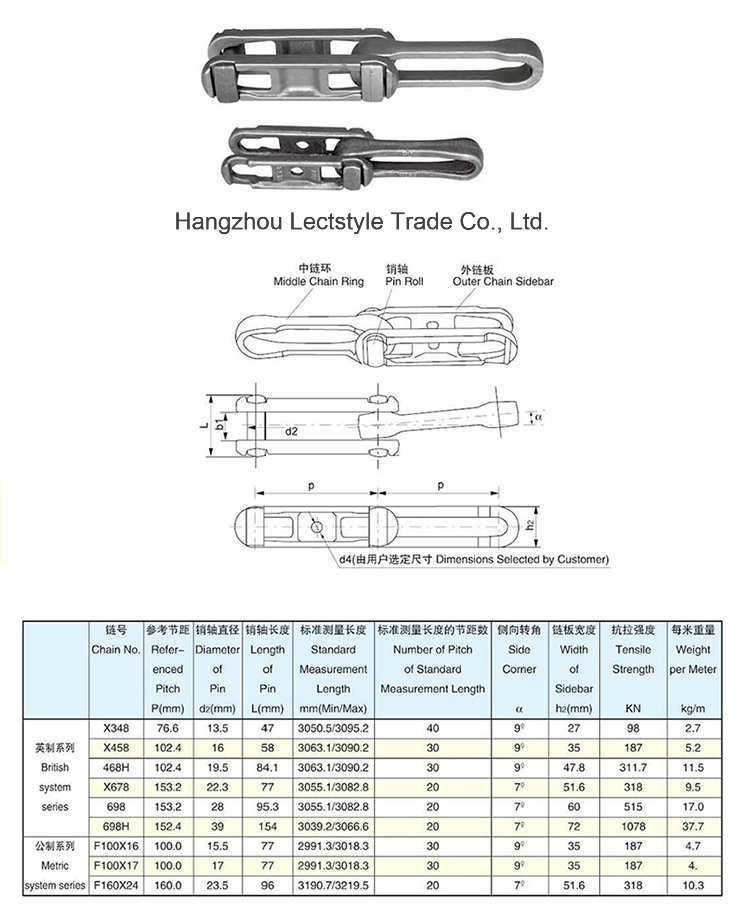

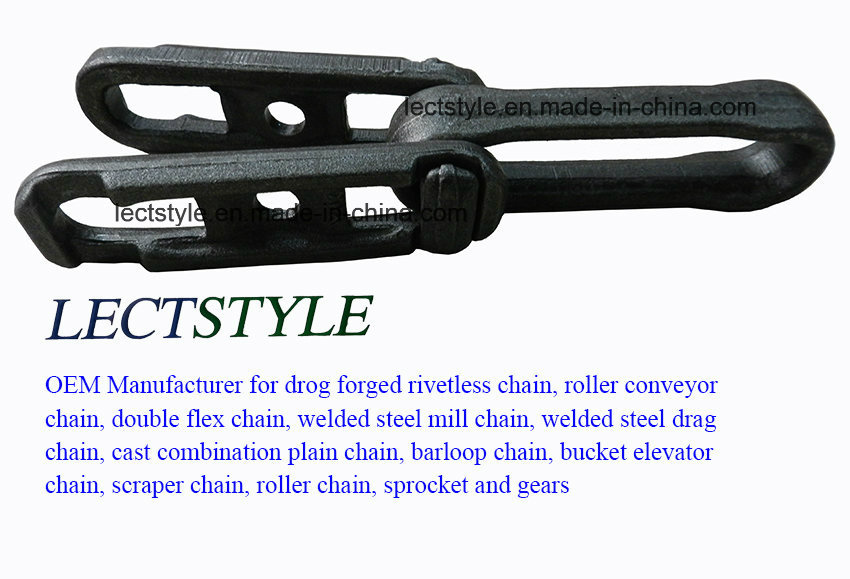

Drop Forged Link Chain and Conveyor Chain are fabricated, with alloy steel according to your requirement| Drop Forged Rivetless Chain |
| Chain No. | Pitch | Pin diameter | Pin length | side corner | sidebar width | Ultimate tensile strength |
| P (mm) | d 2(mm) | L(mm) | α° | h2(mm) | kn |
| X348 | 76.6 | 12.7 | 47 | 9 | 27 | 98 |
| X458 | 102.4 | 16 | 58 | 9 | 35 | 187 |
| X678 | 153.2 | 22.3 | 77 | 7 | 51.6 | 318 |
| 698 | 153.2 | 28 | 95.3 | 7 | 60 | 515 |
| 9118 | 229.3874 | 35.052 | 123.952 | 7 | 76.2 | 567 |
1, Chain types: Roller Chain, conveyor chain, transmission chain, motorcycle roller chain, silent chains, oil pump chains, weld steel drag chains, plastic chains etc;
2, Main materials: It is 40Mn. 40Cr, 45Mn alloy steel, SUS304, and POM Plastic for plates, 10#, 20#, 20CrMnMo, 30CrMnTi for pins and rollers;
3, Heat treatment: Carburizing, Austemper Stressing, nitro-caburizing harden etc;
4, Surface: Shot peening, black, blue or original;
5, Package way: Plastic bag+ carton box+ plywood case
We are a leading manufacturer of mechanical transmission spare parts, as well as several years one of reliable and trustworthy vendors for European, America, Iran market etc. Our main items are roller chains, conveyor chains, transmission chain, pulleys, V-belts, sprockets, spur gears, bevel gear, gear shafts, roller bearings, rollers, conveyor belts etc.
At present, For South American, European, and Asian market, our superior products are fabricated according to your requirement and our quality meets ISO, ASME, DIN standard.
I hope we can do business together, and look forward to hearing from you soon
About us
Our HANGZHOU LECTSTYLE TRADE Co., Ltd is one reliable OEM supplier, we have own chain factory, motor factory and export trade company to support our job, some spare parts are from our long cooperated suppliers, these quality parts are repeatedly proven and tested in-factory, so donot worry about our capacity.
Our main supplied products as below:
1. DC Motors, windshield wiper motor, wheelchair motor, dump truck tarp motor, wind turbine generator and planetary reducer
2. Transmission parts (roller chain, agricultural roller chain, conveyor chain, silent chain, sprocket, spur gear, transmission gear, gear shaft etc).
Our company is qualified with integrally mechatronic abilities of design, manufacture and testing. In these years of production process, throught constant practice, experiment and research, we have collected a large amount of data and accumulated rich experience. Through these, our plant created a various of advanced production process documents, quality standard and inspection process documents, which guarantee the product's production process of each contact completely in according to one standard control.
Our LECTSTYLE always adhere to the "Ensuring quality, Persisting improvement, Pursuiting customer satisfaction" principle, to provide the best products for the domestic and foreign clients with the pre-sales and after-sales service.
In the pages, you will find some samples of the thousands of parts, products, and components that LECTSTYLE supervises the fabrication in our own and cooperated factory. It's really best to contact us directly, so the LECTSTYLE can address your project and structure all elements of a complete end to end solution that can get your job done right.
