| Price: | US $ 200-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | FY-XLCT |
|---|---|
| Bolt Diameter: | 18-110mm |
| Color: | Customers' Requests |
| Screw Size: | 27-155mm |
| Weight: | 2.4-30.9kg |
| Torque: | 180-41880nm |

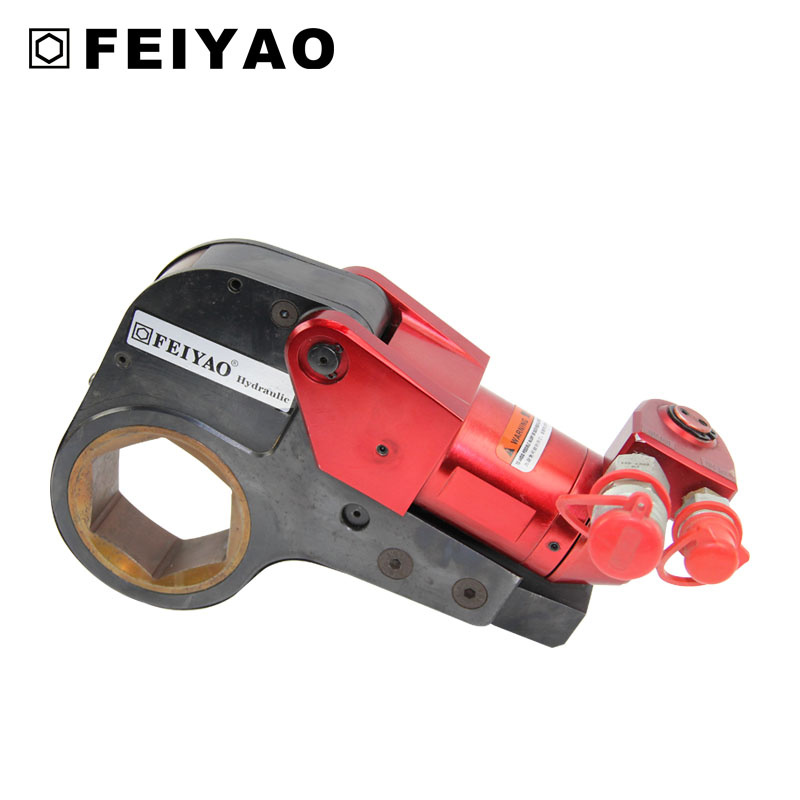

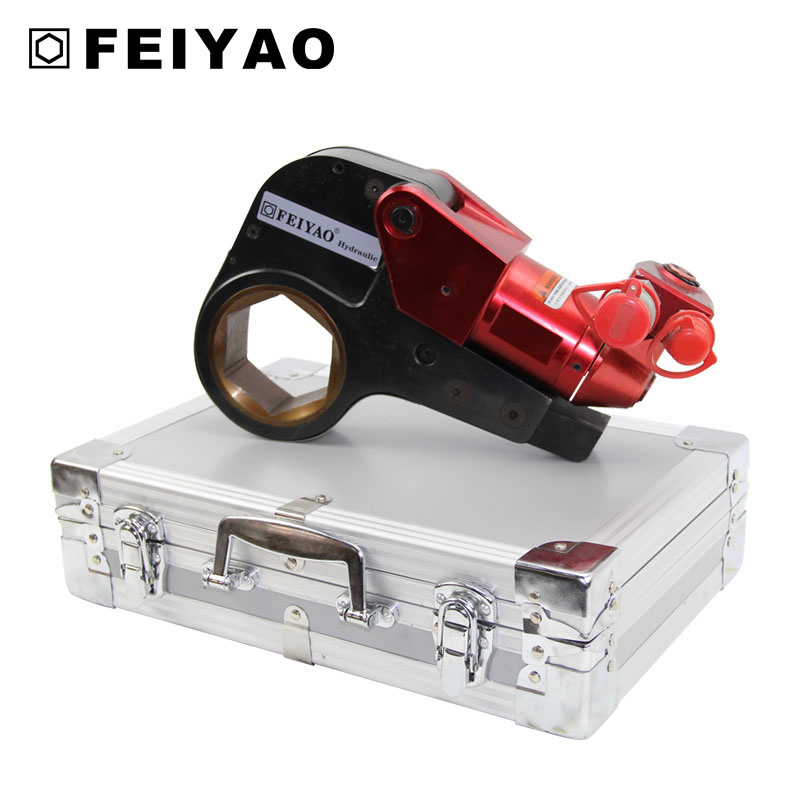

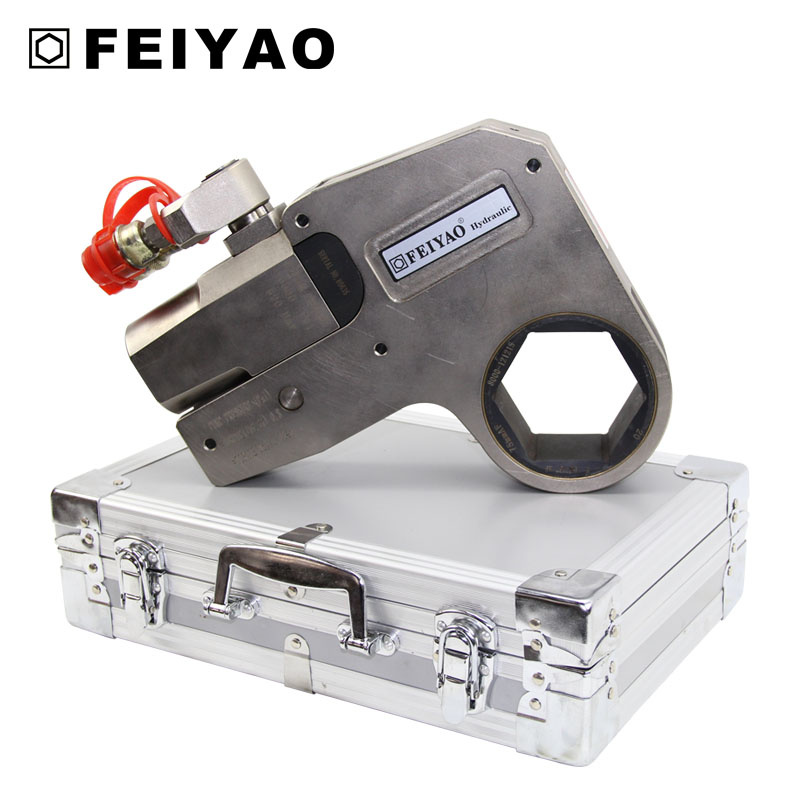

| Name: | Xlct Series Low Profile Hydraulic Hexagon Wrench |
| Bolt Diameter M(mm): | 18-110 |
| Weight(Kg): | 2.4-30.9 |
| H2(mm): | 102-272 |
| Rotary Head Model: | 2xlct.4xlct.8xlct.14xlct.18xlct |
| Type: | Hex Wrench |
| Material: | Alloy Steel |
| Standard: | Metric |
| Feature: | Ordinary |
| Brand: | Feiyao |
| Working Mode: | Hydraulic Automatic |
Features
1.Very high torque-to-weight ratio
2.High speed,double acting operation
3.High degree of rotation angle
4.Never-jam mechanism
5.High repeatability,with accuracy ±3%
6.Slim nose radius and 360 degree swivel hose connection allow easier positioning in confined areas
7.Few moving parts means durability and low maintenance
8.Push button drive release;no tools needed to reverse square or allen key drives for tighening or loosening
Feiyao offers a variety of controlled tightening tools to best meet the requirements of your application. From mechanical torque multipliers to hydraulically driven square drive wrenches, and low profile torque wrenches. We offer the hydraulic torque tools you need for accurate and simultaneous tightening of multiple bolts
Low profile hydraulic hexagon wrench used in all industries in confined areas.
Specifications for low profile hydraulic torque wrench:
| Model | FY-2XLCT | FY-4XLCT | FY-8XLCT | FY-14XLCT | FY-18XLCT | FY-30XLCT |
Torque (Nm) | 180~1866 | 440~5328 | 892~ 10168 | 1558~ 17640 | 2430~ 23708 | 3528~ 41880 |
| Bolt size(mm) | 18-33 | 18-42 | 33-60 | 42-80 | 48-95 | 52-110 |
| Nut hex(mm) | 27~50 | 27~65 | 50~90 | 65~115 | 75~135 | 80~155 |
| Power head | 2XLCT | 4XLCT | 8XLCT | 14XLCT | 18XLCT | 30XLCT |
| Link | 2XLCTA-50 | 4XLCTA-65 | 8XLCTA-90 | 14XLCTA-115 | 18XLCTA-135 | 30XLCTA- |
| Weight(Kg) | 2.4 | 5.0 | 9.3 | 16.9 | 18.6 | 30.9 |

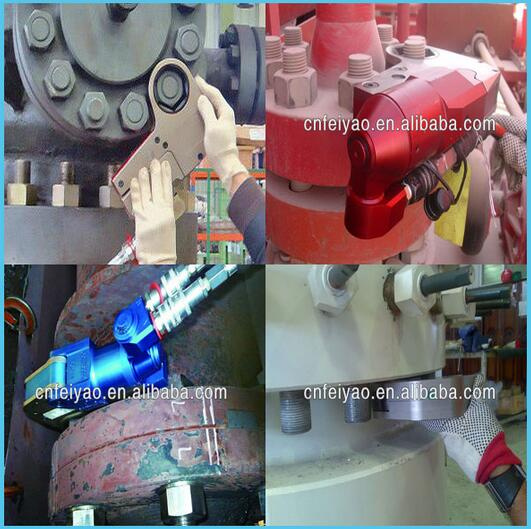

Application of hydraulic wrench
Brief introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.

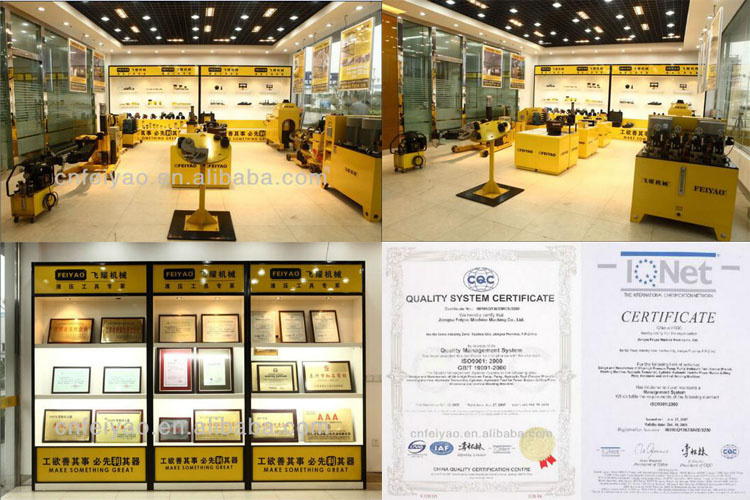

Showroom&Certification

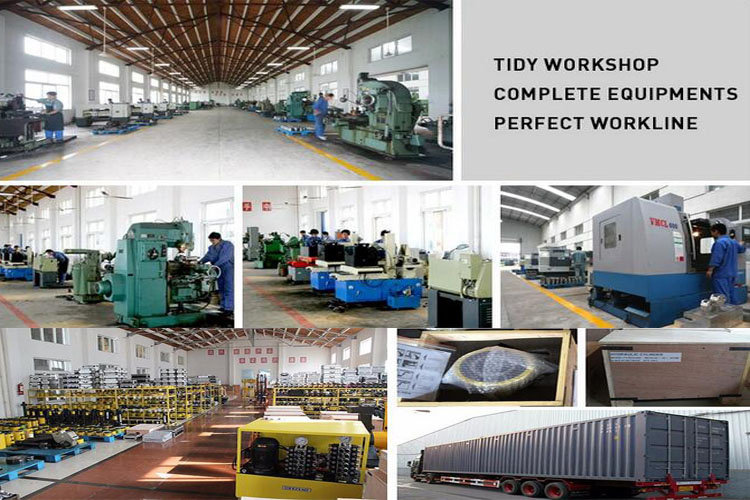

Factory Show & Packaging&shipping
For more information please visit our website:www.fyhydraulic.cn
We are professional manufacturer, offer you competitive price.
If you have any questions about these products , please contact us ,we will try our best to help you !
