| Prod Model: |
XQL-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Version: |
Xql-120 |
| Quality Guarantee: |
Two Years Life |
| Colour: |
blue or as Per Customer's Requirements |
| Advantage1: |
High Working Pressure |
| Advantage2: |
High Producing Efficiency |
| Type Of General Rubber Machinery: |
Rubber Cutter |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Certification: |
Ce, ISO, SGS |
| Weight: |
<50 Tons |
| Power: |
<10kw |
Product Description

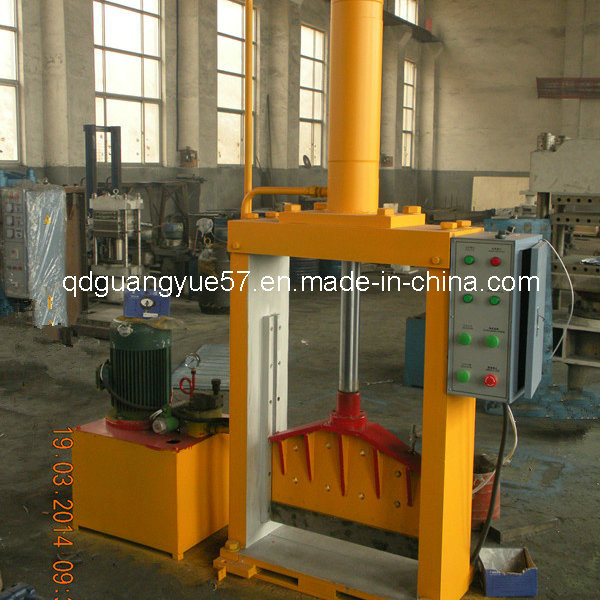

Rubber sheet cutting machine
1. Mainly uses
The bale cutter is mainly used to cut natural rubber, synthetic rubber, and other plastics materials, especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber.
The cutter is matched with working track, which makes rubber feeding much more convenient
2. Structure
This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.
When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.
Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder
3. Characteristics:
1) Low noise
2. )Constant temperature
3. )Automatic pressure mataining and pressure supplement
4. )It has solid construction, reasonable design, high production efficiency, easy operation.
5. )Cutting knife is controlled by hydraulic system, and reciprocating motion.
6. )CE standard ISO9001 certified
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to our factory to visit and inspect.
| Type | XQL-80 | XQL-120 | XQL-125 |
cutter width (mm) | 660 | 760 | 760 |
cutter Stroke (mm) | 680 | 680 | 680 |
Total Pressure of cylinder(KN) | 80 | 120 | 125 |
Time taken by of stroke (S) | 14-16 | 13-16 | 13-16 |
Motor Power(kw) | 5.5 | 11 | 14 |
Overall Size (LxWxH) mm | 2122x1440x2509 | 1950x1400x2338 | 2300x1500x2530 |
Weight (kg) | 1600 | 2000 | 2600 |
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
