Home Toolbuy Products Xyj12038 High Power Machine AC Cooling Fan Approved with Ce, RoHS, UL Certification
Xyj12038 High Power Machine AC Cooling Fan Approved with Ce, RoHS, UL Certification
| Price: |
US $ 2.83-5.67/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
12038 |
| Dimension: |
120*120*38mm |
| Voltage: |
110V/120V 220V/240V 380V |
| Current: |
0.09/0.08A 0.14/0.13A 0.28/0.26A |
| Bearing Type: |
Ball/ Sleeve Bearing |
| Speed: |
2700/3100rpm |
| Air Flow: |
81/91cfm |
| Static Pressure: |
4.68/7.83mmh2o |
| Noise: |
43/48dba |
| Weight: |
505.00g |
| Certifacate: |
Ce/ RoHS/ ISO9001 |
| Material: |
Stainless Steel |
| Usage: |
for Refrigerate |
| Flow Direction: |
Centrifugal |
| Pressure: |
High Pressure |
| Certification: |
CE |
Product Description
Specification : | Model | Rated Voltage
(VDC) | Frequency
(VDC) | Current Amp (A) | Speed
(rpm) | Air flow
(CFM) | Static Pressure
(Inch-H2O) | Noise Level
(dB-A) | Weight
(g) |
| 12038S | 110/120 | 50/60 | 0.28/0.26 | 2700/3100 | 81/91 | 4.68/7.83 | 43/48 | 505.00 |
| 12038B | 110/120 | 50/60 | 0.28/0.26 | 2700/3100 | 81/91 | 4.68/7.83 | 43/48 | 505.00 |
| 12038S | 220/240 | 50/60 | 0.14/0.13 | 2700/3100 | 81/91 | 4.68/7.83 | 43/48 | 505.00 |
| 12038B | 220/240 | 50/60 | 0.14/0.13 | 2700/3100 | 81/91 | 4.68/7.83 | 43/48 | 505.00 |
| 12038S | 380 | 50/60 | 0.09/0.08 | 2700/3100 | 81/91 | 4.68/7.83 | 43/48 | 505.00 |
| 12038B | 380 | 50/60 | 0.09/0.08 | 2700/3100 | 81/91 | 4.68/7.83 | 43/48 | 505.00 |

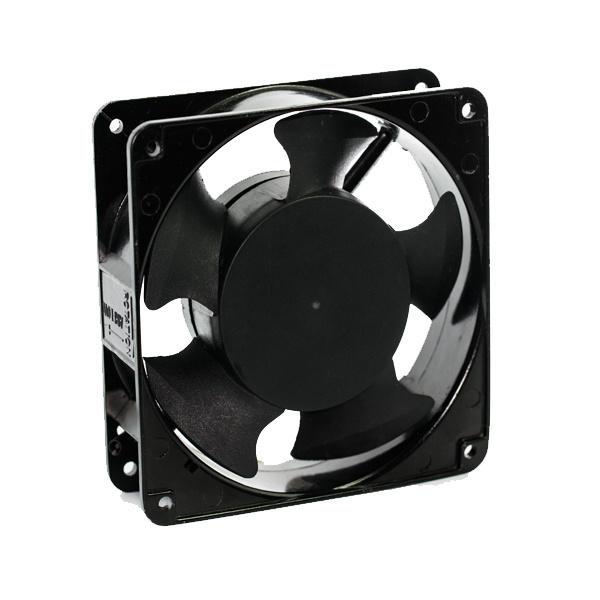

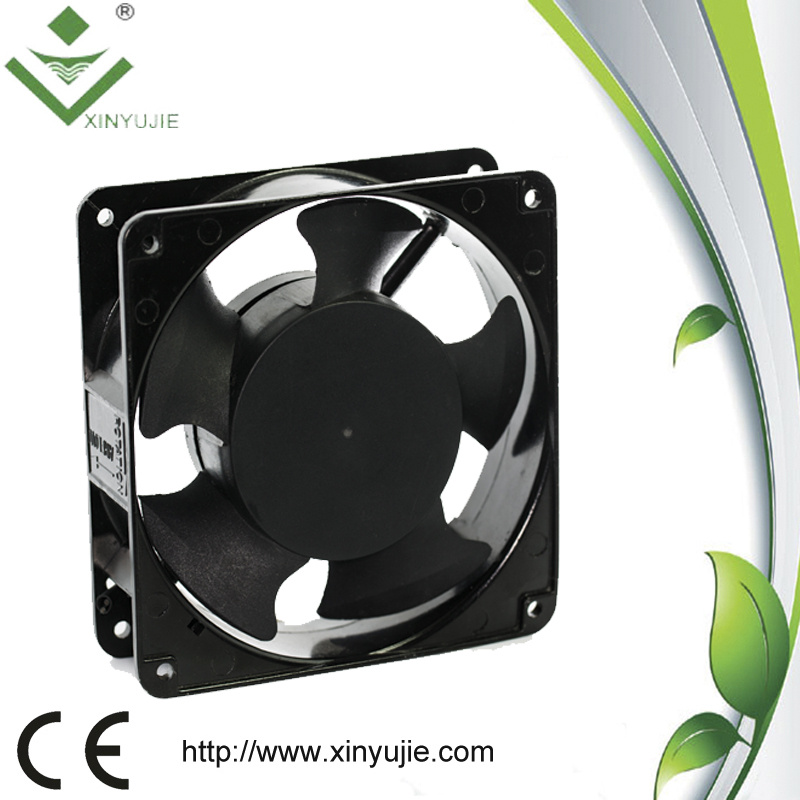

Product Images :
Use Environment :| Operating Voltage | 110V~380V |
| Operating Temperature/ Humidity | 10ºC~70ºC 35%~85%RH |
| Storage Temperature/ Humidity | -40ºC~80ºC 35%~85%RH |

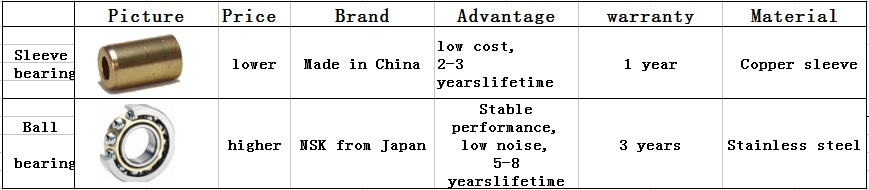

Difference between ball bearing and sleeve bearing:

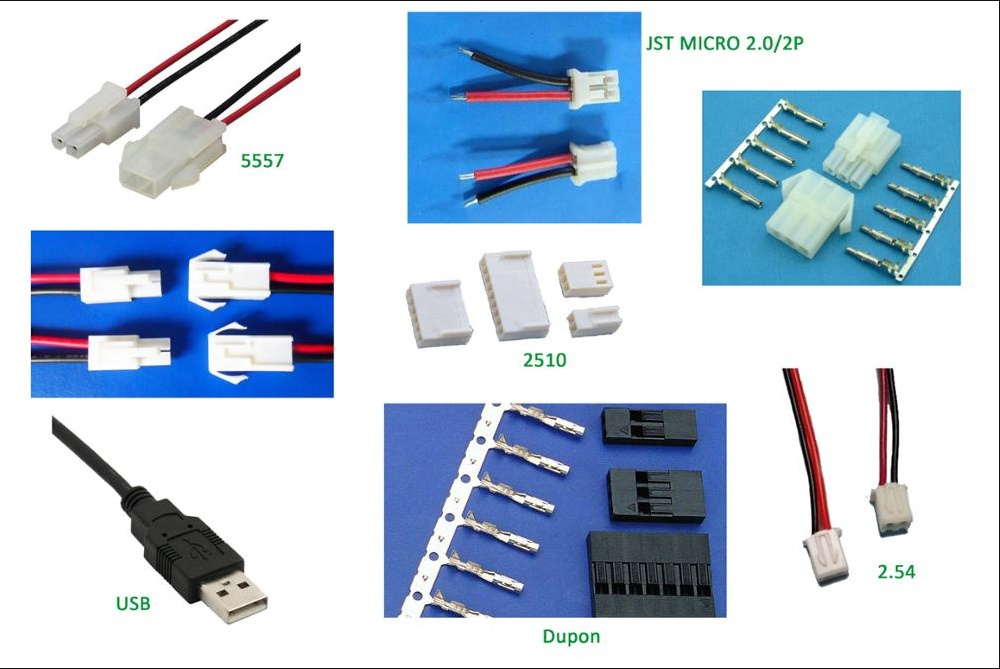

Optional Function : 1.Waterproof Level: IPX5~IP67, fans could be work in wet environment, outdoor or under water with waterproof protection. 2.Wire leading: 2 wires(red wire:positive;black wire:negative)
3 wires(red :positive;black :negative;yellow: PWM) 4 wires(red :positive;black :negative;Yellow :PWM;white:FG) 3.Additional function: auto-restart, temperature control speed, speed detection, stppage alarm, waterproof etc. 4. We default 220mm wire length without connector, could be customized as your request. we just need the picture of connector and rank of wires for confirm.

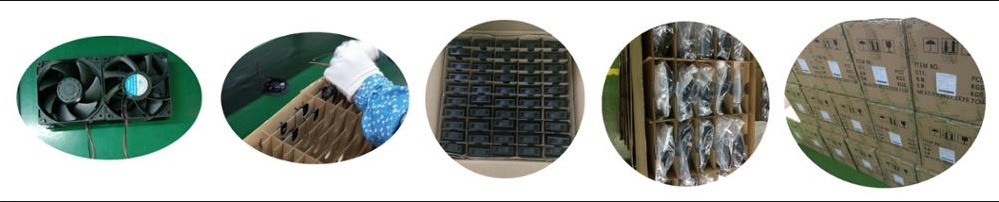

Packaging & ShippingPacking:
Lead Time:1. Samples:3-7days2. Mass production:10-15 working days3. Waterproof fan need 1 more week Shipping :
FAQQ1: What kinds of products supplied by your factory?A1: we provide DC cooling fan,DC blower fan,AC cooling fan and EC cooling fan.Q2: What's your payment terms?(Payment terms)A2: Payment by T/T , Western Union or Paypal . 100% payment for sample orders . 30% deposit and 70% balance before shipment .Q3: How long is your warranty period?A3: 3 years warranty for ball bearing fans 2 years warranty for hydraumatic bearing fans 1 year warranty for sleeve bearing fansCompany InformationCertification :
Company Profile:a. We are an enterprise specialized in developing and producing AC/DC/EC cooling fans.b. It is applies to armamentarium, communication device, big server machine, security and protection monitoring, professional power amplifier, indoor air ventilation, instrument and equipment etc. c. We have owned professional R&D department, and we have dozens of patents of utility model and designs.d. We have full series dimension ranging from 25*25*7mm to 172*172*51mm, including sleeve bearing, ball bearing, hydraulic bearing, and the current amp, rated voltage. Speed, air flow can all be customized.
shenzhen xinyujie technology Co., Ltd was established in 2006. we specialized in developing and producing AC/DC/ec cooling fans. our products involving multiple fields such as armamentarium, communication device, big server machine, security and protection monitoring, professional air amplifier, indoor air ventilation, instrument and equipment etc.
our staff member adhere to the principle "the best quality, the best service", and won a good reputation among our industry, suppliers, customers...at present, we have two hundred employees, and the annual production is more than 20 million.
xinyujie fans have full series dimension ranging from 25X25X07mm to 172X172X51mm, including skeeve bearing, ball bearing, hydraulic bearing, and the current AMP, rated voltage, speed, air flow can all be customized. and our fans can be added additional function: auto restart, temperature control speed, speed detection(fg), stppage alarm(rd), waterproof etc.
xinyujie got an excellent R&D department, they developed several cooling fans collection-DC cooling fans, AC cooling fans, blower fans, chip cooling and cooling module for the solution of cooling system. we have dozens of patents of utility model and designs, for example: ec cooling fans module. it contains an isolaation type AC-DC converters can adjust the voltage from high to low based on the type of fans. the DC motor speed will change the wind power which can lead to higher speed and air flow. make the fan produces maximum air volume to reduce interntional heat resistance.
